Toggle-action Latch
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Outdoor & Garden
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

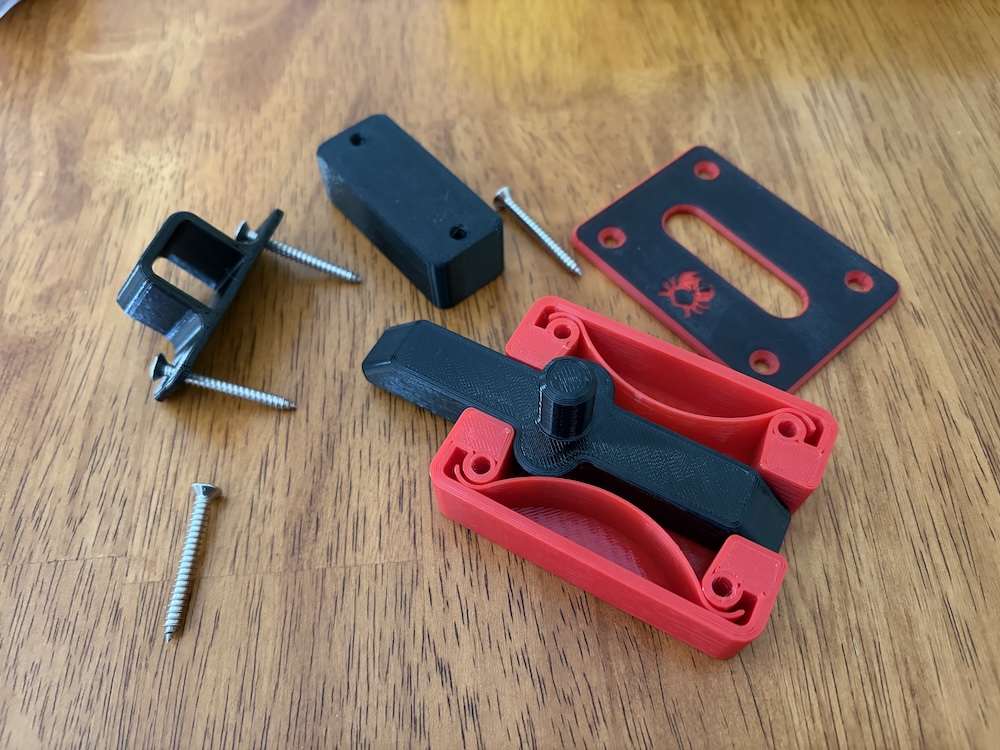

I redesigned this to fit a small shed I own. It is nearly identical to the original with all edges rounded and some improvements like a resizable shim under the "receiver" and strengthened the screw pillars.
The holes are 4.3mm to accept a 4.3mm M4 wood screw about 35mm long.
Print in PETG for outdoor use. Print all parts as oriented. I used a brim for the springs and the receivers. The receiver should have enough perimeters to make it solid.
STEP files can be provided if requested.
