fake18650tec
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Portable Devices
- License
- Creative Commons — Attribution — Noncommercial
The pigtail must be inserted before the battery. The button as well.
The button is pressed and slid along one side. Once in place, it pops out and locks into position.
It is recommended to solder the wires to the button before inserting it.

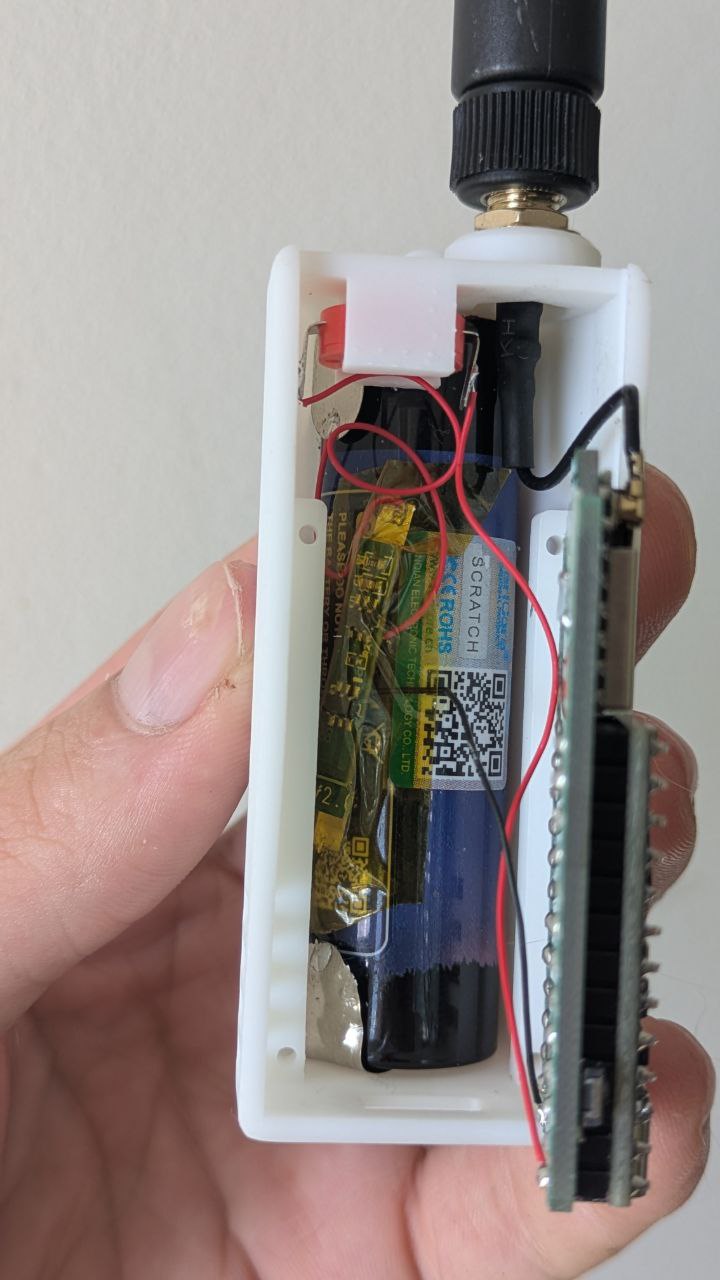

The battery must be inserted carefully; it's a very tight fit.

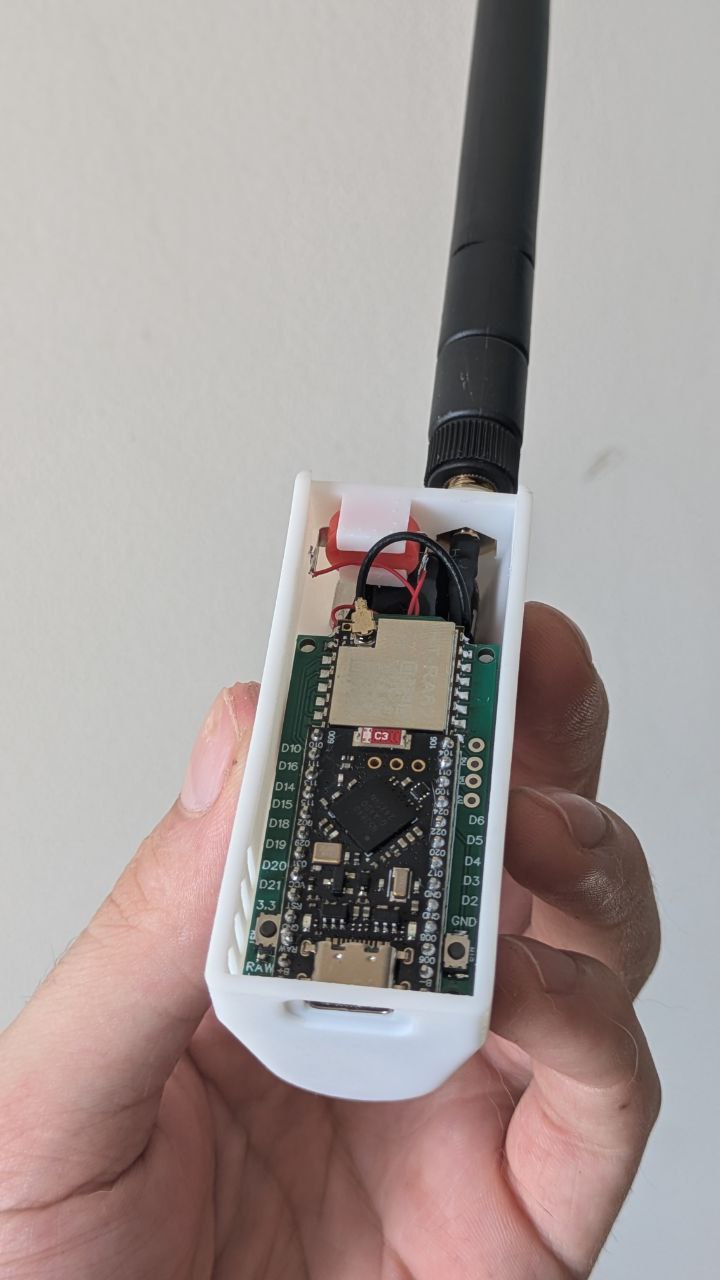

The Faketec needs to be soldered with pins.
Double-sided tape is needed to attach the Faketec to the body and to close the lid.
2mm for the lid. 2, 3, or 4mm for the Faketec/body
Mini push-button power switch = 1208YD
Battery = 18650
CC BY-NC-SA 4.0 + exception: private individuals may sell up to 5 units/month on hobbyist platforms (eBay, Etsy, etc.) with attribution. Corporate/mass production requires commercial license
