Particle Analysis Mesh Funnel
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
This threaded clip and funnel is compatible with the Malvern Mastersizer 3000E and its feeder unit, the Malvern Aero M.
- Rating
- 0 / 5
- Likes
- 0
- Downloads
- 10
- Makes
- 0
- Views
- 192
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Engineering
- License
- Creative Commons — Public Domain

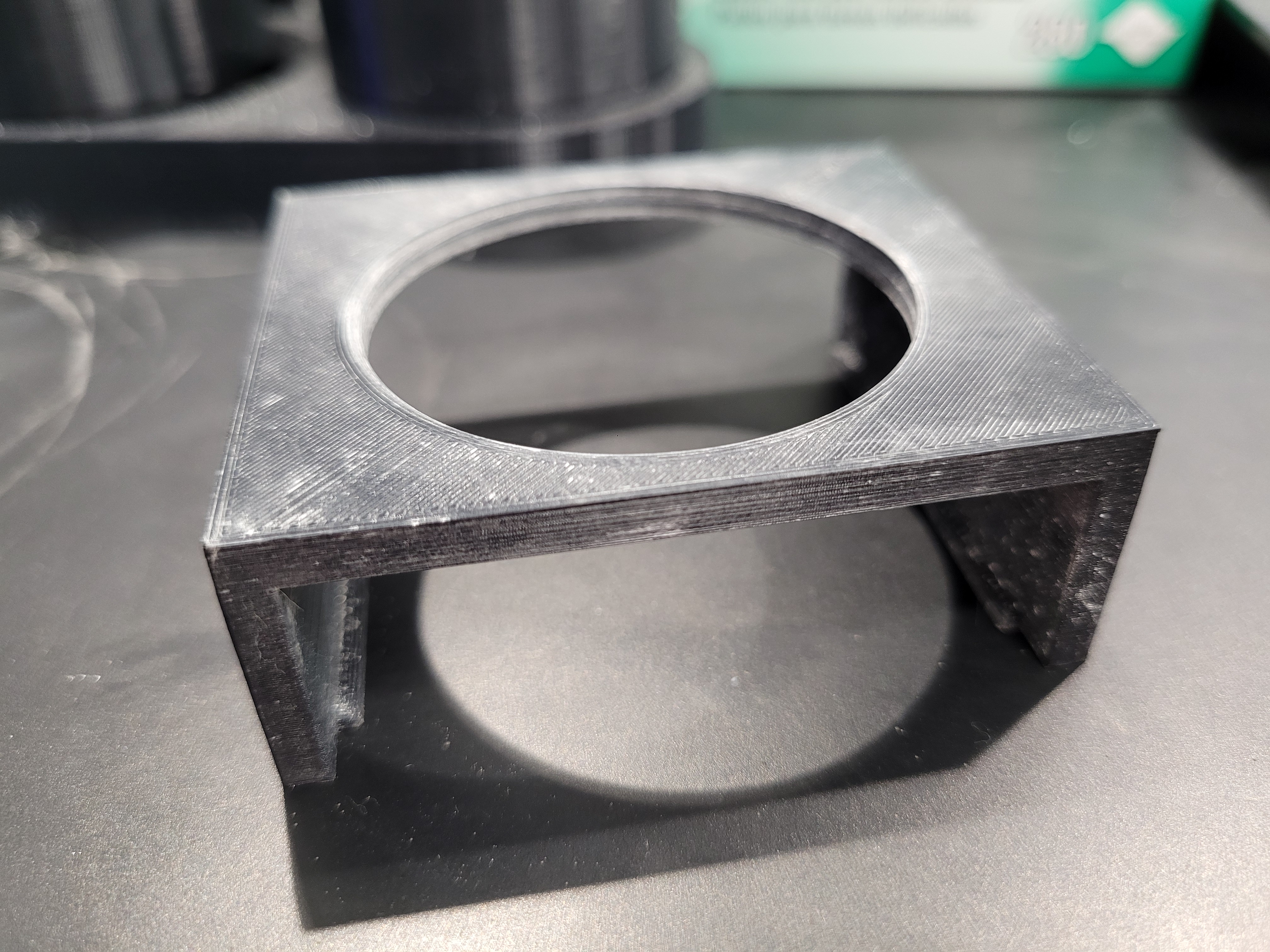

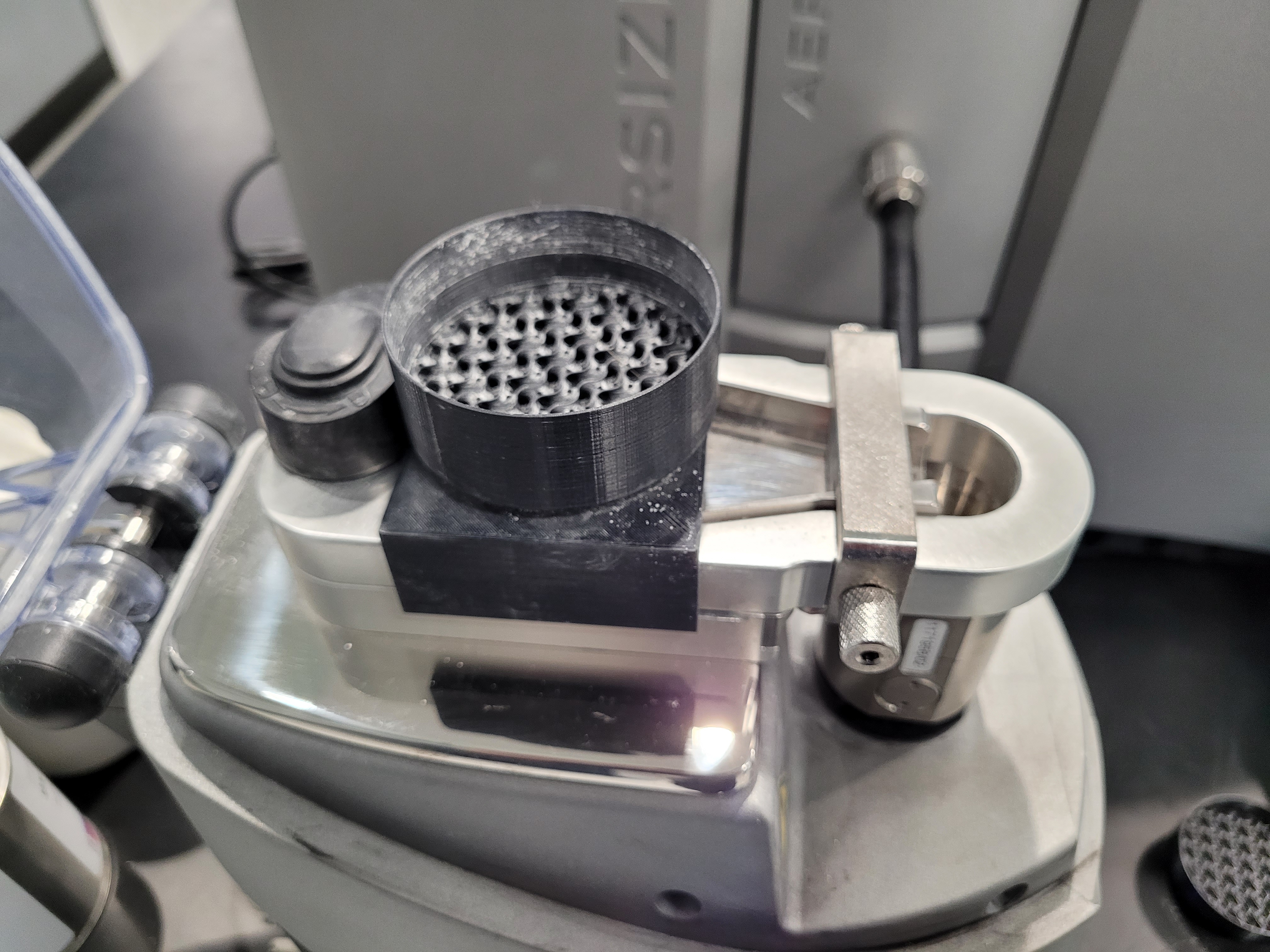

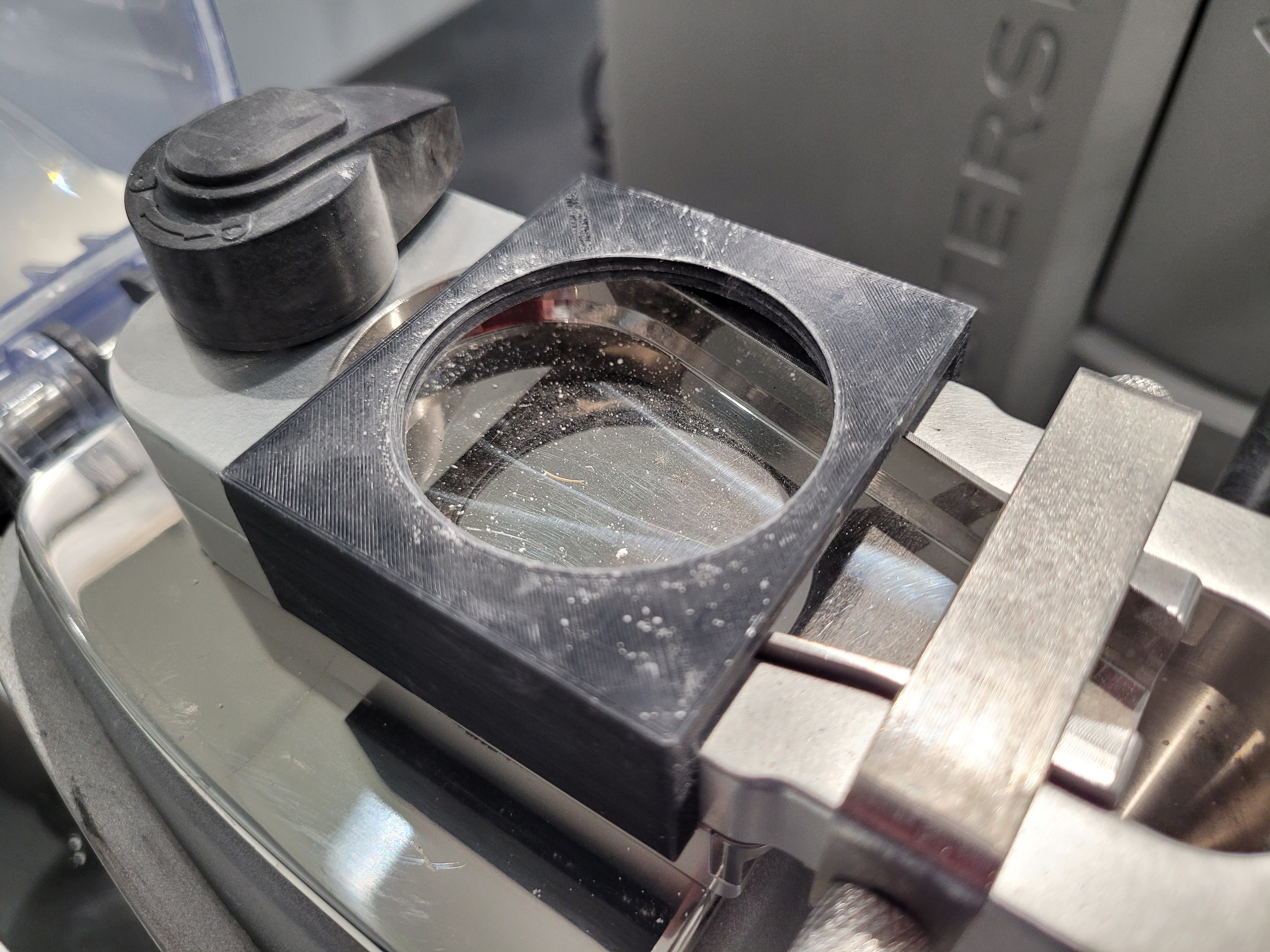

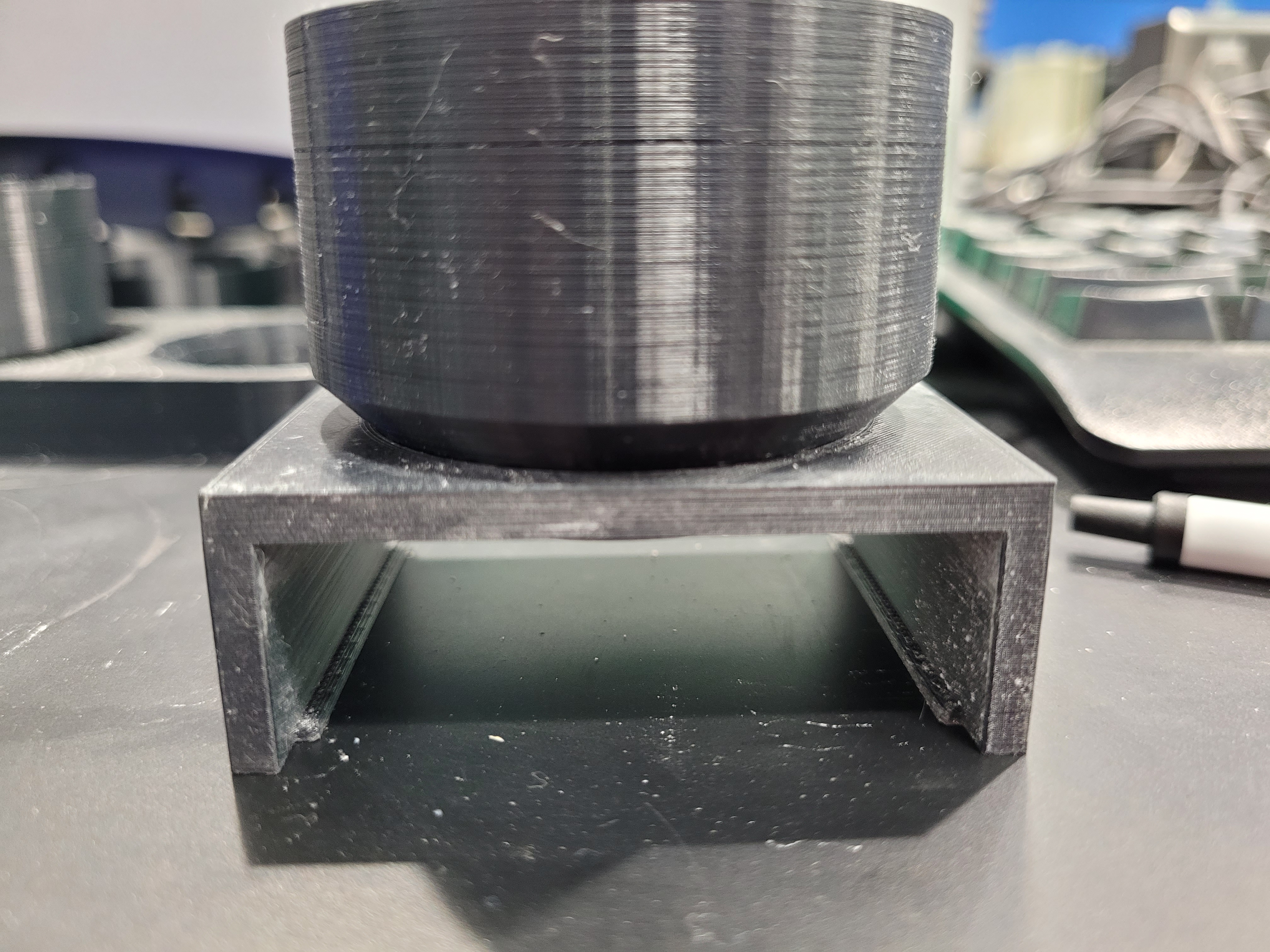

The Mastersizer is a lab instrument for analyzing the size of particles, but its feeder tray has some disappointing performance in breaking up agglomerates. This clip mounts securely to the vibrating tray and holds a funnel, allowing you to load almost 3x the amount of powder. It also can be printed with variable infill, which does a good job at breaking down clumps into true particles for analysis.

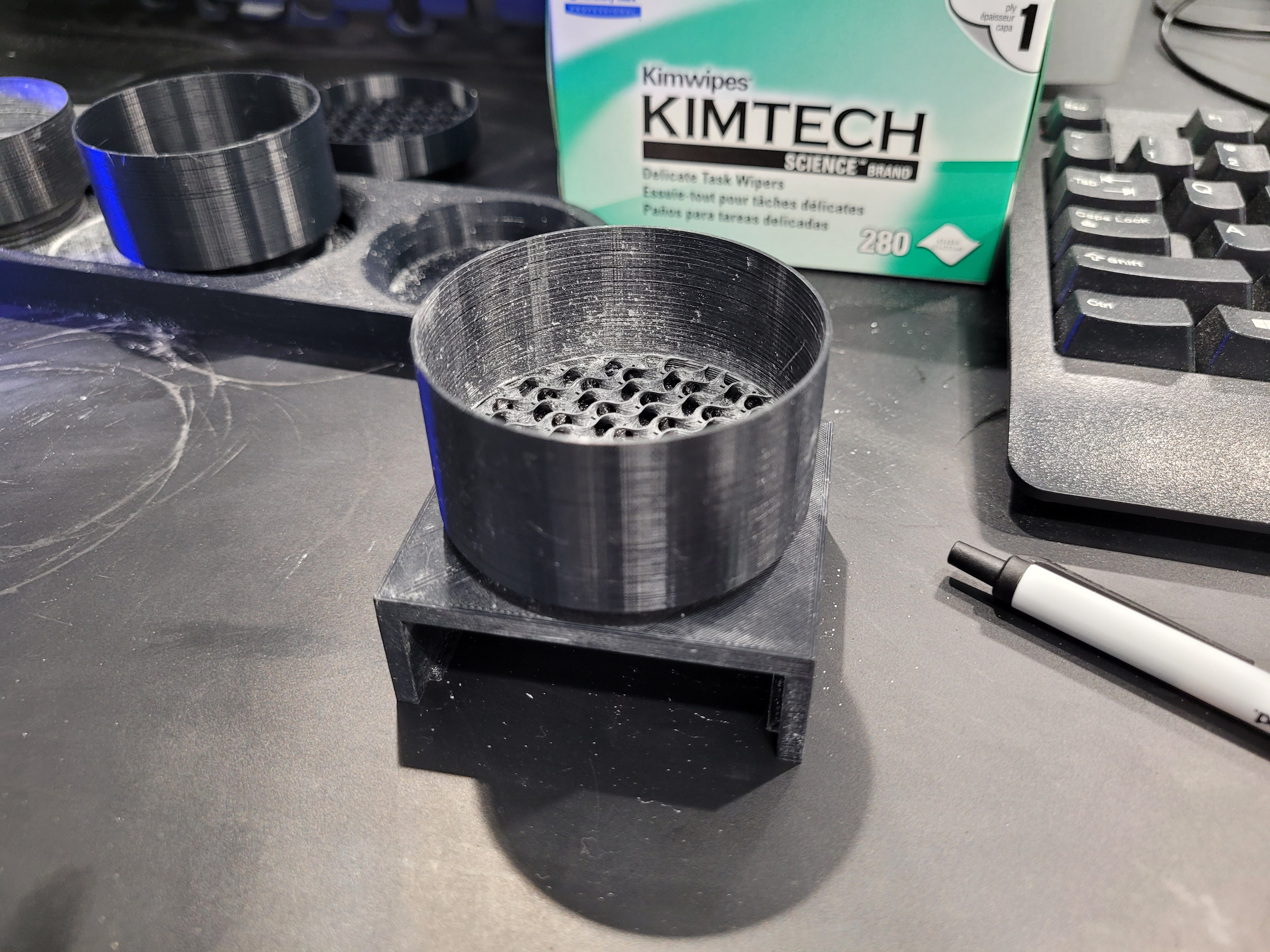

Each funnel must be printed with no top or bottom layers. Gyroid infill acts as a filter mesh, and 15% fill has been a good number for carbonates and other dry powders. Adjust the infill for your needs and enjoy!
The funnels can be cleaned or used as disposable test items.
