A snap that provides 19" 1U hole spacing on a MultiBoard.
- Rating
- 0 / 5
- Likes
- 0
- Downloads
- 4
- Makes
- 0
- Views
- 40
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Noncommercial

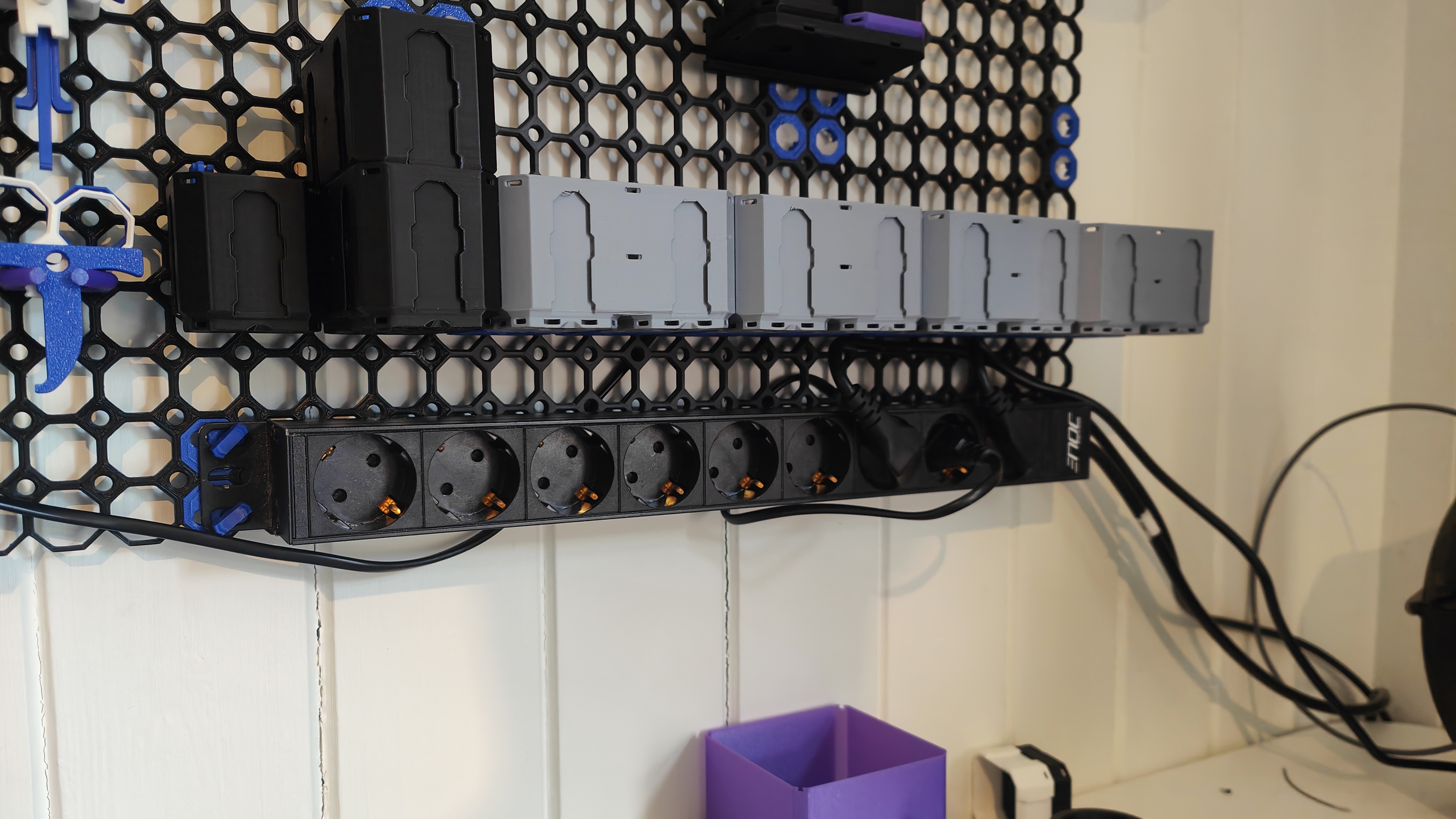

Two or four of the same part can be used to bolt into each corner of a 19" 1U device.
The four snaps and 1U device will in total consume 20x2 CU (500mm x 50mm).

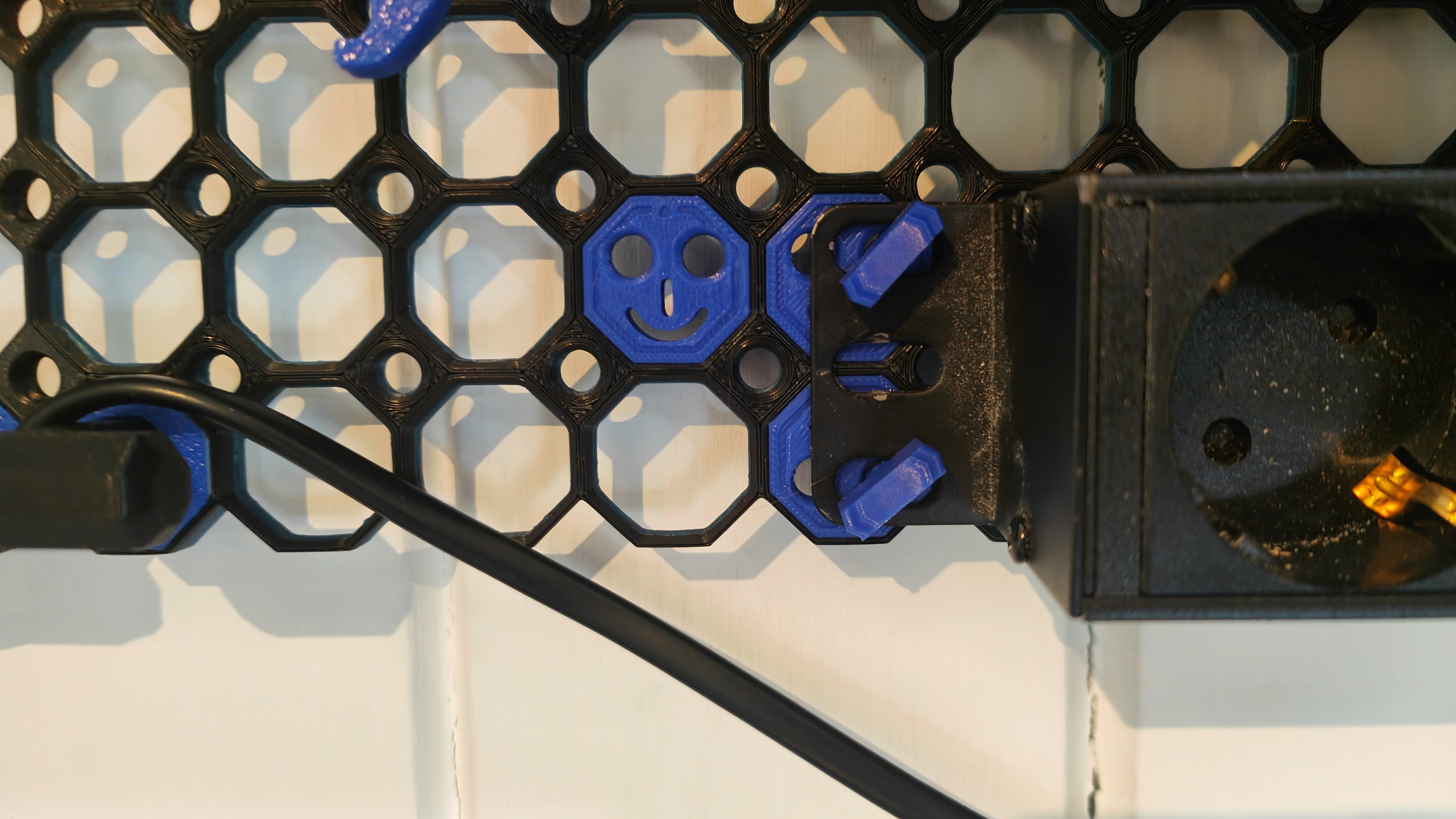

Smiley face up, sour face down. Of the two holes, the one closest to the device will give the correct alignment.
If four RackSnaps are used, the snaps will have opposing directionality meaning that they get fully locked in when bolted. Unbolt the rack-mounted device first to remove the snaps.
This design is a remix of snaps and small threads from MultiBuild, a creation of Keep Making. The MultiBuild license applies.
https://www.multiboard.io/license
