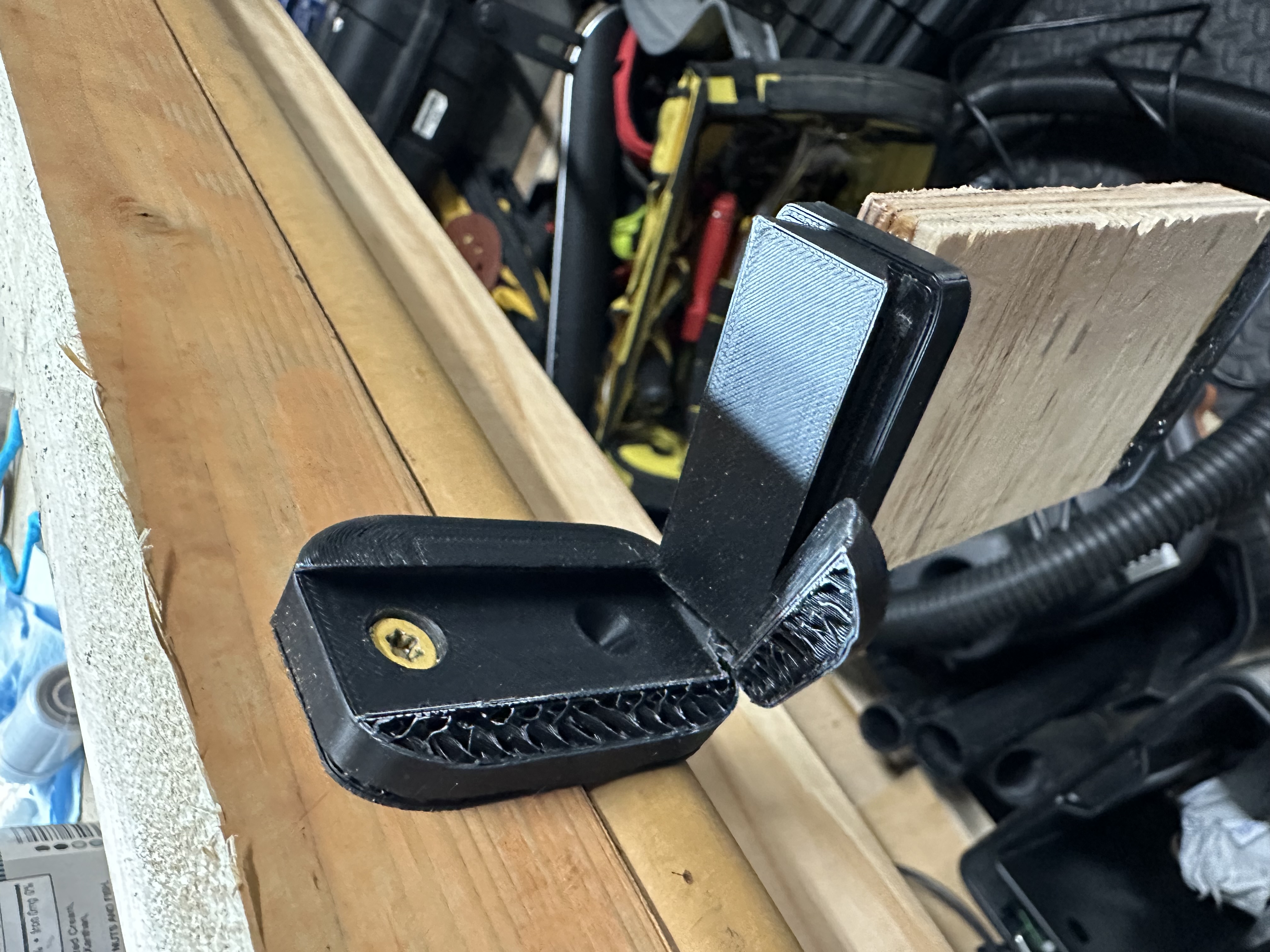

This is a simple bracket designed to be removeable that has a working load of 20+lbs. I made this to use with another project i am working on and in testing it i found it to be quite strong so i figured i would upload it in hopes someone else can find use of it in a project they are working on. It is pretty useless on its own and will need to be incorporated into your own 3D model.
Printing and Testing:

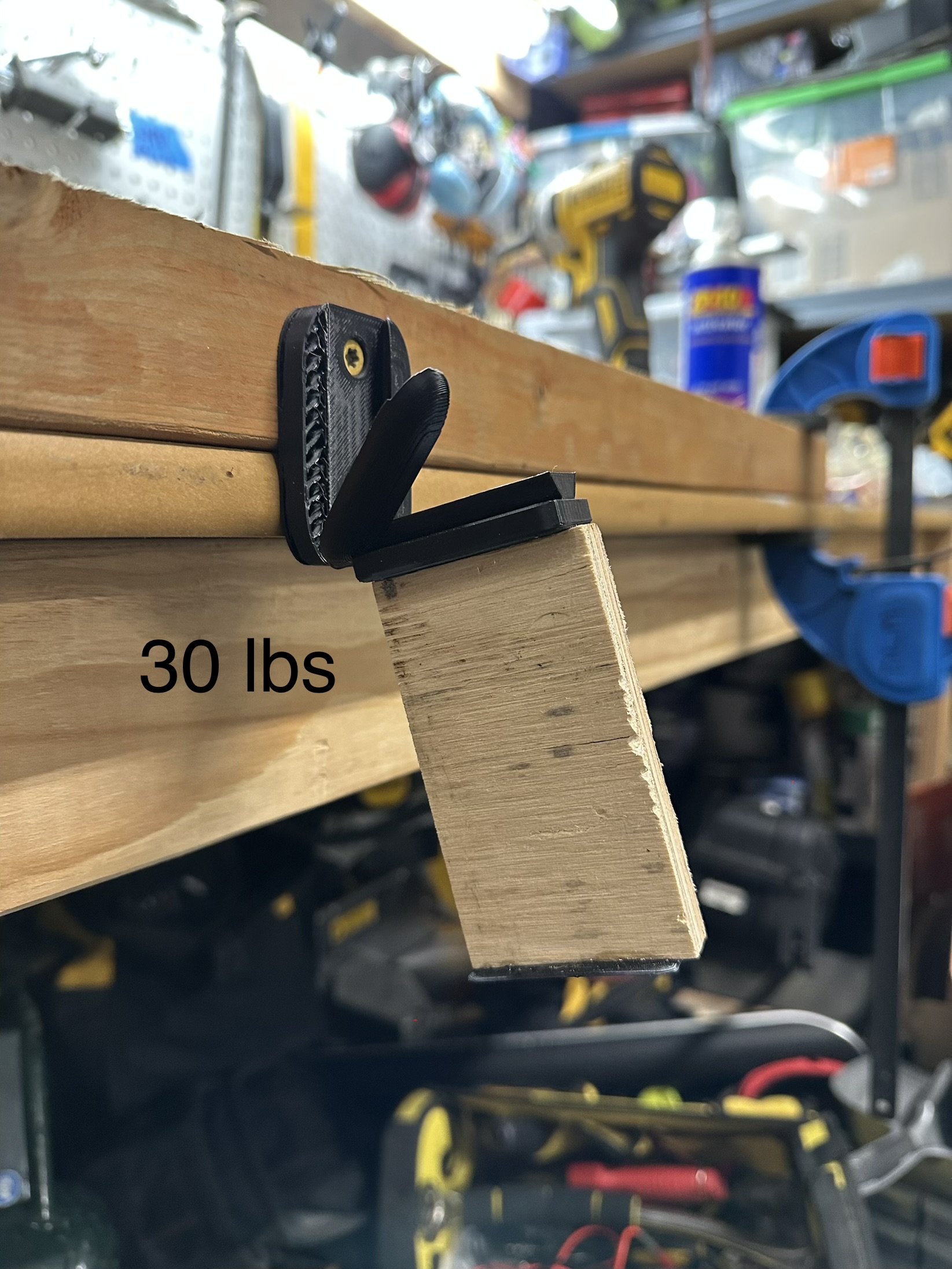

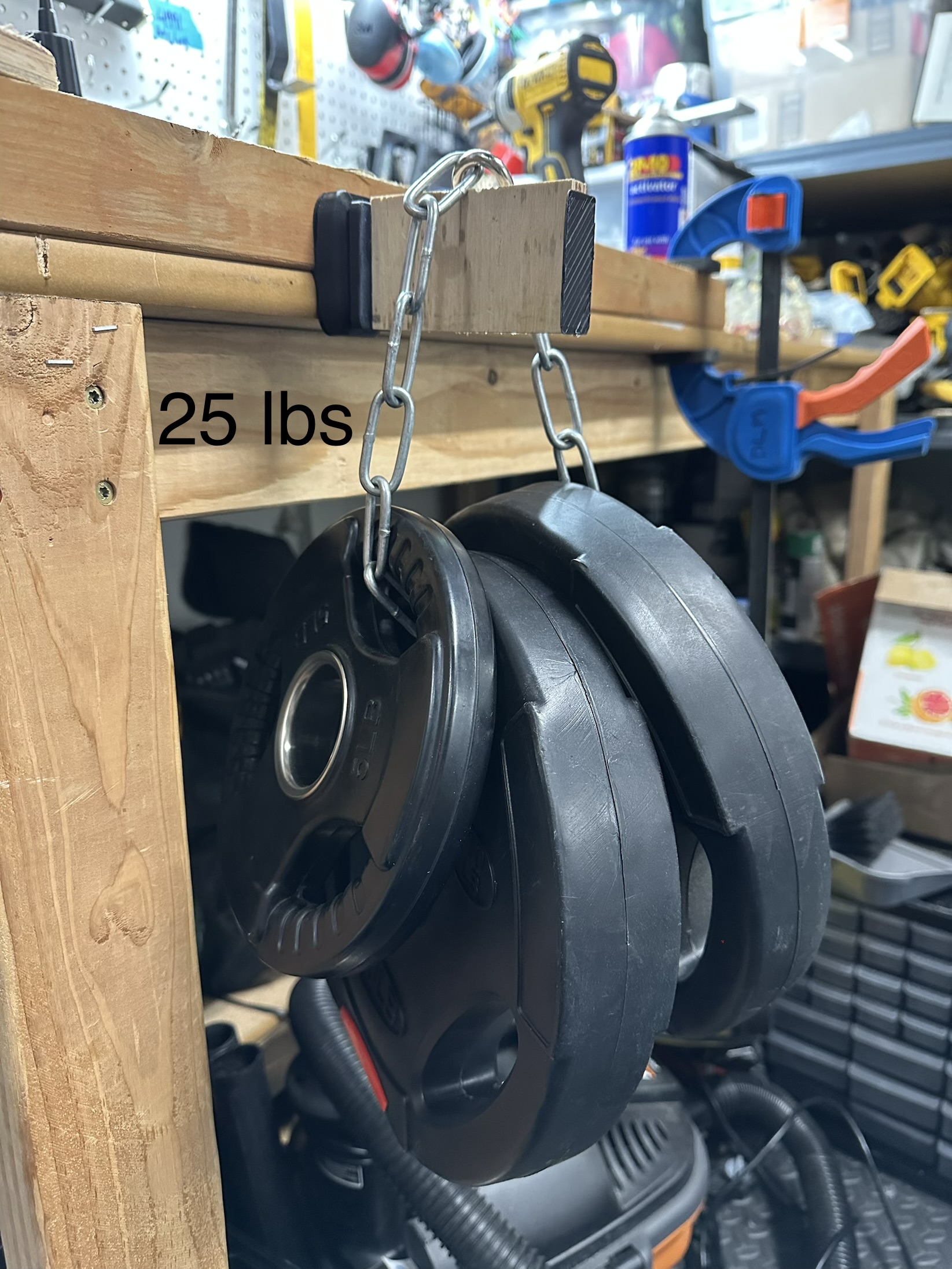

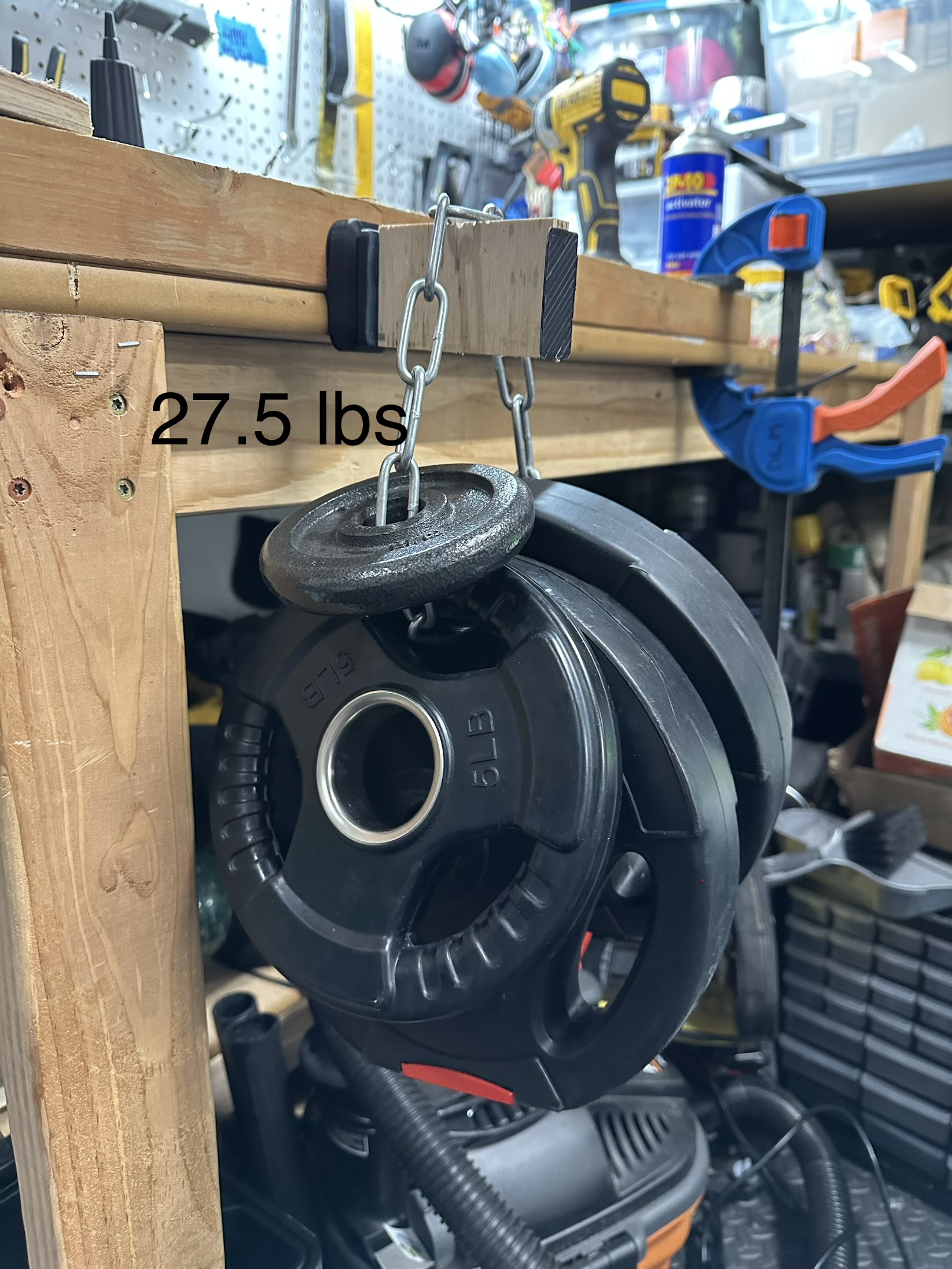

- I printed this in Black PLA+ in the orientation of the STL files for my strength test run and got surprising results. The Bracket easily supported a load of 20 lbs. (tested for 10mins), after which i was more than satisfied and pushed the limits. The bracket finally failed at 30 lbs. of load.
- I will further test strength improvements with print orientation, material and design later when i have more time to play with it (what i need it for now is ~2lbs so it should work).
Use it, Change it, Remix it, Re-Design it, the sky is the limit!
If you do happen to improve it or push its limits, post a make or a remix or comment or even DM me, i am very curious to see how people will use this and i would love to see how far the community can take this little design i thought up!
