bottom bracket for holding up a 5mm thick sheet to windows similar to the one in the pictures.
I have removed the fillets from one side so that you can easily extrude it to the best length for your setup. As you can see I use two of them to cover my window because I didn't have a build enough build plate to make it one piece.

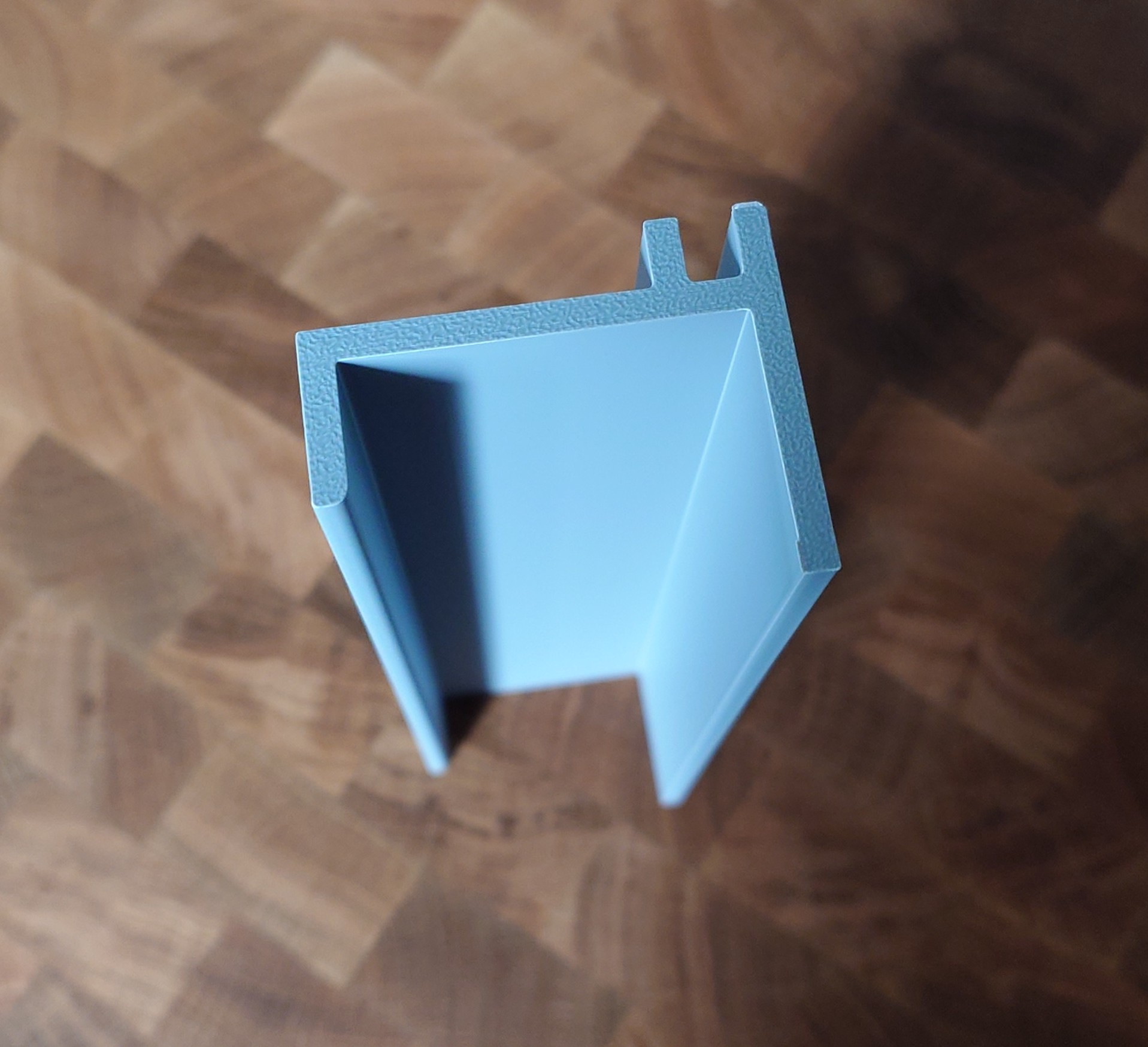

the gap for holding the plate is 6mm as it didn't need to be a perfect fit, it allows you to angle it slightly when inserting or removing the plate without causing unnecessary stress on the bracket
I recommend not going as tight as possible for the window gap so that you don't damage your seals.
If you have calipers, tighten them down and then add 2-3mm, do a thin width test print before going for the full piece.
I've shared the .3mf and .f3d files as I created this in fusion (if you want to edit it they do a free version which I used to make this)
