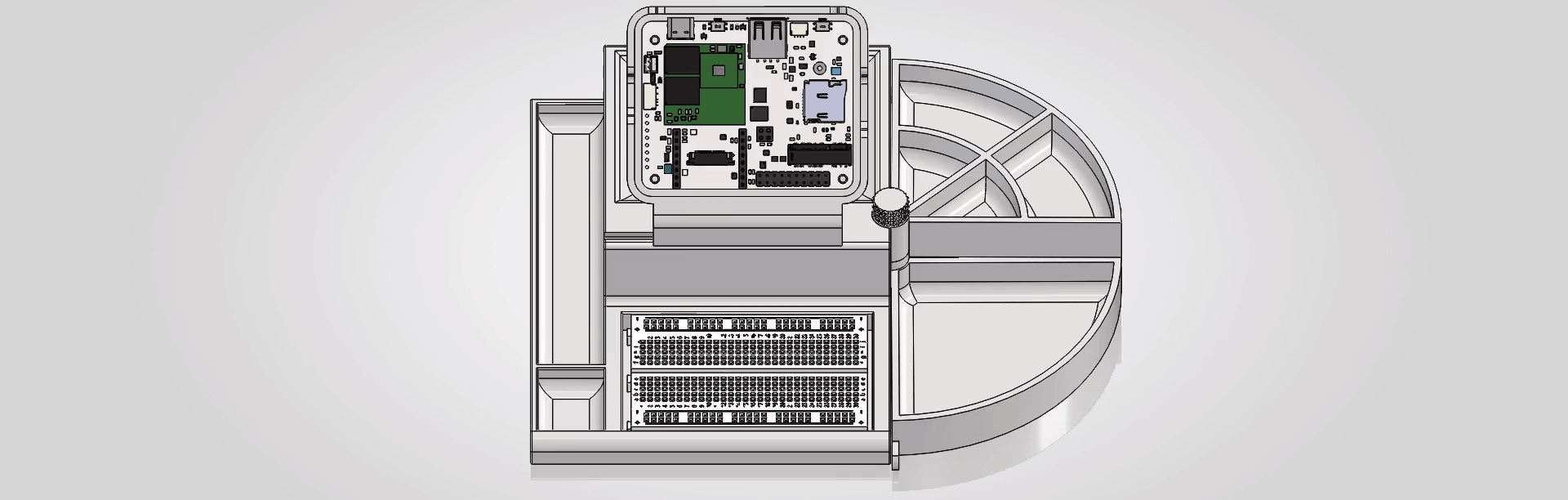

Fan style swing out storage, wire storage, half size breadboard slot and other trays to help keep organized!
- Rating
- 0 / 5
- Likes
- 10
- Downloads
- 3
- Makes
- 0
- Views
- 99
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Electronics
- License
- Creative Commons — Attribution — Noncommercial — NoDerivatives

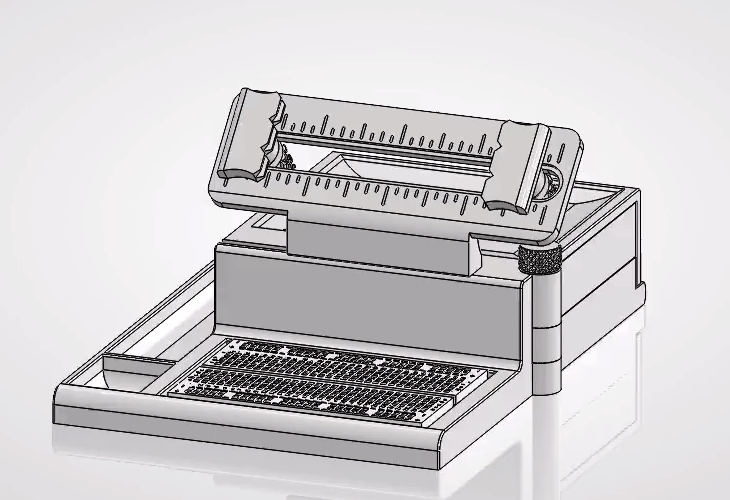

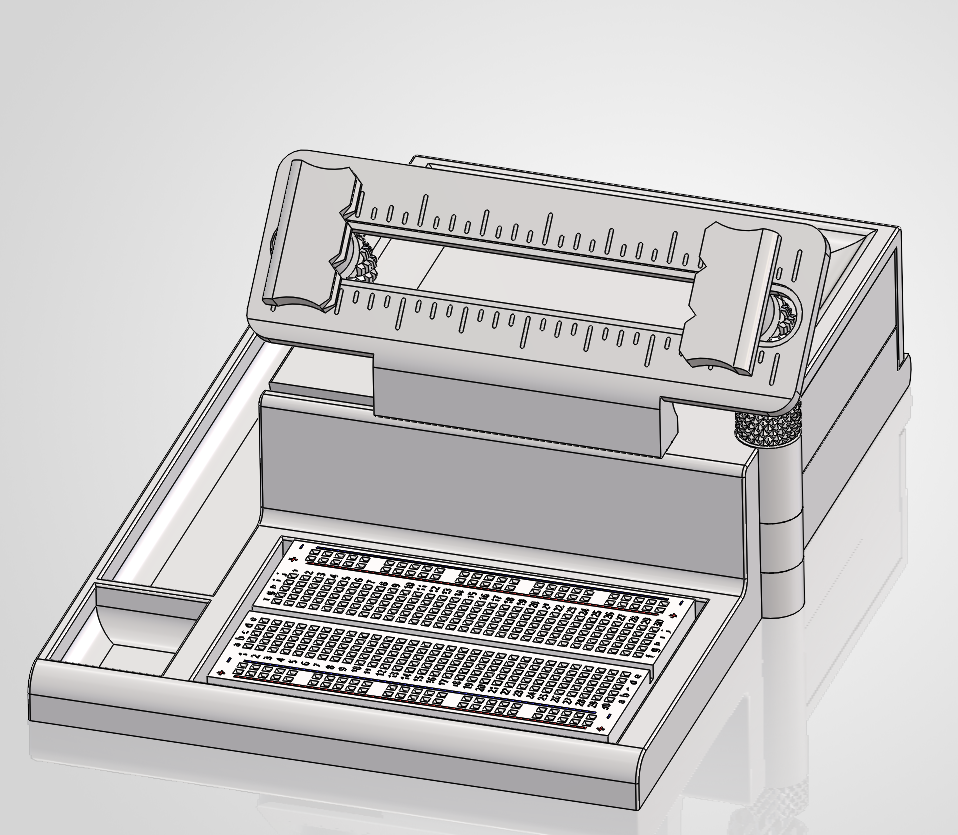

Update: New Adjustable holder to fit all kids of boards are in the files!

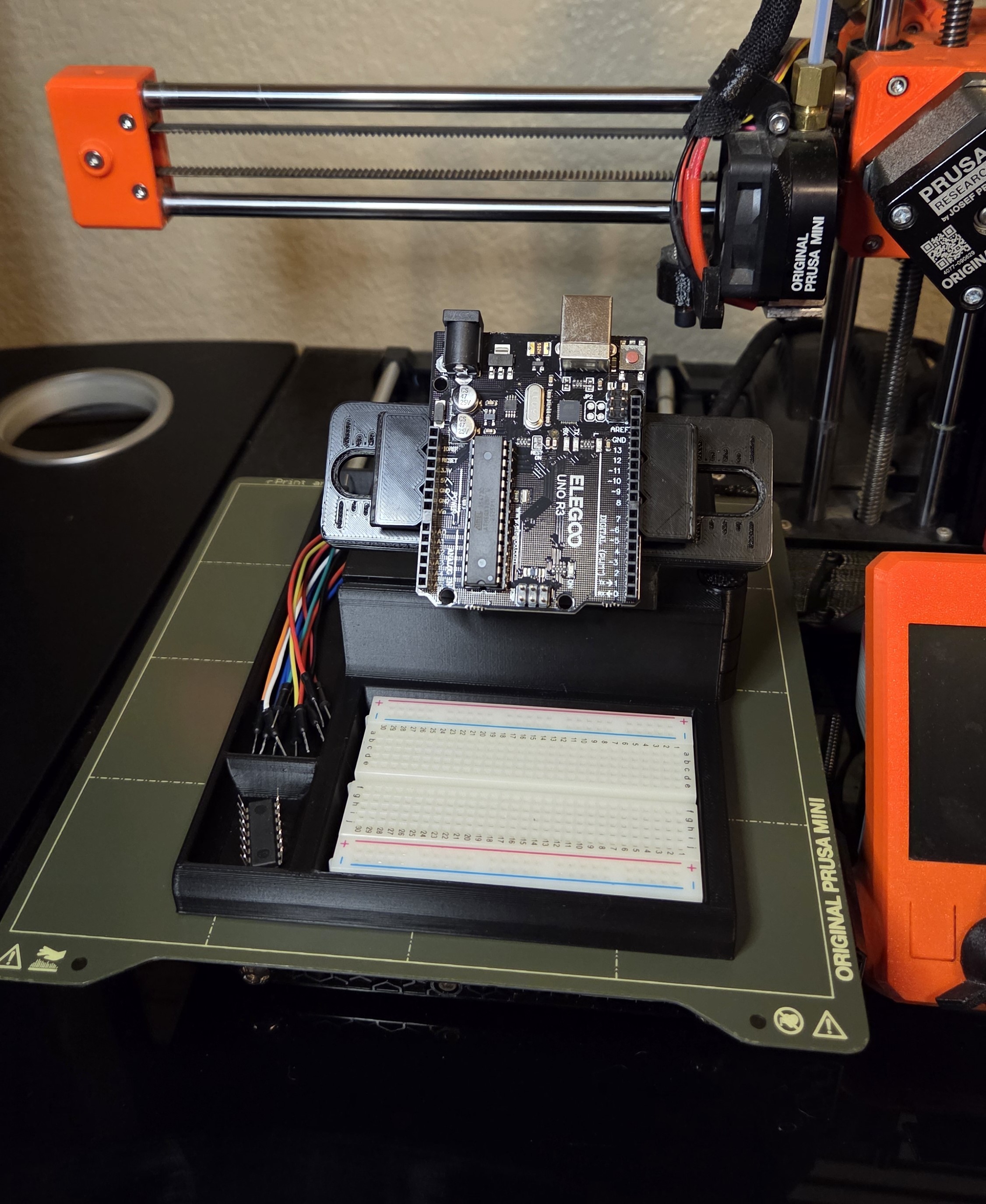

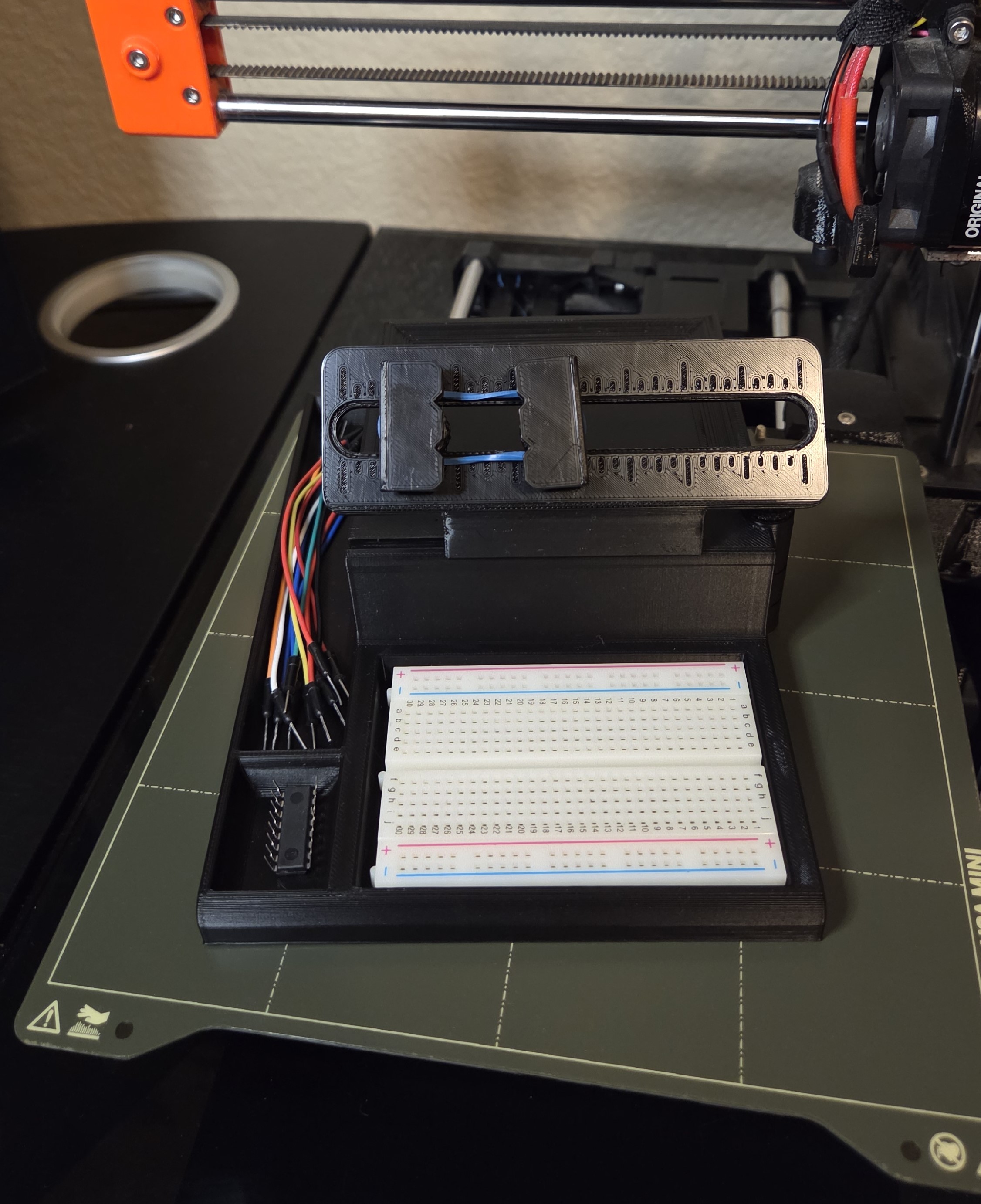

not required but recommend a rubber band around the adjustable holders to help with placement( shown in photos)

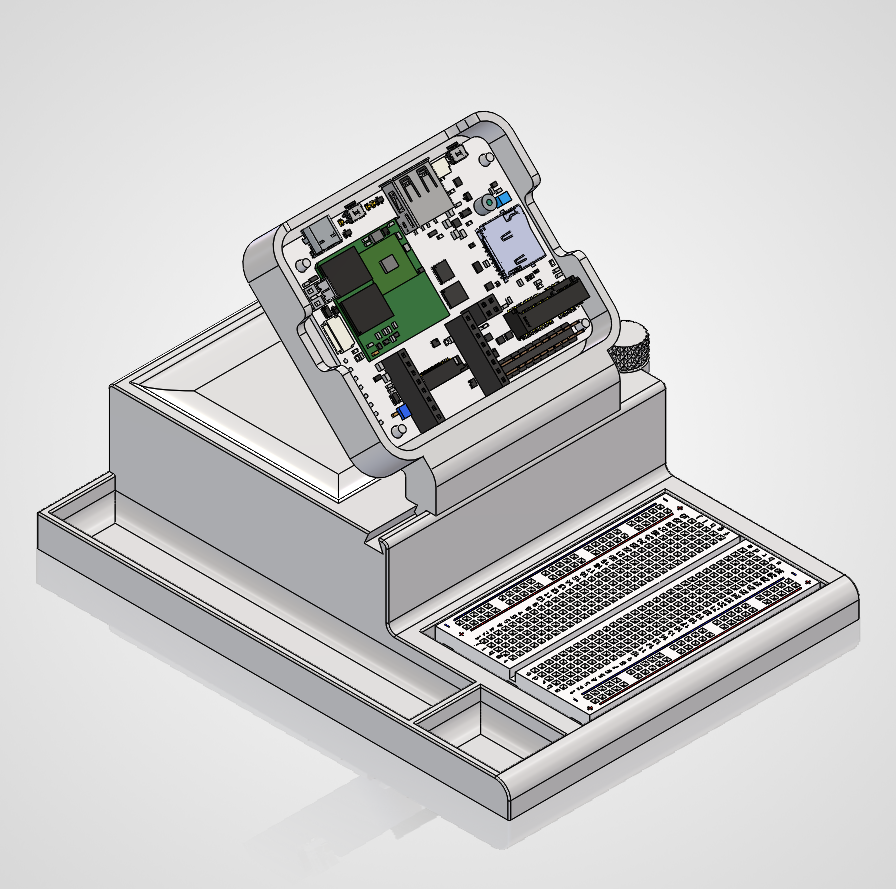

Currently working on holders to fit other microcontrollers. The dovetail design makes it easy to swap different holders so I plan on making them for all popular microcontrollers and also adding an adjustable one to fit all kinds regardless of size and shape. Right now the current one only fits the Coral board holes.

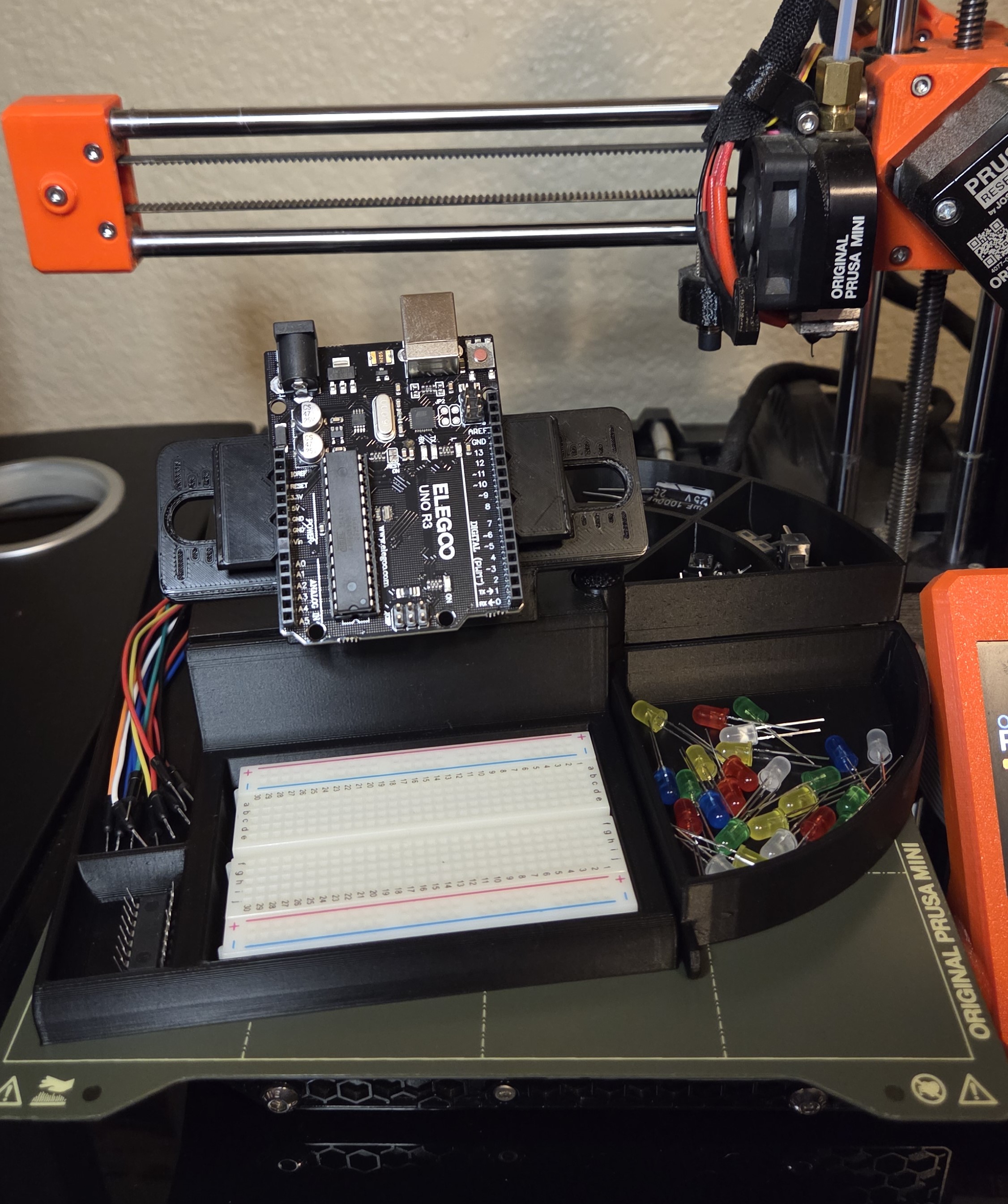

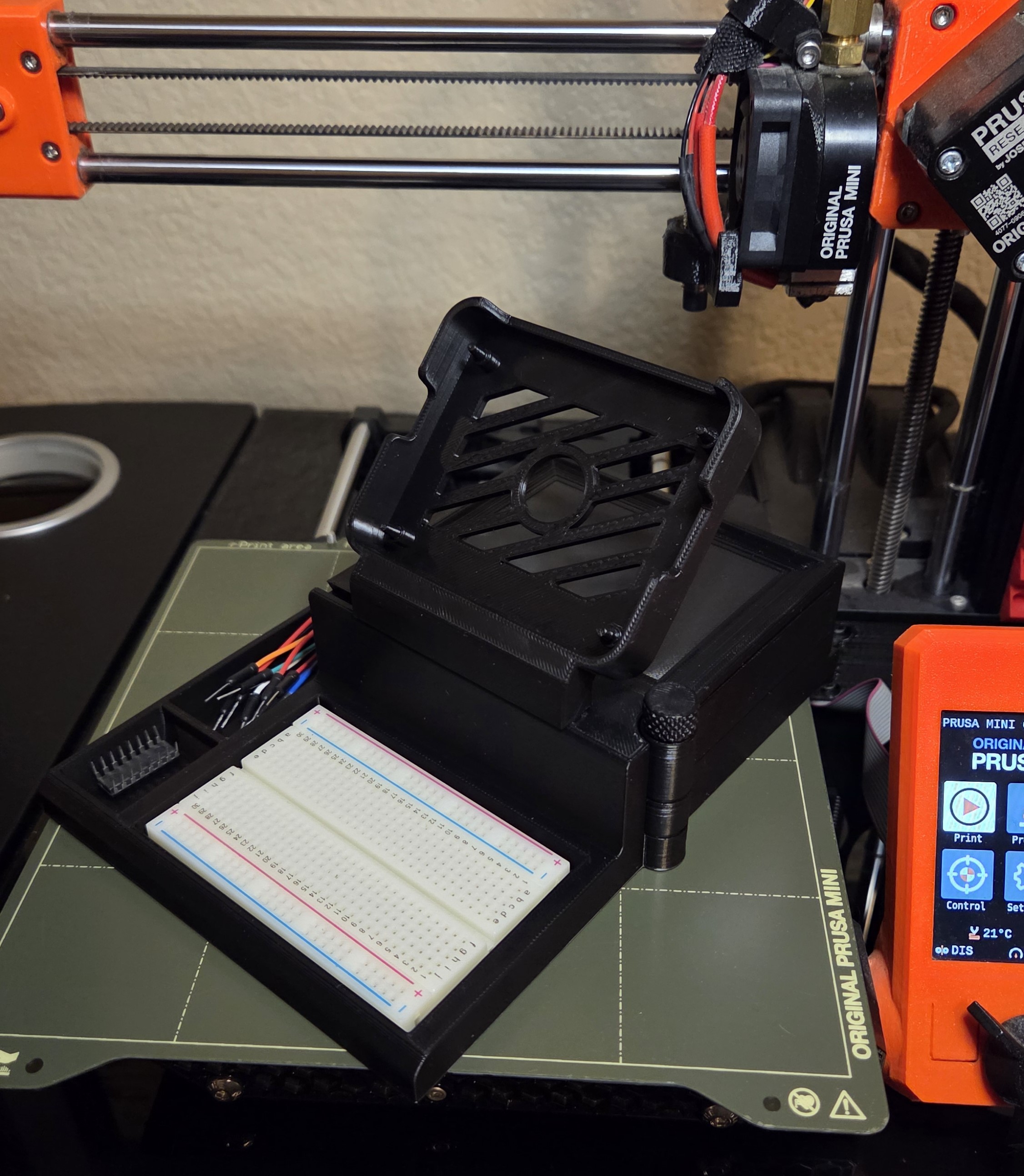

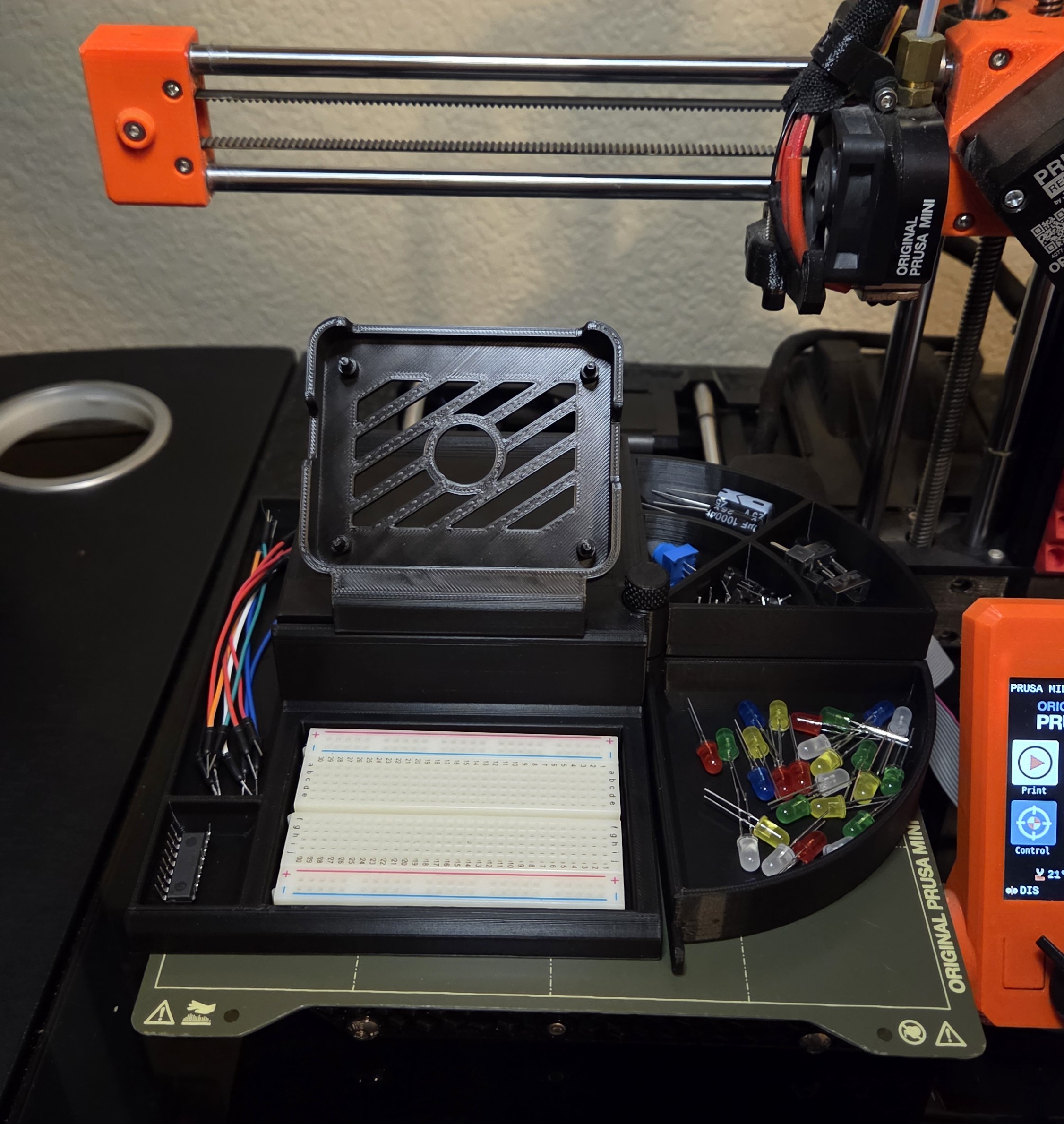

The quarter circle storage bins rotate in and out for easy storage while the left side bins hold wires and current chips, buttons, capacitors, potentiometer or whatever is currently being played with. The bread board slot is made to fit a half size( 400 point ) board at max or anything smaller. Designed to clean up and organize the mess that is prototyping.
Print Settings
Printed on a Prusa Mini+
Nozzle: 4.0mm
Material: PLA
Temp: 205 C
Layer height: 0.15mm - .20mm
At the end of the day you know your printer better than I do and all settings are a baseline. Tweak based on your knowledge and experience with your printer. Tolerances are based on my countless personal test plus extra to include a large variety of printers.
