Hifiberry Case

HiFiBerry Player

If you enjoy listening to music you will really love this tiny music player!

The player consists of:

• RaspberryPi 3B+ or

• RaspberryPi 4*

• HiFiBerry DAC+ PRO or

• HiFiBerry DAC-2 PRO (added 22 Jule 2025)

Additional accessories:

• RPi Power Supply

• Micro SD Card

• 4 Nylon spacers

You will also need the 3D printed case of course!

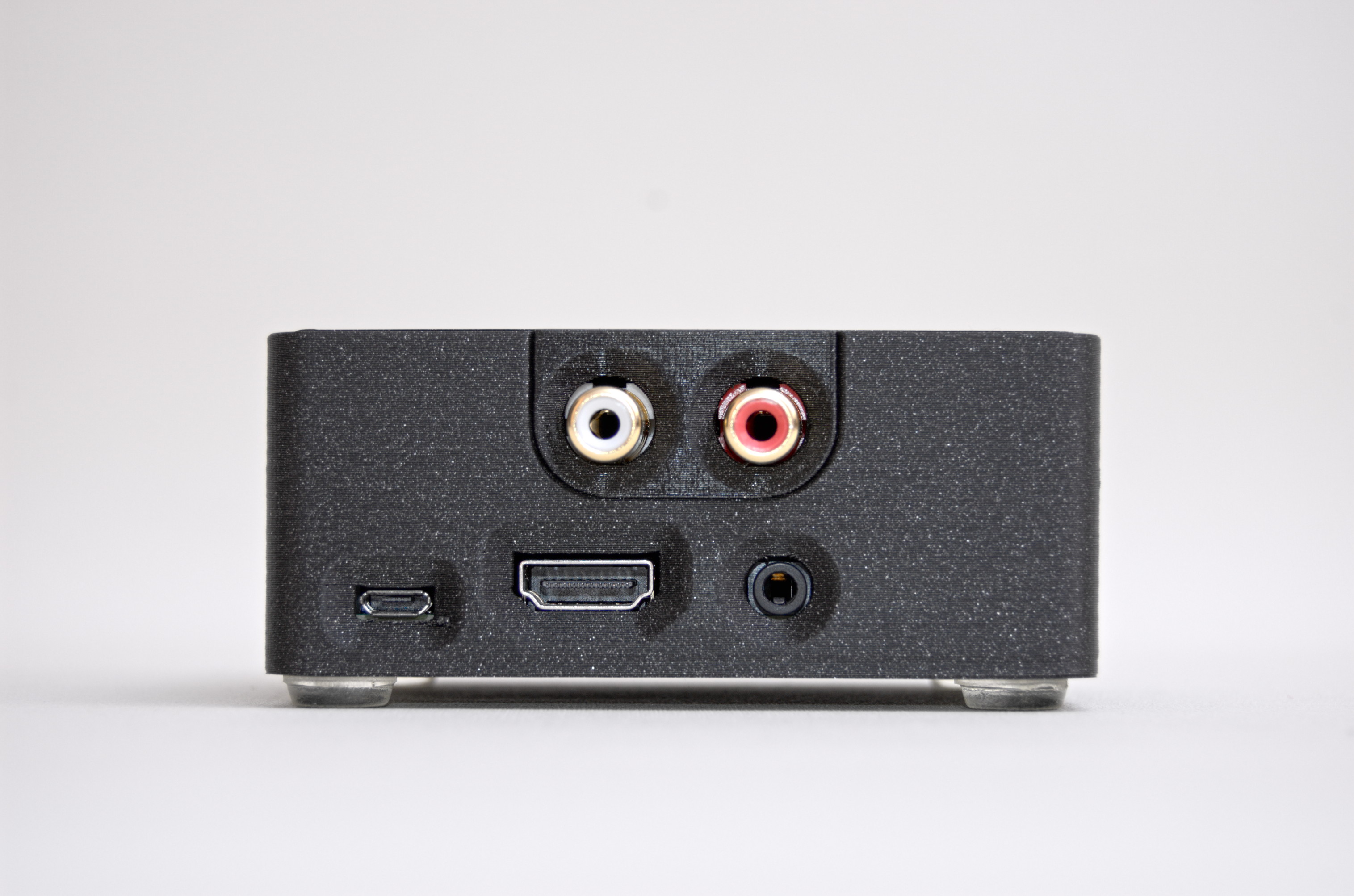

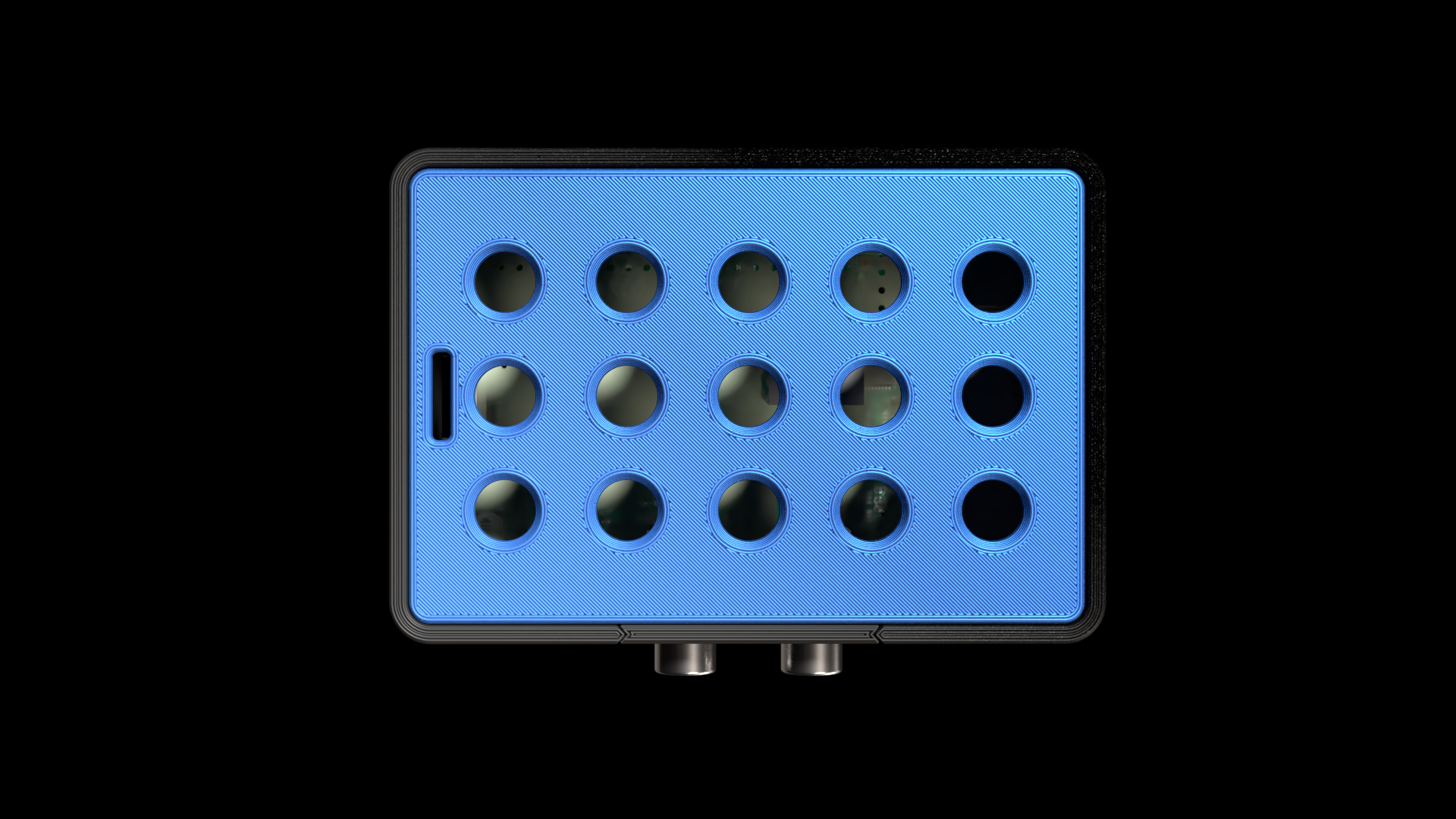

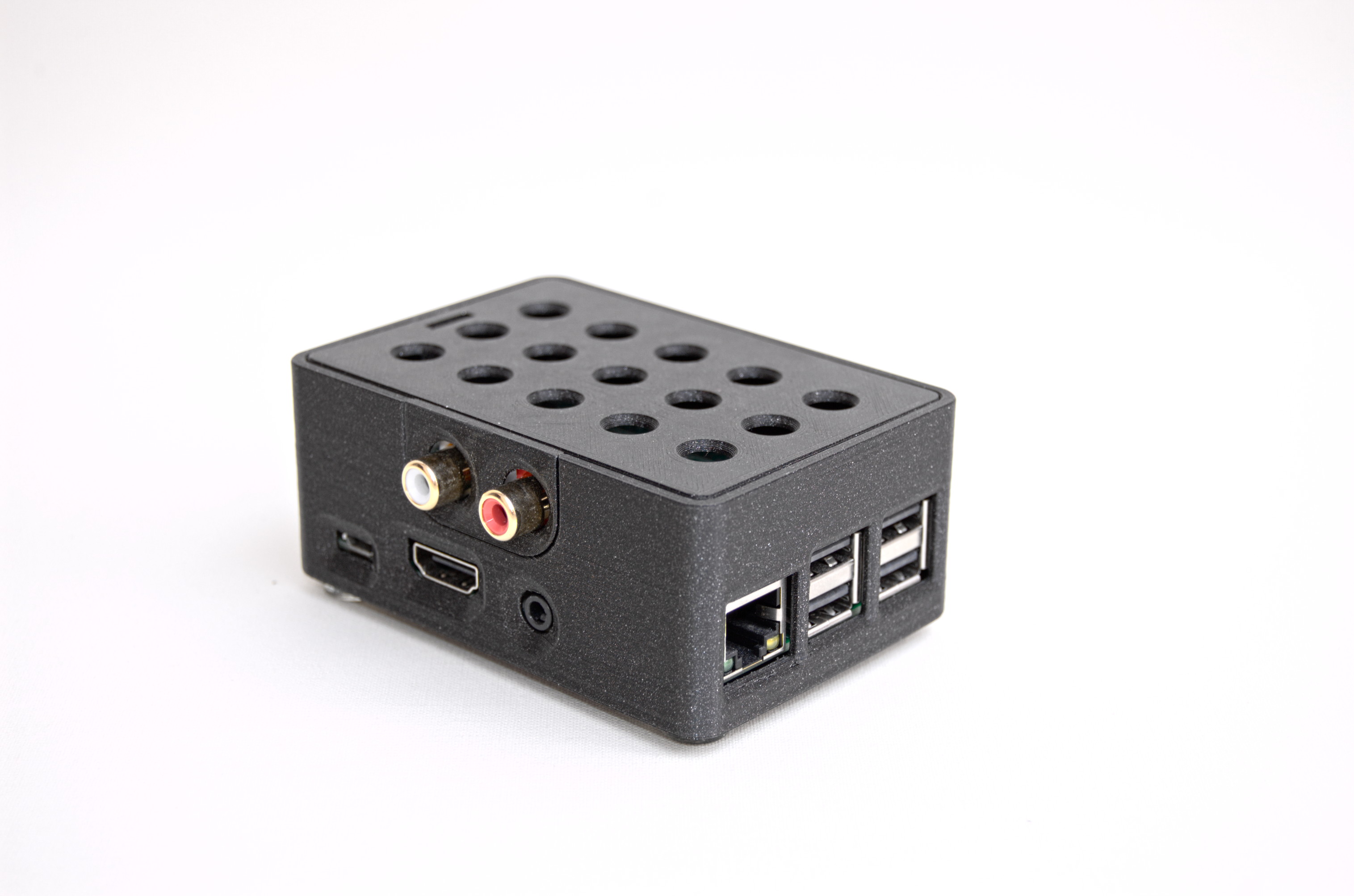

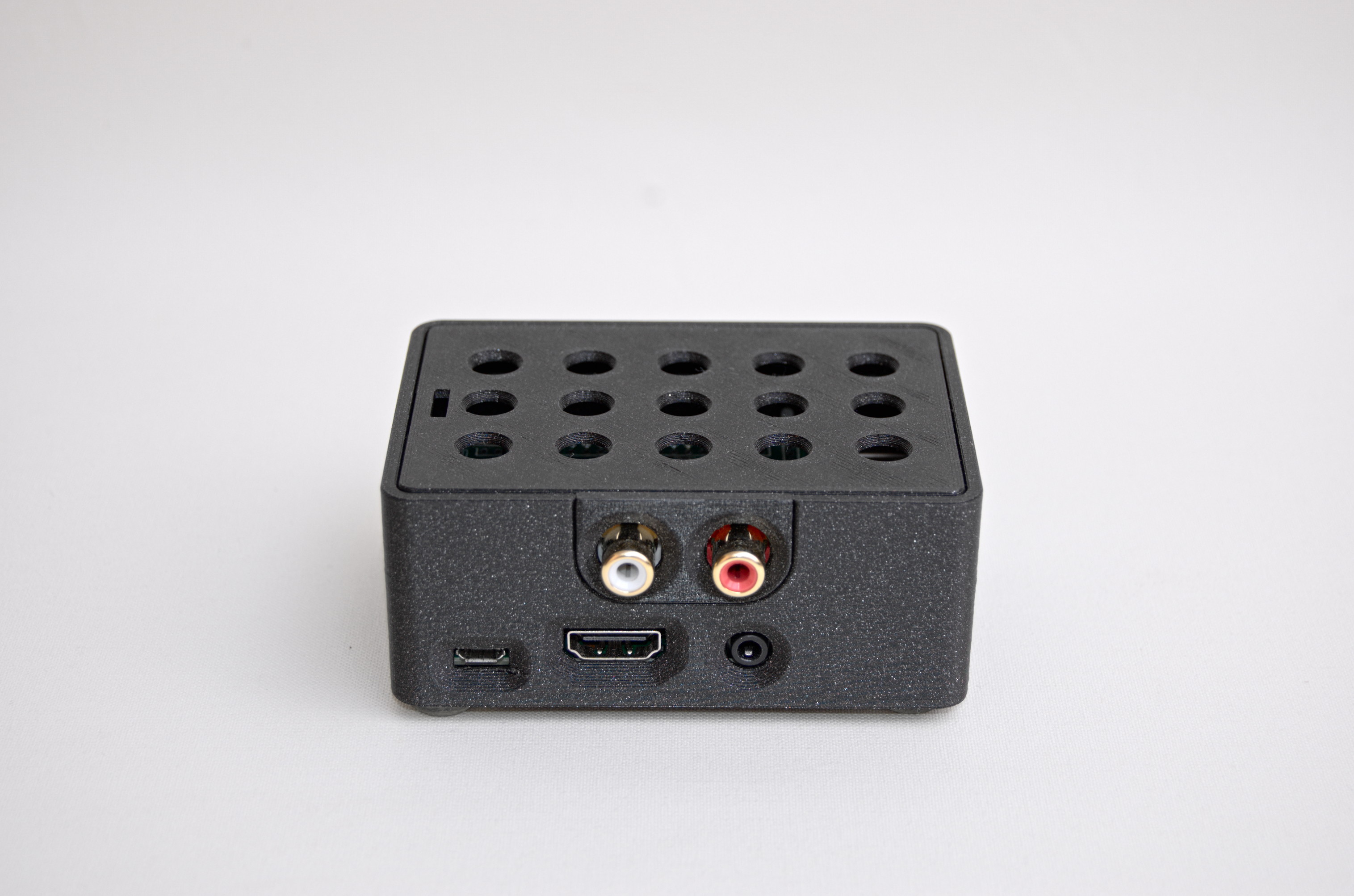

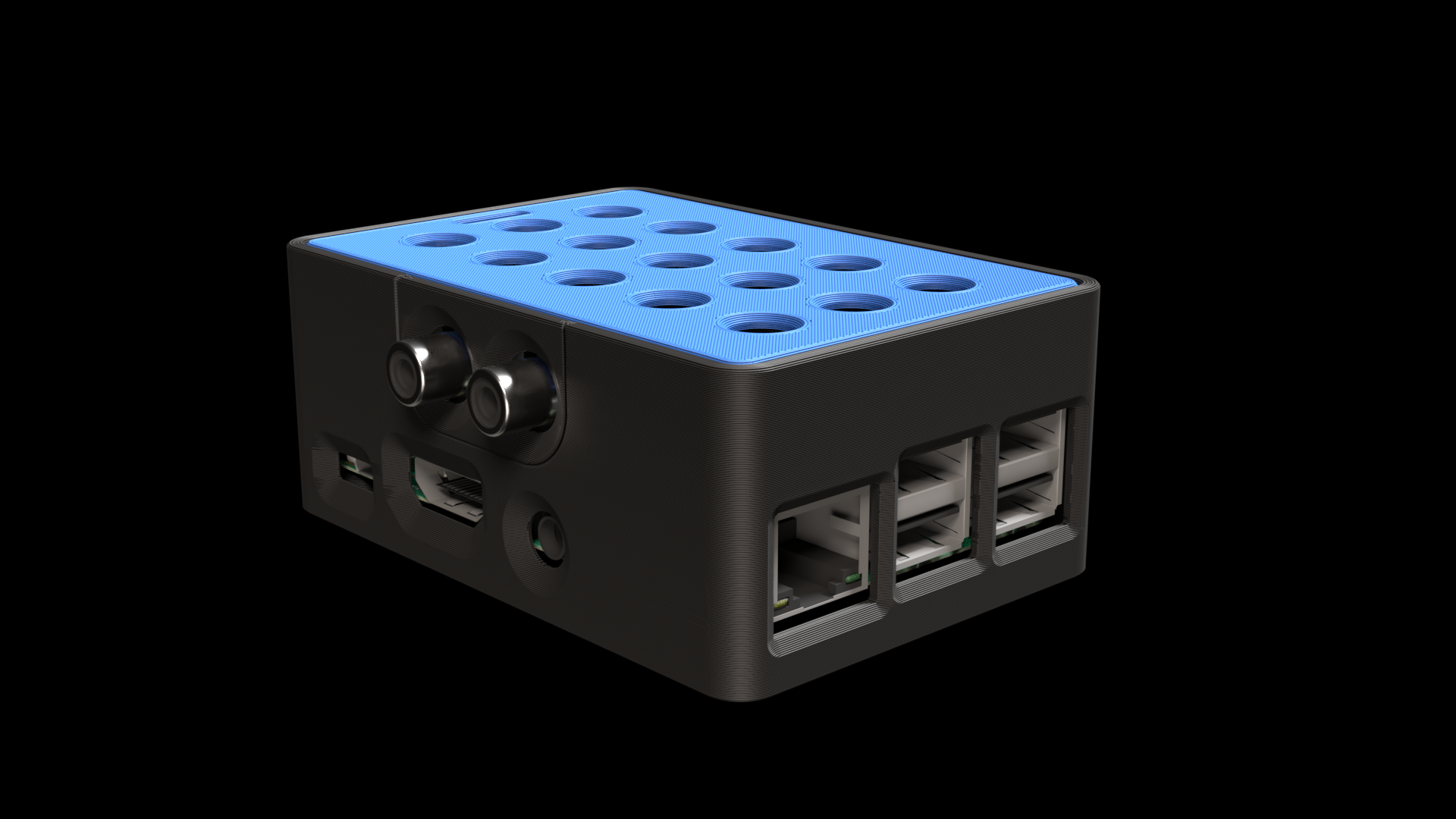

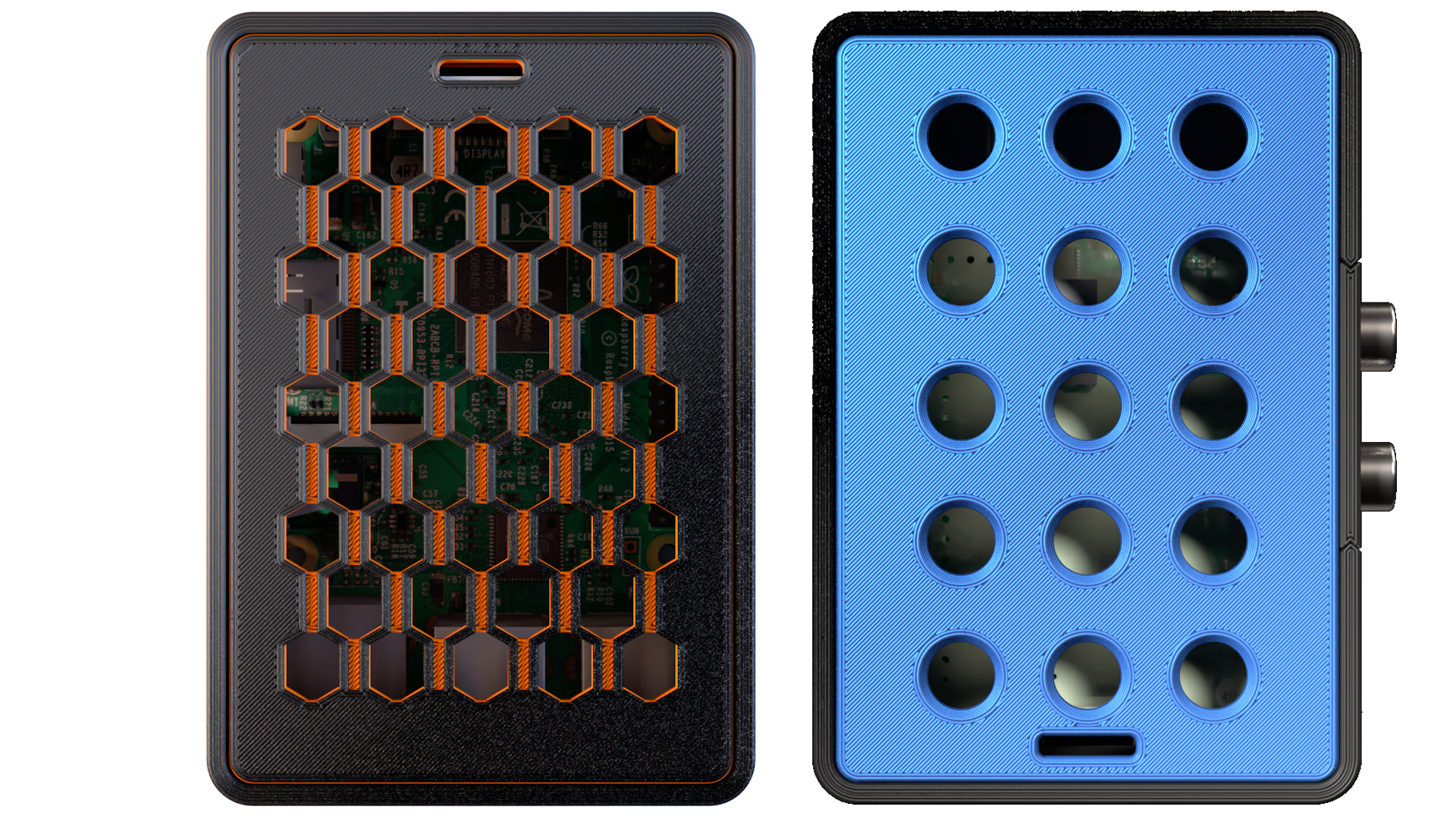

This is an easy to 3D print case for the Raspberry Pi 3B+ (also compatible with 3/3B) or Raspberry Pi 4* and the HiFiBerry DAC/DAC+/DAC+ PRO/ and DAC2/DAC2 PRO. You can find some extra top covers in my RPi case designs.

• The case for the Raspberry Pi 4 is not tested. Any feedback is welcome.

Assembly Instructions

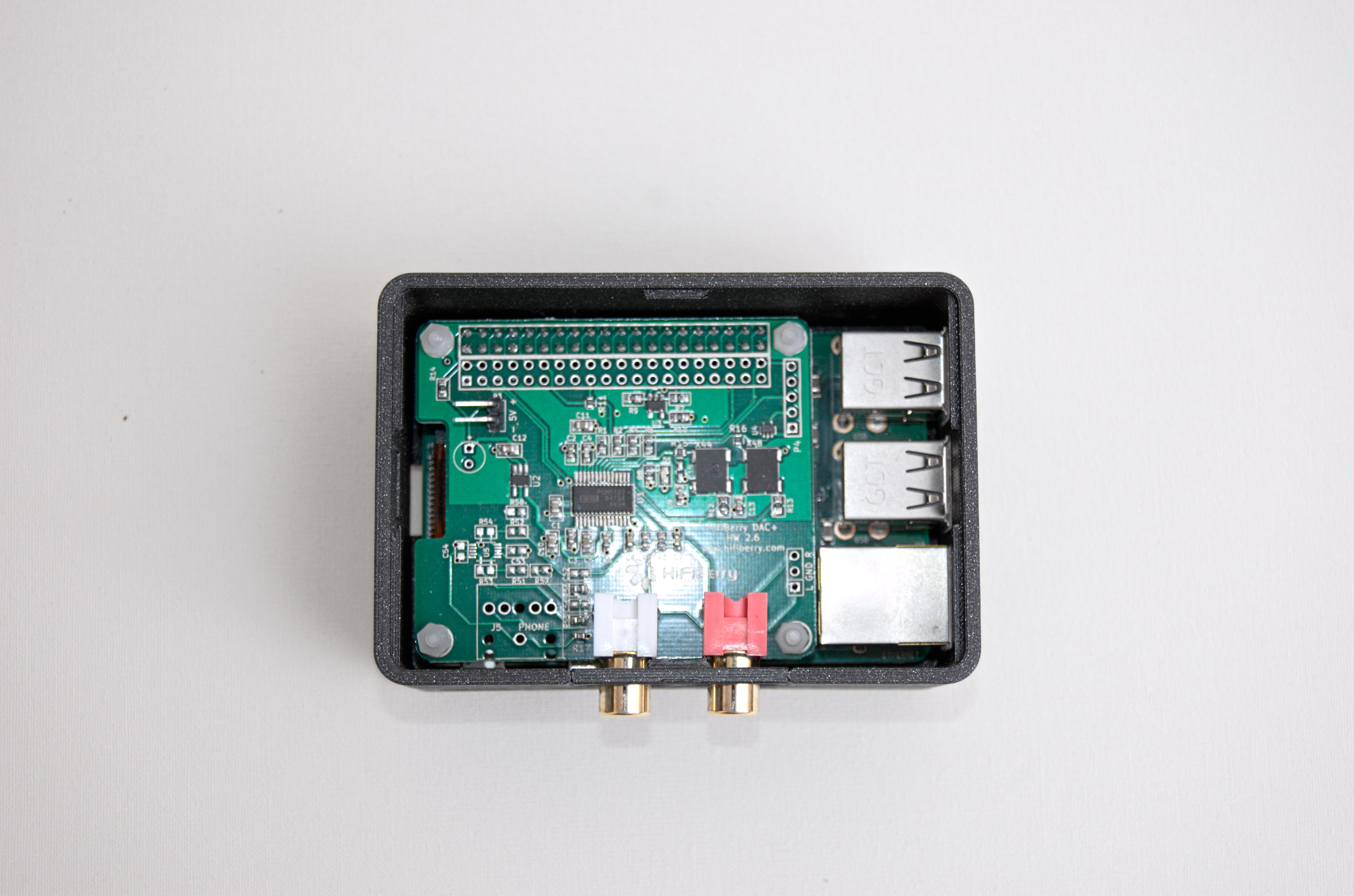

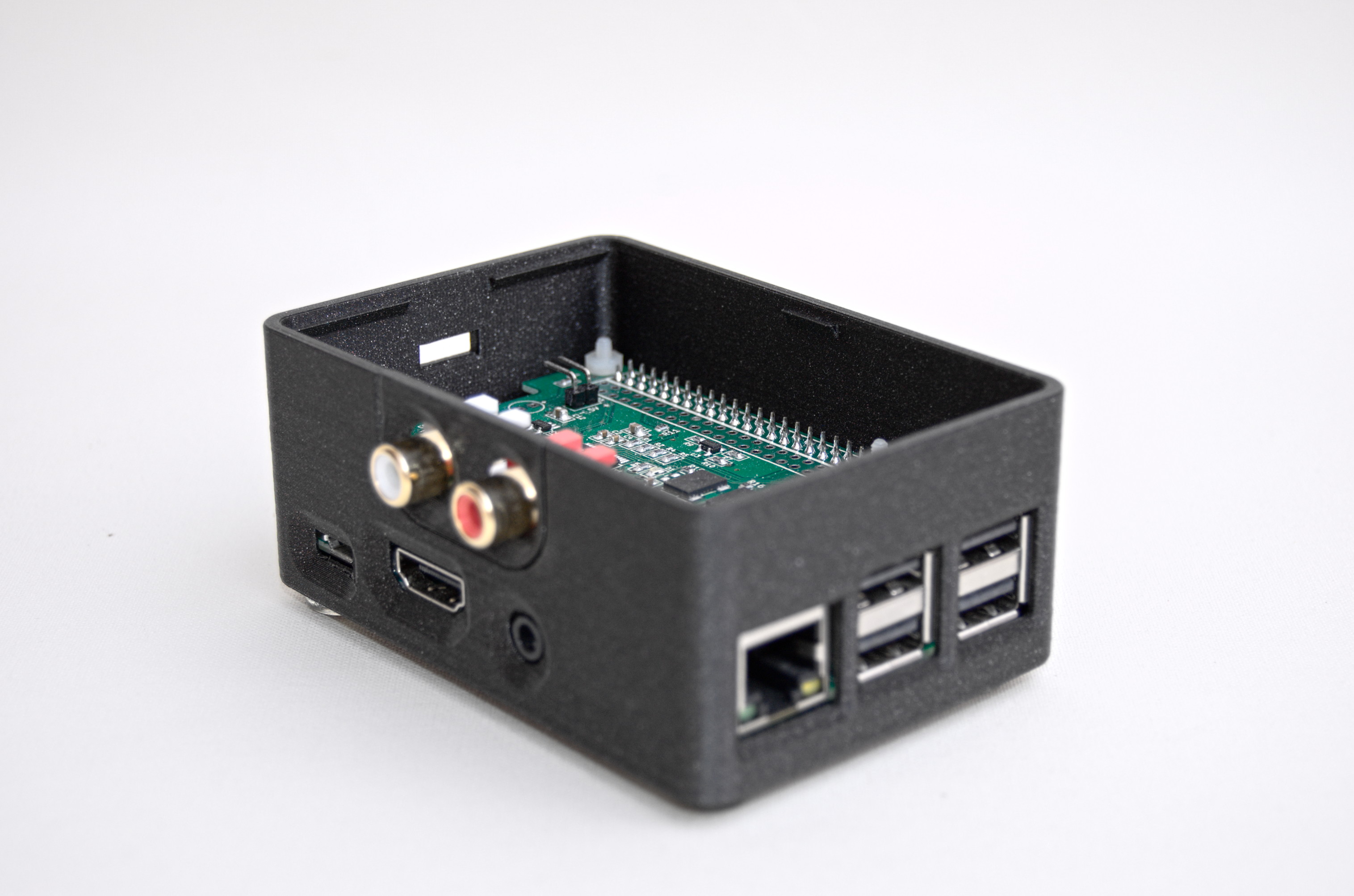

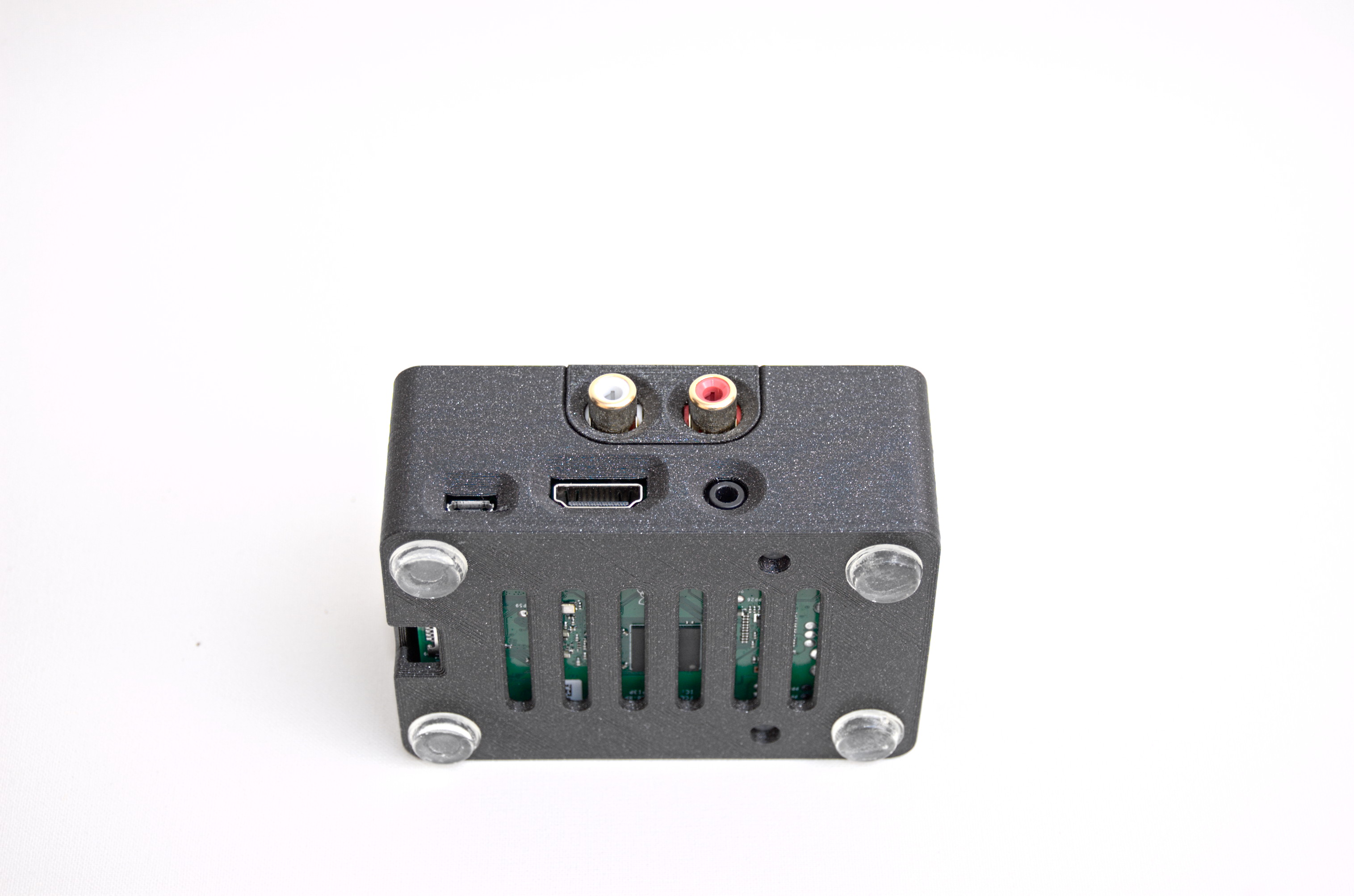

Place the 4 nylon screws in the holes under the case. Place the RPi board on the case matching the holes with the screws. Then screw the spacers. Because it is difficult to hold all 4 screws simultaneously, try one at a time. After all spacers are in place, take the 3D printed RCA cover and put it on the RCAs then mount the HiFiBerry DAC pushing it gently for the GPIO pins to sit. Then place the top cover.
There is an animation, to visualize the process, in the following link:
https://www.hifiberry.com/wp-content/uploads/2019/10/HiFiBerry-Case-Assembly.mp4?_=1
When you finish with the assembly of the player go to https://www.hifiberry.com/build/guides/

Enjoy your music!

Extra:

In the "Special Cases" Folder you will find some models for specific uses, like additional POE hat.
