practical handle
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Easy to print, one-piece handle for everyday use. Including a 3rd hole in the middle for extra stiffness
- Rating
- 5 / 5
- Likes
- 5
- Downloads
- 44
- Makes
- 0
- Views
- 207
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Attribution
I needed a simple and easy printable handle for my speakerbox. All handles I found had just 2 mounting holes on the side or had to be printed in more parts but I wanted a third hole in the middle for extra stiffness and a easy-to-print solution.
The mounting holes are 3,5mm diameter and the outer holes are 148mm apart.
I used 3x woodscrews (3 x 20mm)
max. Dimensions of the handle: 160 x 46 x 20mm
Printed with 4 perimeters in PLA - 0.2mm layer height
Print tip: If you want a cool handle with visible hexagons/triangles/etc. set the bottom and top layer amount to zero.
Hope you like my design. Feel free to give feedback or ask questions !
Cheers and happy printing,
Gregor
//// UPDATE 08.08.22 ////
Changed the total height of the handle to 38mm (previous 46mm) → Handle_v2
//// UPDATE 28.07.22 ////

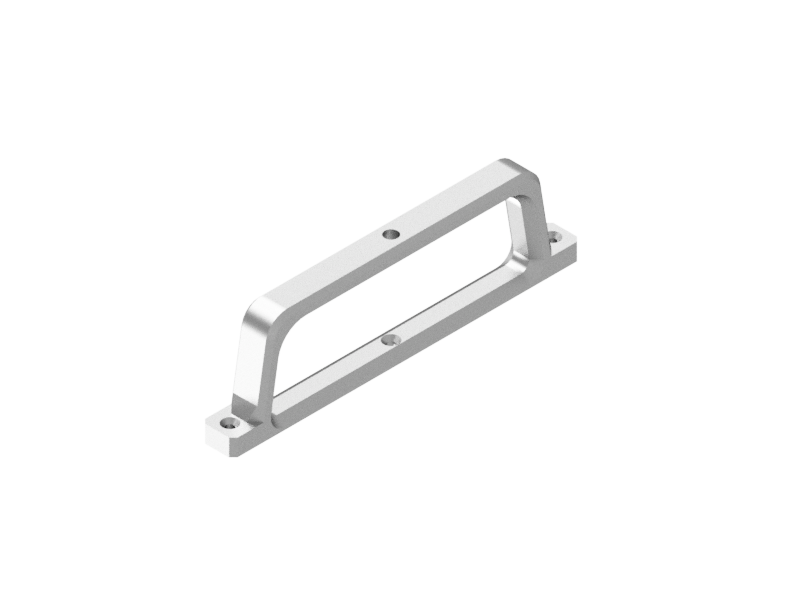

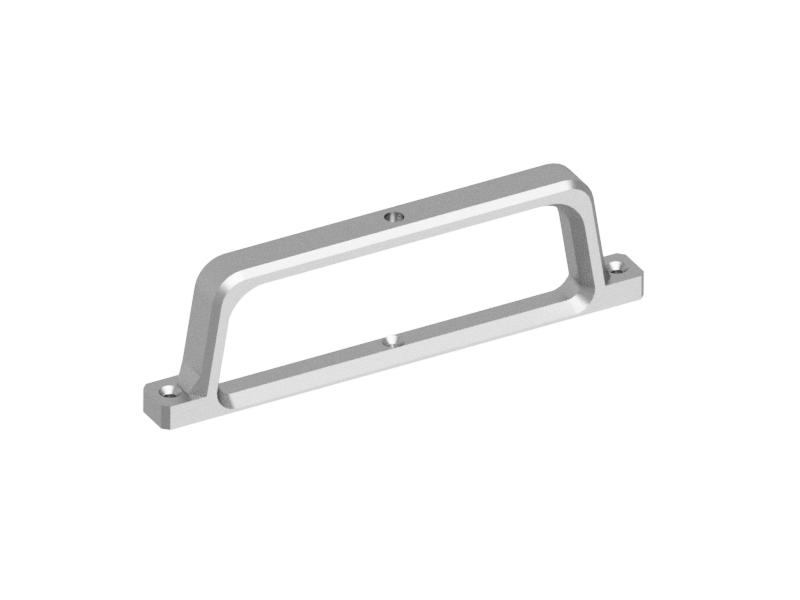

Changed the thickness from 15mm to 20mm - renderings show the 15mm version
