Universal Table Saw Alignment Tool
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Tool for accurately aligning the table saw top to the blade and fence for accurate cuts using a dial indicator
- Rating
- 5 / 5
- Likes
- 101
- Downloads
- 555
- Makes
- 1
- Views
- 2,709
- Reviews
- 1
Updated at source:
Model information
- Source
- Printables
- Category
- Mechanical Parts
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

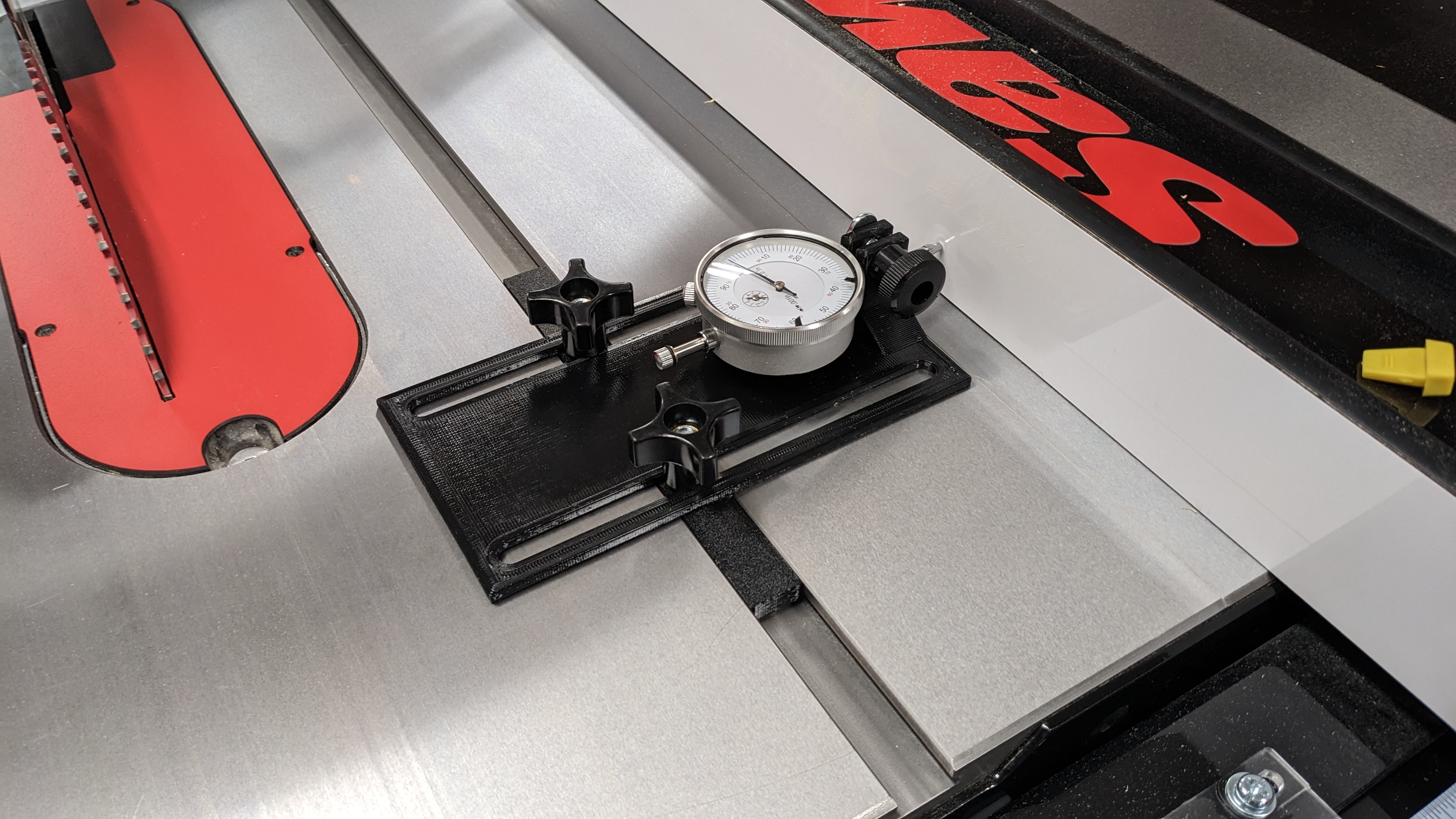

Tool to quickly and accurately align the table saw top to the blade and fence to improve the quality of cuts and operation of the saw.
Miter bar fits the standard ¾" miter slot common on cabinet style table saws. Should work fine with wood or UHMW miter bars if you already have something that fits your saw well. If you have a saw with a different sized slot let me know and I can add an alternate bar for it.
Requires a dial indicator, many inexpensive options available online are perfectly suited to this tool. (3) ~1" 5/16" - 1/4" bolts required. I used 5/16" t-bots and knobs I had on hand. One clamps the indicator in place firmly and two to attach the miter bar.
If you dial indicator has a mounting post on the back you might check out https://www.printables.com/model/338883-dial-indicator-flat-back to see if the replacement flat back I created for mine would fit.
See the video below for an example of how to use the tool.
