CNC handrad control
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution

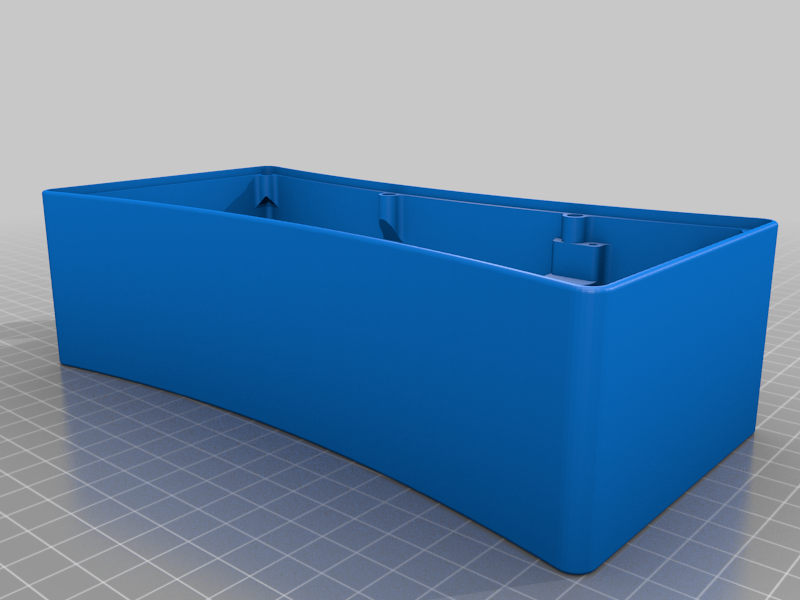

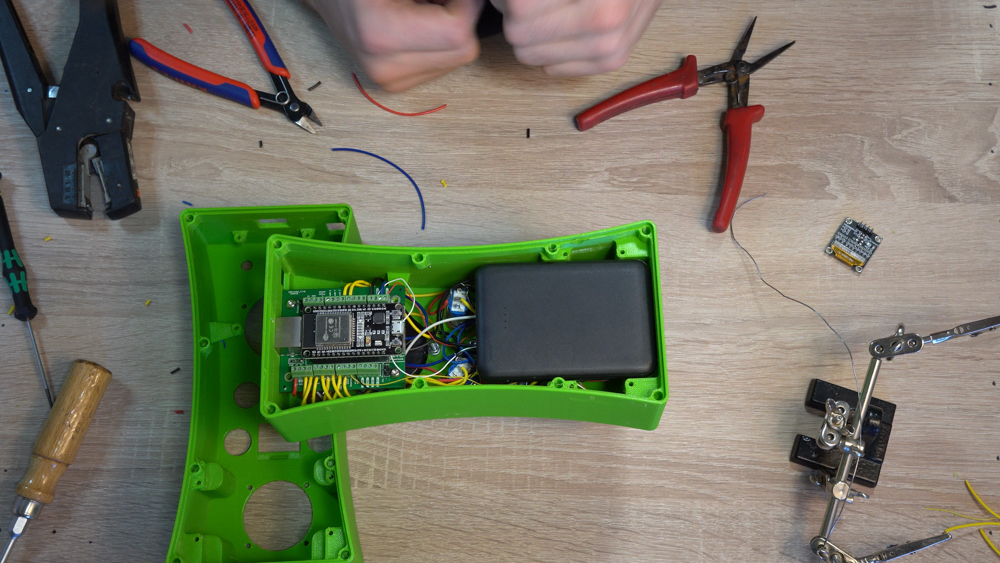

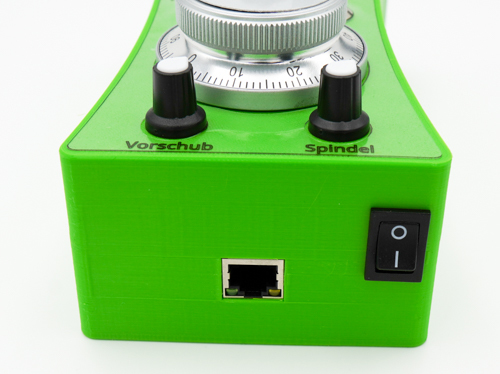

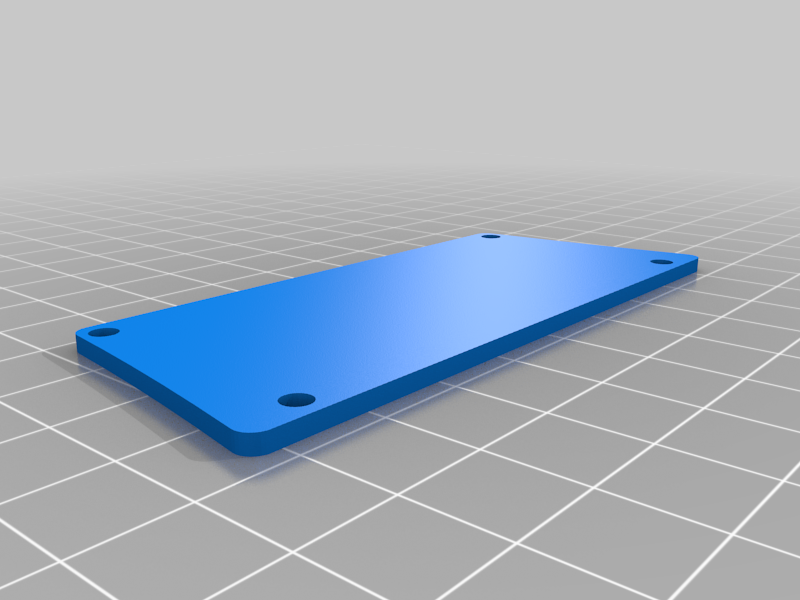

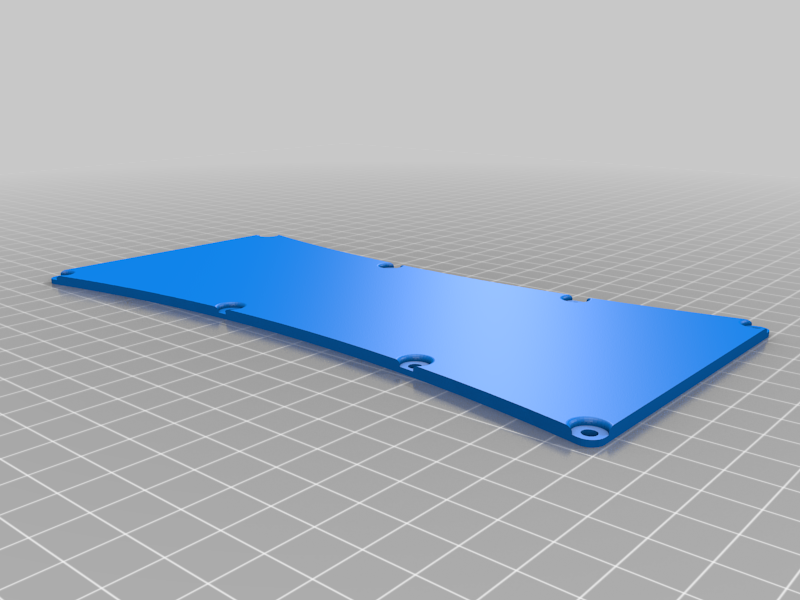

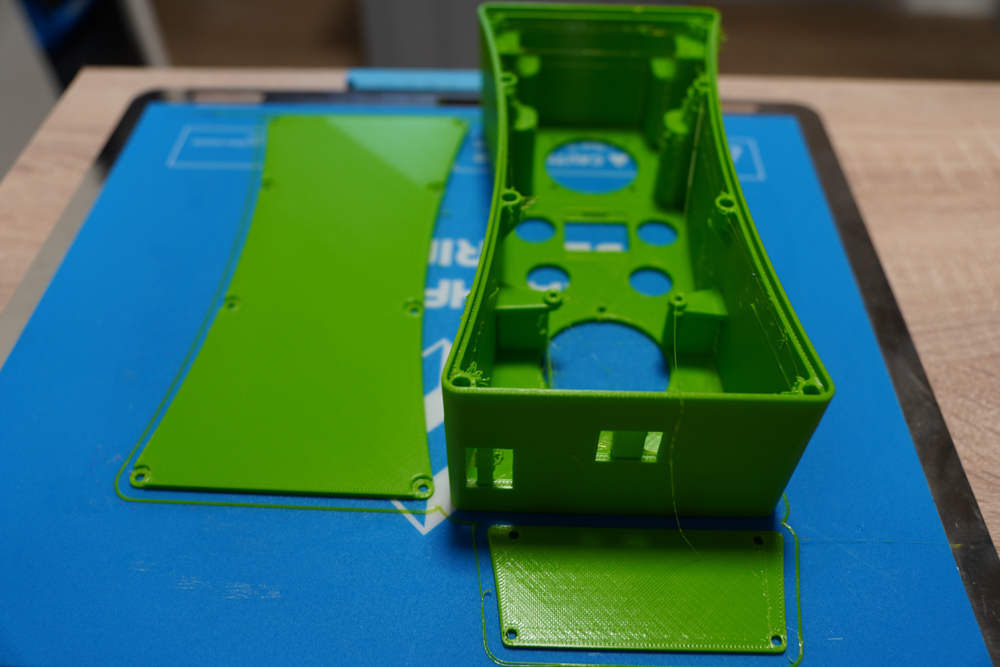

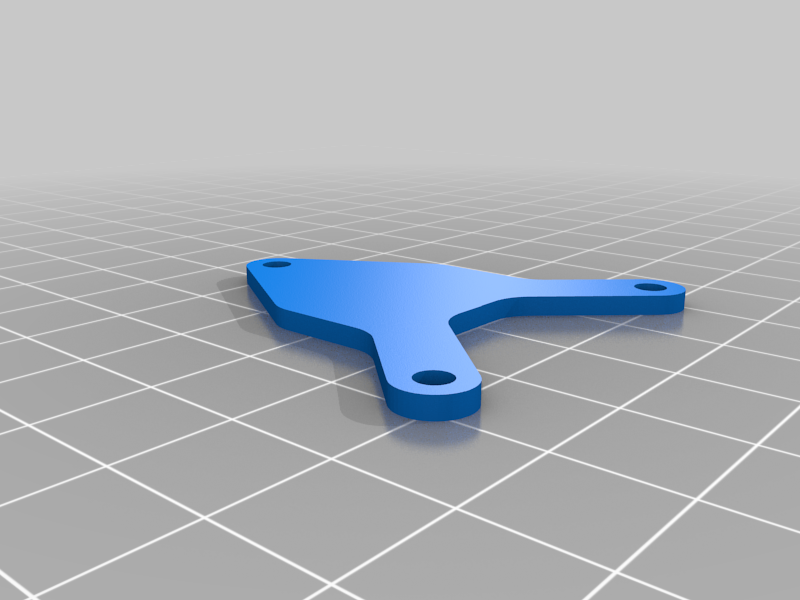

This is the housing for a cnc handwheel that i developed.
All information can be found in this blog post: https://blog.altholtmann.com/cnc-handrad-open-cnc-shield-2/
See also this YouTube video (German): https://youtu.be/RESO32XFGKU

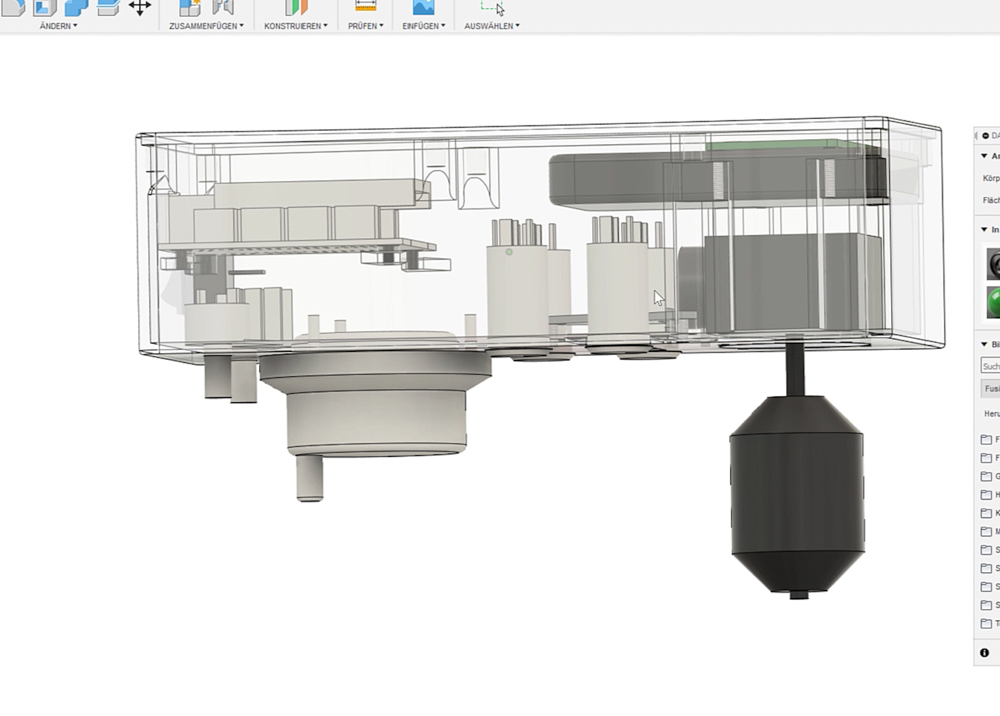

Fuson360 and Step file added for customizations.
Default holes fitting for:
4 x 16 mm push buttons
1 x 0,96inch i2c display
1 x 4-axhis joystick
1 x 60mm handwheel/encoder
2 x normal 10K Poti
1 x On/Off switch
3D inserts: M3 - diameter 5 mm - length up to 6 mm
Category: Machine Tools
