NR200P Back Panel Mod

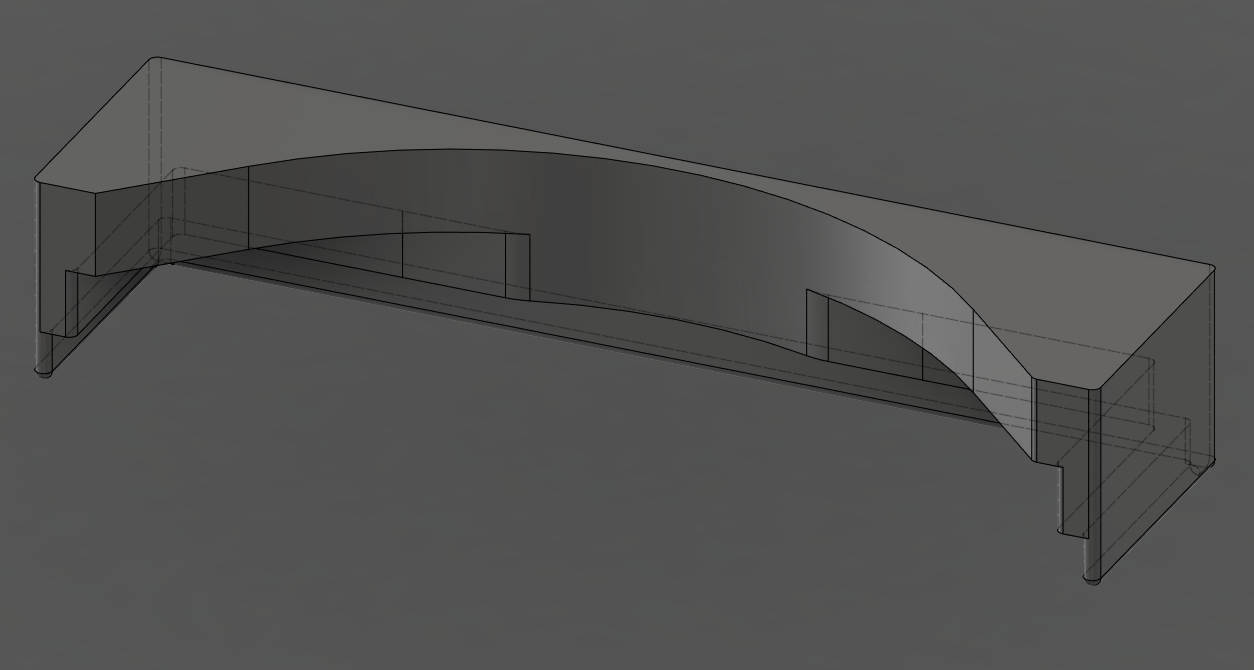

This is a 3d printable back panel made for the Cooler Master NR200P to allow for a vertical-mounted GPU and a top-mounted AIO. The printed mod changes the position of the motherboard down 26.5mm, GPU down ~63.5mm, and moves the internal power cord to the bottom of the case.

Link to Imgur for guide: https://imgur.com/gallery/nr200p-to-nr200-max-2022-l1sDaBo

This is designed to print on the CR-10; your printer will need to have a build plate of at least 275mm x 200mm to be able to print in one piece.

It's recommended to print this model in PETG, but PLA or ABS should be fine; this part probably won't melt. (Original PETG print has not melted with daily use since Jan of 2022)

Its dimensions are 263mm x 175mm x 16.2mm (10.35"x 6.8"x 0.63")

This model can be printed without support if your settings are good enough to clear its minimal overhangs, but I'd recommend printing with support for the best results.

This model should be printed with at least 15% infill, 3 top/bottom layers, and three walls.

Skirt recommended for minimal cleanup. Print at 100% scale

The finished print for the back panel took just under 13hrs and was just shy of 80grams (at 0.12 layer height),(approx under ten hours for 0.2)

To undertake this project, you'll need:

• 3d printer

• Metal file/grinder

• Drill

• 3/32" drill bit

• 4 m3-8mm bolts and corresponding nuts (button/flat/pan head style suggested)

• 8 small washers

• Philips head screwdriver

Link to Imgur for guide: https://imgur.com/gallery/nr200p-to-nr200-max-2022-l1sDaBo

~Triple slot GPU bracket is untested~
