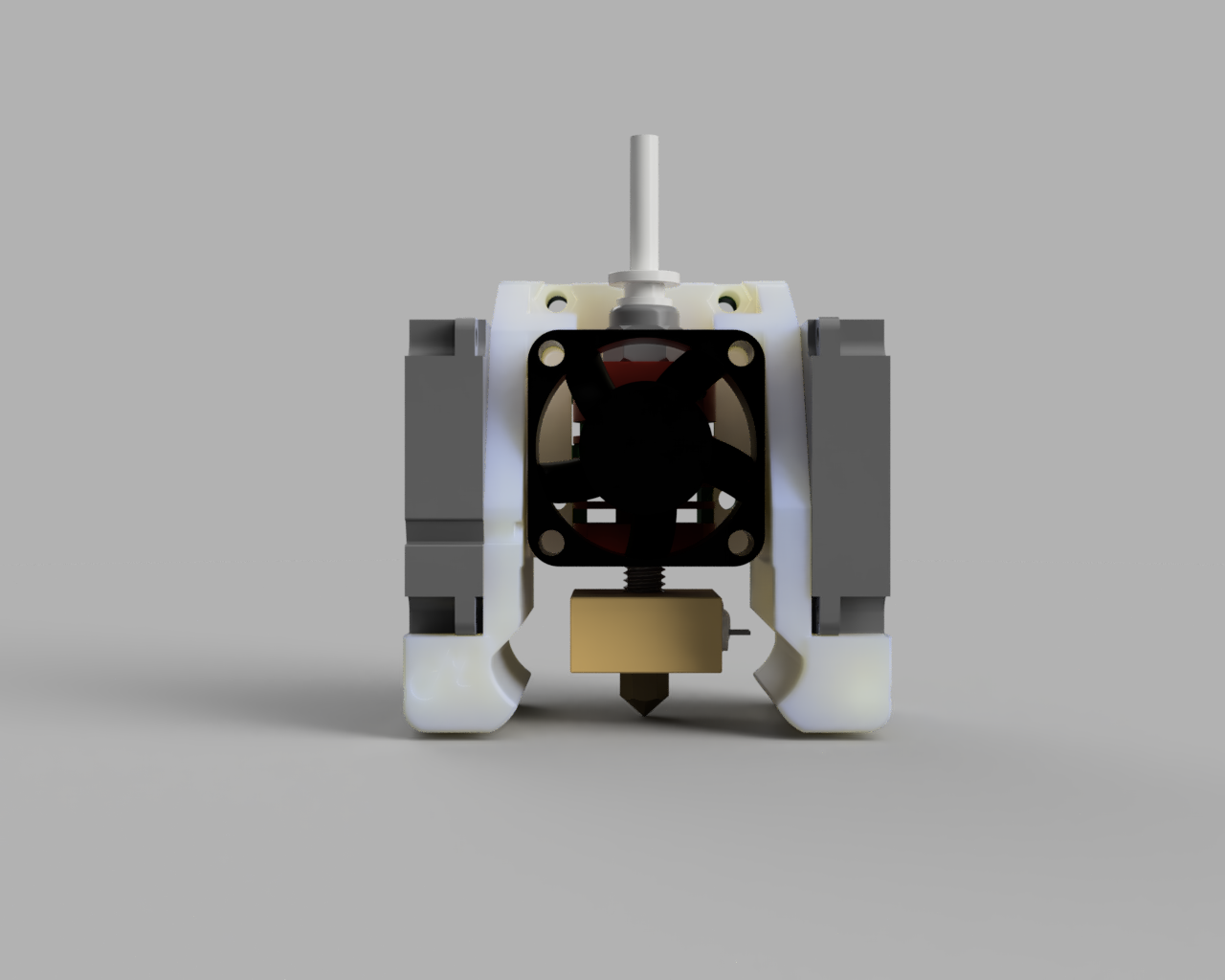

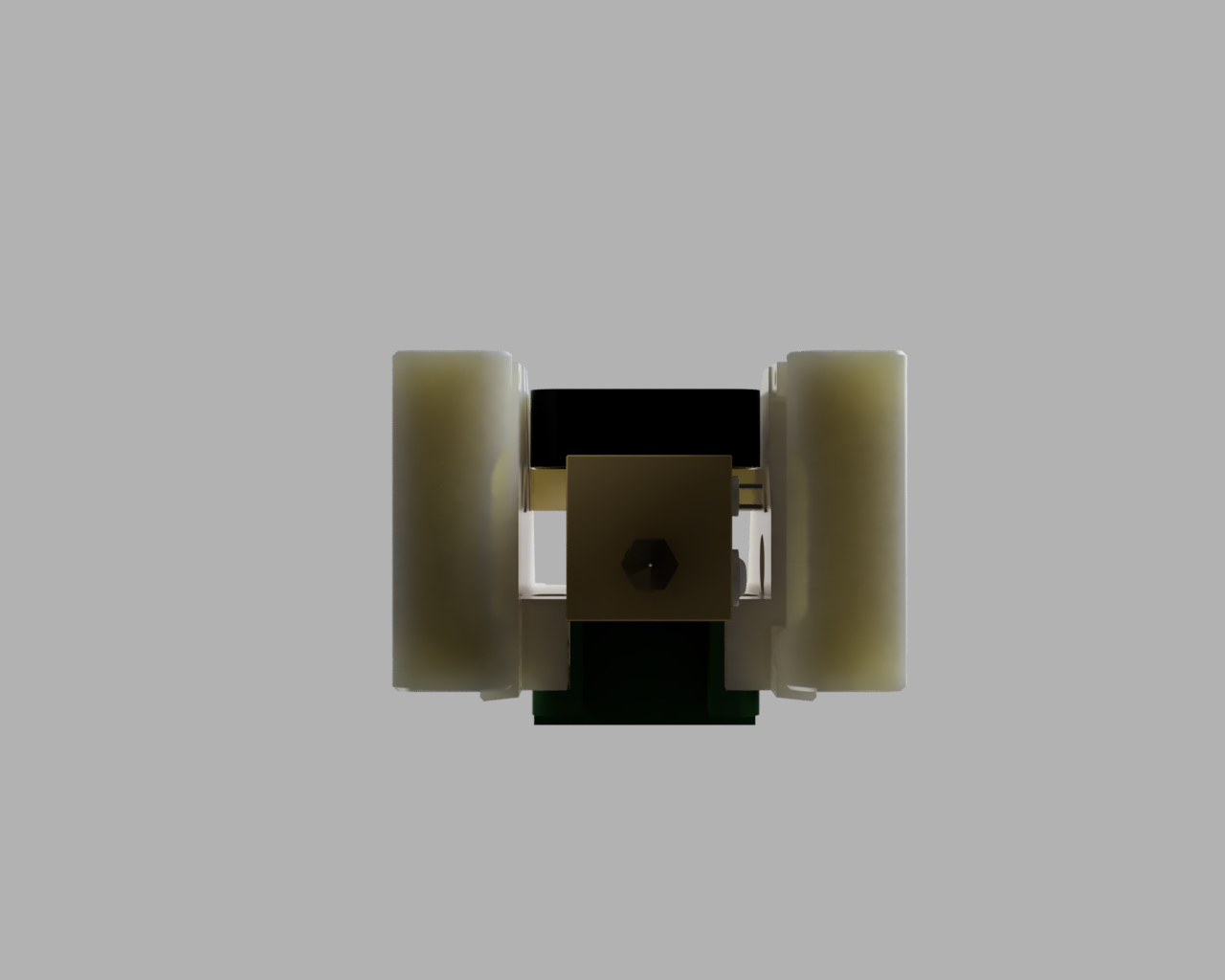

Mythoscale Mini Toolhead v7
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Other Printer Parts & Upgrades
- License
- Creative Commons — Attribution — Noncommercial
Something that actually fits on the Rook
An all-new toolhead that borrows the nozzles from the dragon burner toolhead that rides on a MGN9 carriage specifically designed for the rook and rook2020
Prerequisites:
- 8x M2x6mm button-head Screws
- 4x M3x22mm button-head Screws
- 2x M3x30mm button-head screws
- 2x GDSTIME 4010 radial fans
- 1x Creality MK-10 hotend
- 1x GDSTIME 3010 axial fan
Printing instructions:
- Print in an orientation that requires the least amount of supports
- Use a high-temperature filament (heat deflection temperature >90C)
- Discard parts if warped or cracked
Compatibility
- Rook - Legacy (creality hotend)
- Rook - MK1 (creality hotend)
- Rook - 2020 (creality hotend)
- Mythoscale (creality hotend)
- Magnum Rook (creality hotend)
Release Notes:
V7
- Removed useless material to reduce weight
- X-carriage is easier to assemble
V6
- Adjusted wiring clearance for hotend (should fix unnecessary strain on the heater cartridge)
- Adjusted Belt Clearance
- Modified body to allow better wire clearance
V5
- Adjusted hole sizes
V2
- Design released
- Easy to print with some supports required
- Simplified design compared to the Dragon Burner
