Super Straightedge
Order a print of this model
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Engineering
- License
- Standard Digital File License

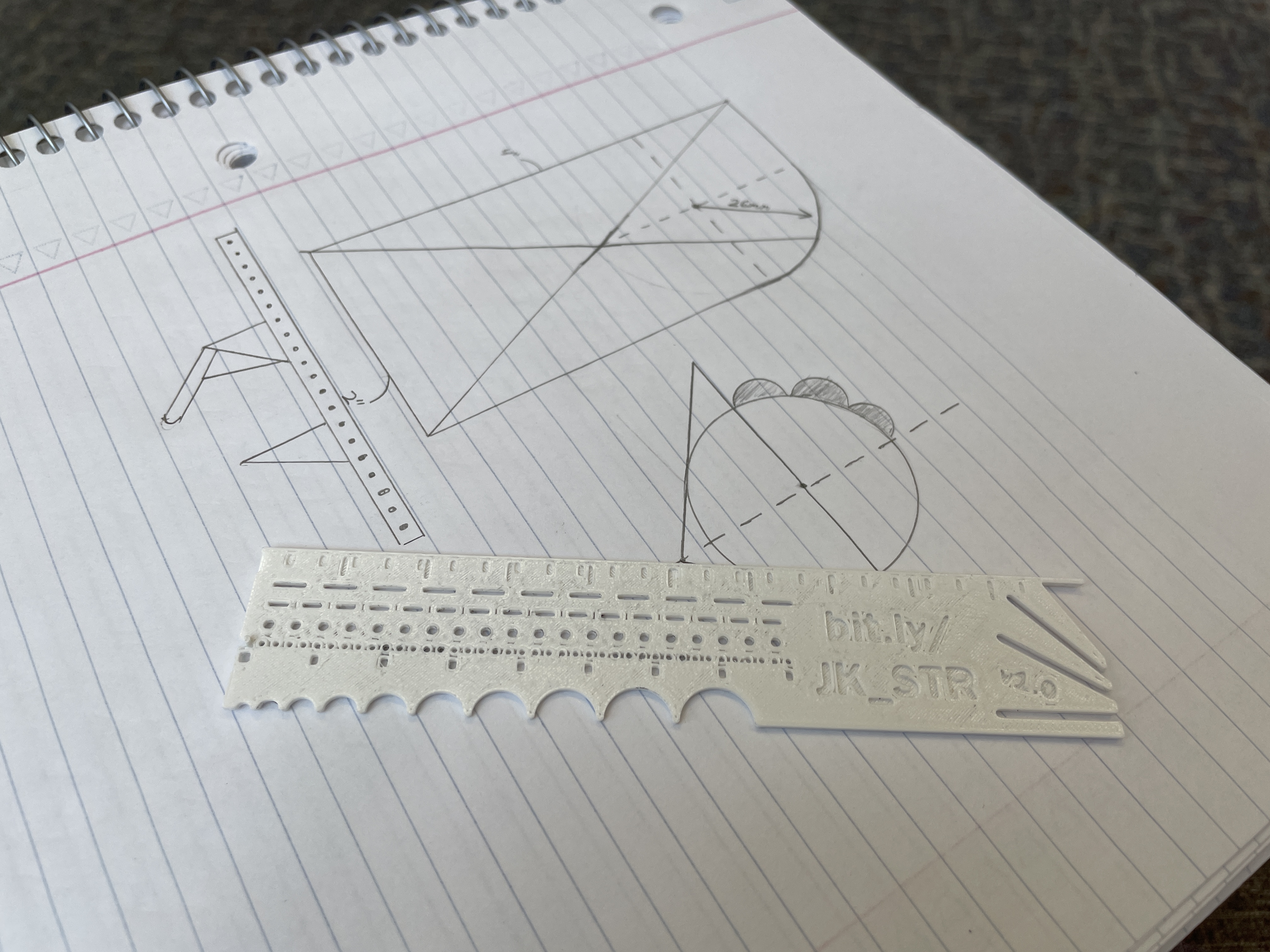

A custom straightedge for (almost) any simple engineering application. Useful for college classes and everyday work! I designed this tool for my Dynamics and Material Mechanics classes this semester.
Features:
- Ruler for in (.5" marks) & cm (5mm marks)
- 130mm long straightedge
- Dashed lines; Long (5mm, 2.5mm space) and Short (3mm, 2mm space)
- Dotted line (1.5mm holes)
- Compass with 1mm holes, circle centering pin, and 1cm marking holes
- Half-circle cutouts for rounding corners and arches
- Slots at 30°, 45°, 60°, and 90° to the short edge
- 30-60-90 triangle on the short edge
- bit.ly to this webpage with model revision number
Contact me or comment for other feature suggestions.
