Let me introduce this Mini Project.

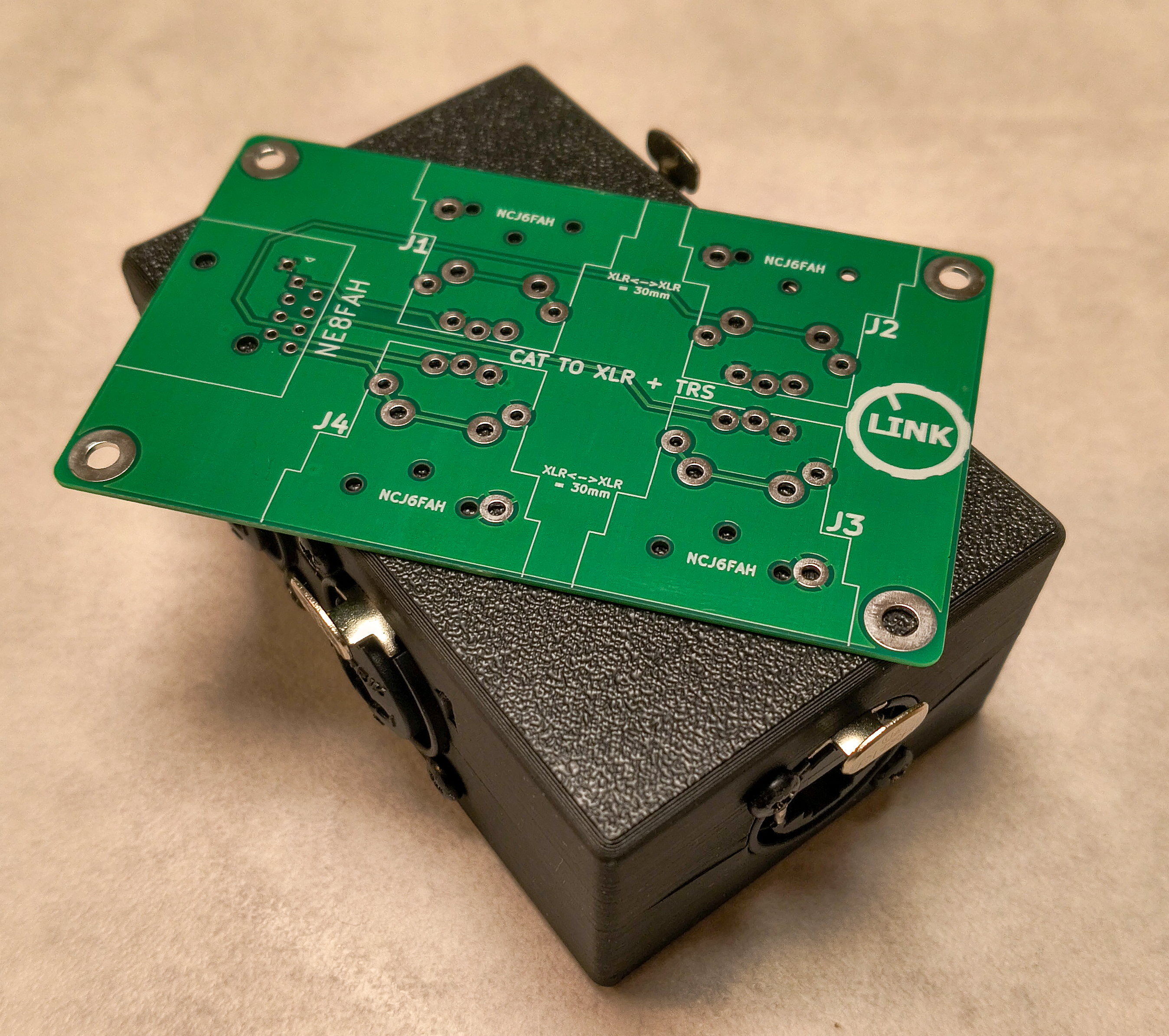

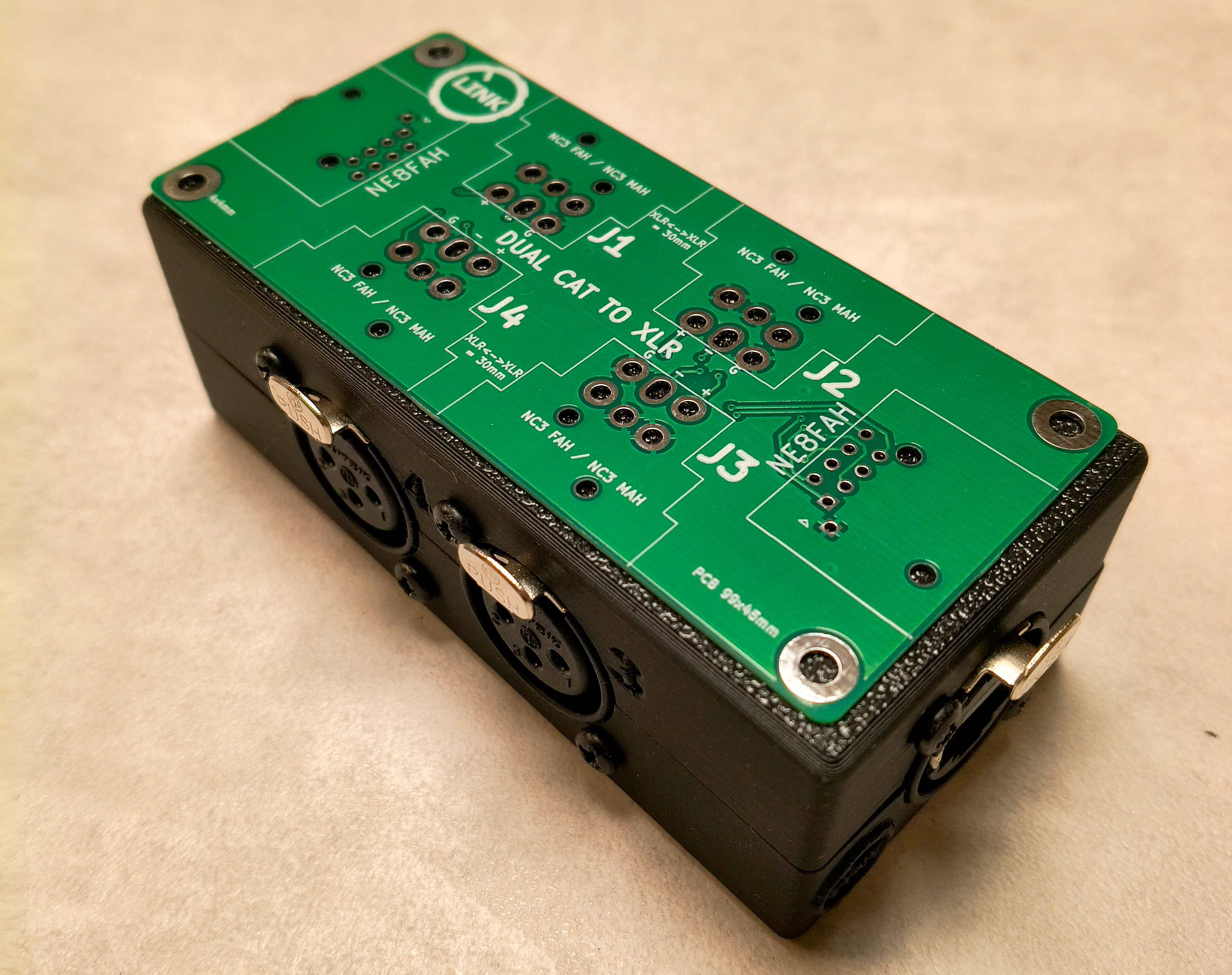

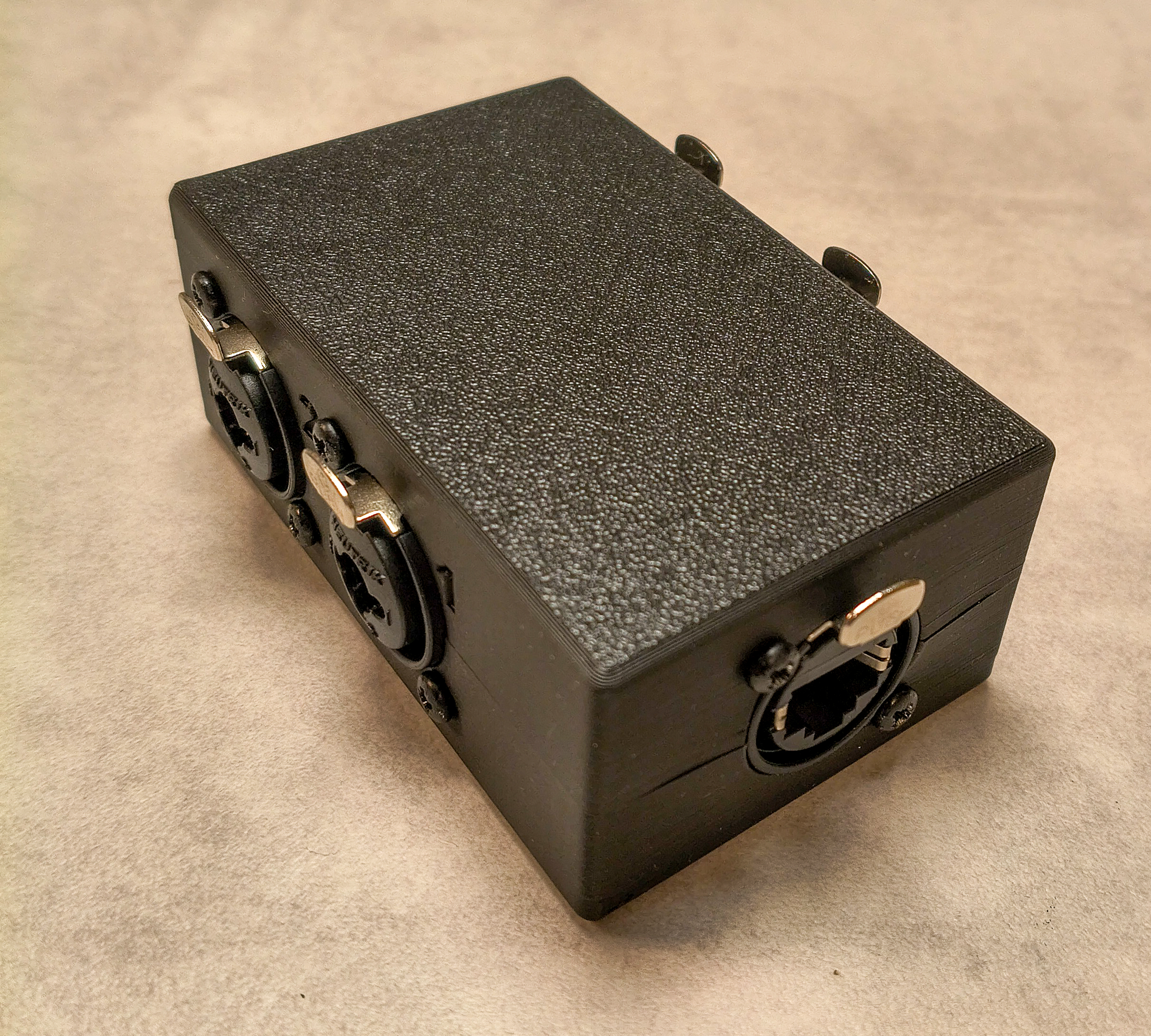

It‘s basically a case for a small CAT Extender to run long cables with analog or digital audio signals

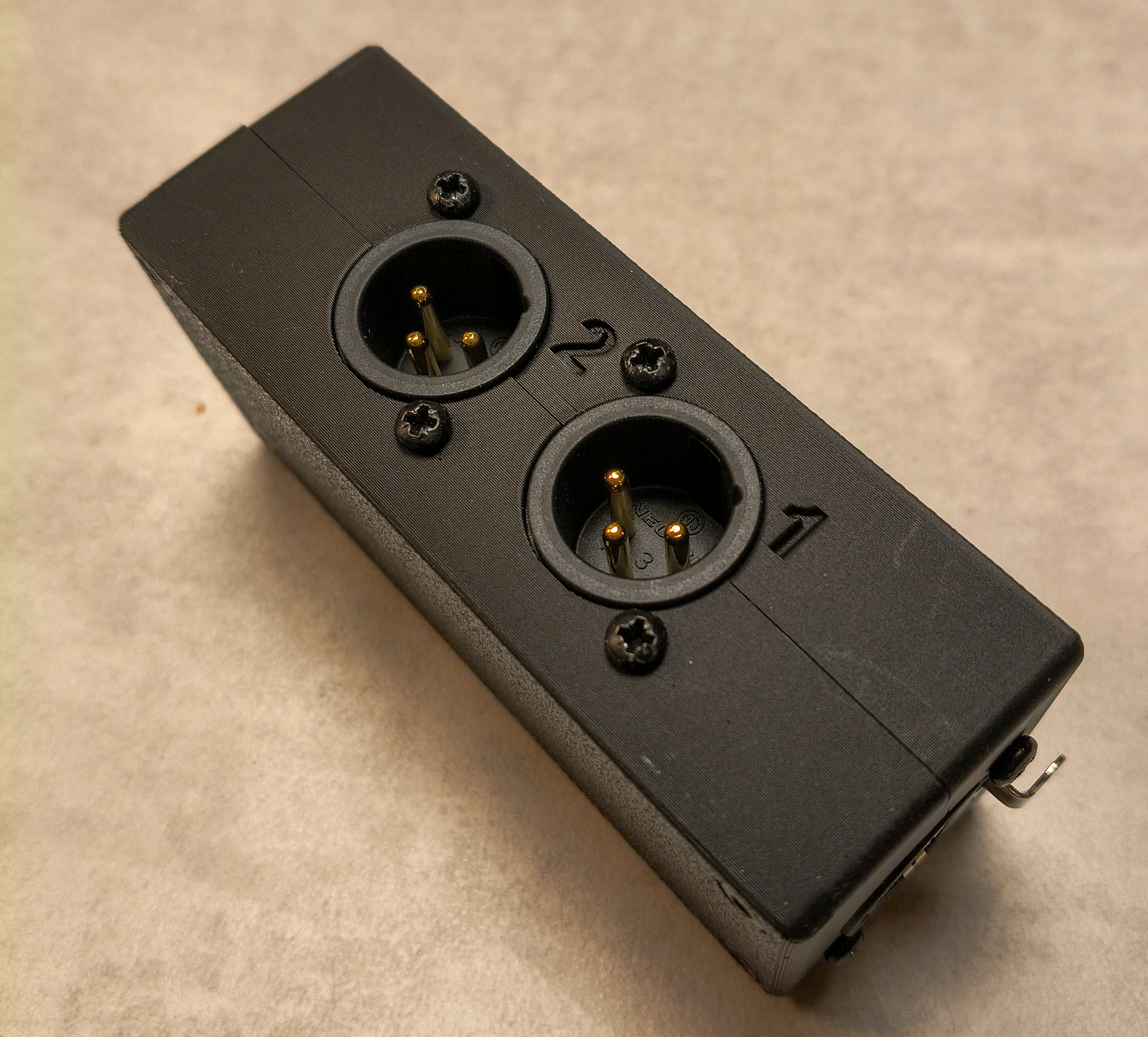

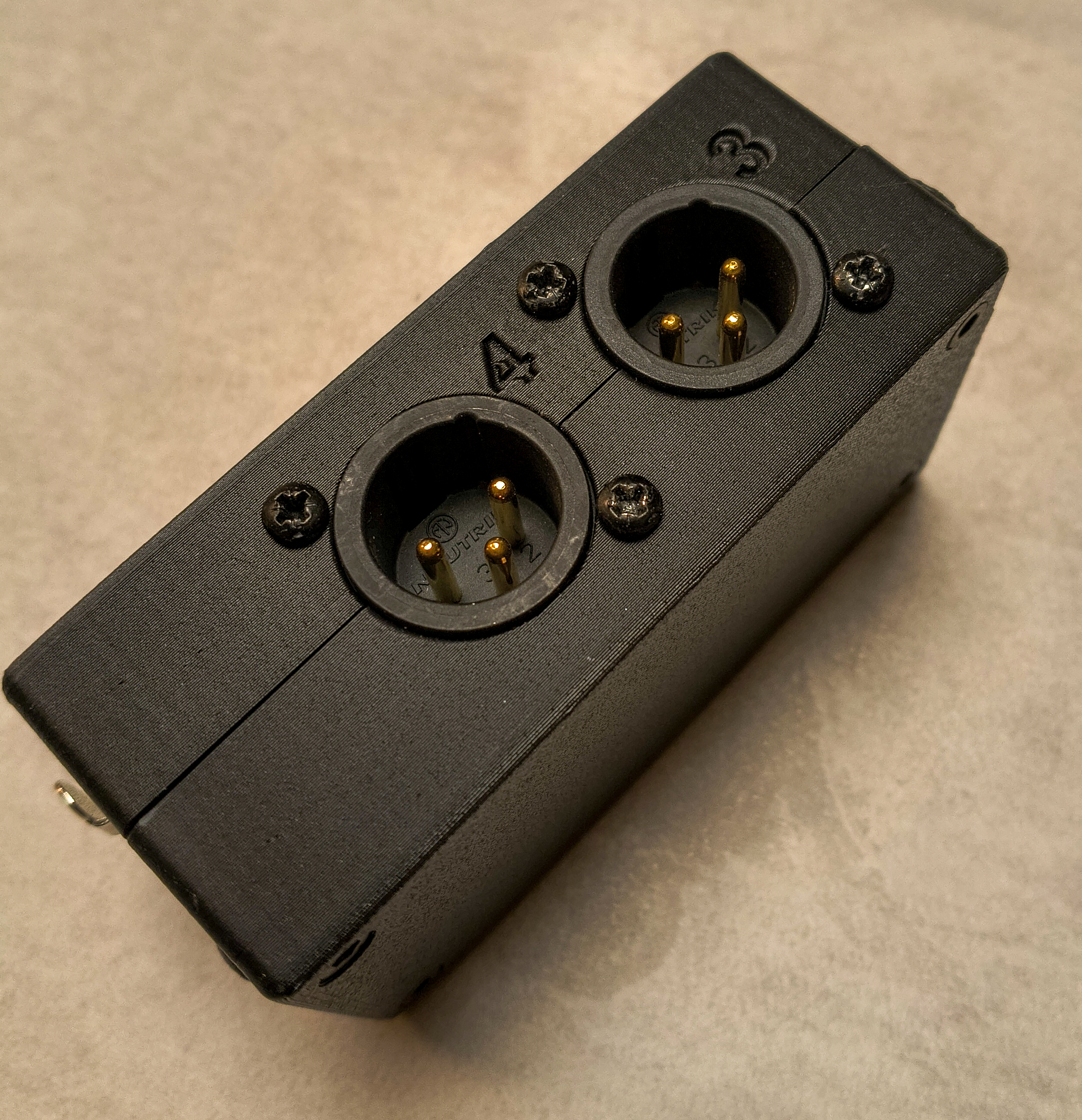

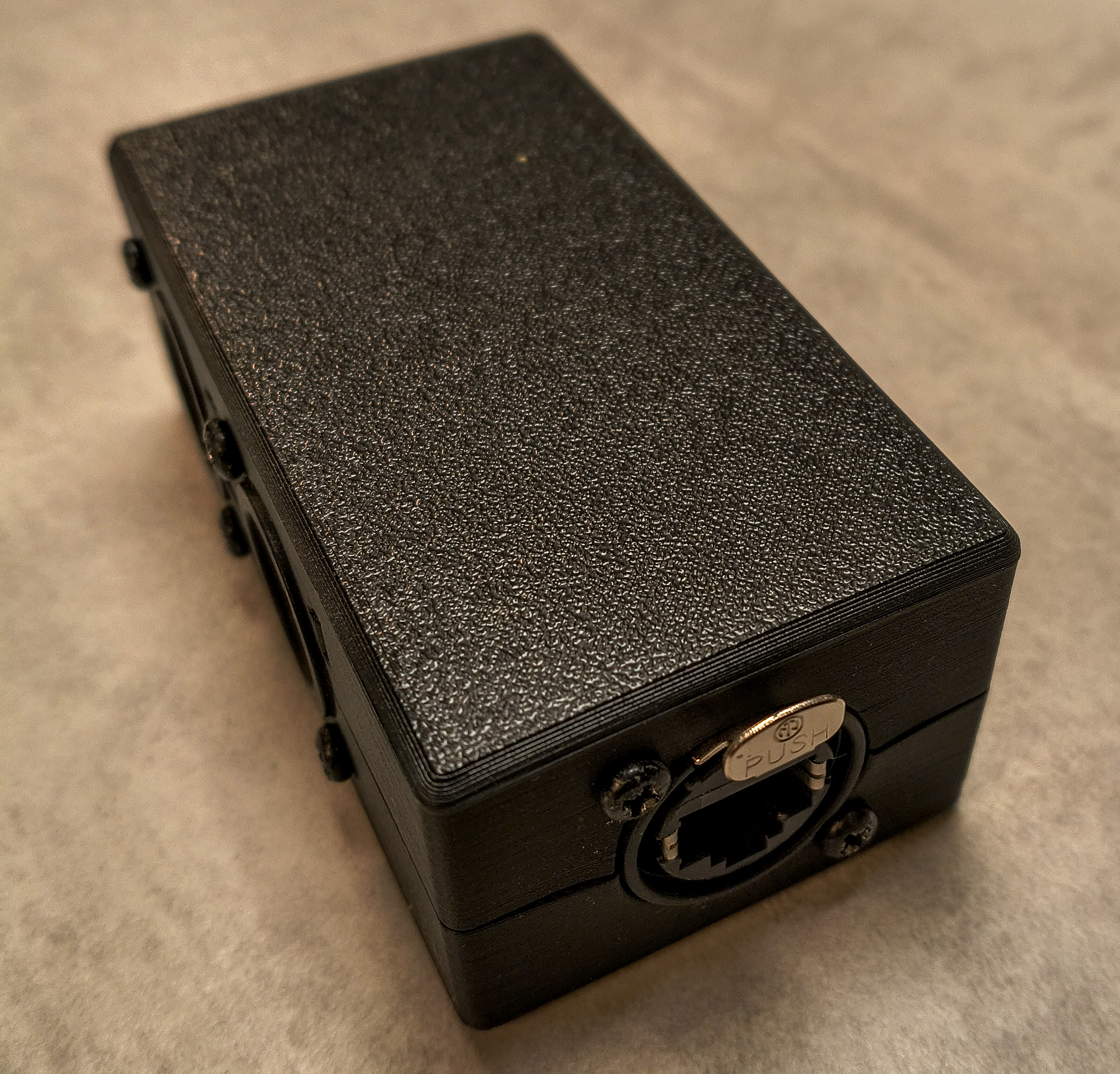

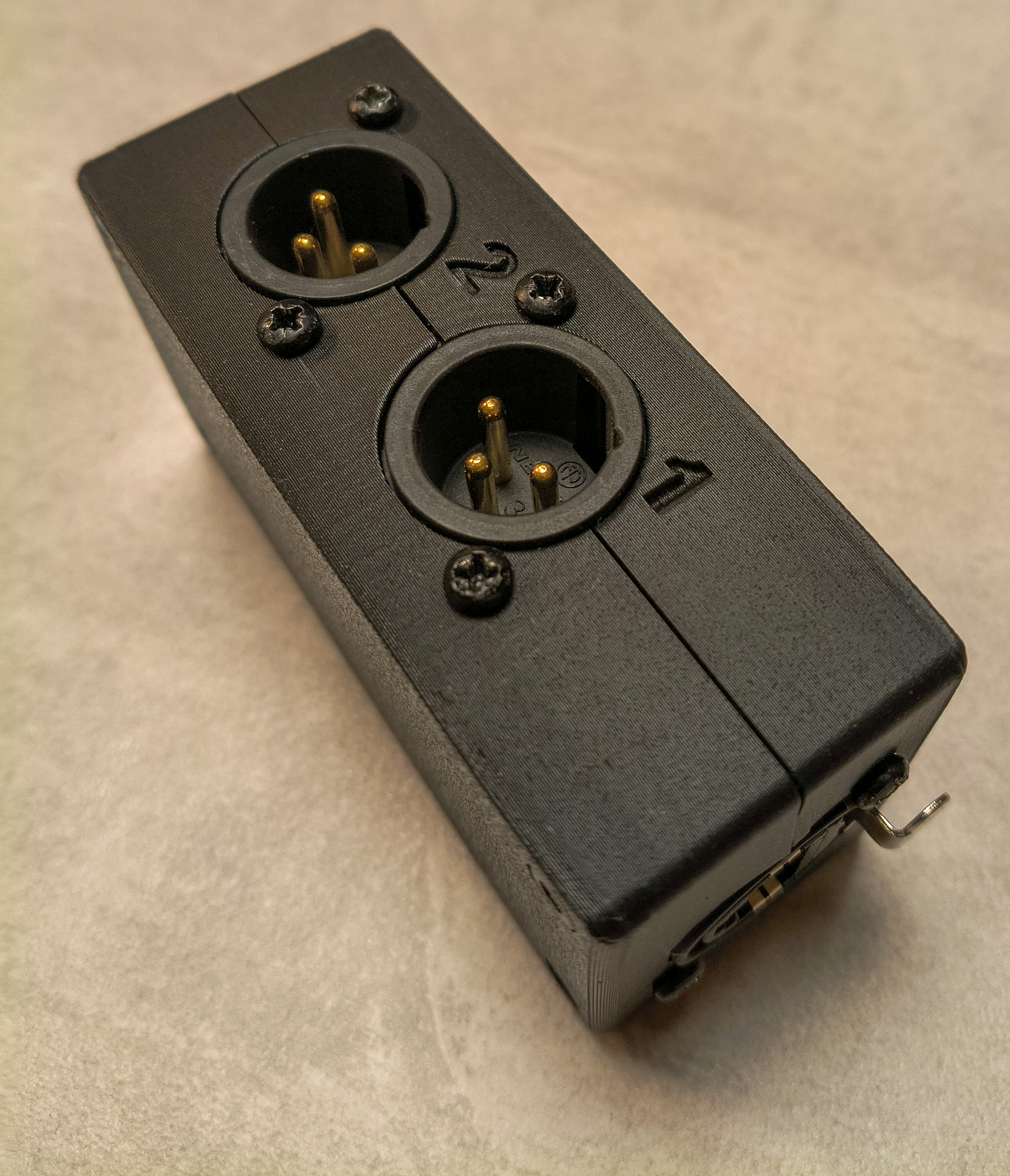

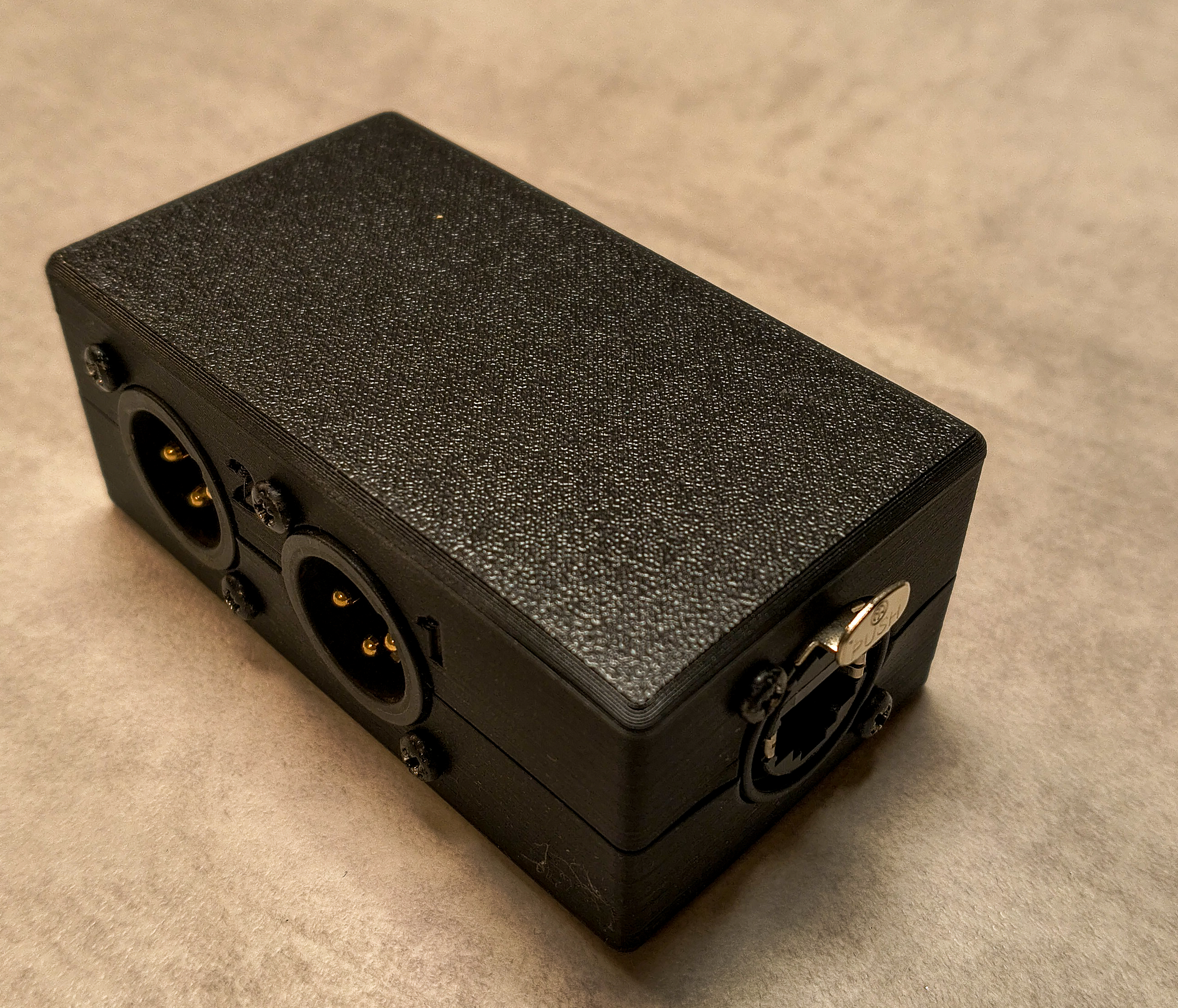

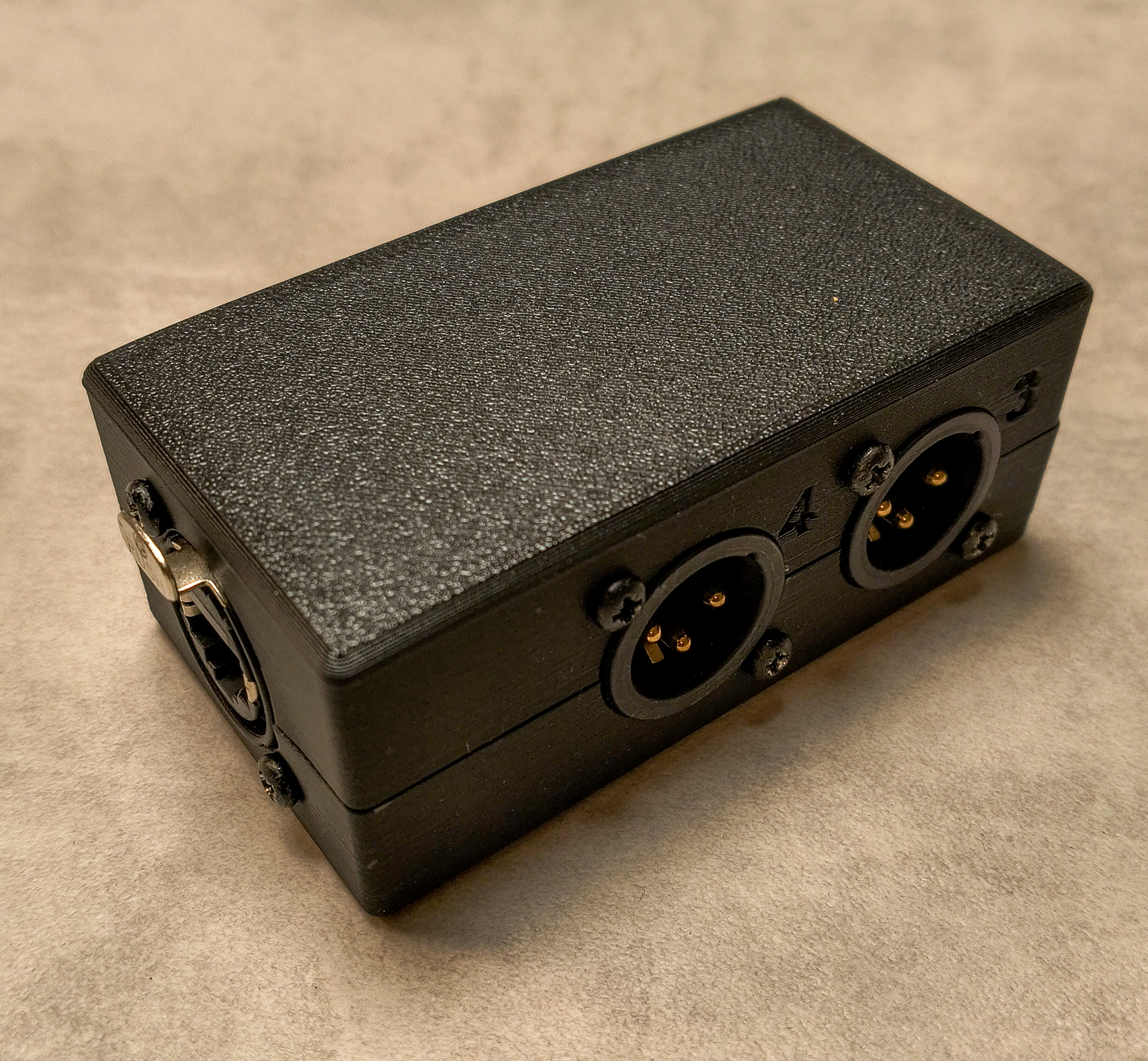

It works with one Neutrik RJ45 Connector and 4 XLR Connectors(male or female in any configuration) The Signal comes in Balanced with XLR. The unit don‘t need a Power Supply. I have designed this Project in Business Card Format 85x55mm. The CAT XLR is compatible as well to the MIC SUM.
Just print both parts and use the screws of the XLR Connectors to hold the parts together.
We are using M3 Screws and we are using the CNC Kitchen threaded insert M3. But there also other alternatives
more info and manual at linkaudiodesign.de
