Elecrow 7 inch screen console
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Computers
- License
- Creative Commons — Attribution — Noncommercial — Share Alike
Got the idea from here:
https://www.printables.com/model/328757-octoprint-console-raspberry-pi-3-b-5-inch-elcrow-t
But wanted to make it for 7 inch screen, and a orange pi 5b

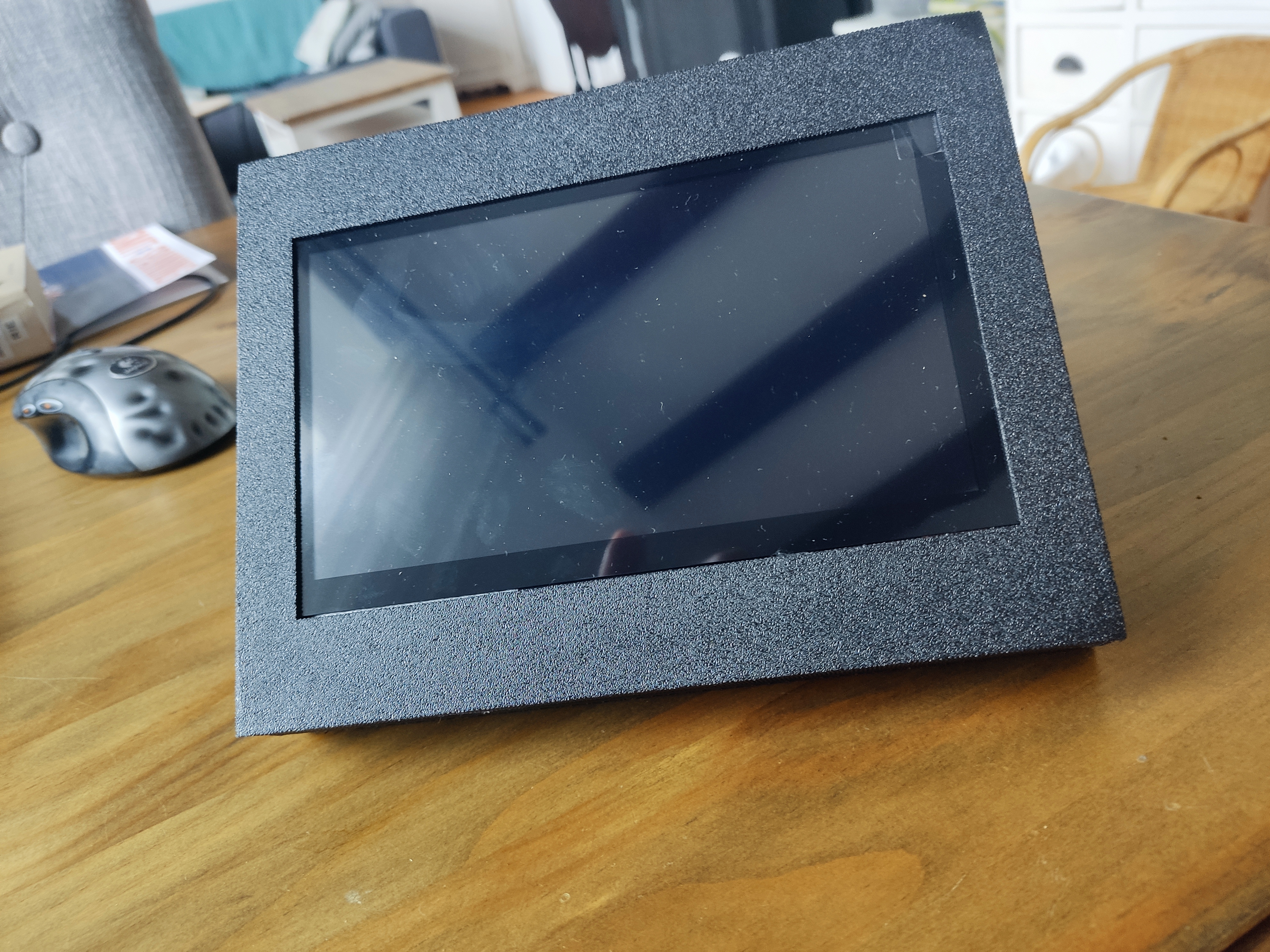

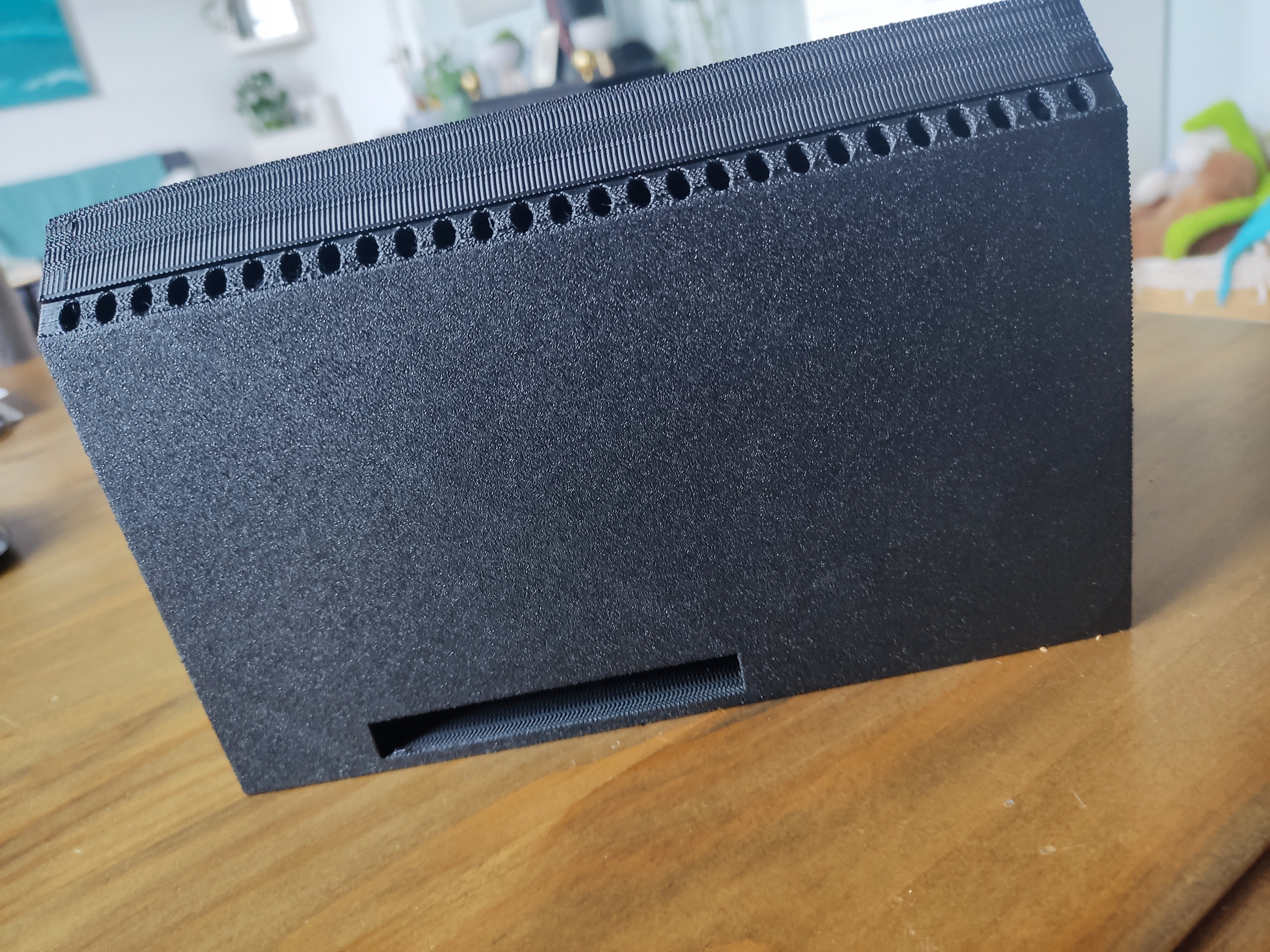

Its still a work in progress but on first looks it seem to fit

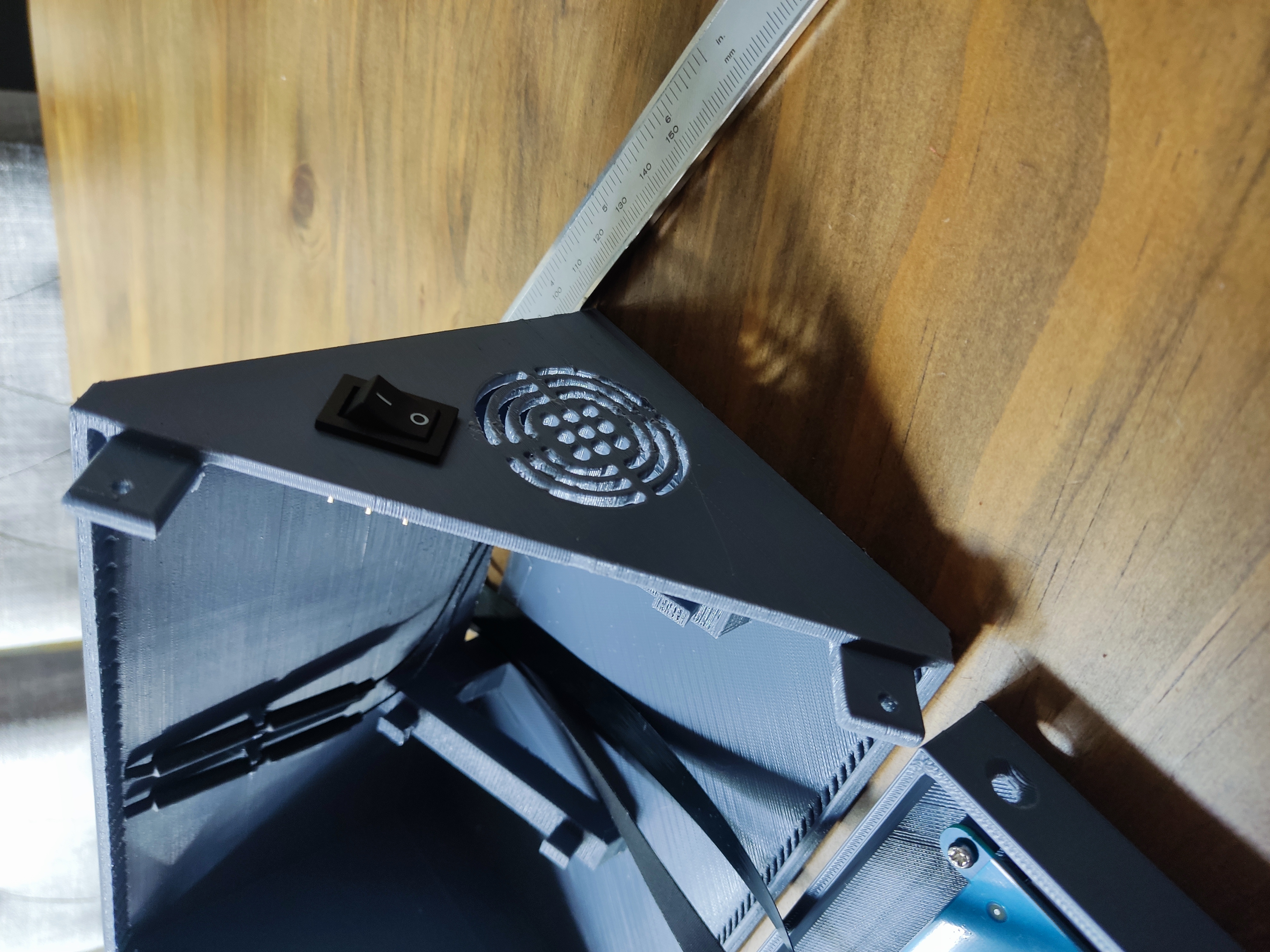

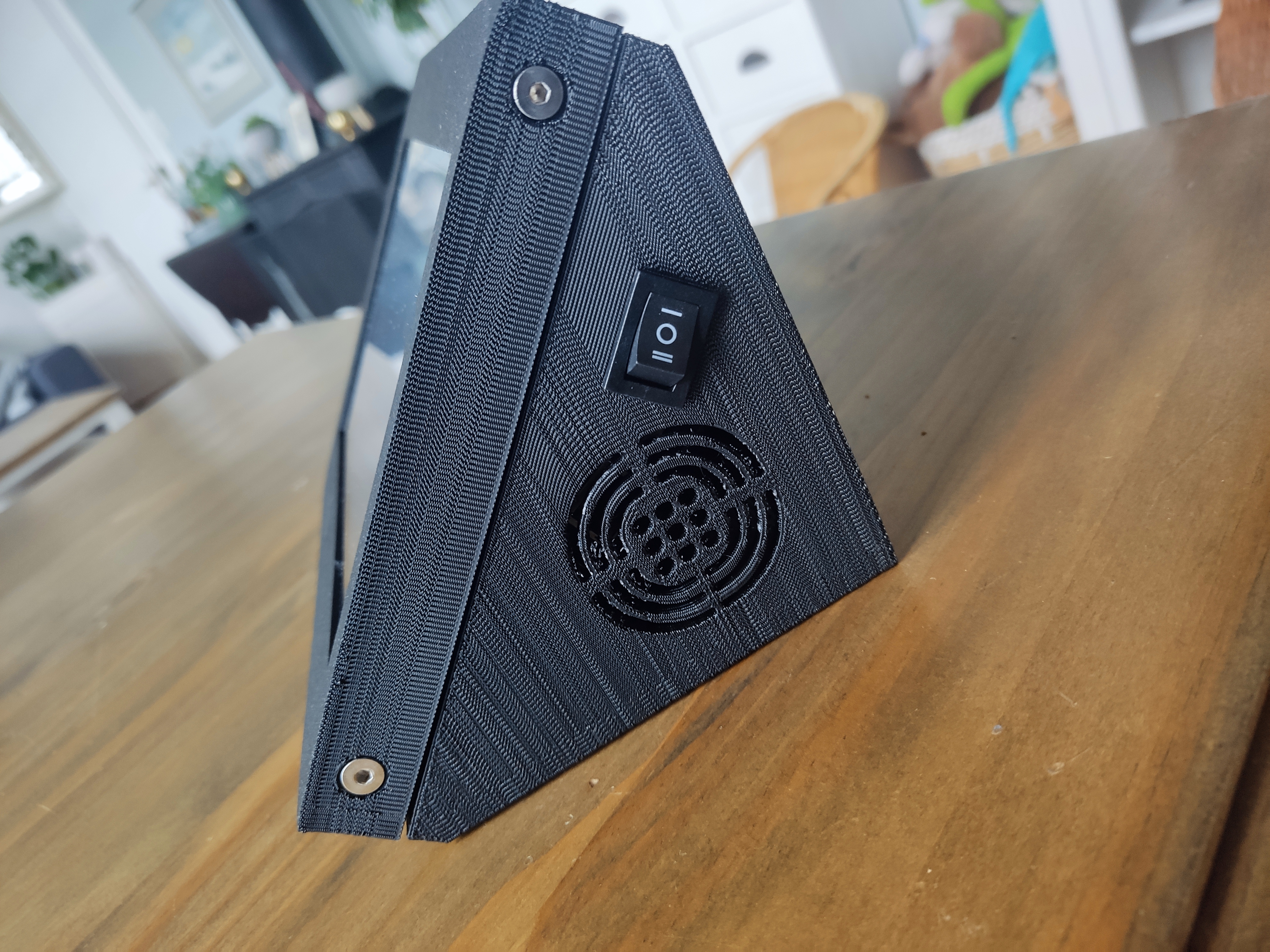

I will use thread inserts to mount the orange pi. The switch on the right hand side will be for the screen back light toggle because I want to be able to control that still if it is mounted.
PS: Please be nice it is my first upload and I'm not a real engineer.
If any body is interested I can make a raspberry pi design as well.
Update:

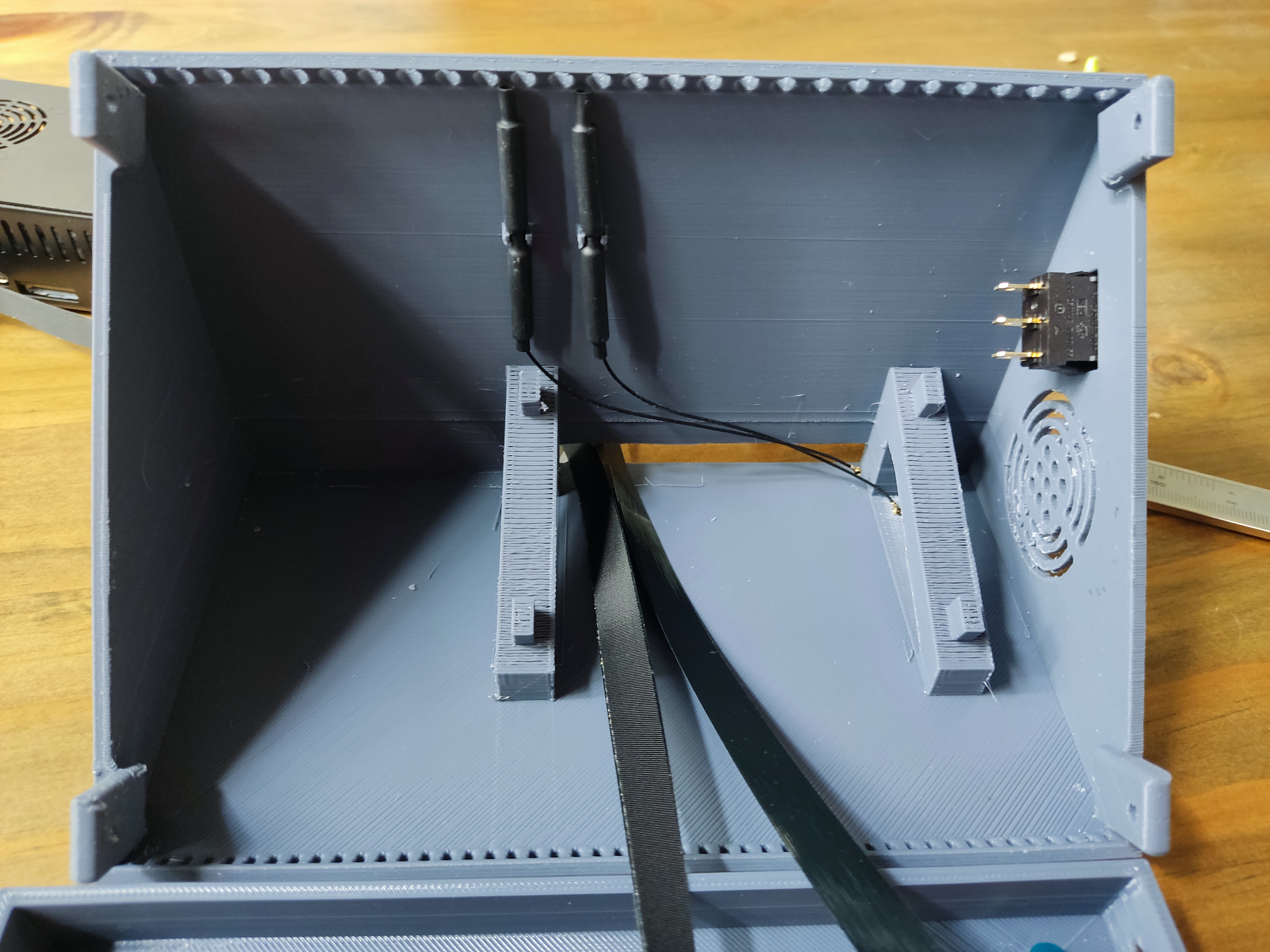

i changed the spacers for the thread inserts to create more room for the threat inserts.
per request i added a raspberry pi 4 variant. i created this with a friction fit because the holes around the gpio headers don't have a lot of flat PCB to create a base for threat inserts.
the way the raspberry pi is intend to be mounted is gpio top

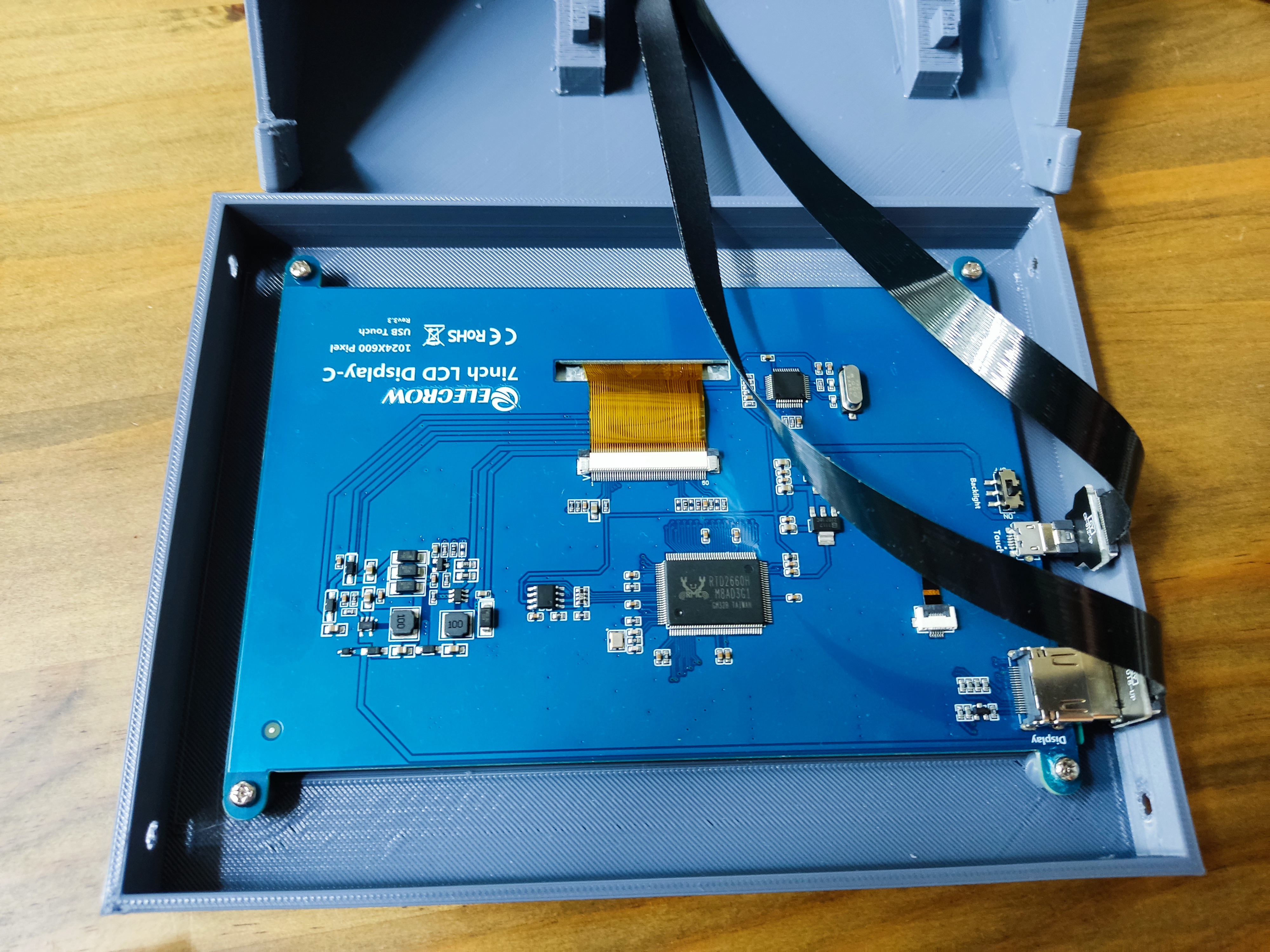

you probably need a micro HDMI ribbon cable like this. because it may interfere with USB-c or audio
update v2:
i made some minor changes to the orange pi design so it would fit better. also made the change there to the friction fit design i made for the raspberry pi variant.
