Flow Test - Visual and Fast!
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Quick way to find out (in couple of minutes) if your flow is set correctly in a "real life scenario"
- Rating
- 5 / 5
- Likes
- 28
- Downloads
- 434
- Makes
- 4
- Views
- 1,121
- Reviews
- 2
Updated at source:
Model information
- Source
- Printables
- Category
- Test Models
- License
- Creative Commons — Attribution — Noncommercial — Share Alike

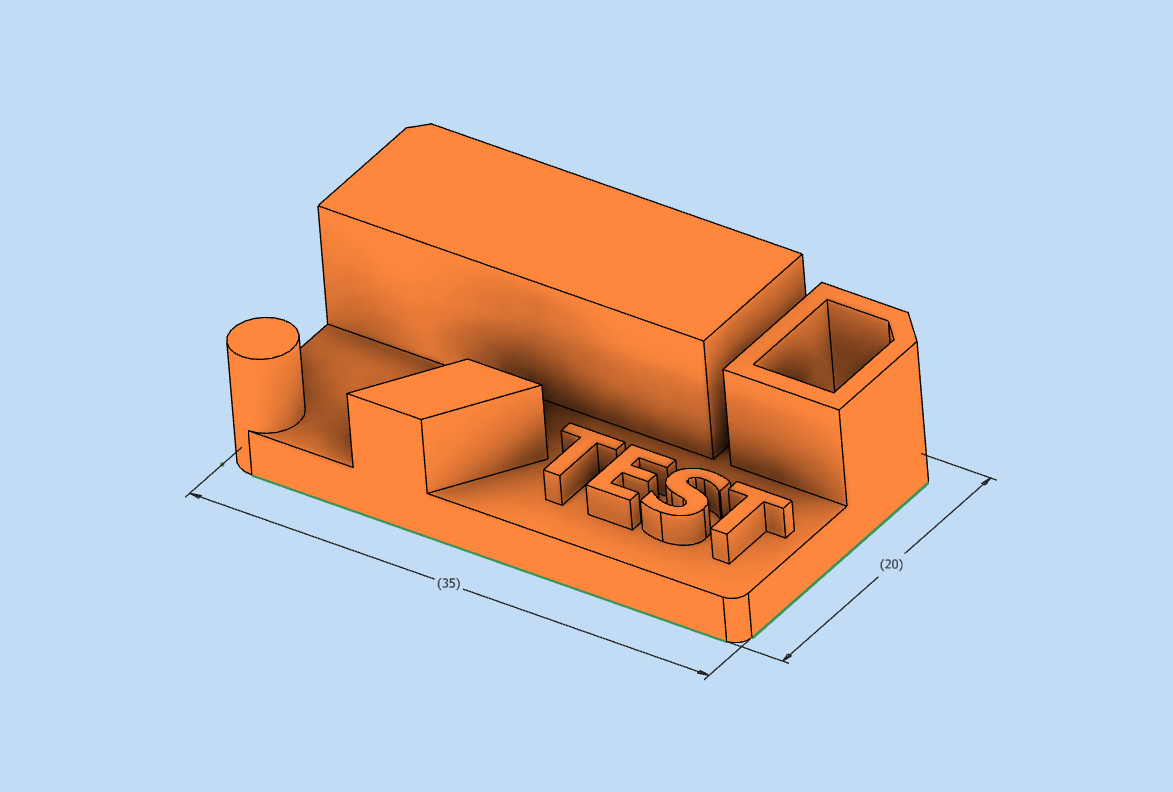

This is a test model that can be printed quickly. By looking at it you can see if you set your flow (aka extrustion multiplier) correctly.
There is couple of surfaces with overlaping features, so you can look if you have some gaps, or overextrusion. It uses less than 4g of filament and prints in about 6-15 minutes - depending on your printer. It is suitable for both 0.4 and 0.6mm nozzles.
Printing instructions
- 0.2mm layer height
- 2 walls, 3 top and bottom layers
- 20% infill
I have found that for me 1.0 (100%) flow usually works for PLA, and 0.94 (94%) for ASA. When I get a new colour, I try these defaults on this print and if needed, change the flow by 0.01 (1%) either up or down.
Feel free to follow me on my Twitter !:)
