Quadlock Mount (Locking Mechanism)
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Portable Devices
- License
- Creative Commons — Attribution

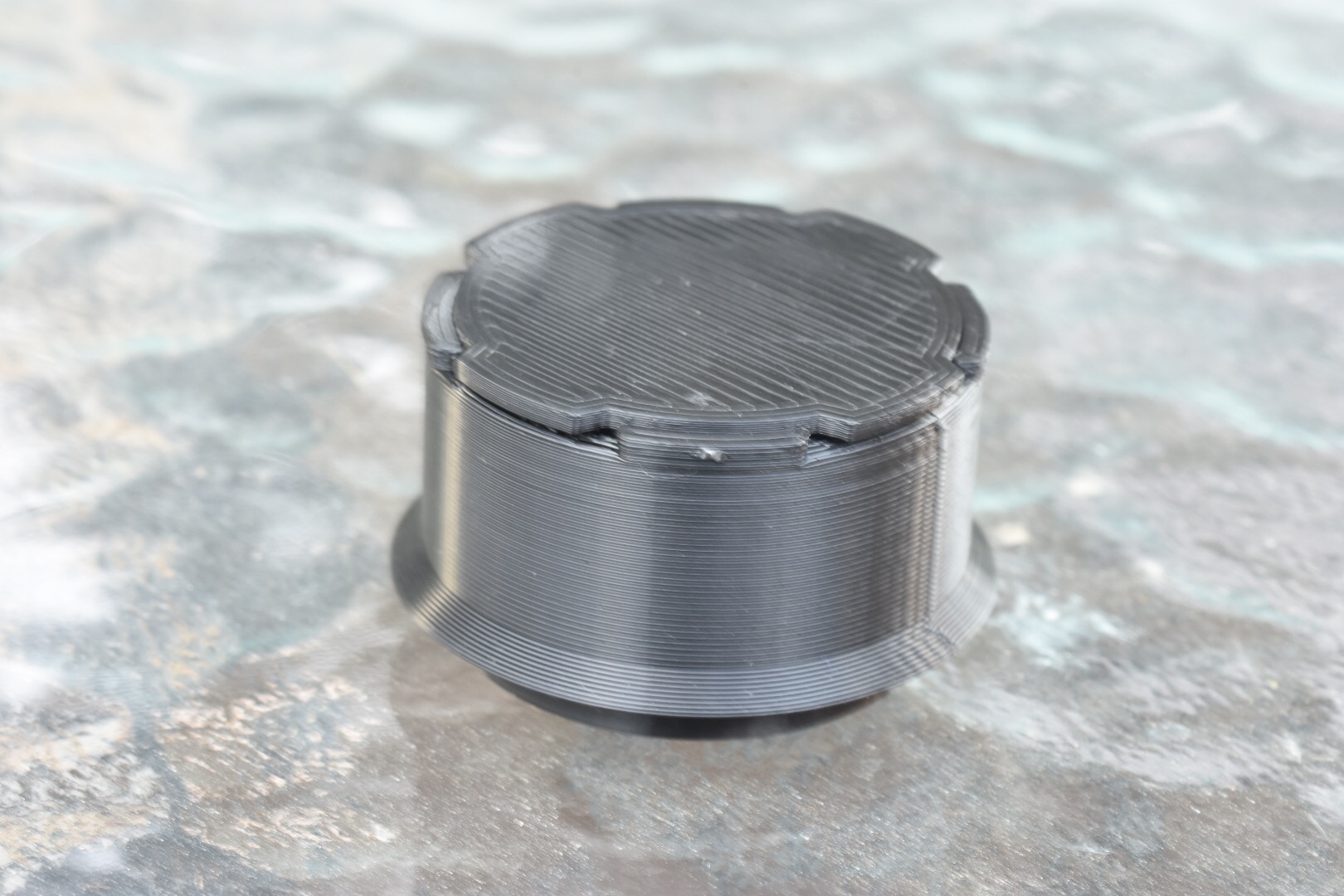

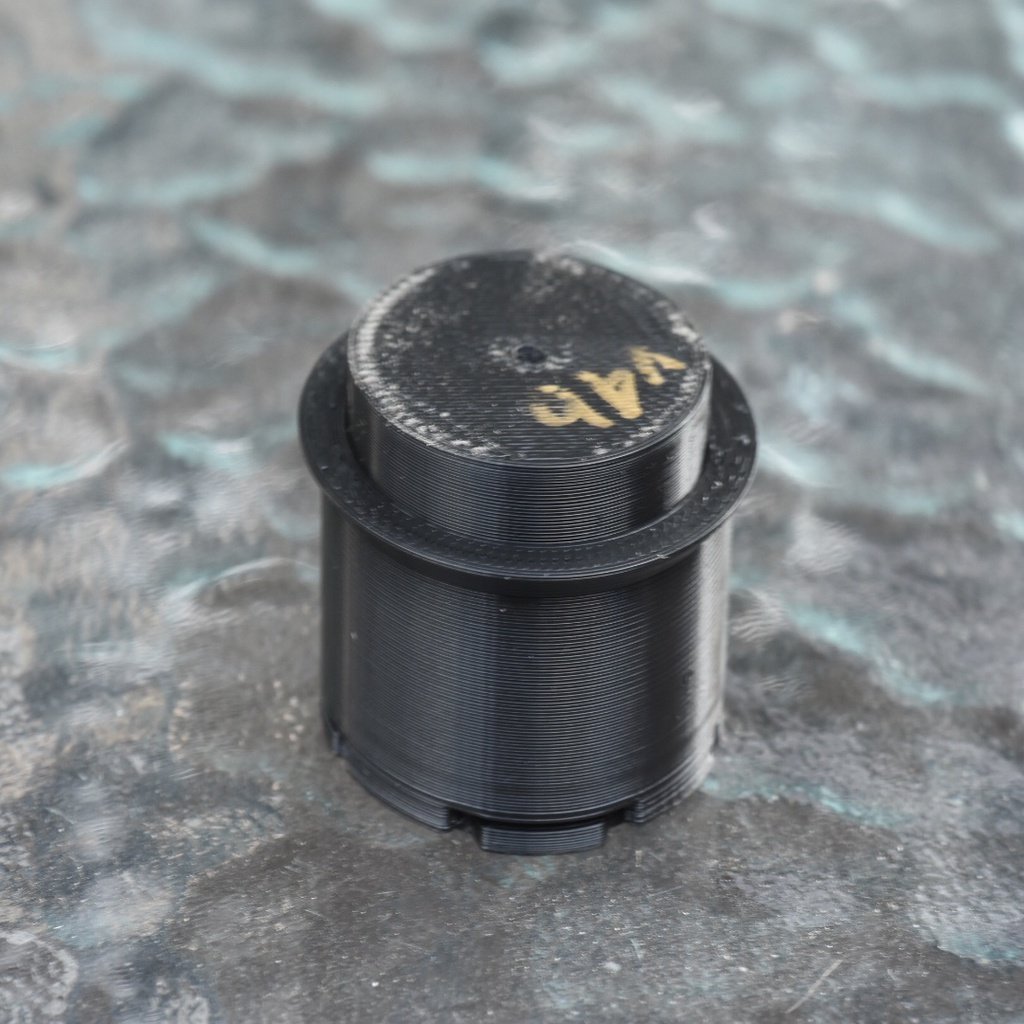

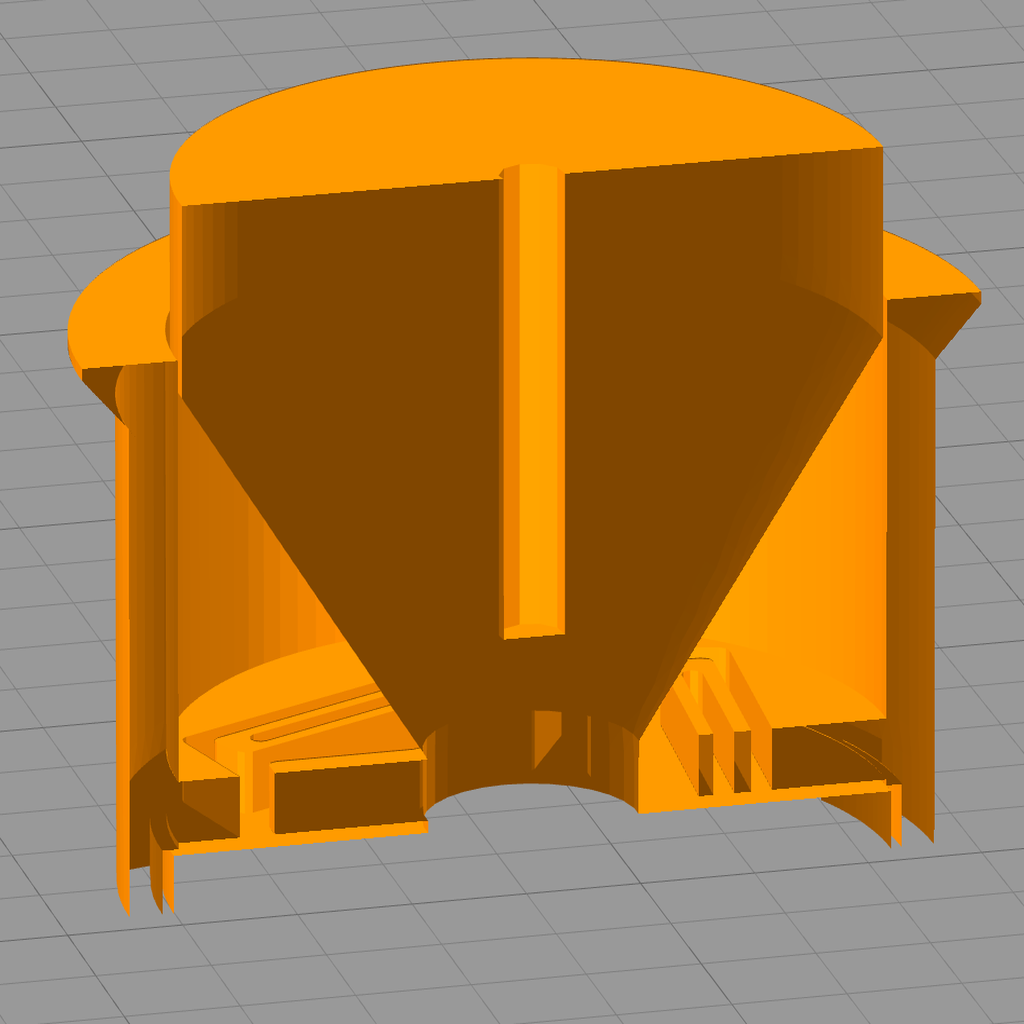

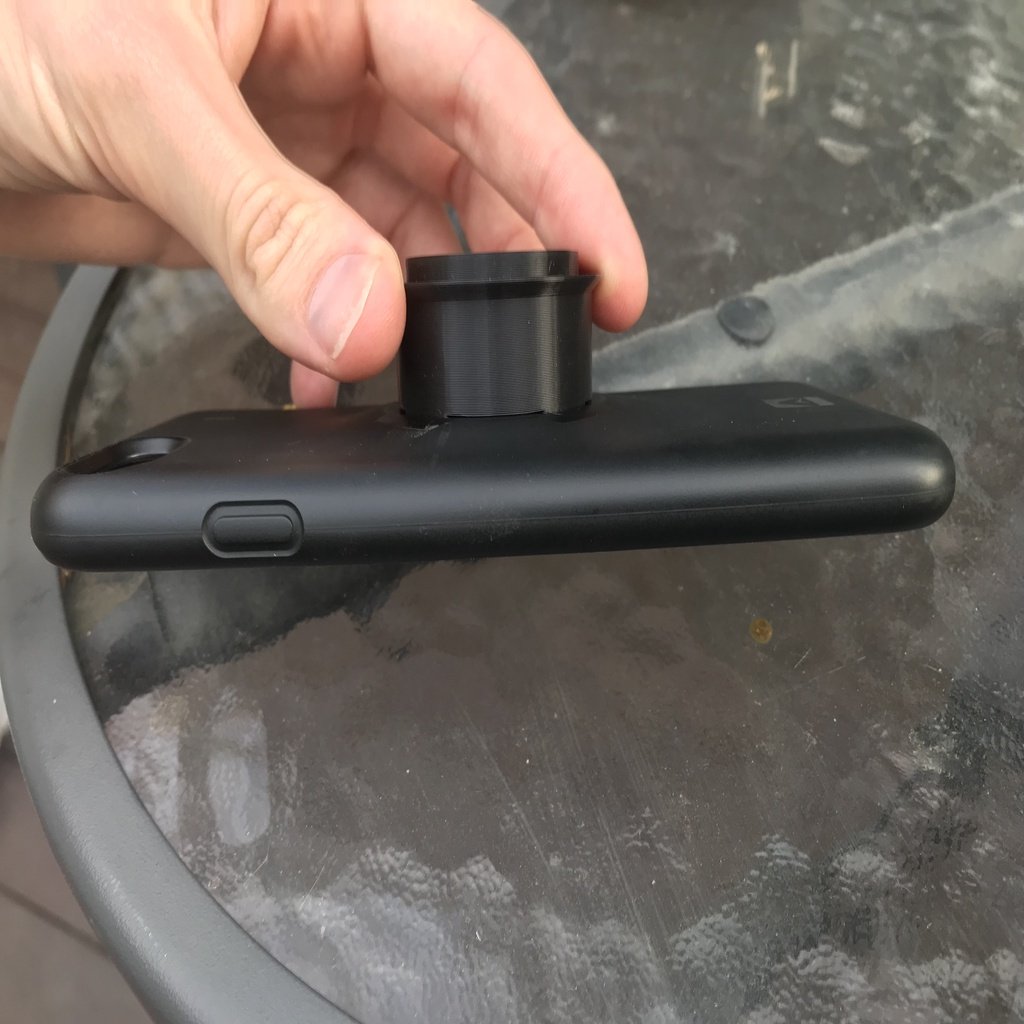

This is a mount that interfaces with a quadlock case. It functions like the quadlock mount that you can buy, but it prints as a single piece, as I've incorporated the orthoplanar spring from BYU to make it function as a compliant mechanism.

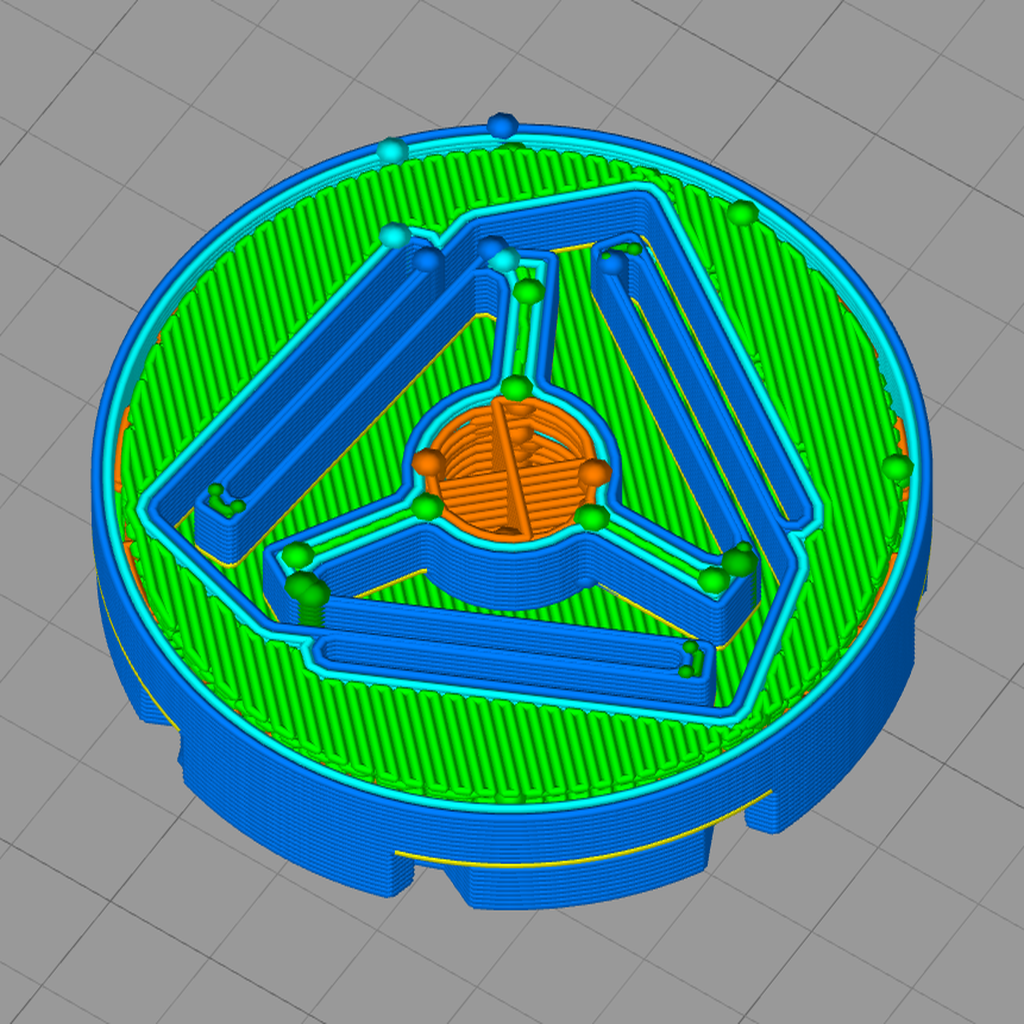

I've designed it to be able to print without supports. Once printed you might need to place flat on a table and pull down hard on the chamfered flange of the outer part to detach it from the inner part.
It has a hole to fit an M3 screw on the back side if you want to fit it to something, otherwise you can use double-sided adhesive to stick it to a surface.
If you want to make any modifications a stp file has been included.
Enjoy!
Print Settings
Printer Brand:
Creality
Printer:
CR-10
Rafts:
No
Supports:
No
Resolution:
0.2mm
Infill:
15%
Filament: eSun PLA+ Black
Notes:
Bed temp 60degC
Extruder temp 205degC
60mm/s print speed
Ensure perimeters have bridging settings applied.
See attached S3D print profile for more settings.
Category: Mobile Phone
