RDM/DMX-Splitter
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
Model information
- Source
- Printables
- Category
- Electronics
- License
- Open Community License v1

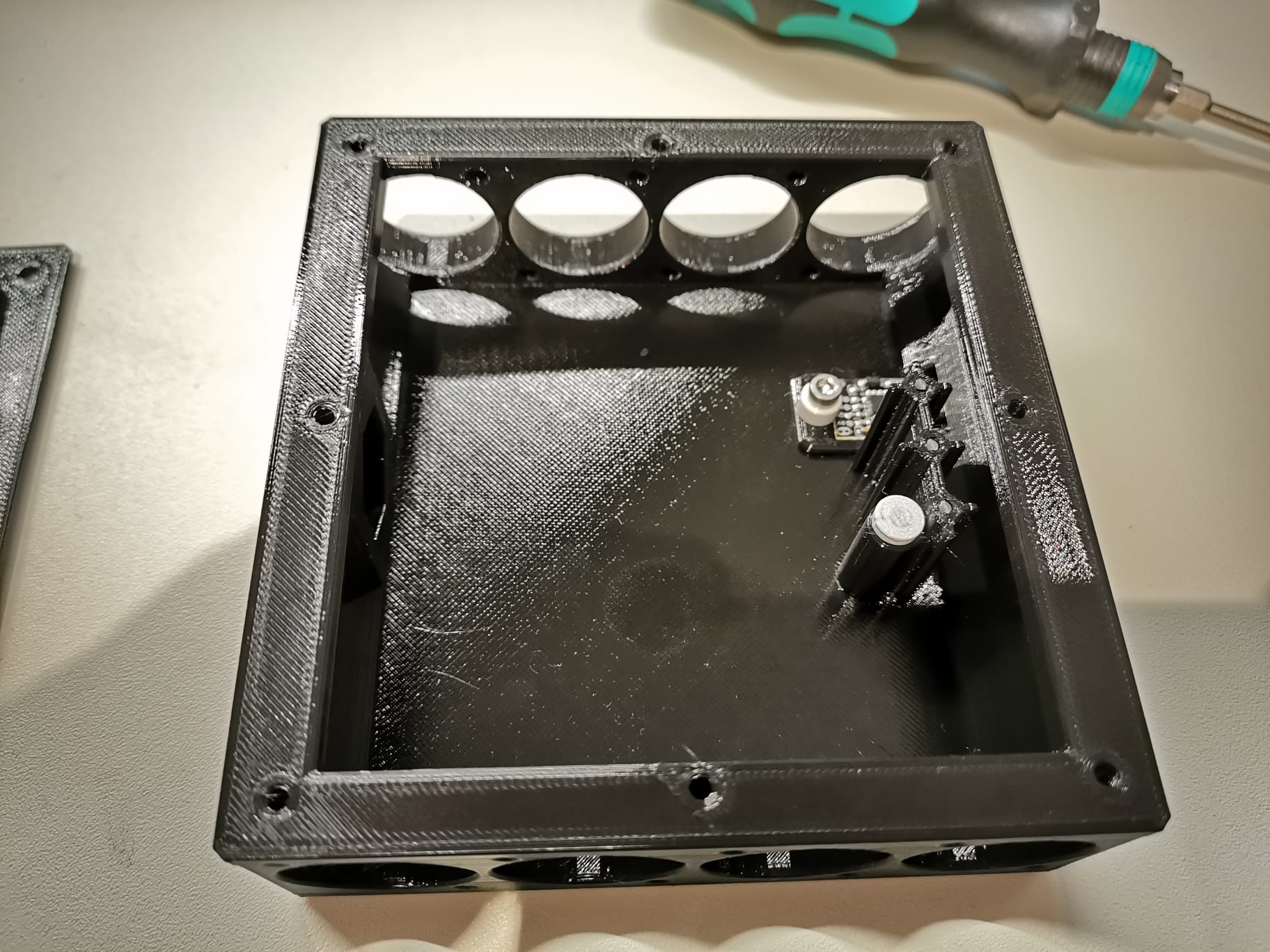

I created this housing for a minimal size RDM/DMX-Splitter for my toolcase. The housing containst this pcba and is powered by USB-PD with 12V (I use these trigger pcbas).
Due to size restriction the cables need to be soldered on to the pcba.
I used three pieces of transparent petg as light conductor and the filter-button can be accessed with the button piece.
The XLR-connectors are mounted with M3x5mm sink head screws, the pcba is mounted with M3x5mm cylinder head screws and the UCB-C-PD-Trigger is mounted with an M3x8mm cylinder head screw. For the lid I used M3x8mm sink head screws.
============================================================
RDM/DMX-Splitter PCBA: https://www.dmx4all.de/produkte/dmx-splitter-4-rdm/
