MIter Gauge Alignment Tool
We calculate the final price from your selected file. You review and accept it before payment.
Estimated printing price per file
€0.18 – €0.22 net (excluding VAT)
For file: miter bar test V2_0.4n_0.2mm_PLA_MK4IS_10m.bgcode
This is an estimate for one file. You’ll confirm the exact price before ordering.
File and estimate settings
File used for this estimate
Average indicative estimate: €0.20 excluding VAT (range midpoint).
- Weight reported by the author
- 3 g
- Print time reported by the author
- 10.2 min
- Source material
- PLA
- Estimate material
- PLA
- Estimate printer
- Bambu Lab P1S - 0.4 nozzle
- Estimate process
- 0.20mm Standard
Indicative estimate for the selected file only, based on the author’s weight and print time. File variants are not added together. The final price is calculated after file analysis.
Saved on this device.
This Model Guarantees your angles on your Miter Gauge are correct.
- Rating
- 0 / 5
- Likes
- 23
- Downloads
- 82
- Makes
- 0
- Views
- 582
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial

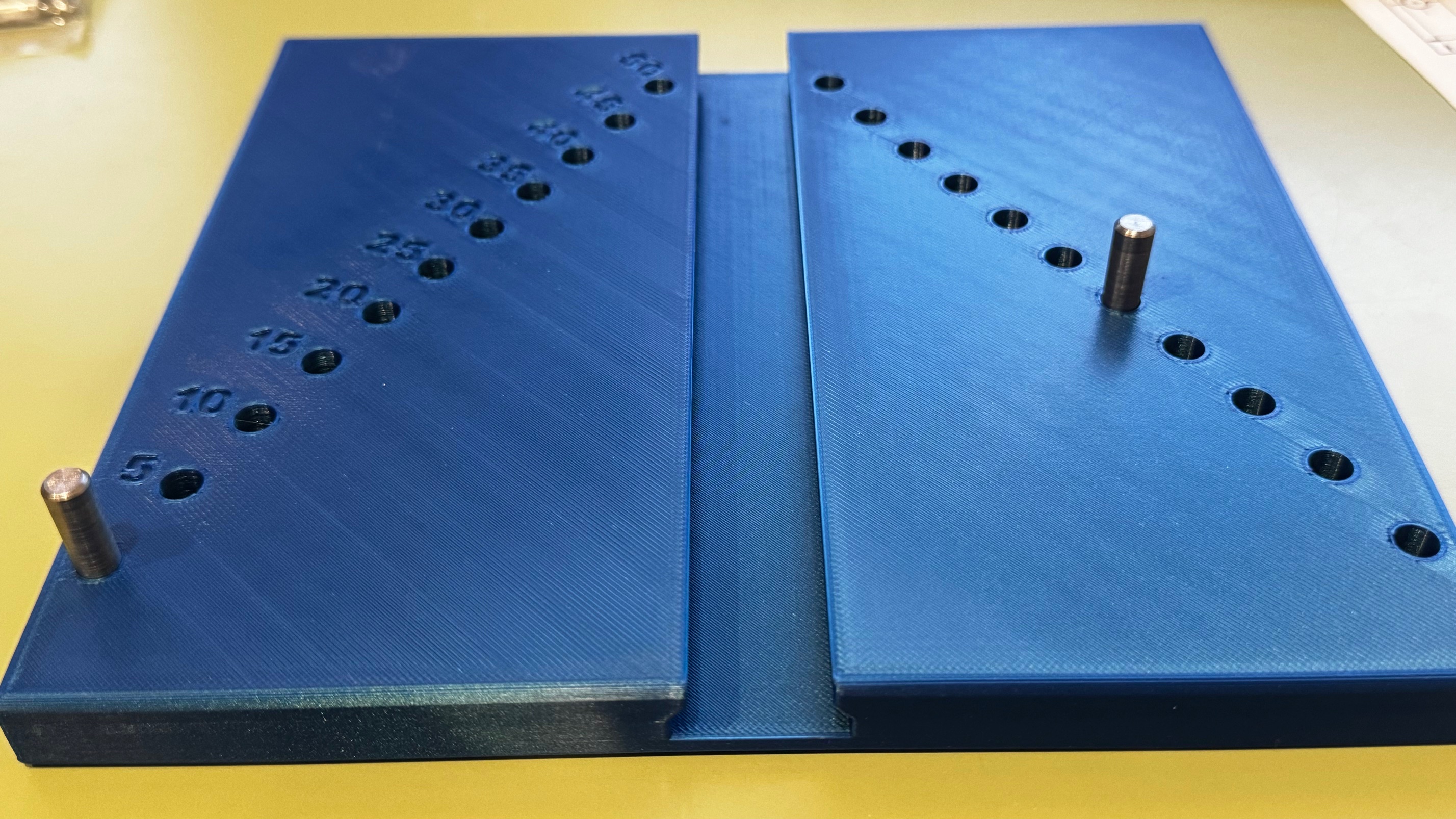

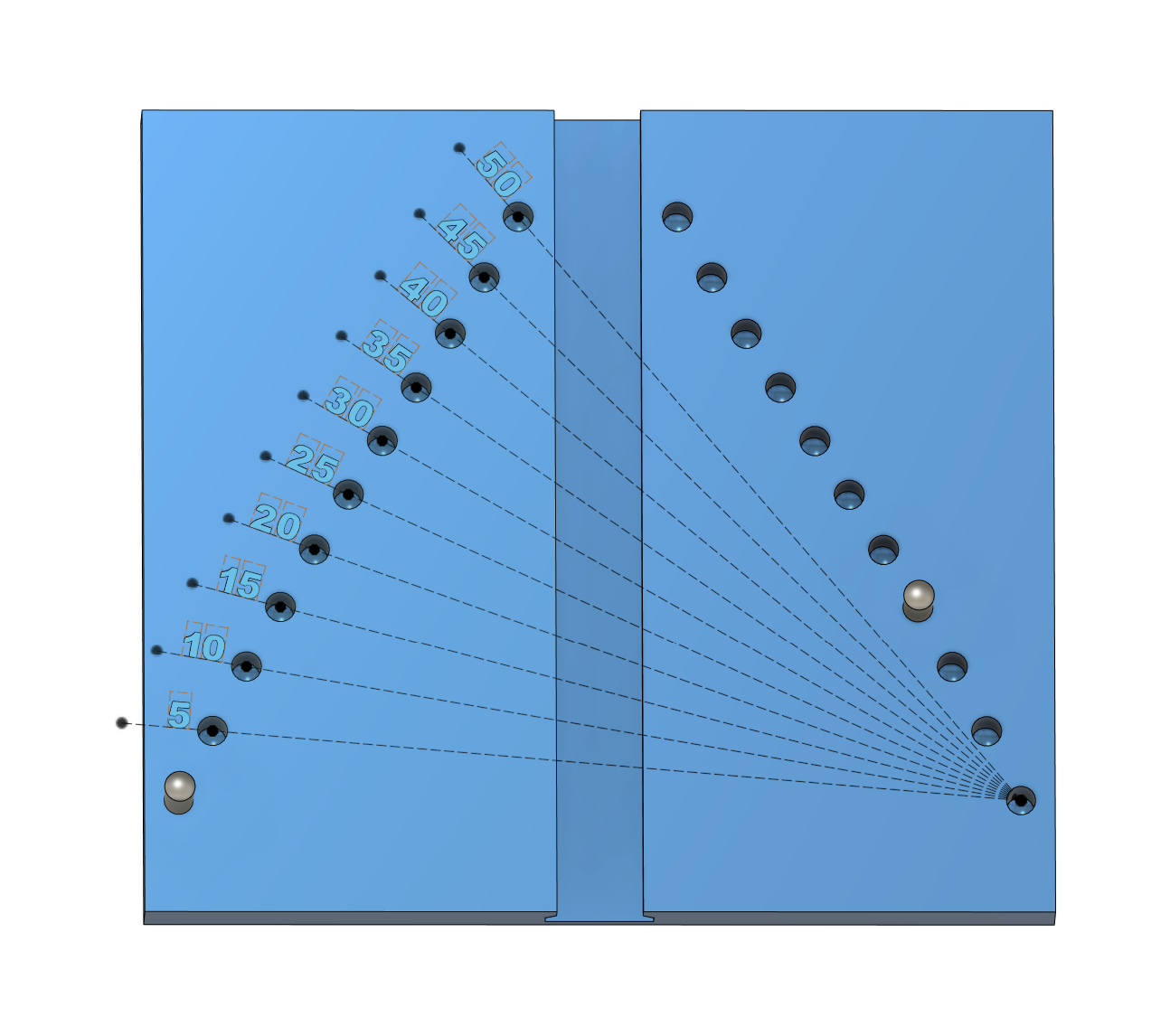

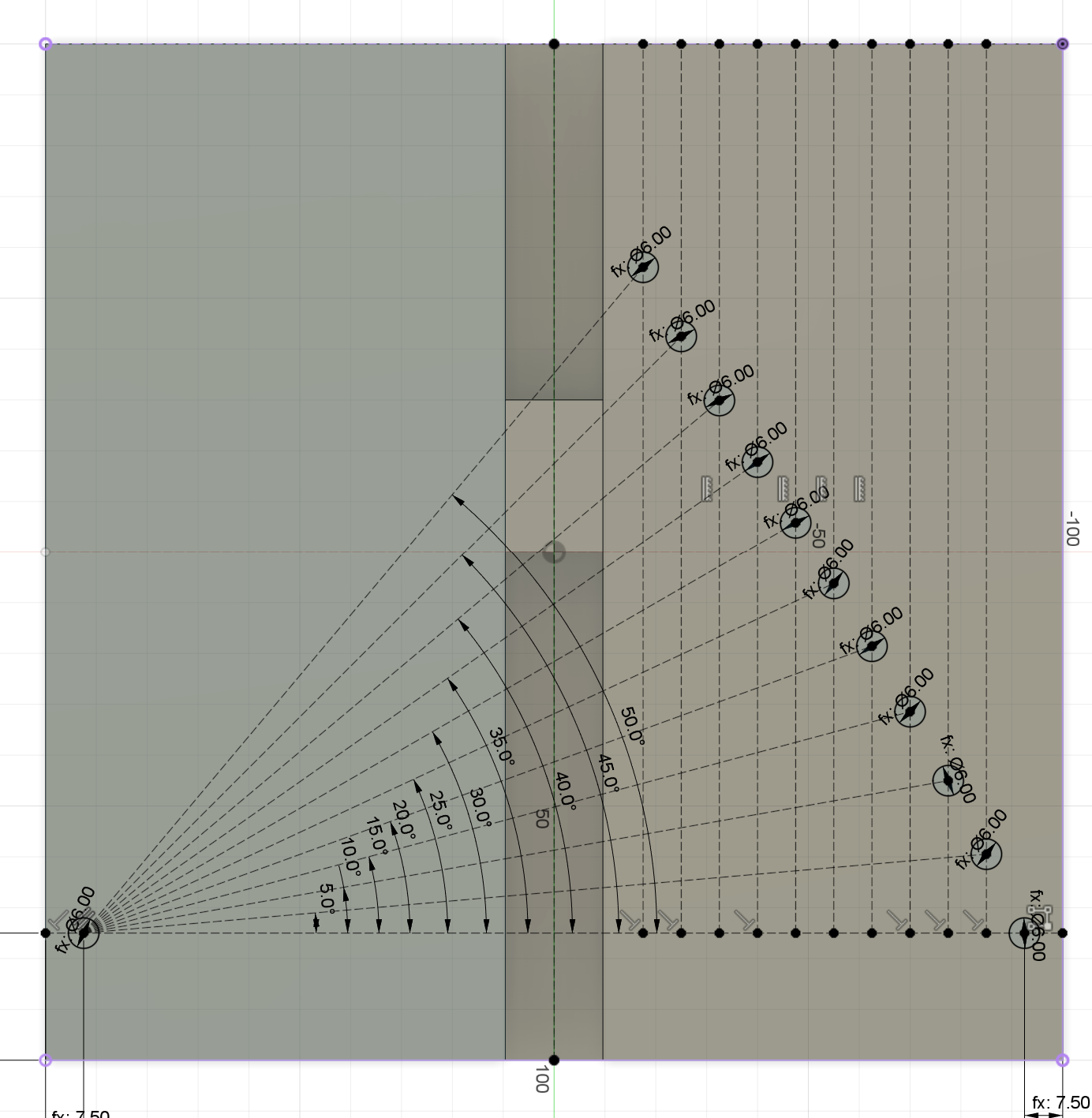

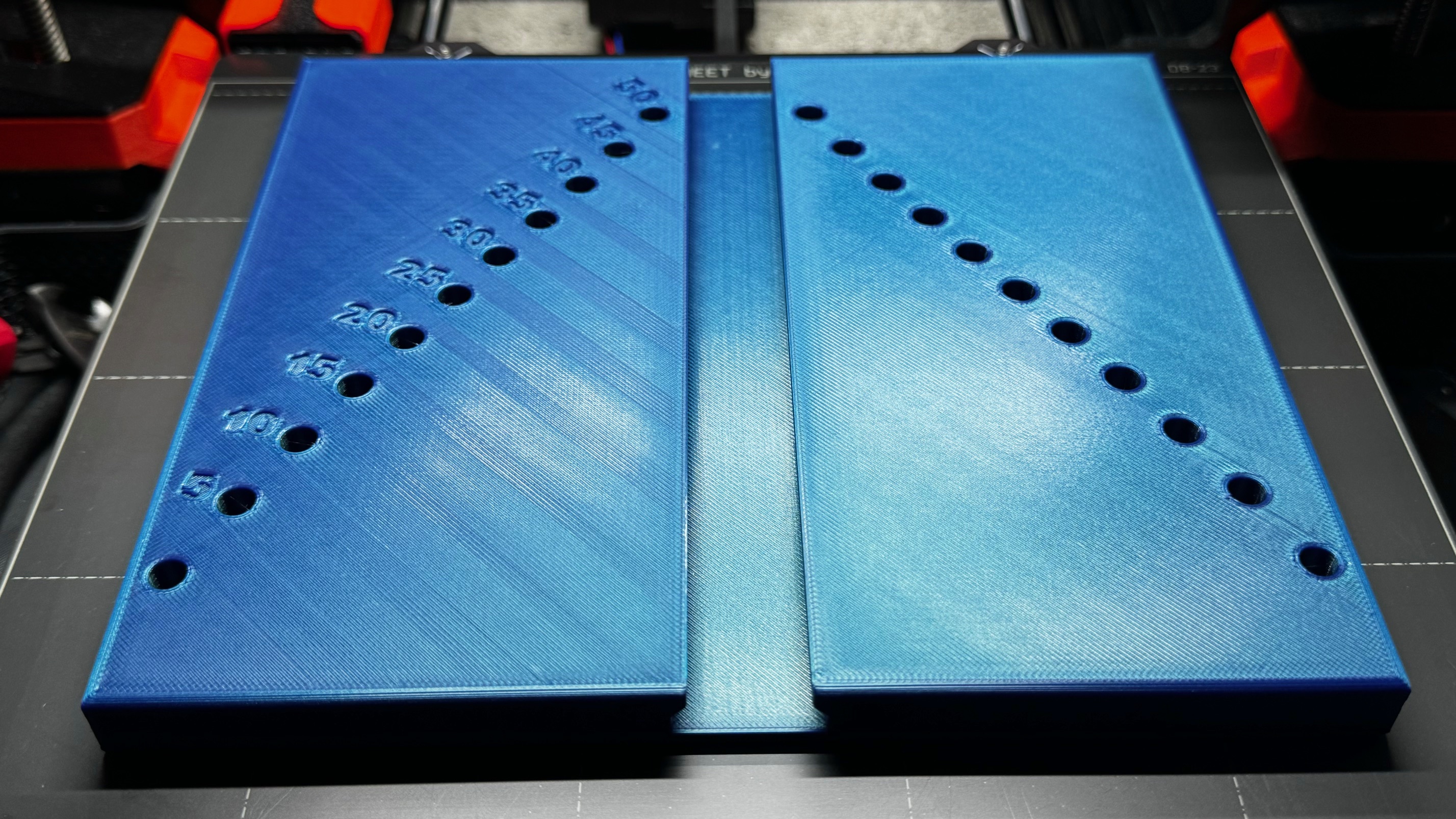

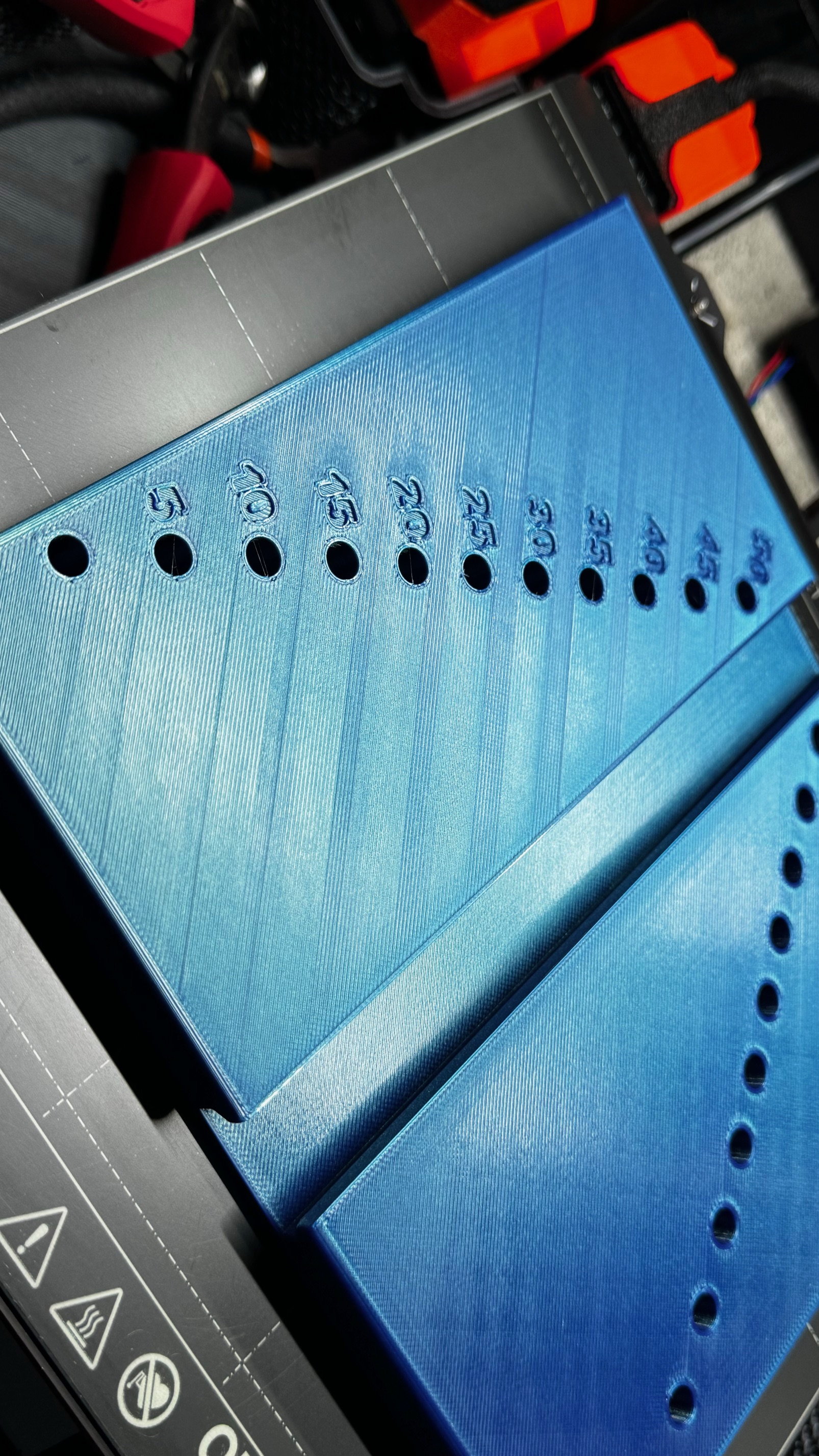

This model uses taper pins and a miter track to align your miter gauge precisely. Many times the stock miter gauge is off and then you are stuck using a square and some guesswork to make sure the fence on your miter gauge is aligned with your miter slot. All you do is slide your miter gauge into the slot on the print and place the pins at the angle you want to achieve. Push the fence against the pins and your fence is now aligned. Lock it and make your cuts.
Hardware:
2 6mm Taper Pins https://www.mcmaster.com/catalog/130/3824/98445A615
Feedback and Makes are appreciated. Happy Printing!
Edit: There are 2 test pieces to make sure everything fits. One for the miter gauge and 1 for your miter track.

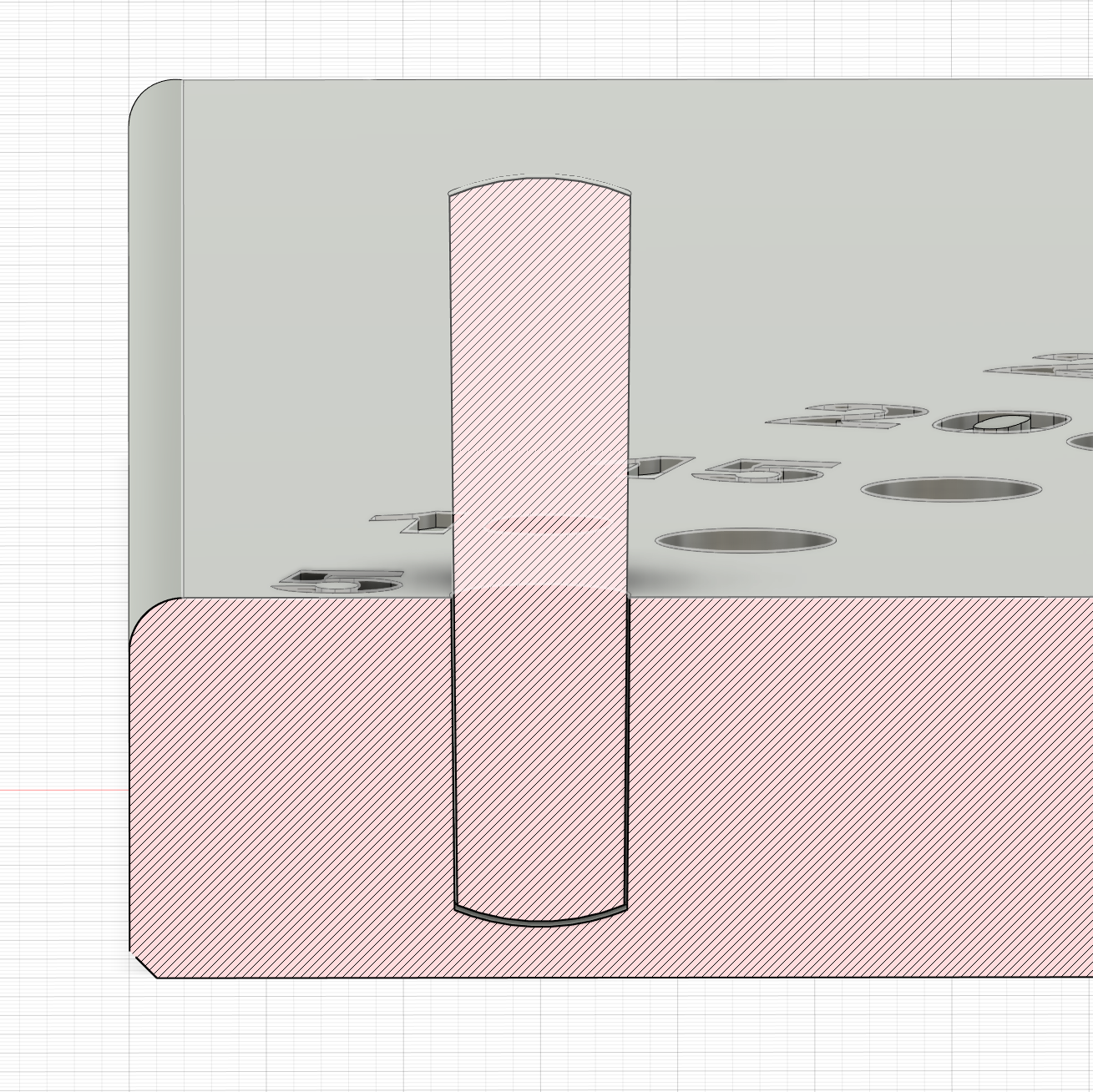

Edit 3/20: Adjusted the Taper on the holes to match the pins tighter
I also included a STEP file for the Taper Pins I modeled on.
