Magnet stackable screwtop container
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
A 50mm (2 inch) screw cap container It is stackable by using a 8mm x 3mm disc magnet in the base and in the cap.
- Rating
- 0 / 5
- Likes
- 5
- Downloads
- 37
- Makes
- 0
- Views
- 787
- Reviews
- 0
Updated at source:
Model information
- Source
- Printables
- Category
- Other House Equipment
- License
- Creative Commons — Public Domain

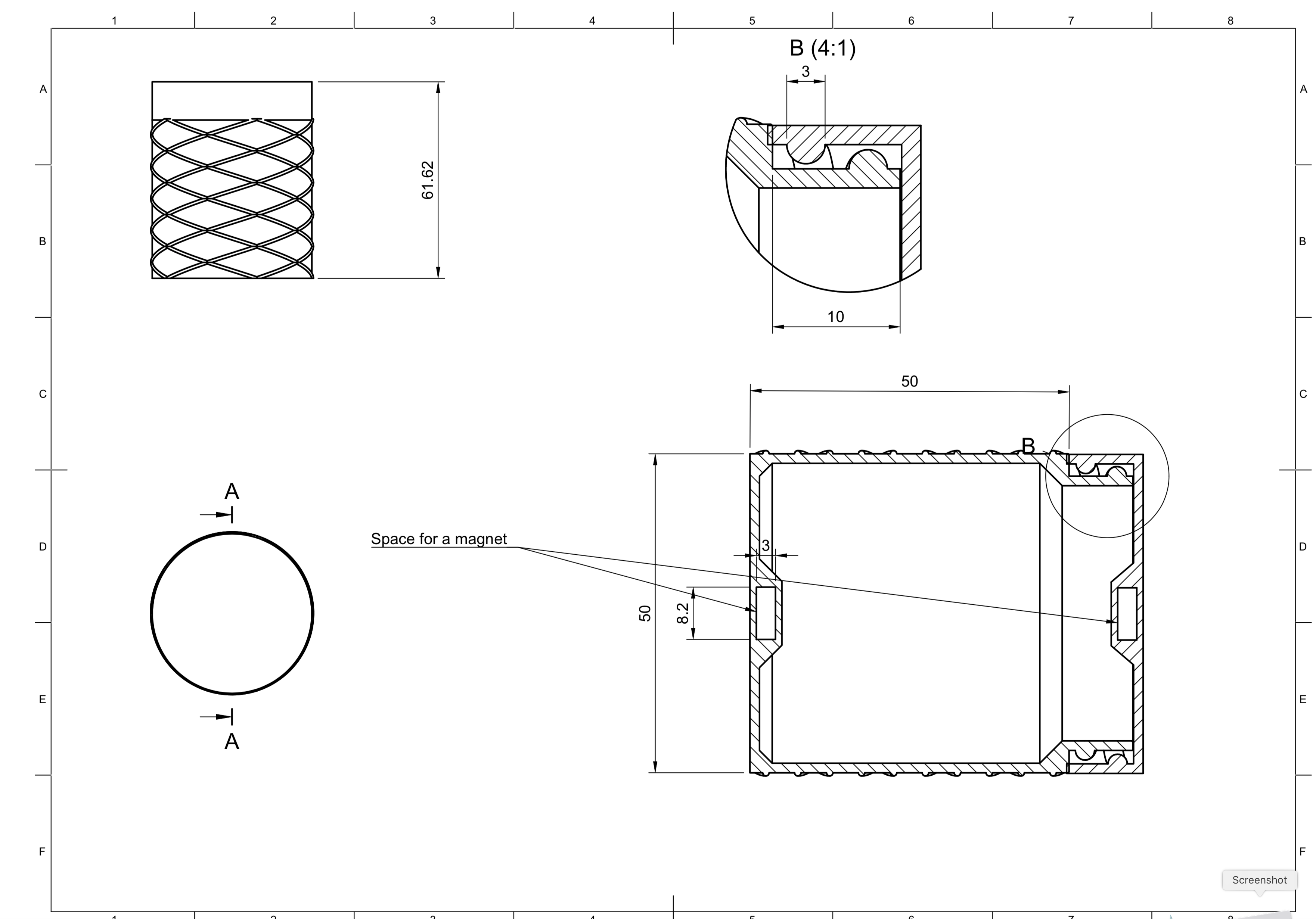

A 50mm (2 inch) screw cap container
It is stackable by using a 8mm x 3mm disc magnet in the base and in the cap.
So you need to pause the print at 4.2mm so you can drop in the magnets
More details here https://youtu.be/oF1SdIR-Kow?t=460
A tip for the magnets is get your stack of magnets and then using a sharpy colour in the top face of the top magnet. Remove this magnet and colour in the next one and keep doing this all the way down your stack of magnets. You have now got the poles marked.
When you put the magnets in you want the lids to have the coloured faces up and in the base you want the coloured faces down. This way the containers will stack.
The purple was printed in 3d filaprint satin purple PLA
The clearish was printed in PET transparent black
OH and for pretty obvious reasons
This design may not be a good idea for things made of ferrous metals
