Adjustable Contour Scribe Tool
We calculate the final price from your selected file. You review and accept it before payment.
Saved on this device.
A handy tool to help trace the contour of various profiles, with both a wheel and pointer option, and lockable implement
- Rating
- 4.75 / 5
- Likes
- 137
- Downloads
- 578
- Makes
- 3
- Views
- 2,425
- Reviews
- 4
Updated at source:
Model information
- Source
- Printables
- Category
- Tools
- License
- Creative Commons — Attribution — Noncommercial

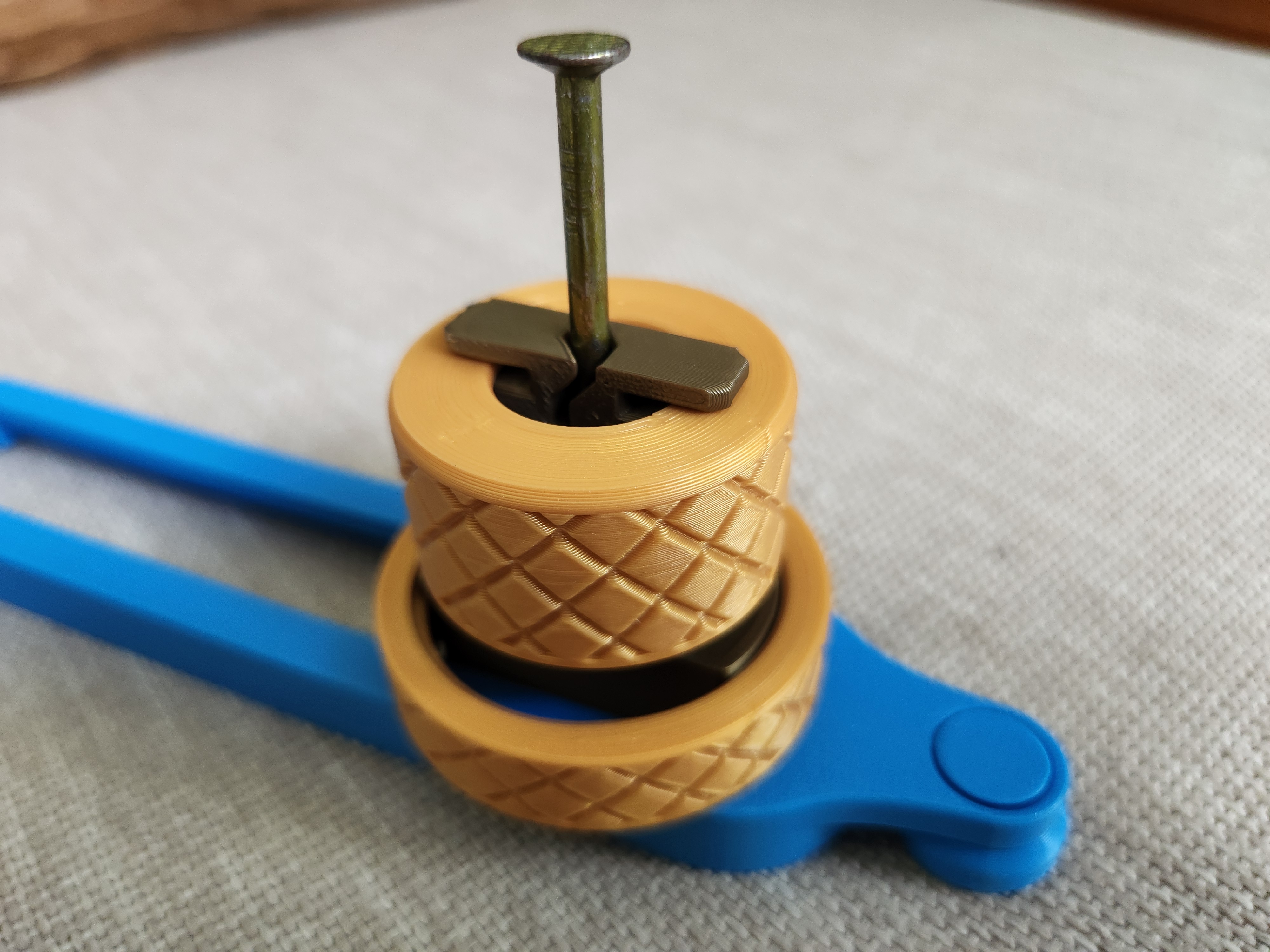

This contour scribe tool provides a convenient way to copy various shapes. Simply guide either the pointer or wheel end along the profile of interest to draw a matching line at a desired depth. Includes an adjustable chuck that will allow you to lock-in a standard pencil or something smaller, such as a sharp nail if you want to create an etched line.
This is a fully printable design (so no additional hardware is required), all parts are oriented & designed so they can be printed without supports, and the wheel is setup for convenient print-in-place.
To assemble: first slide the chuck into the frame and screw on the chuck knob. Then, place the two jaws inside the jaw knob, put a pencil in between them, and finally screw the jaw knob onto the chuck.
