Traxxas Clipless Body Mount 9mm Riser

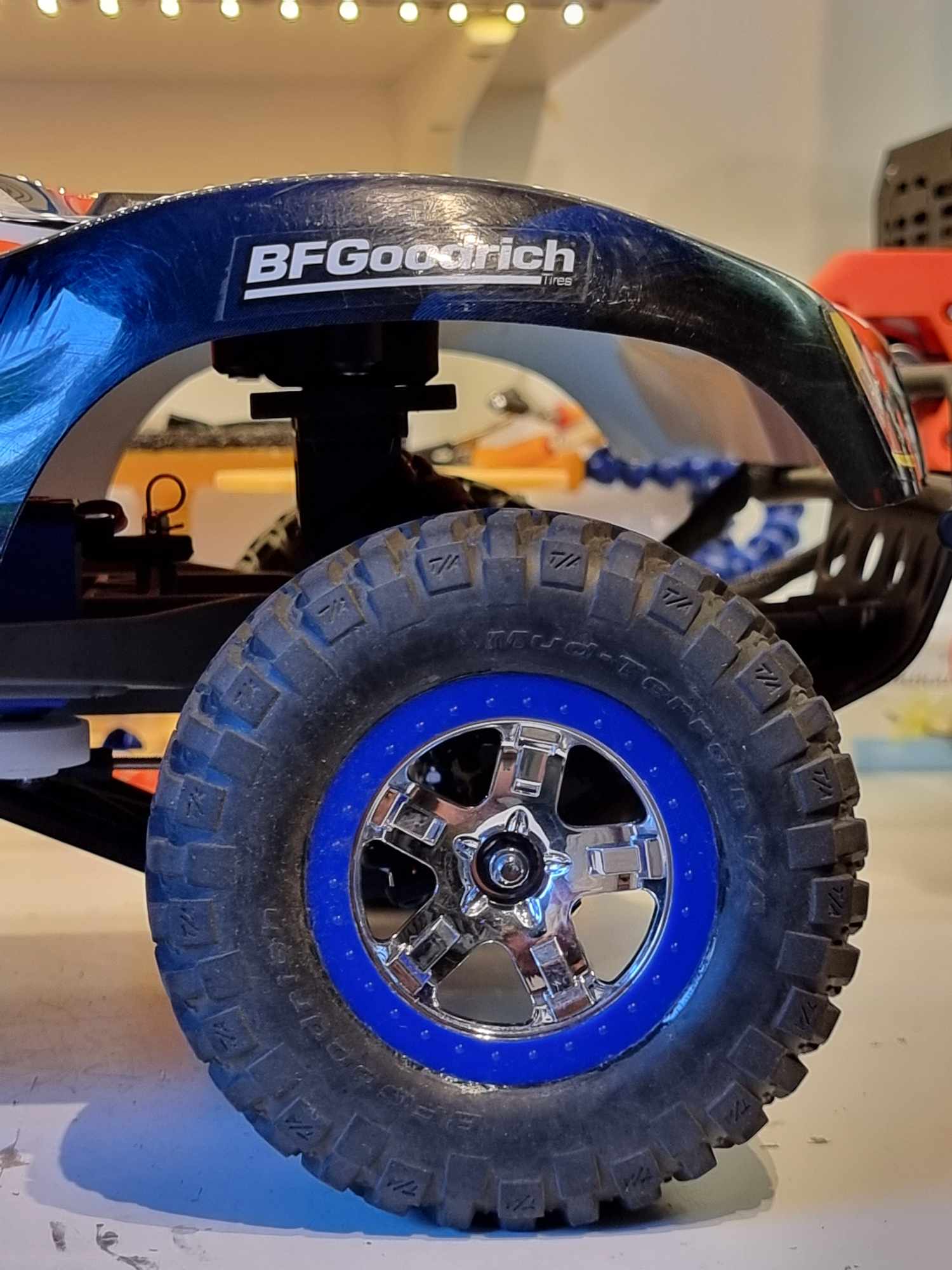

This raises the body by 9mm at the front to prevent the front wheels from hitting the body and locking up on landing, which can result in the car flipping over.

These risers are only needed at the front as the bracket at the rear can be raised by using the two lower holes for height adjustment.

Hardware:

(You need longer screws as the original ones no longer fit)

4pcs M3x18mm bolts

Printing instructions:

• 0,3 mm layer height
• Organic support
• 3mm brim for stability during print
• Print standing with the wide part on the heat bed
• Make sure the screw goes through the spacer easily. If not, drill out the hole with a 3.2mm drill bit

This is just a guideline, you can use other settings and get a great result that way too.

Remember to share pictures of your print :)
