Canyon Spectral:ON 2022 - Fid Lock Bottle and/or OneUp pump adapter

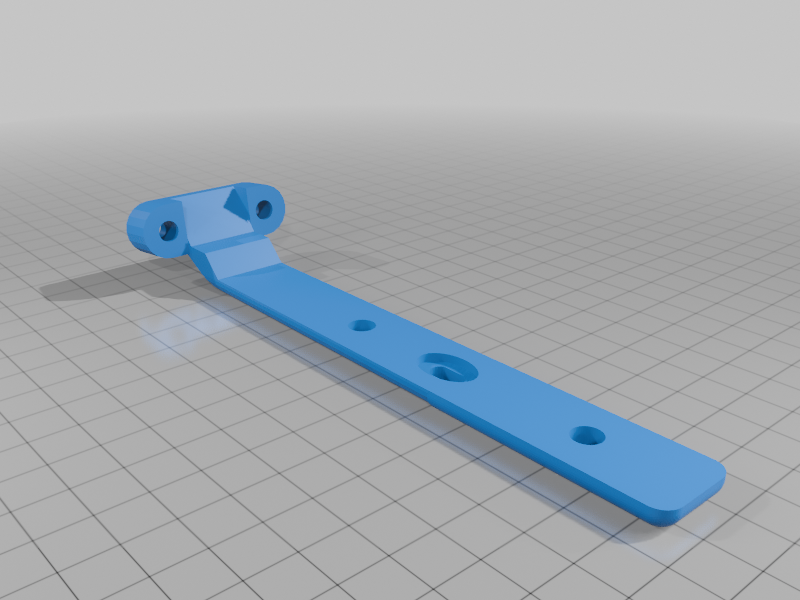

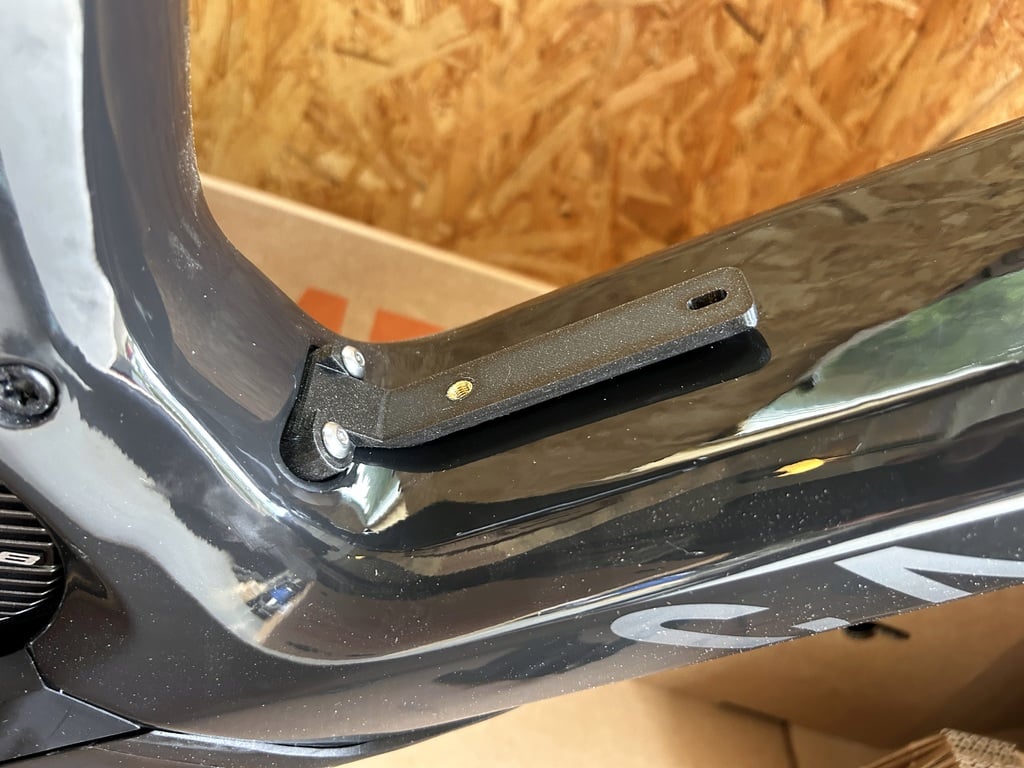

Adapter to accommodate Fidlock Bottle holder on Canyon Spectral:ON Model year 2022+ proprietary bottle cage mount.

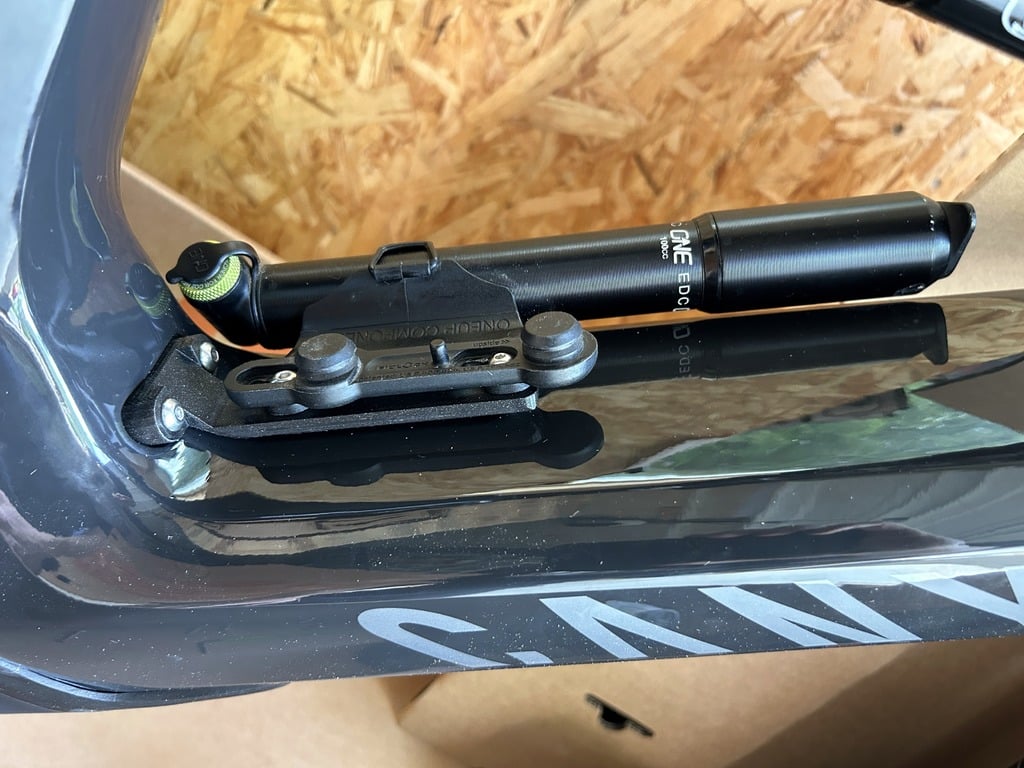

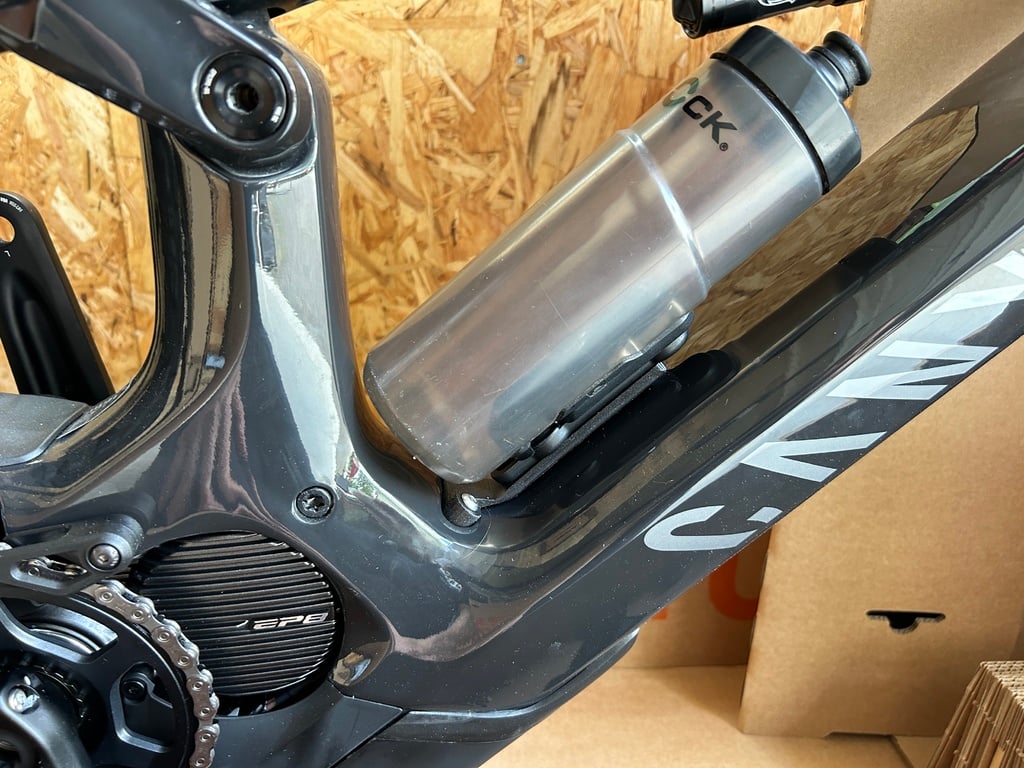

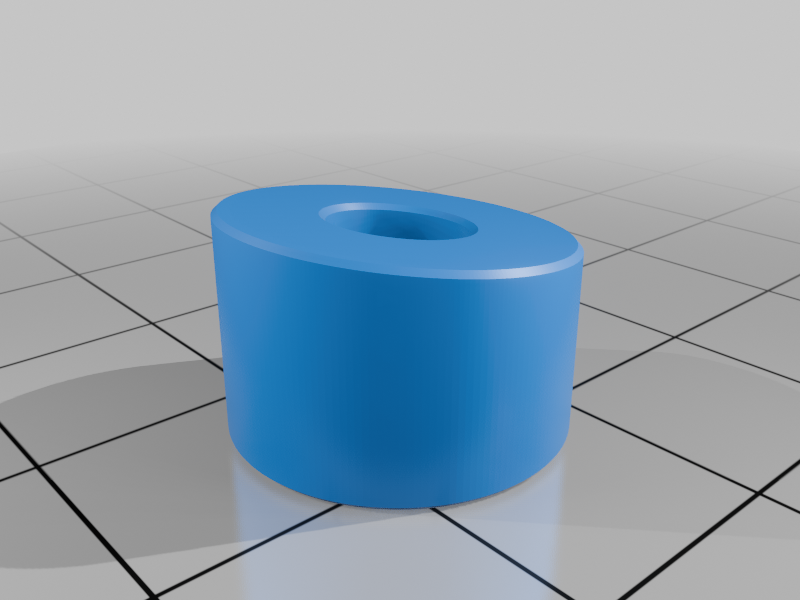

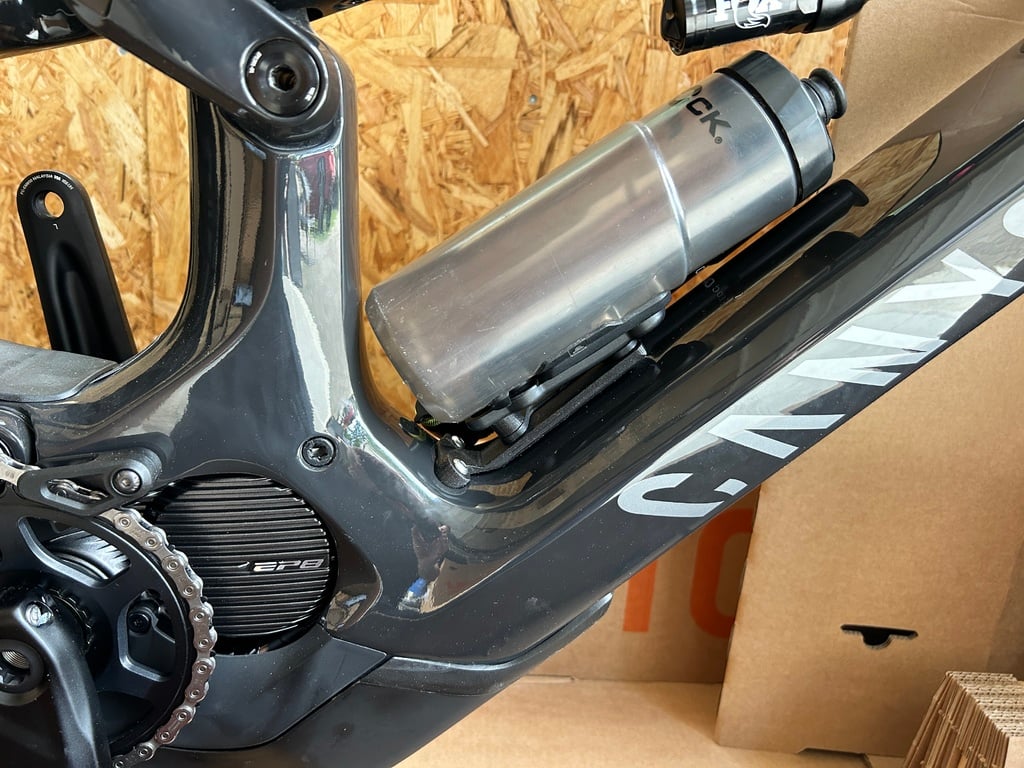

With the option to mount a OneUp Pump or Both a OneUp Pump and Fidlock Bottle holder Base. It will work with the 600ml FidLock bottle and still clear the Shock. This do require the spacer included in the files, to tilt the Fidlock bottle cage a bit.

Print Settings

Printer: Bambulab X1C

Supports: Yes, Auto Tree Support recommended

Resolution: 0.20mm

Infill: 40%

Filament: Prusa PETG Galaxy Black or another PETG.

PLA is not recommended due to weather and sun exposure


Notes:

Bolts needed for the different configurations.
Please double check, if the bolt to lock the fidlock base to the adapter insert is too long, you will damage your paint or even frame if it is.

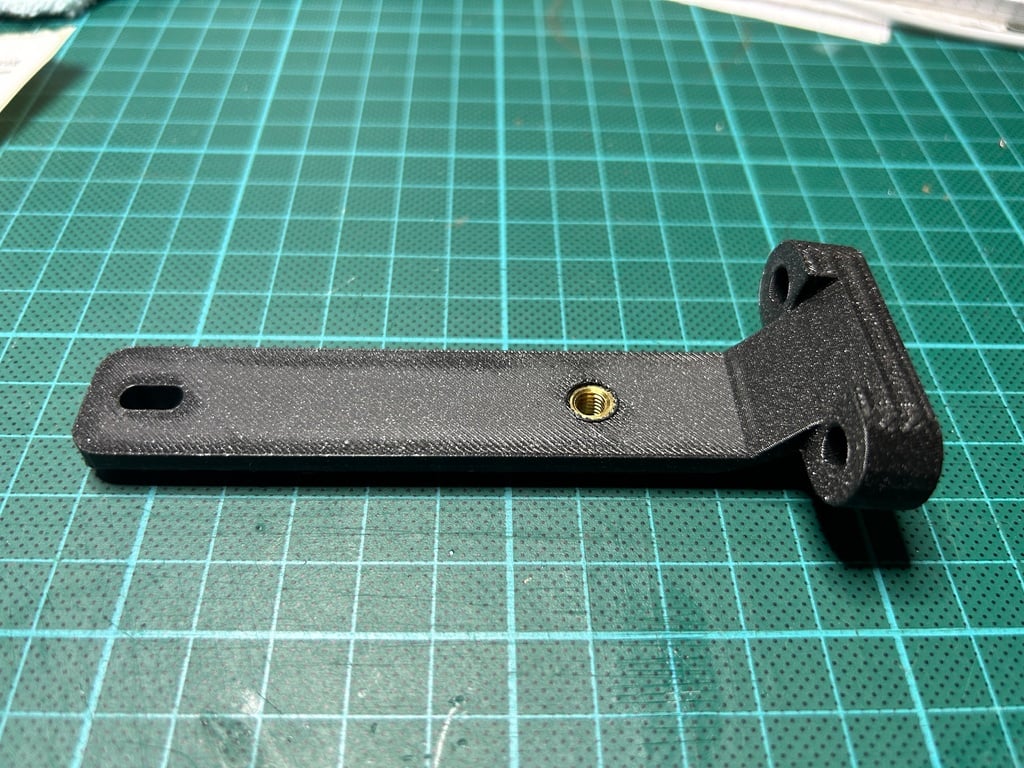

You will need a Heatset Threaded Insert
I used 1x M5x5,75mm. But M5 that are smaller, will also work.

Shared between all configurations
2x M5x20mm for the base of the holder.

Only Fidlock base.
1x M5x8 to mount the fidlock base to the adapters Thread Insert
1x M4x16 to mount the fidlock base and adapter to the frame

Fidlock base + OneUp pump + Spacer
1x M5x20 to mount the fidlock base to the adapters Thread Insert
1x M4x20 to mount the fidlock base and adapter to the frame
Remember to print the Spacer

Fidlock base + OneUp pump (In case of using the smaller Fidlock bottles)
1x M5x12 to mount the fidlock base to the adapters Thread Insert
1x M4x20 to mount the fidlock base and adapter to the frame
