Raspberry Pi5 & Waveshare PCIe M.2 Housing by Nerdiy.de

Build a professional protective housing for your Raspberry Pi 5 with Waveshare PCIe to M.2 Adapter.

Here we offer you the STL files for 3D-printed housing parts, which have been specifically developed to securely hold the Raspberry Pi 5 together with the Waveshare PCIe to M.2 Adapter Board while protecting it from dust and physical damage. The housing provides proper ventilation and maintains full access to all ports while accommodating M.2 NVMe SSDs or other PCIe devices.

With the provided STL files, you can easily create your own housing parts on your 3D printer and integrate them into your high-performance storage or expansion projects.

Print settings

• Filament type: Weather and UV-resistant, e.g. PETG, ABS, etc.

• Layer thickness: 0.2mm

• Infill: 25%

• Wall lines: 5

• I highly recommend to print the parts in the already defined orientation. The defined orientation is intended to maximize the structural integrity of the part.

Material list, Assembly instructions & more

You can find additional info at the following GitHub repository.

• https://github.com/Nerdiyde/Nerdiy_Products/tree/main/products/raspberry-pi5-waveshare-pcie-m2-housing

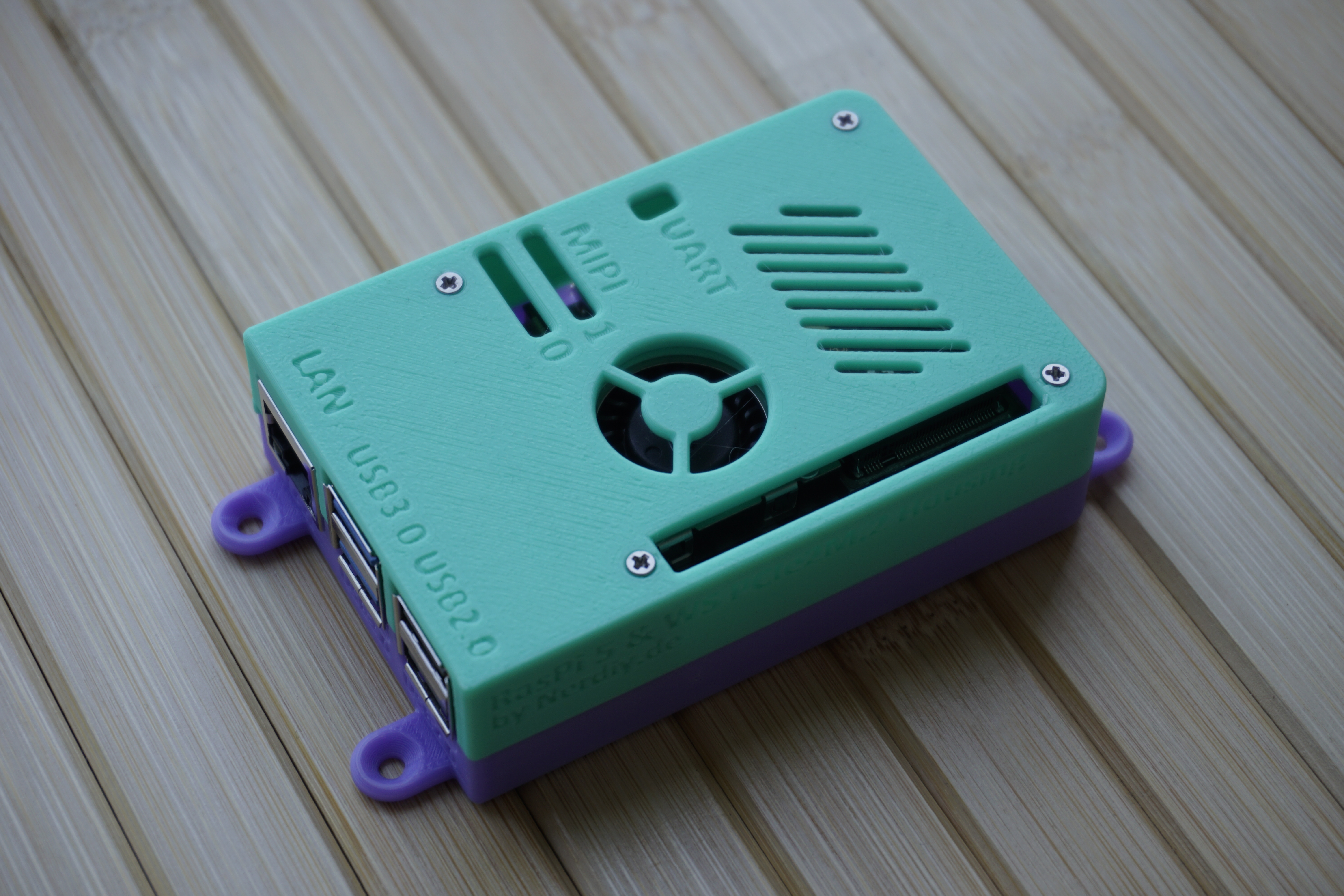

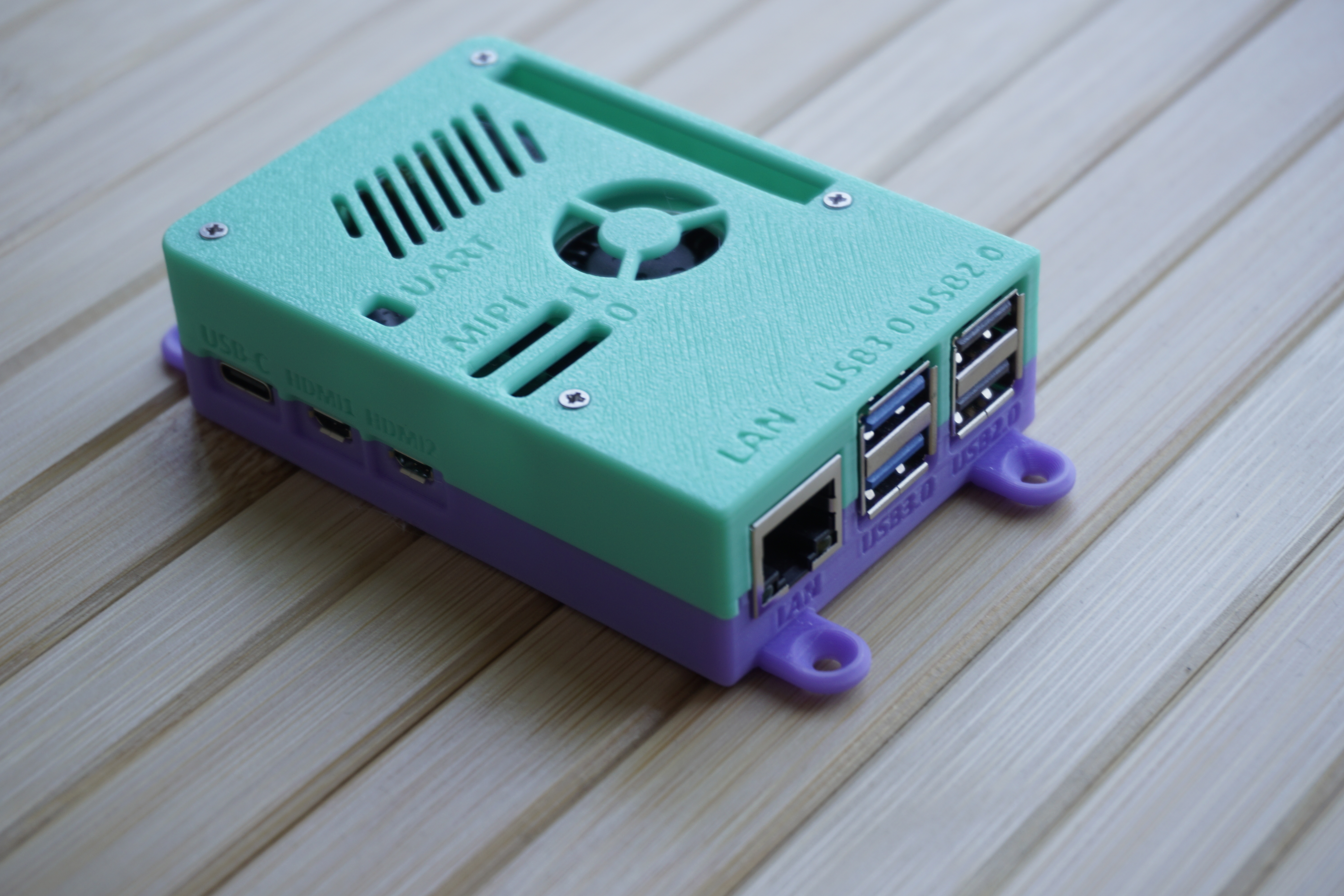

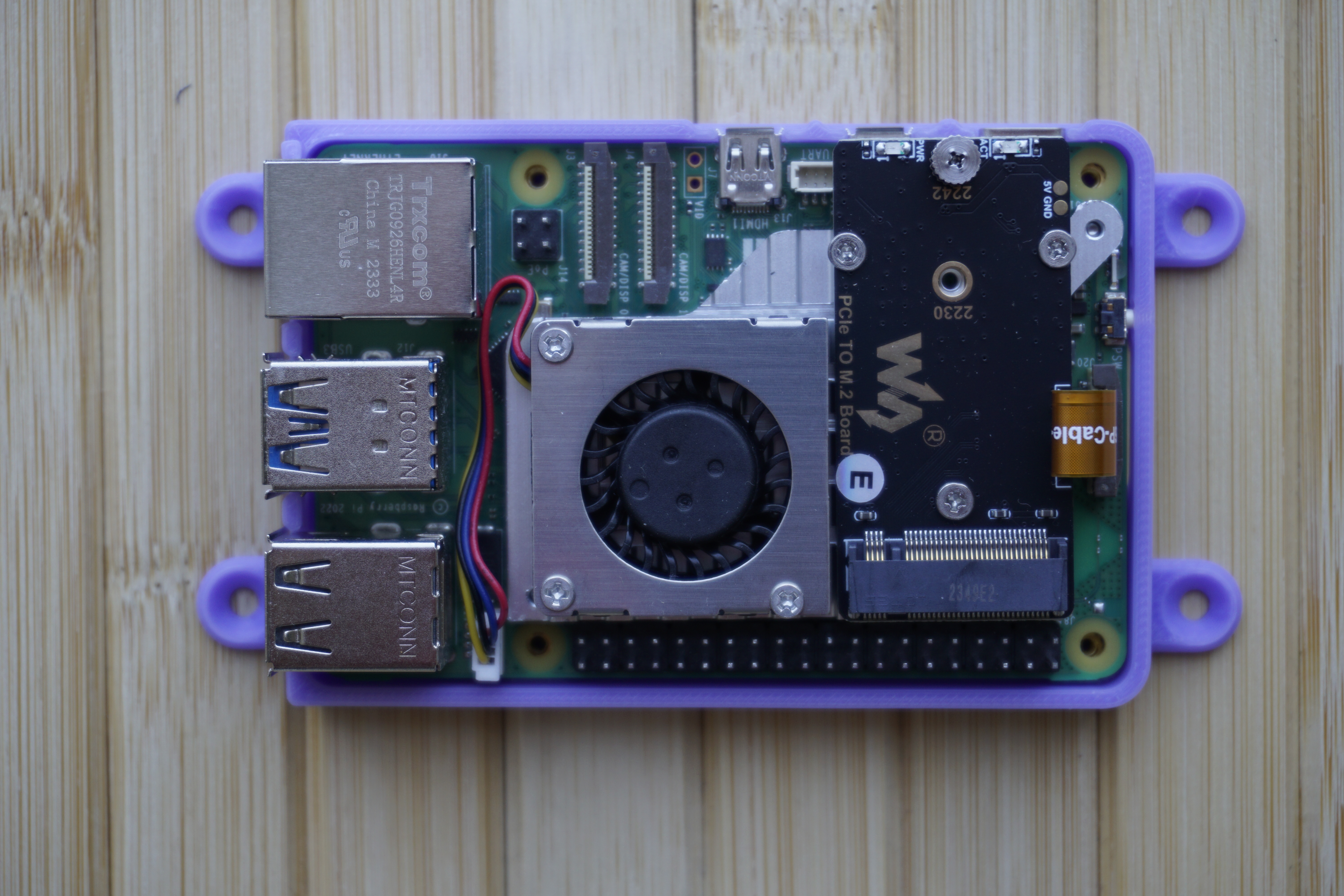

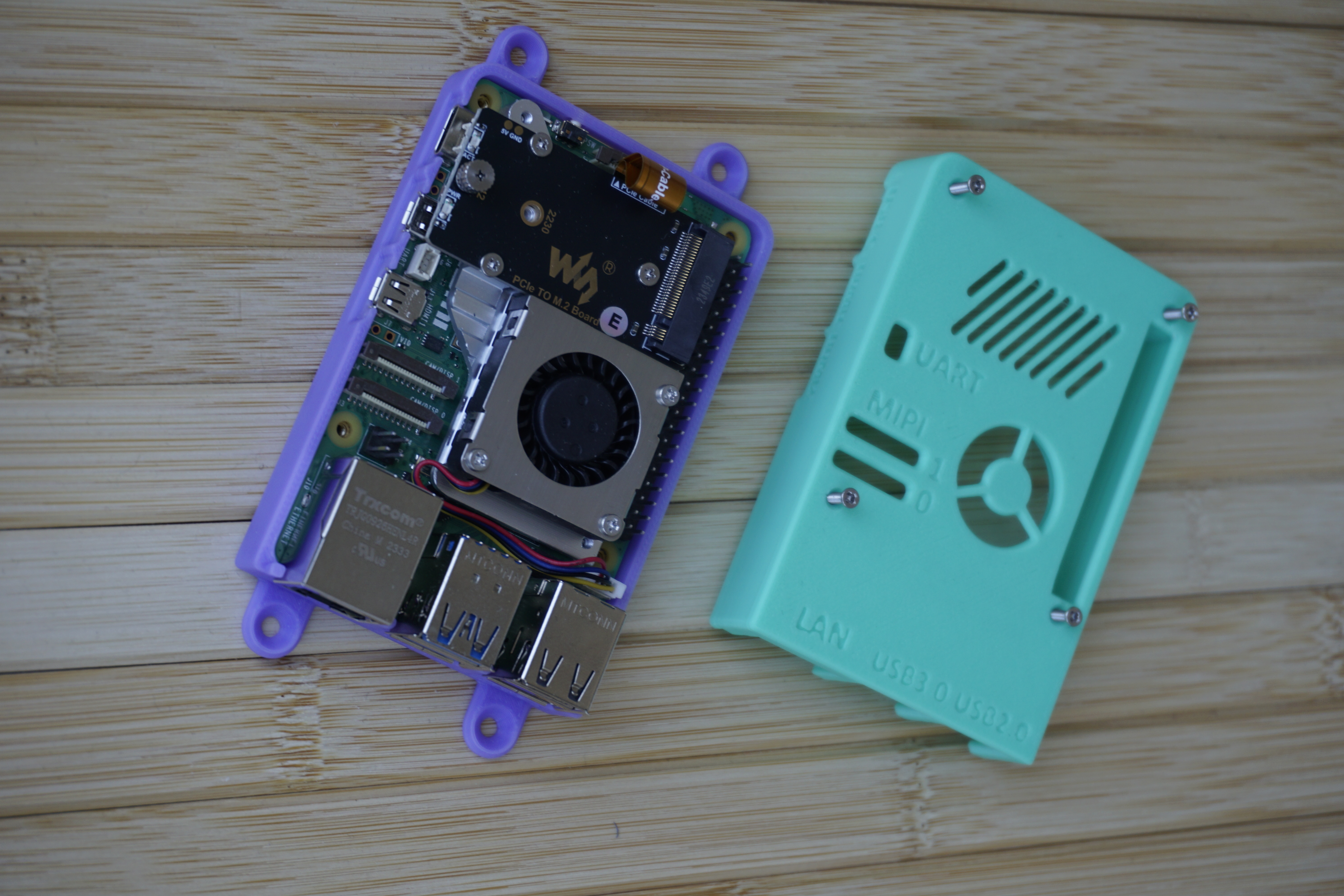

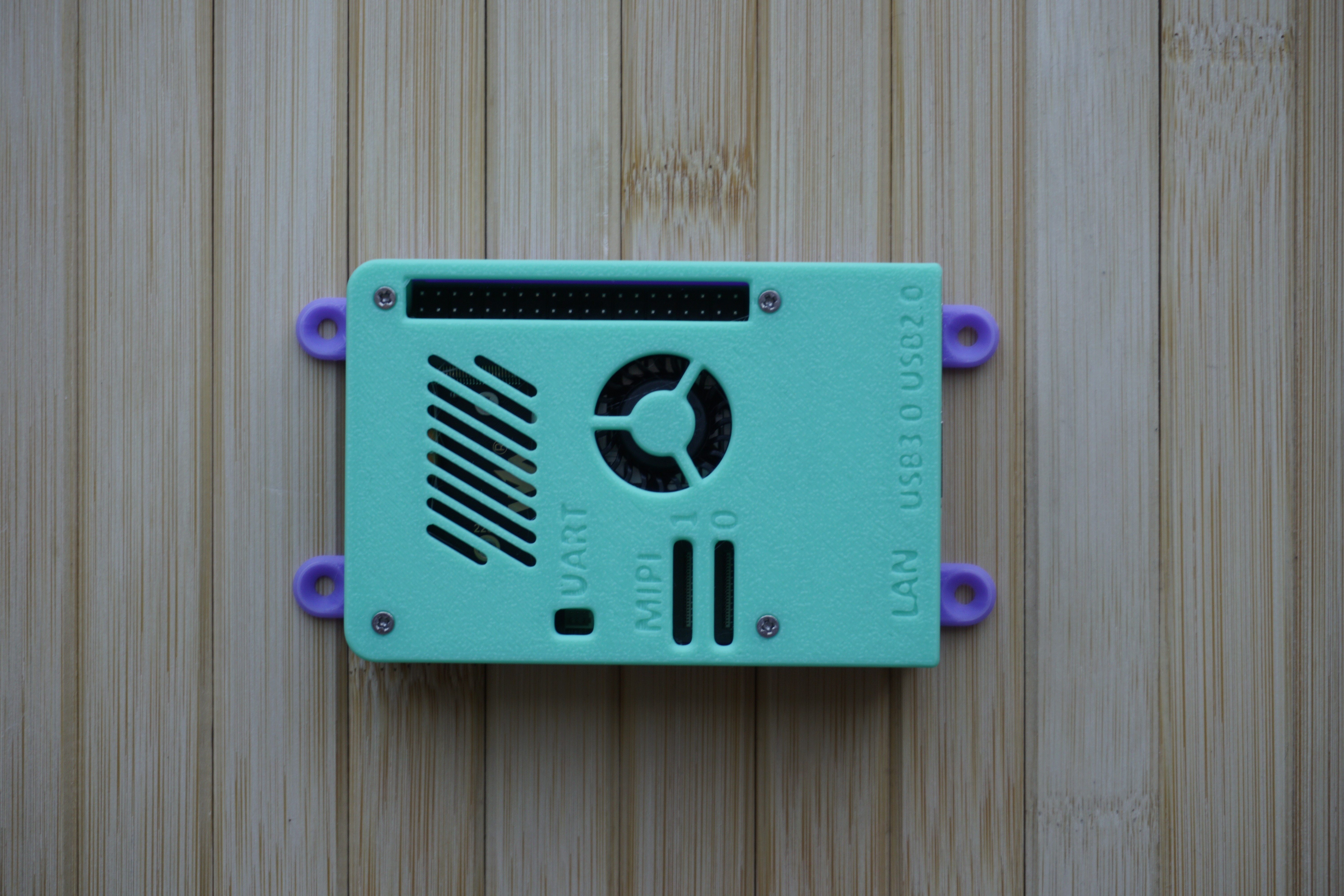

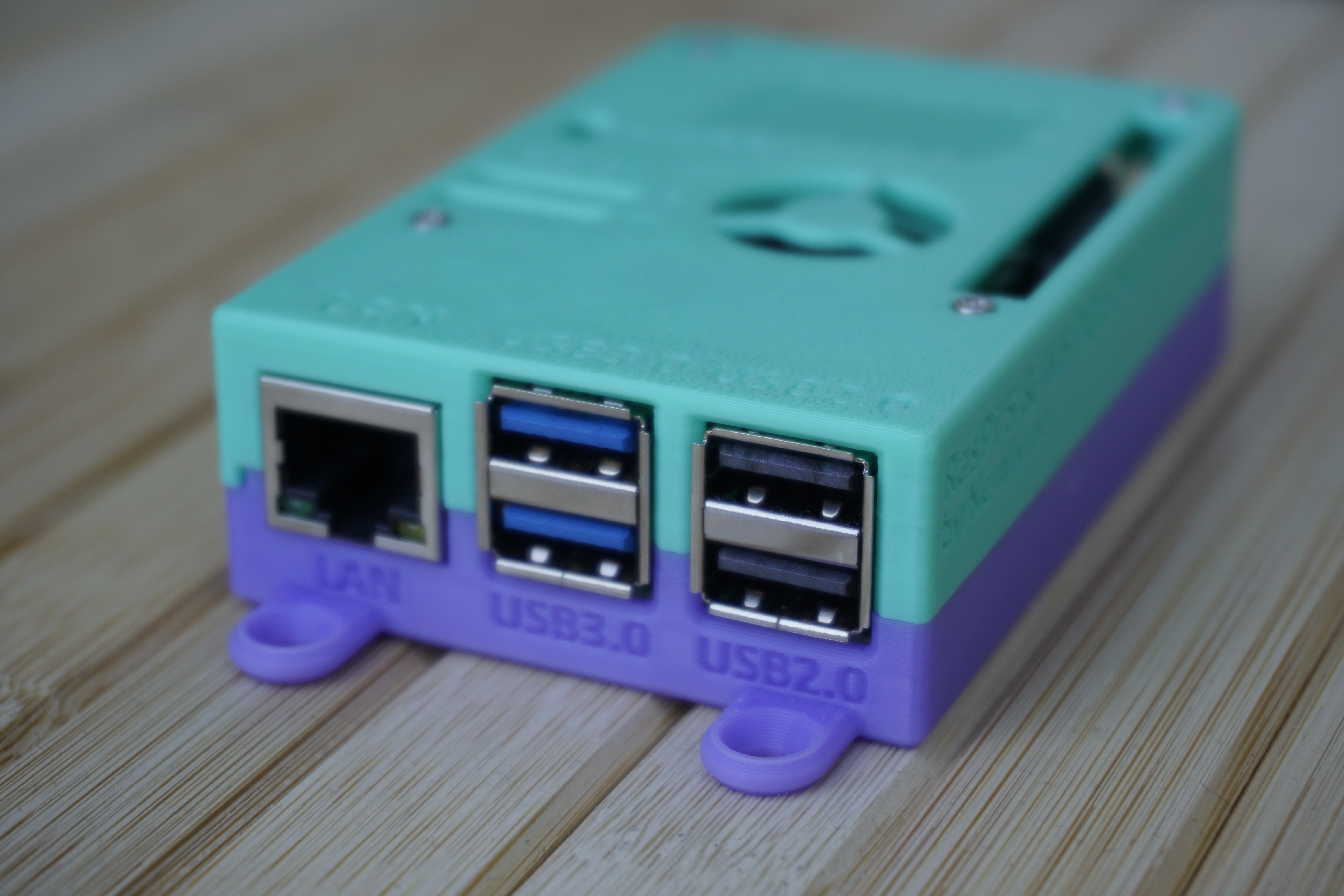

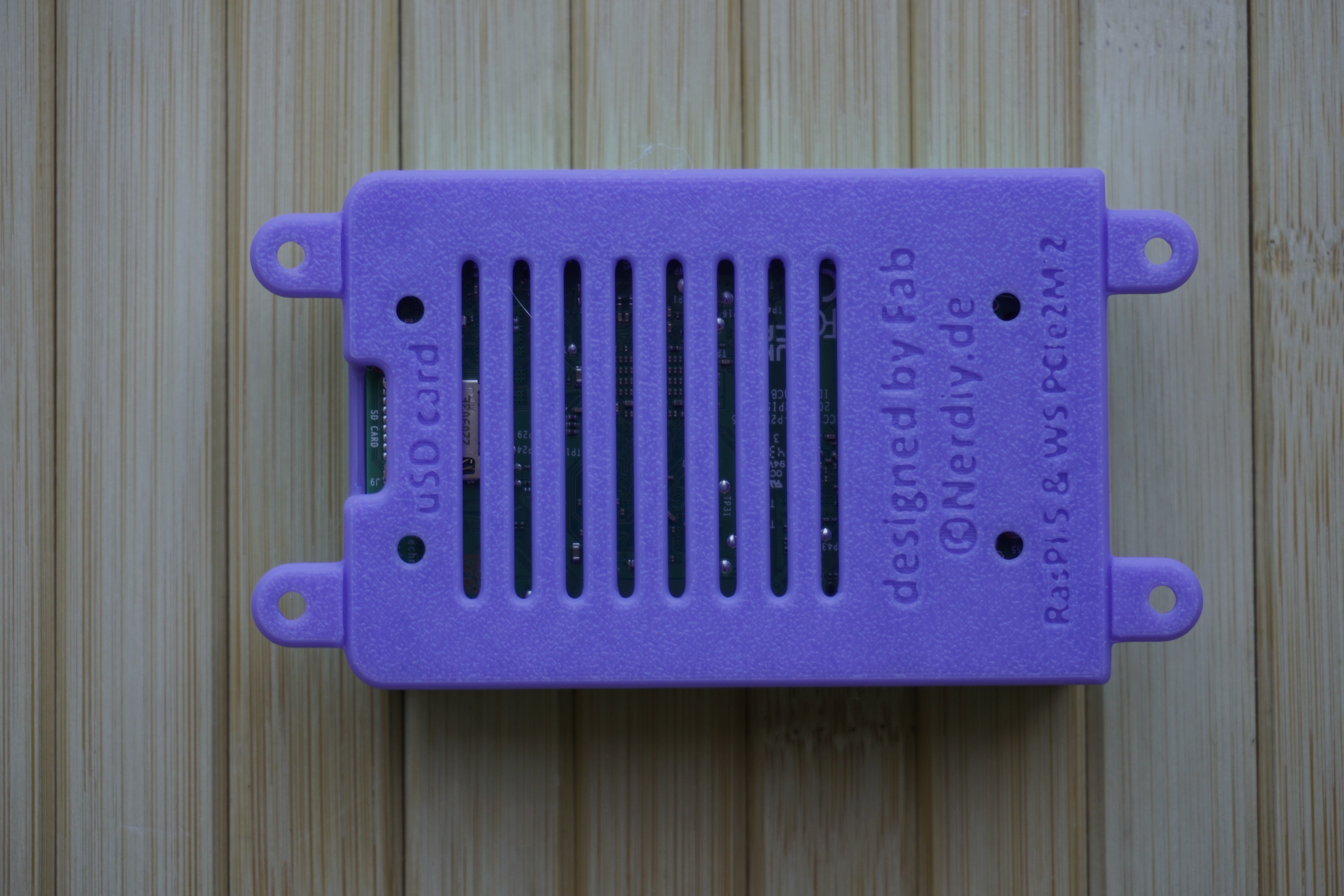

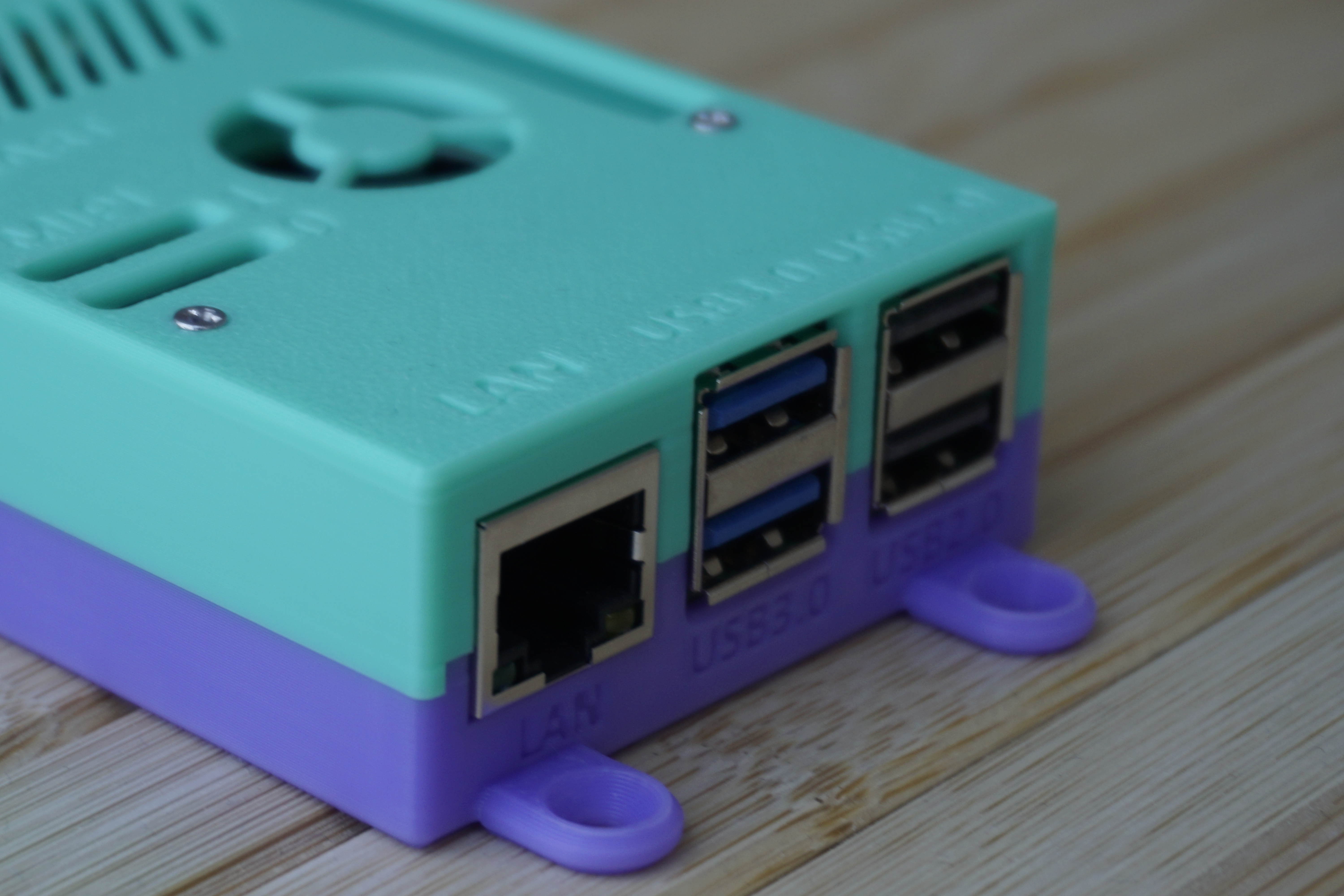

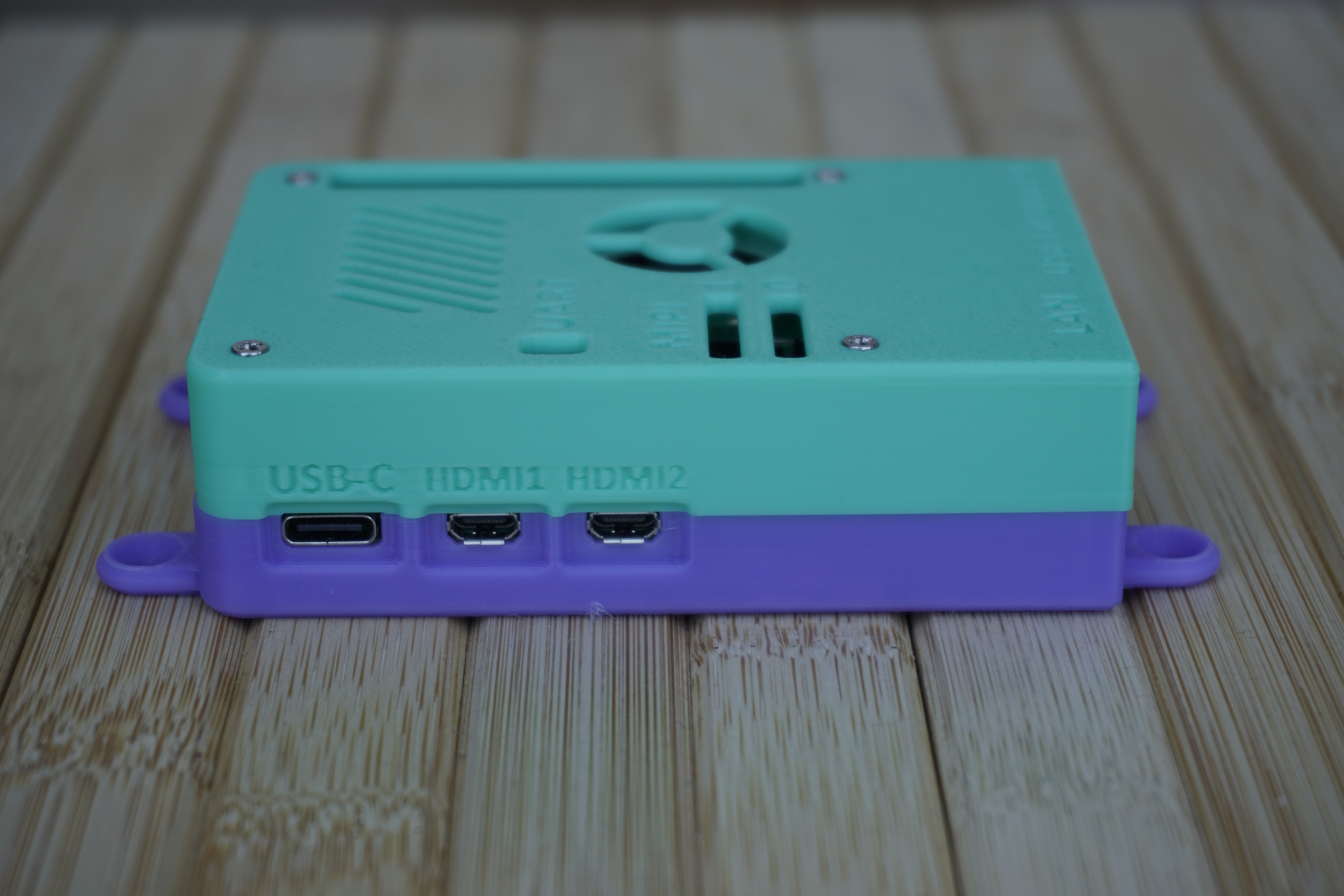

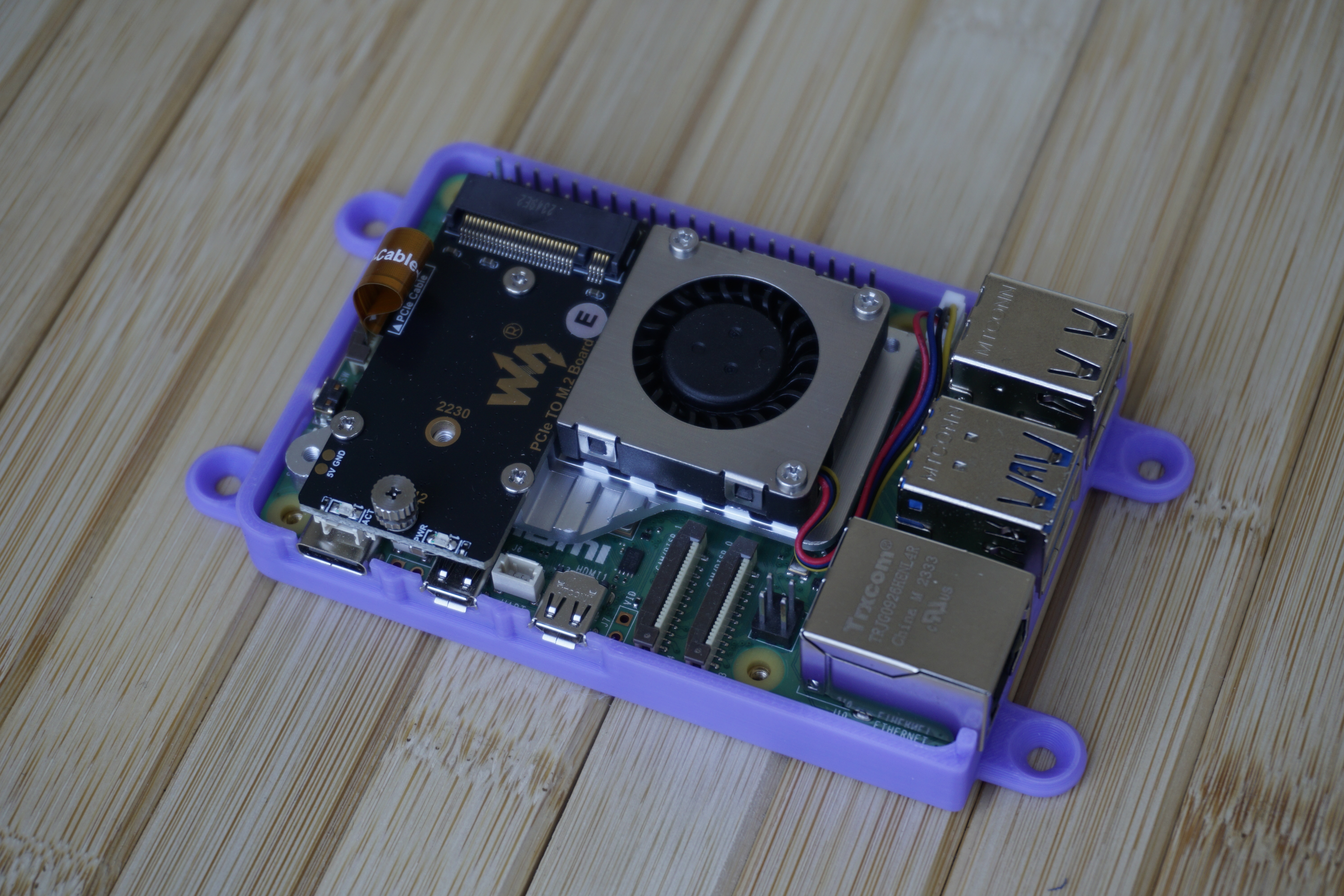

Additional Pictures
