Control Panel for Air Conception Nitro Paramotor

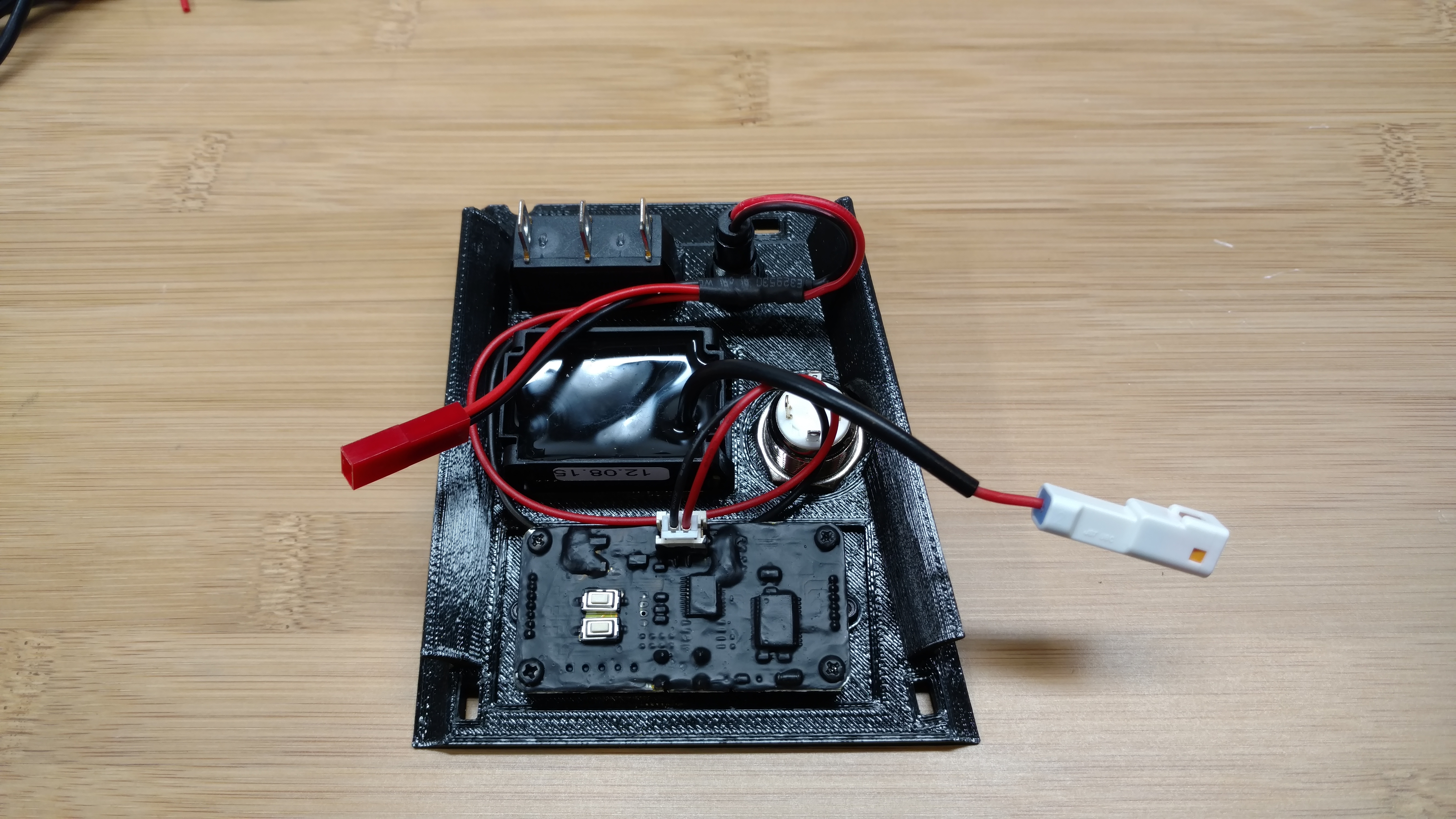

This is a part I made for my Air Conception Nitro 200 e-start Paramotor. I started by wanting to move the ignition switch to a place where I could turn it on after the motor was on my back and evolved into an hour meter, battery monitor, status LED and a place to put the switch to my strobe light.

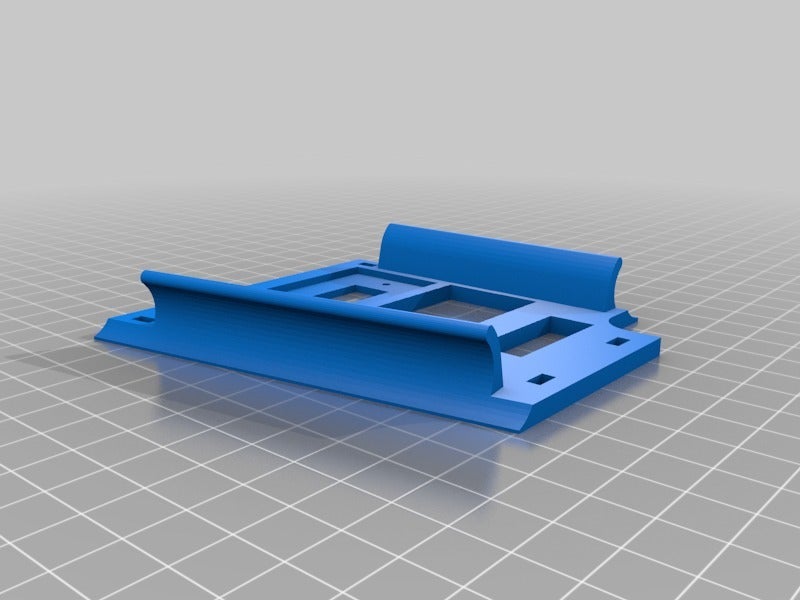

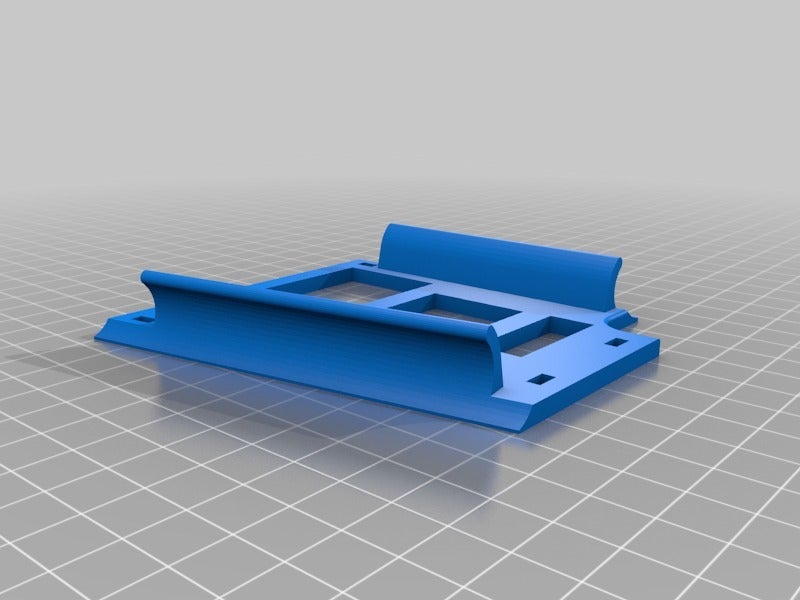

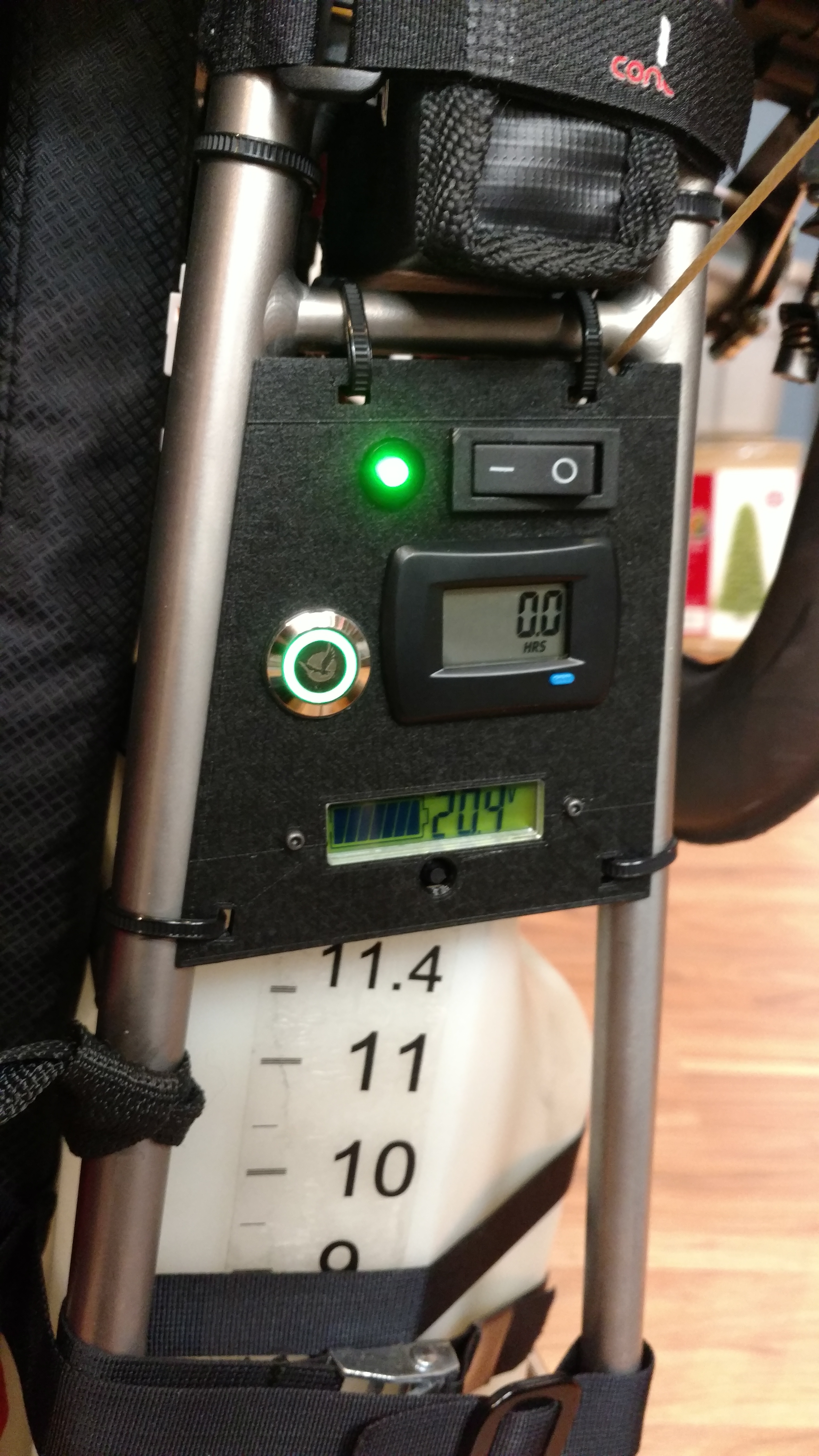

Designed to be held to the frame with four zip ties, there's also a cutout for the netting tension cord. If you disassemble your machine a lot, you may have to unzip the panel to get your cord through when removing the net.

Update: Panel1 updated to include correct cutout for Skyflar nut.

01/11/18 Update: Included panel for just the Switch and LED

02/28/19 Update: The opening for the net tether / spring was increased so that you do not have to remove the panel to remove your net completely. Also included panel 1 design without the strobe button hole and a switch only panel.

The cutouts are very specific to certain components, they are:

(You may need to copy/paste the Amazon links for them to work)

• Air Conception factory switch

• SkyFlar strobe SWITCH EXTENSION KIT ST-201 / ST-202
  http://skyflar.com/index.php?route=product/product&product\_id=56

• Voltmeter / Battery meter:

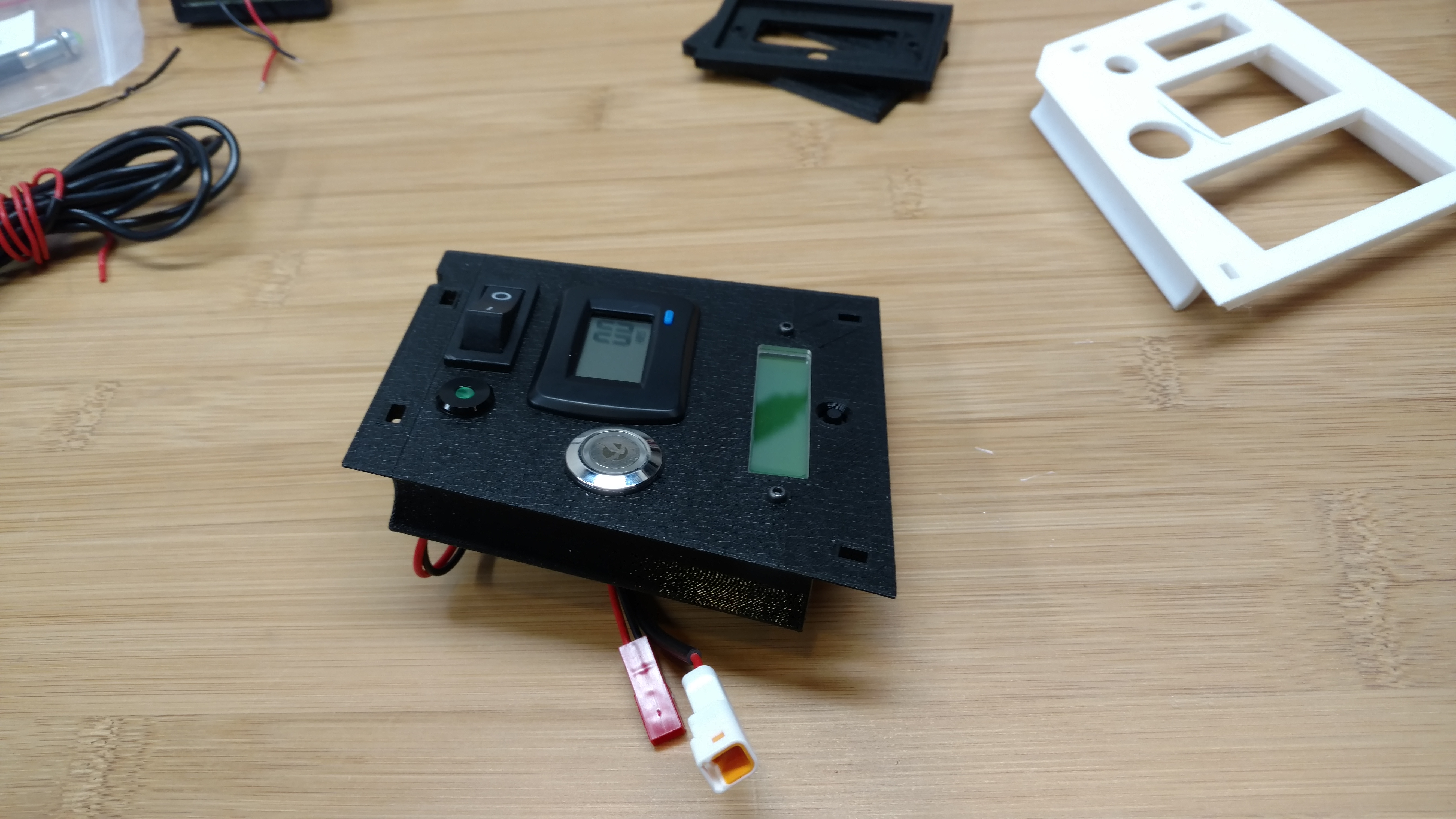

  Panel1: (Recommended, shown in picture with no strobe switch)
  https://www.ebay.com/itm/LCD-Voltmeter-panel-Lead-Acid-LiFePO4-Lithium-Li-ion-Battery-Capacity-Indicator/122494747647?ssPageName=STRK%3AMEBIDX%3AIT&var=422941375271&\_trksid=p2060353.m2749.l2649
  Panel2:
  https://www.amazon.com/gp/product/B071HW4QHL

• LED Indicator
  https://www.amazon.com/gp/product/B01AF5THFS/ref=oh\_aui\_detailpage\_o03\_s00?ie=UTF8&psc=1

• Hour Meter, Trail Tech 732-A00 Black Panel Mount TTO Digital Tachometer plus Hour Meter
  https://www.amazon.com/gp/product/B01GTP6KF8/ref=oh\_aui\_detailpage\_o05\_s00?ie=UTF8&psc=1

Print instructions

Print Settings

Printer: Geeetech Prusa I3 X

Rafts: No

Supports: No

Resolution: .2

Infill: 80%
