Pixel 9 Pro Fold - Pixel Stand 2 Riser
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Portable Devices
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
The Pixel 9 Pro Fold's wireless charging coil is too low to properly align and charge on the Pixel Stand 2.

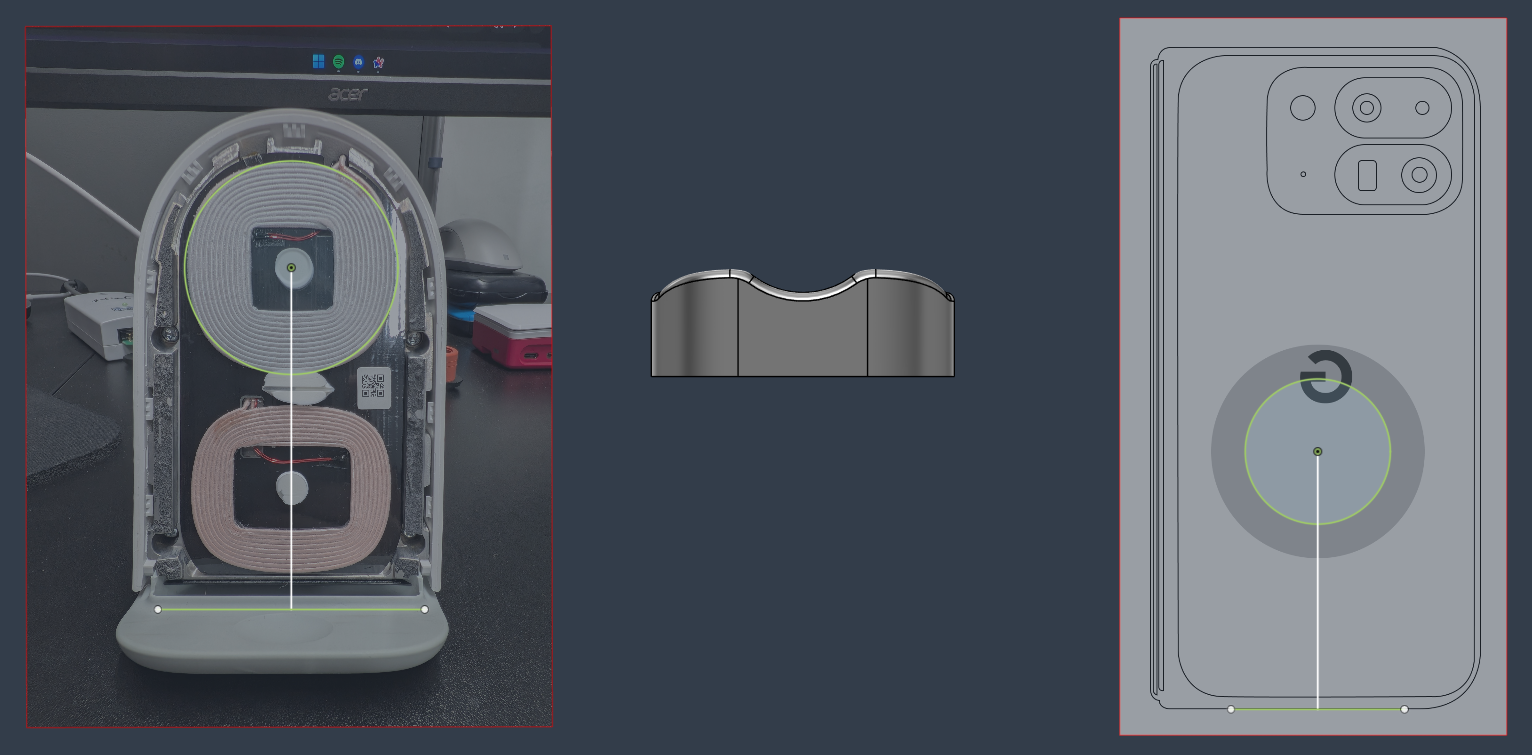

This riser's height is based on multiple measurements of the internals of the PS2, and a calibrated reference photo (provided by Google) of the P9PF's charging coil location.
To attach the riser, simply “hook” it into the spaces between the base and the front face of the PS2. Make sure to push it all the way back, then down against the base.
__________________________________________________________________________________________________________________
Printing
Rigid material, at least for the hook-section (ASA, PLA, PETG…)
0.25mm layer height (or lower)
0.15mm layer height for the first 3.4mm (to give enough detail to the hooks)
≥15% infill
Supports optional (with strong enough cooling for the hooks)
