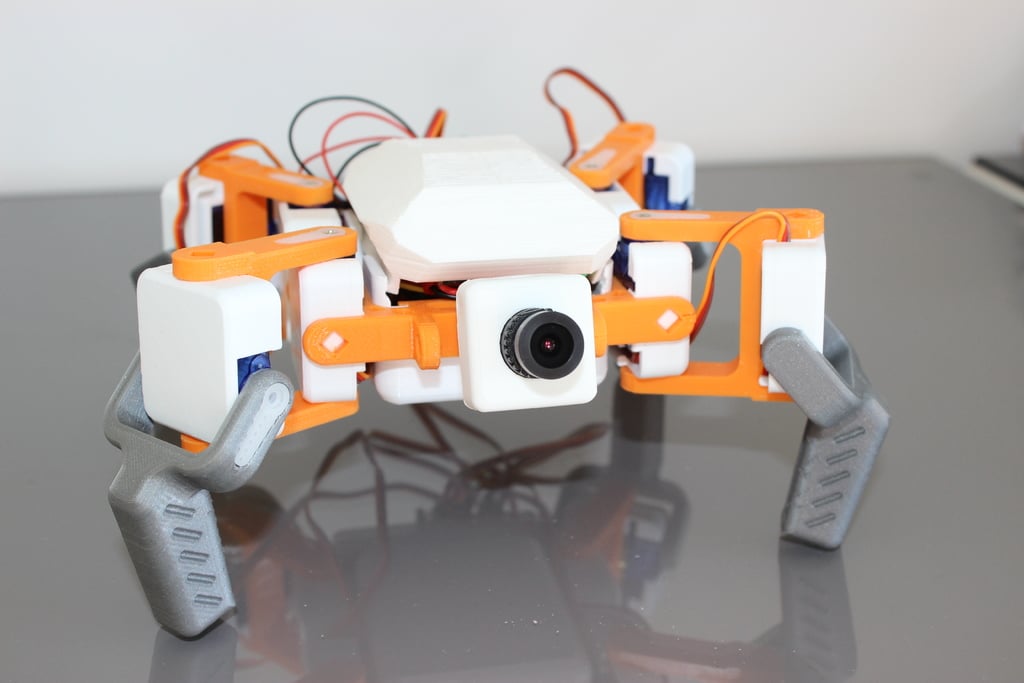

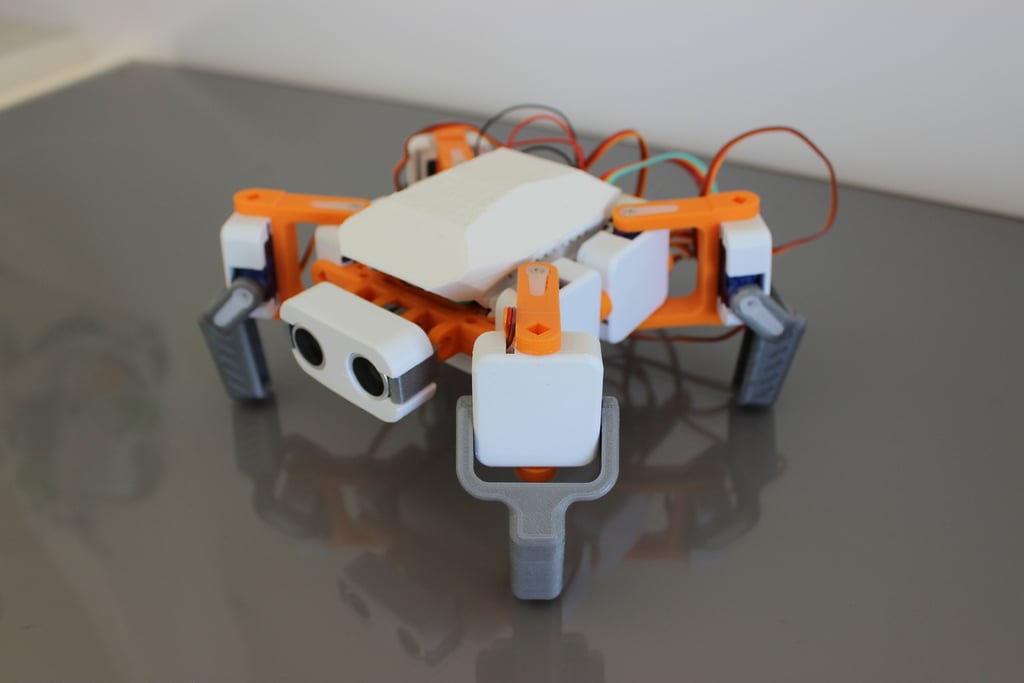

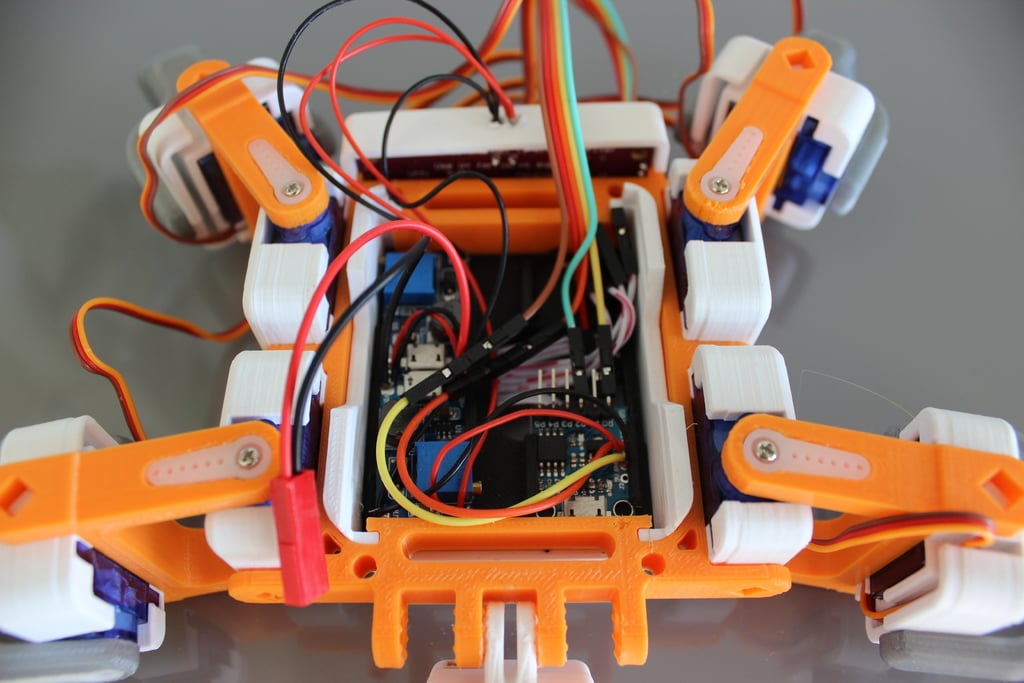

SMARS QUAD MOD

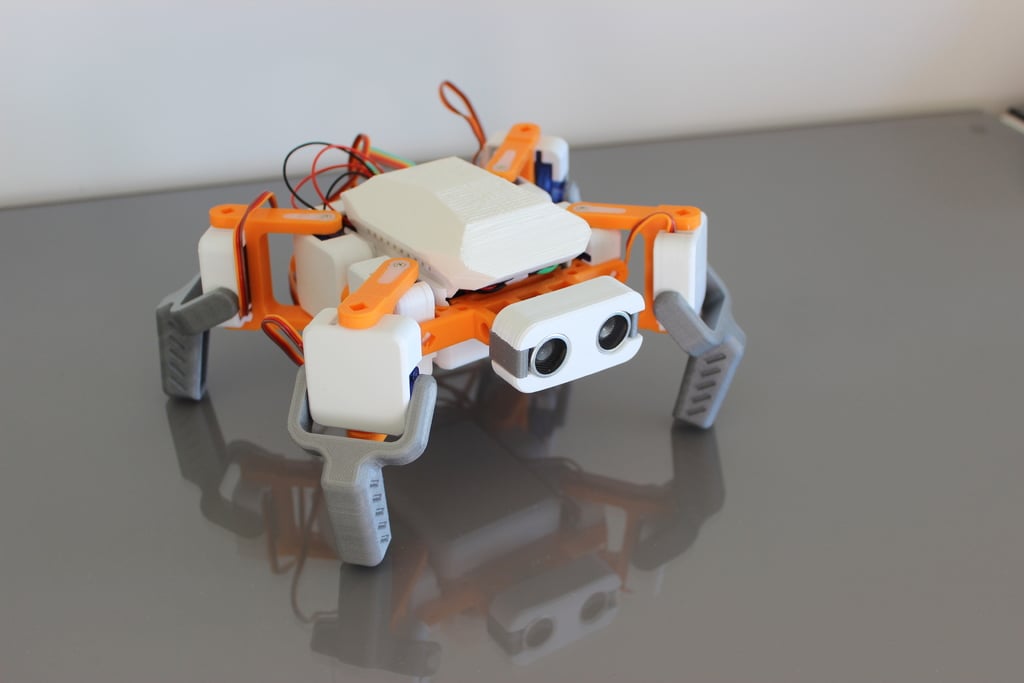

Finally the SMARS quadruped is here. with this mod, your smars will become a quadruped robot. Join us on facebook for updates and software help: https://goo.gl/qLA9Ag to build it, you will need this parts: -8x SG90 servo https://s.click.aliexpress.com/e/_A4SITH -1x 16CH Servo driver http://s.click.aliexpress.com/e/bAWhd02y -2x 3A boosters http://s.click.aliexpress.com/e/bASl07Ji -1 or 2 18650 batteries http://s.click.aliexpress.com/e/b0gp50CY -1x switch http://s.click.aliexpress.com/e/brNdCf3w -1x power connectors http://s.click.aliexpress.com/e/bffWPDLE

For the arduino version: -1x Arduino mini: http://s.click.aliexpress.com/e/RVD1QbW -1x HC-06 bluetooth module http://s.click.aliexpress.com/e/739DNs4 -1x Video http://s.click.aliexpress.com/e/cTqWZiW8 -1x FPV camera

For the Raspberry version: camera http://s.click.aliexpress.com/e/ccCLrgXq RPi zero W http://s.click.aliexpress.com/e/biTiI0fm

Amazon: https://linkmix.co/9957917

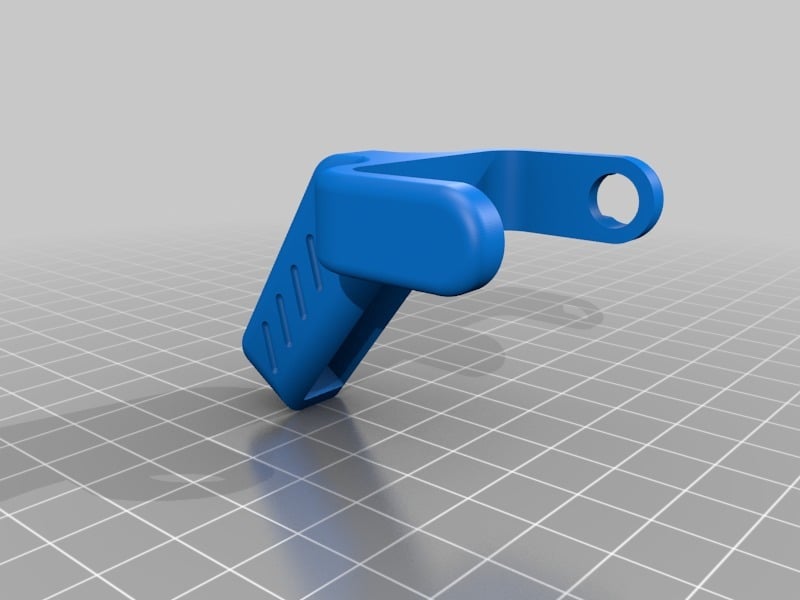

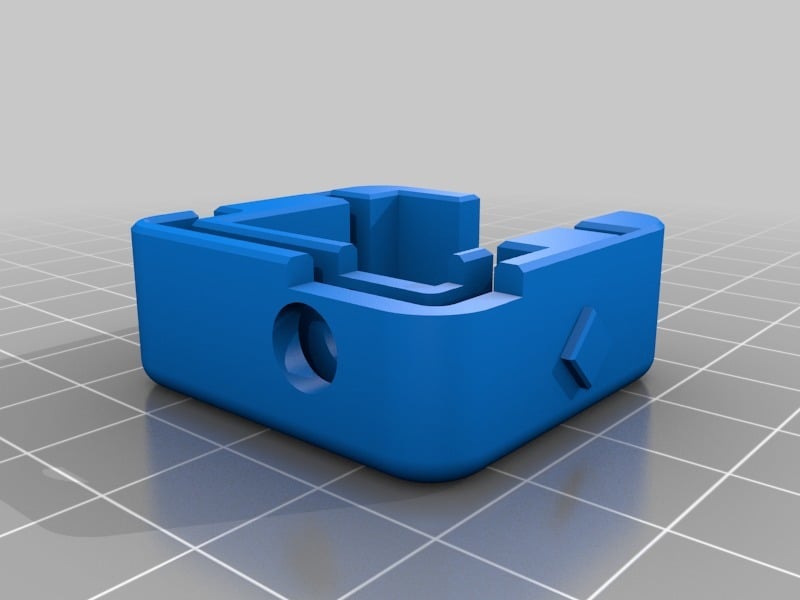

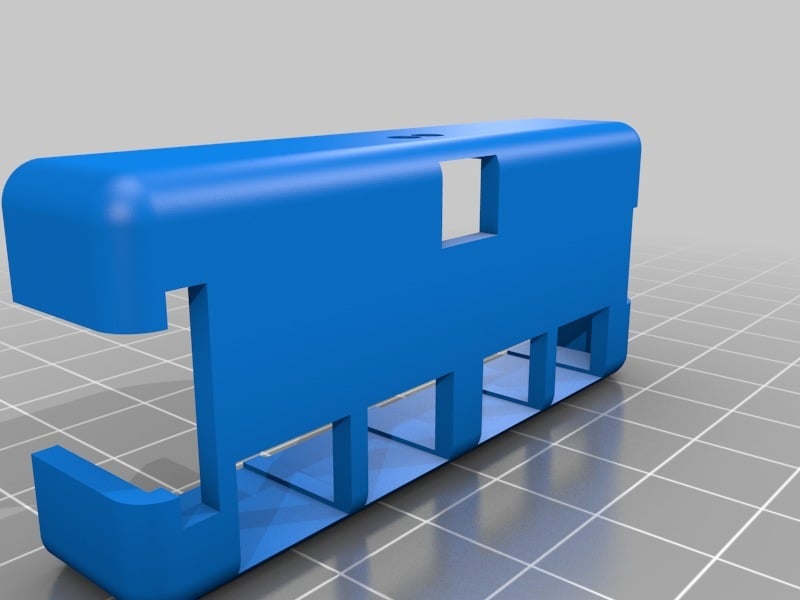

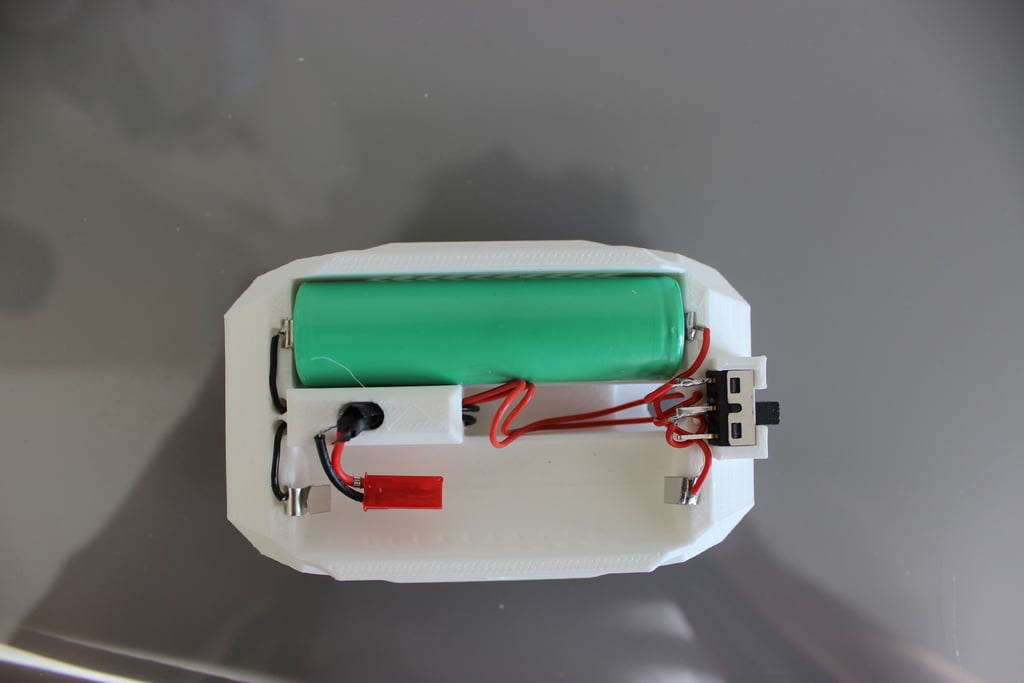

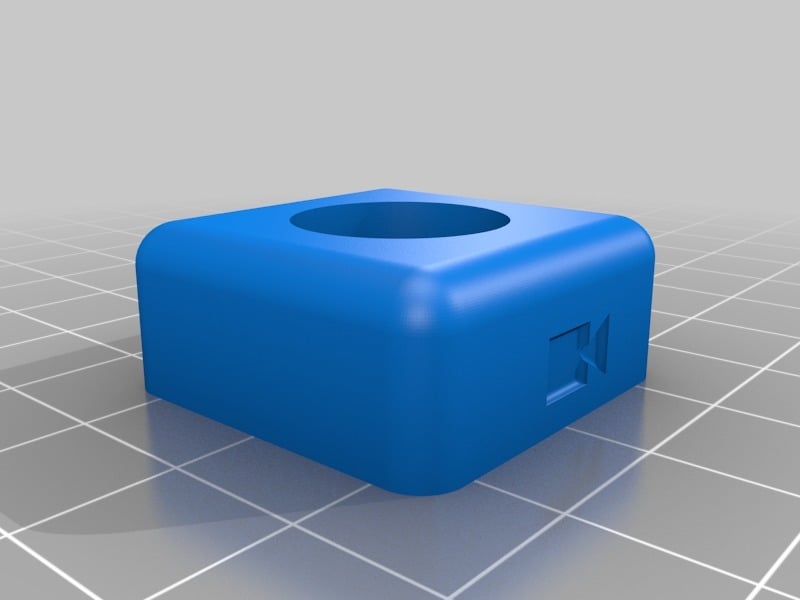

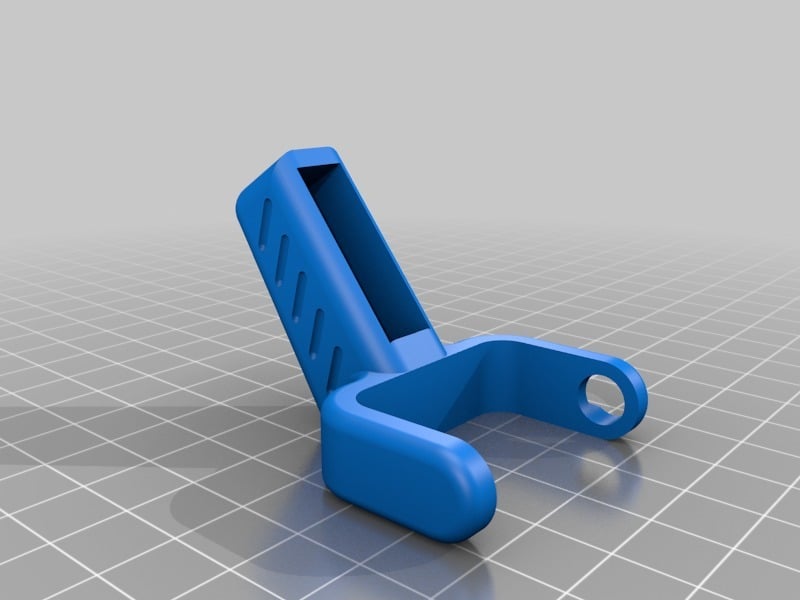

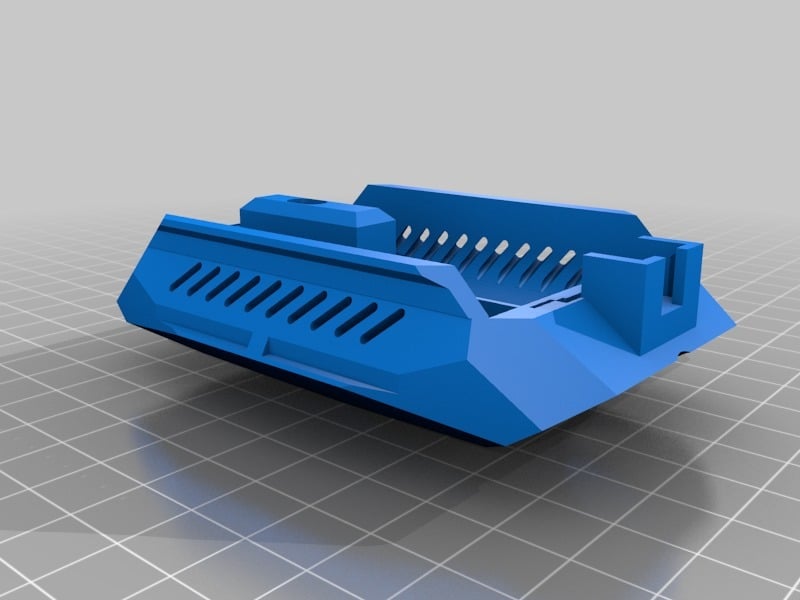

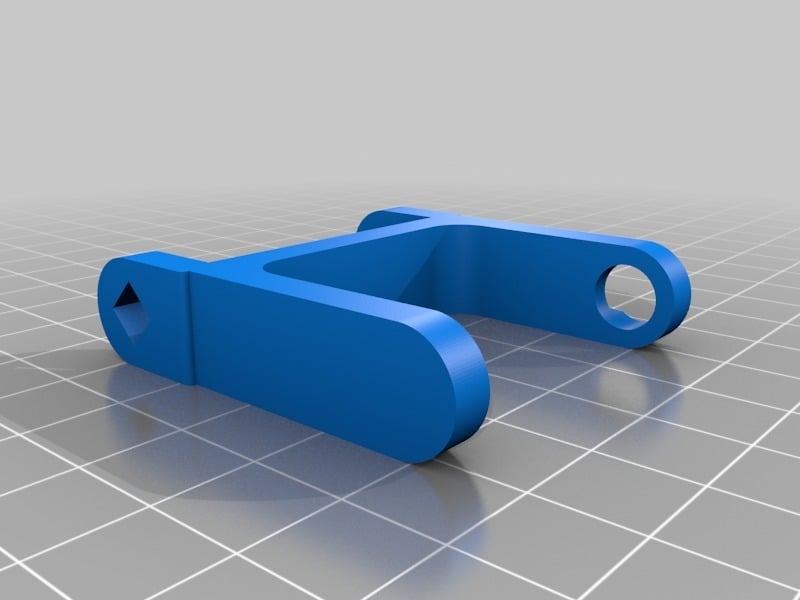

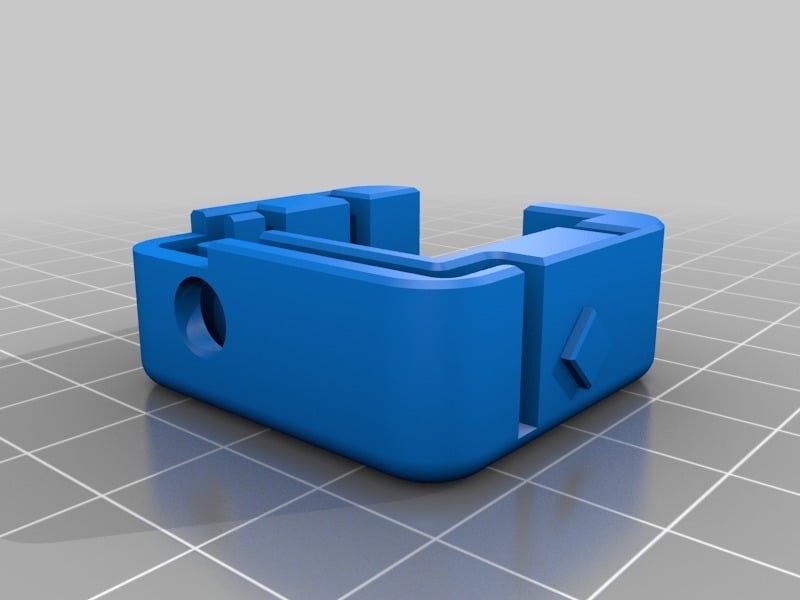

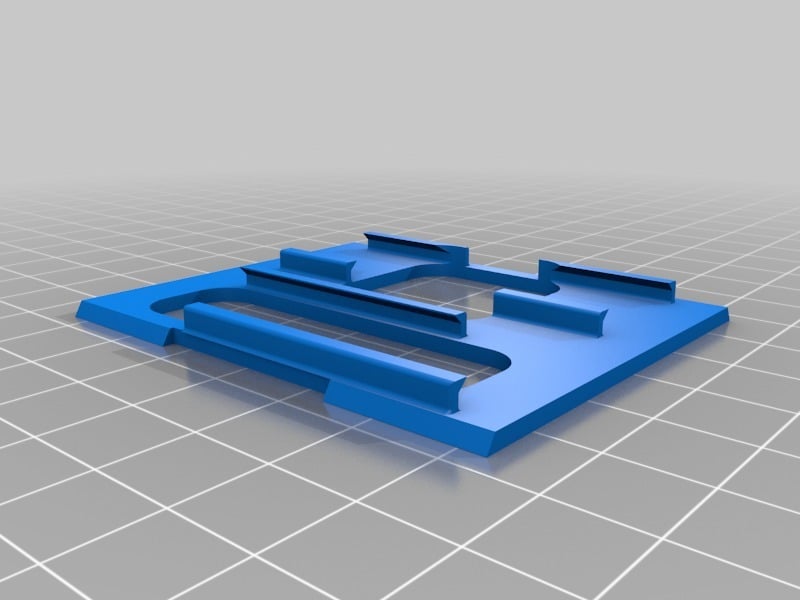

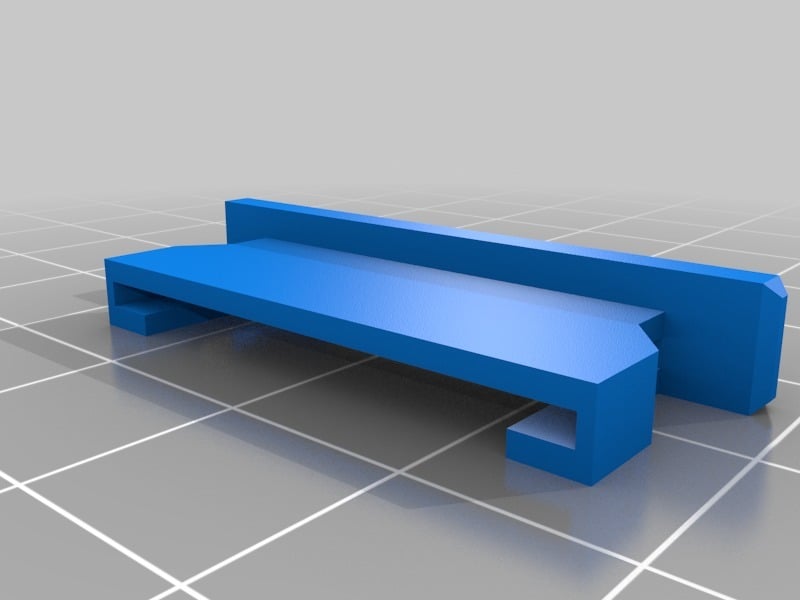

You have to print:-1x quad power_shell-1x frame (1.5 pi if you have the chassis_S, 2 pi if you have the new 4WD chassis)-1x servo driver cover-1x holding board spark (for the arduino version)-2x foot-2x foot_m-4x servo case-4x servo case_m-4x servo arm-2x pi holder v2 (if you want to mount a rpi)

P.SIf you like my projects, just tip me or support me buying the material from my links, it will not cost you extra money and you will allow me to finance new projects! I would really appreciate it!

Print Settings

Printer:

Witbox

Rafts:

**Supports:**

Yes

Resolution:

**Infill:**

20%

Notes:

Category: Robotics
