mountingplate for wallmounted devices, with cabe tie holes and cable strain relief (parametric design)

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Devices which need screws in a wall to mount on, but it is difficult to place them?

For small electric devices/computer accessories like

Requirement to be usable, it is to mount devices

Features of bracket

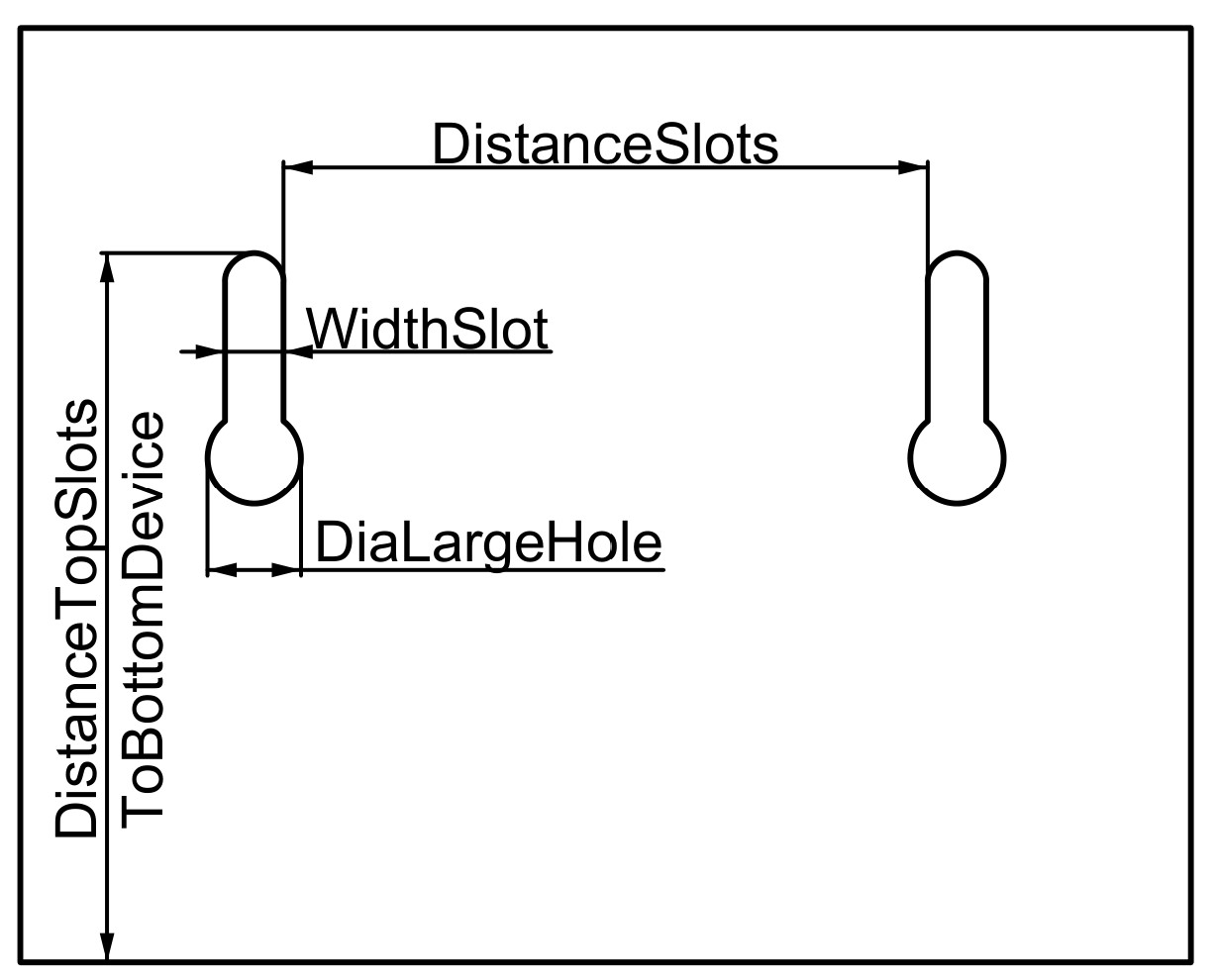

exact distance of pins at first attempt
height of pins exact to reduce rattle
zip ties (horizontal and or vertical) can be looped around device after mounting
hook on the bottom adds support and keeps zip tie in the right spot
DC cable can be fixed on additional loop eye, for strain relief e.g. on barrel jack DC.

Why this model anyway?

speeds up mounting in hard to reach spaces
it may be difficult to place screws in the right distance and needs several attempts to adjust the their height for a tight fit
cable ties allow even for inverted mounting (by 90° or under a table)
need tight fit and no rattle, like in an RV? The bottom hook supports!
some DC cables might be in risk of being pulled out. Use the strain relief: The hook can have an eye for a smaller cable tie

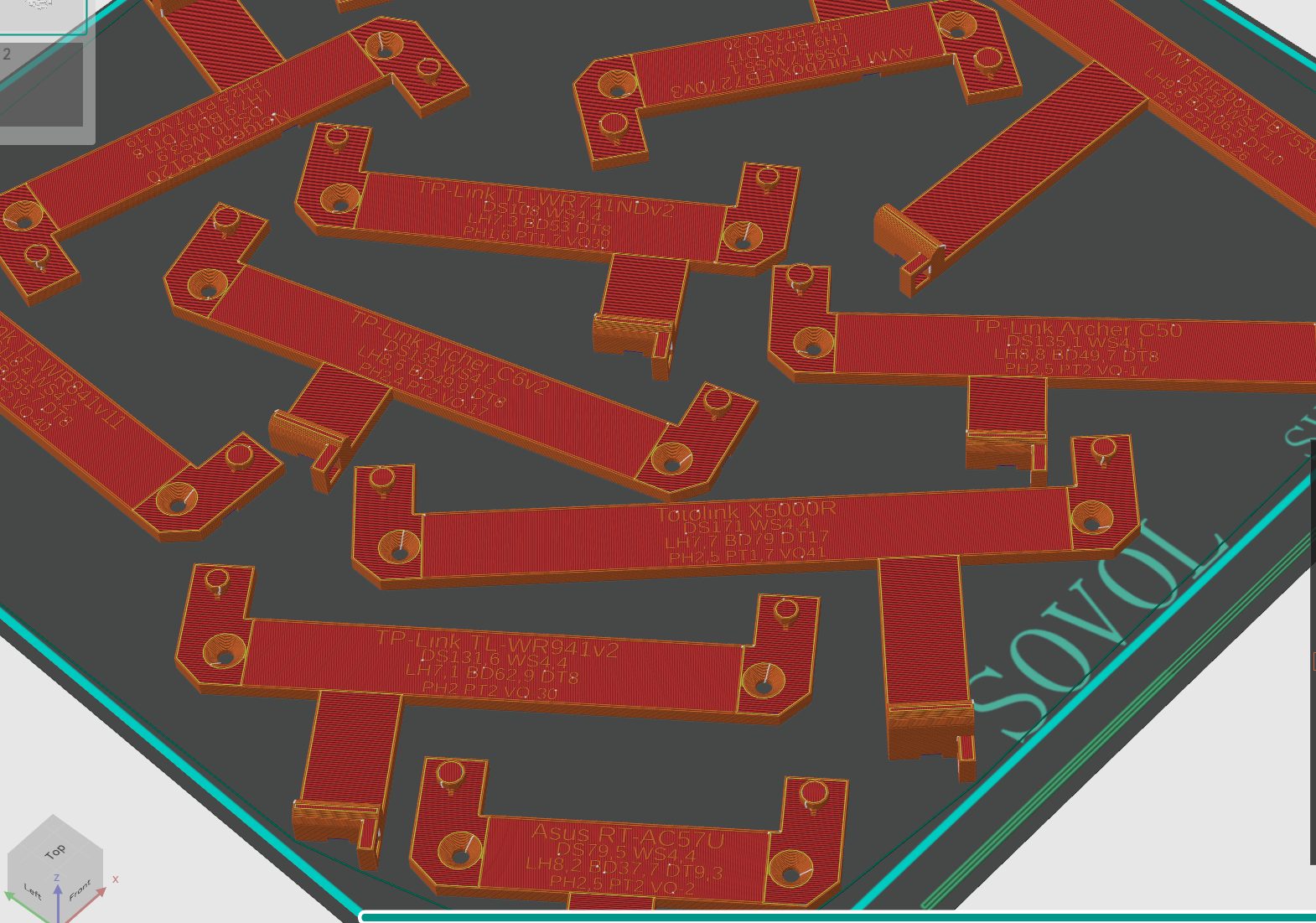

parameters are printed on a label automatically for later reprint or tweaking
add our own text in the top of the label, e.g. to keep track which bracket for what device, in case you print a selection of brackets at once.

Preset File/Customizer

Printing

prints without support
3 outer walls recommended, 60% infill is reasonable (during tests we broke/bent devices before the printed part gave up)

Other models?

feel free to add your measurements, we will try to maintain updated json files with presets.
OpenSCAD source code included, easy to modify

Includes pre-rendered STL files:
