Planetary Gear Motor first draft open SCAD
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Have been thinking quite a while now about this and am not sure if this will really ever be a realistically useful…
- Ocena
- 0 / 5
- Polubienia
- 4
- Pobrania
- 37
- Wydruki
- 1
- Wyświetlenia
- 525
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other Ideas
- Licencja
- Creative Commons — Attribution — Share Alike

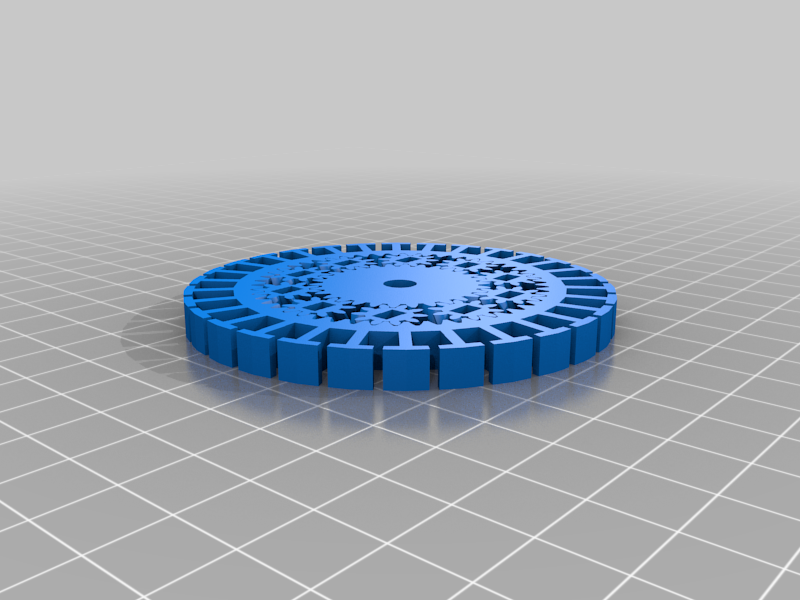

Have been thinking quite a while now about this and am not sure if this will really ever be a realistically useful motor.
As it is it is completely untested and adjusted for tiny magnets of the following dimensions:
wideM=4.8; // define the Magnet Width
longM=6; // define the Magnet length (this is the hight of the stack too)
deepM=3; // define the Magnet depth (this is the axis of magnetization)
You have the option to sort all the magnets in one direction; or alternate the direction - the winding interval will depend on that, and I admit I haven't figured it out myself!

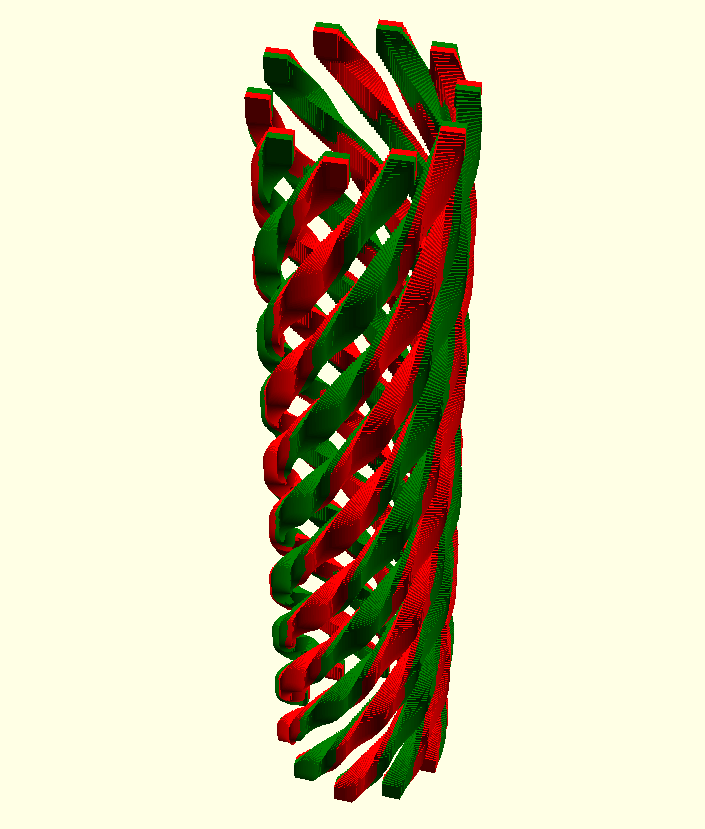

There is a method cycleVis(); to visualize the spinning of the magnets, there is also a method for animation.
I created a group https://www.thingiverse.com/groups/electromotor-design specifically for people that like the subject and colaboration - come and join!
P.S.: Meanwhile I printed a first test but the print in place gears are totally locked, and I have no idea yet how to configure the gap or achieve a part that can spin!
Category: DIY
