Network Cable Drywall Passthrough
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Office
- Licencja
- Creative Commons — Attribution — Noncommercial
Instructions:
- Drill a 20 mm hole through the wall

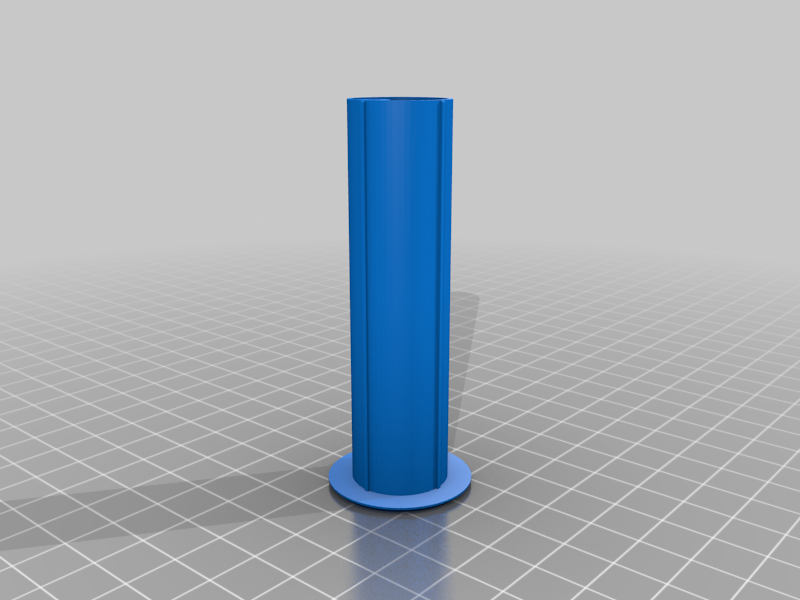

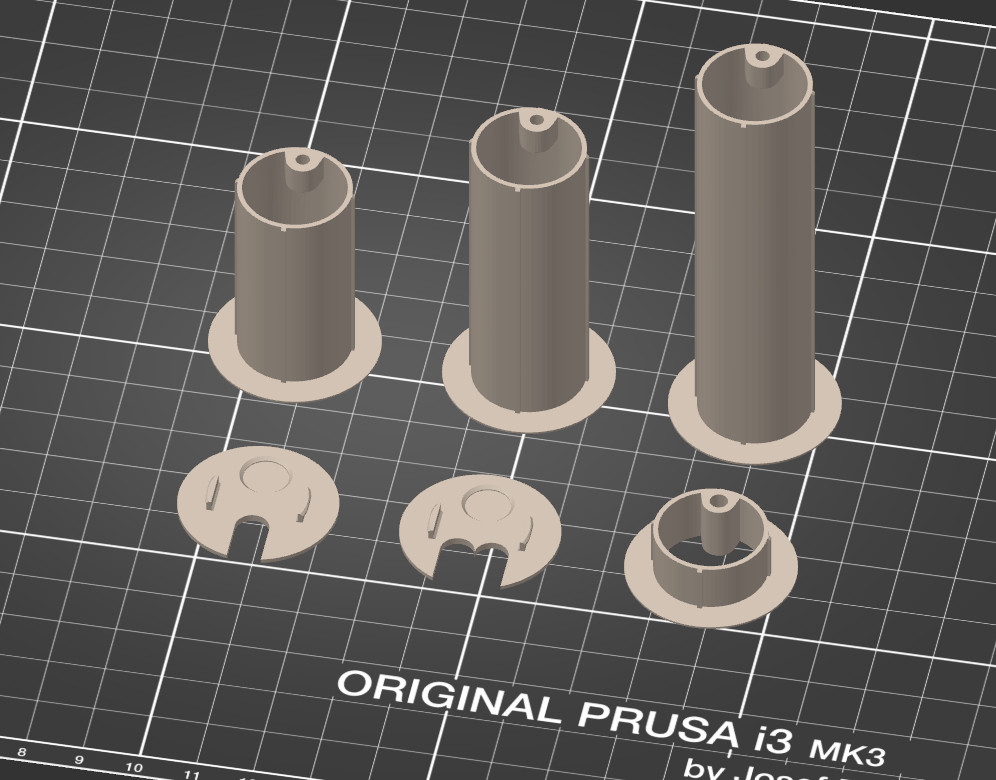

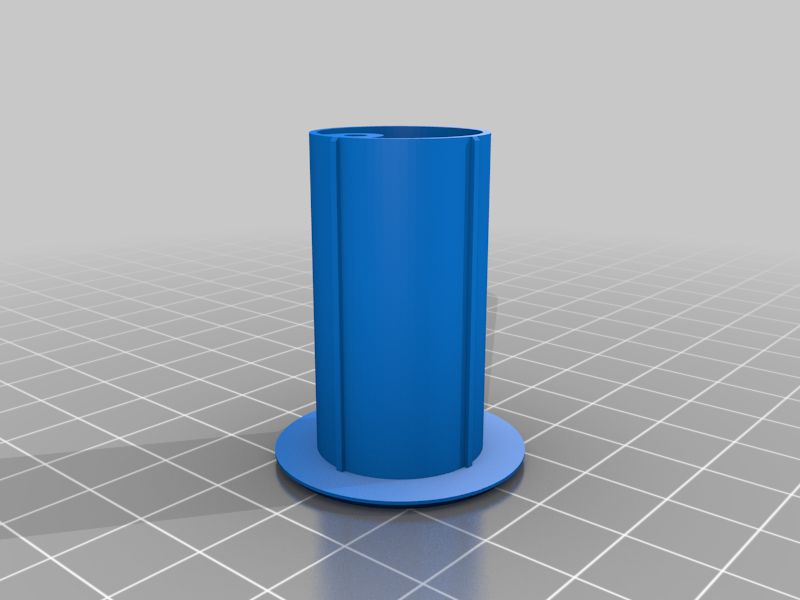

- Choose the "long" part according to the thickness of your wall

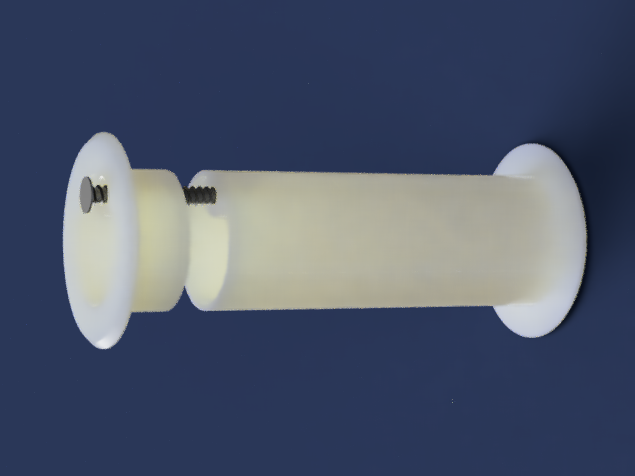

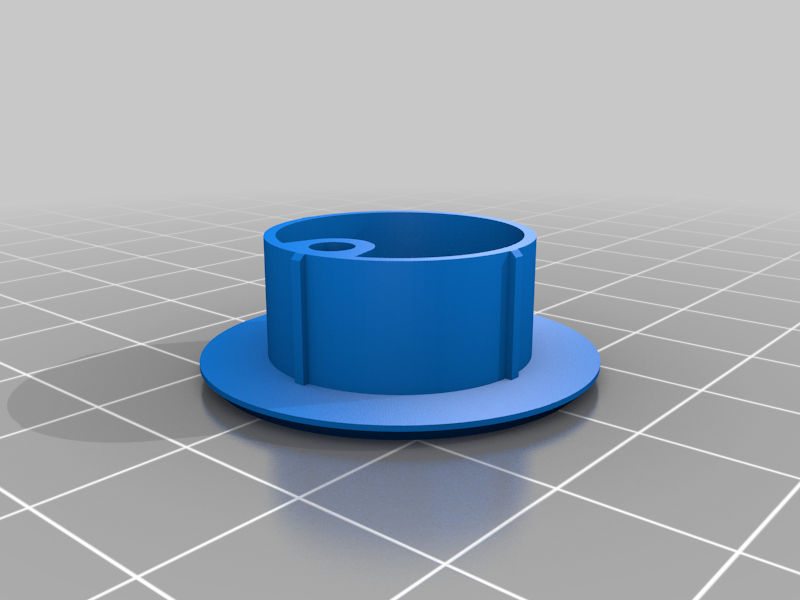

- Insert the "short" part on one side, and the long part on the other
- Fasten with a 3 mm wood screw that's long enough to reach the other part
- Push the cable/cables through.

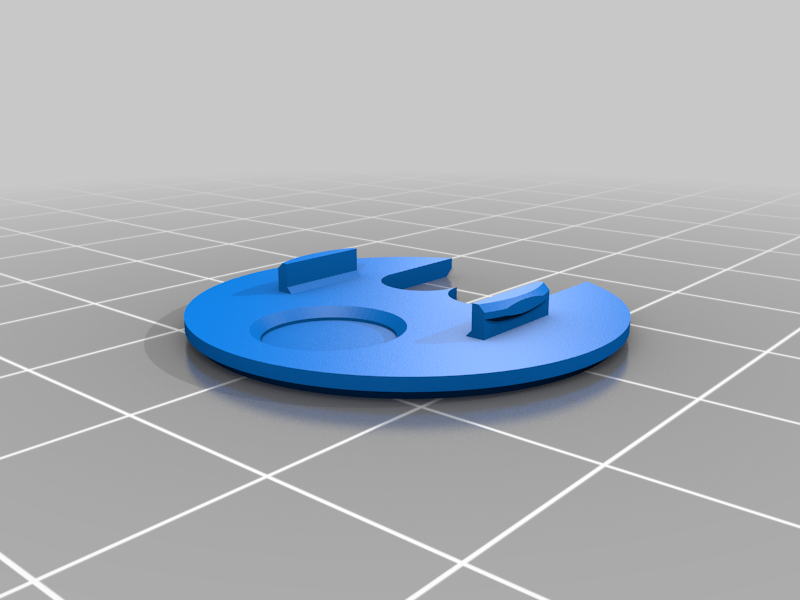

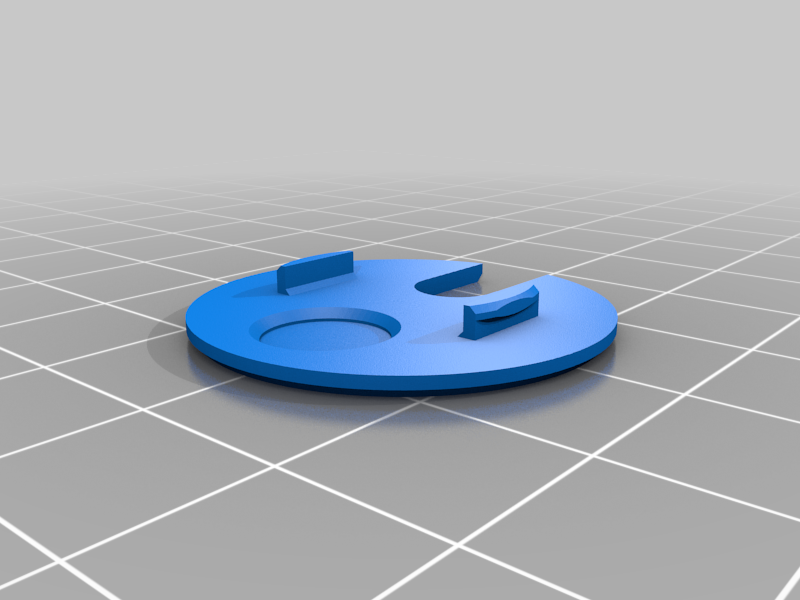

Install the lid for one or two cables. You might want to bend the lid slightly while installing as the snap fit clips break easily Notes:
I've only used PETG for this, so I can't comment on the performance of other materials.

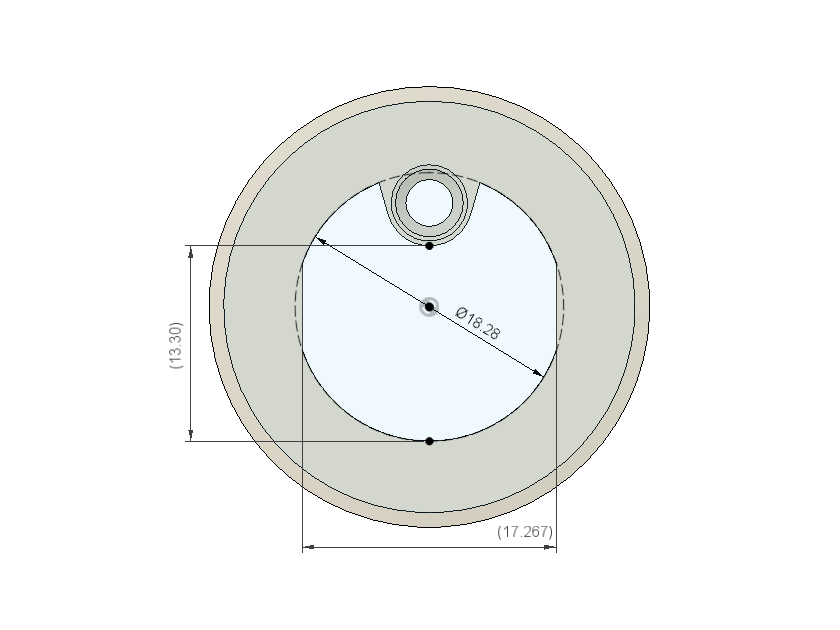

- Some cables have big connectors that might not fit through, see image
- I've managed to cram up to three cables through, but I don't have a lid for this.
Originally published here: https://www.thingiverse.com/thing:4572233
Category: Office
