Right Angle Cartographer Mount (K1 Max Only)

Official Skeletor MK7 Side Mounted Cartographer Support: https://www.printables.com/model/1362668-skeletor-mk7-side-mounted-cartographer-integration

PSA 7/14/25*
If you're here to download the Right Angle Mount for your K1 Max please note that this mount has ZERO room for error and only works for the K1 Max specifically. If it is not printed perfectly you might have trouble probing.

If you don't have a K1 Max or if you're having trouble with the Right Angle Mount due to its tolerances, please consider downloading one of these two models. BOTH MOLDELS HAVE BEEN THOUROLY TESTED. BOTH MODELS WORK WITH SKELETOR MK7

1. @R3tr0_D 's mount, extremely sleek simple easy to print design (Fastest and easiest to print) also works with RetroGlide: https://cults3d.com/en/3d-model/tool/k1-probe-mounts-for-retroglide-gantry
2.  @A P 's mount. It provides multiple offset options: https://www.printables.com/model/1163069-k1max-right-angle-and-standard-format-cartographer

Update 12/13/24*

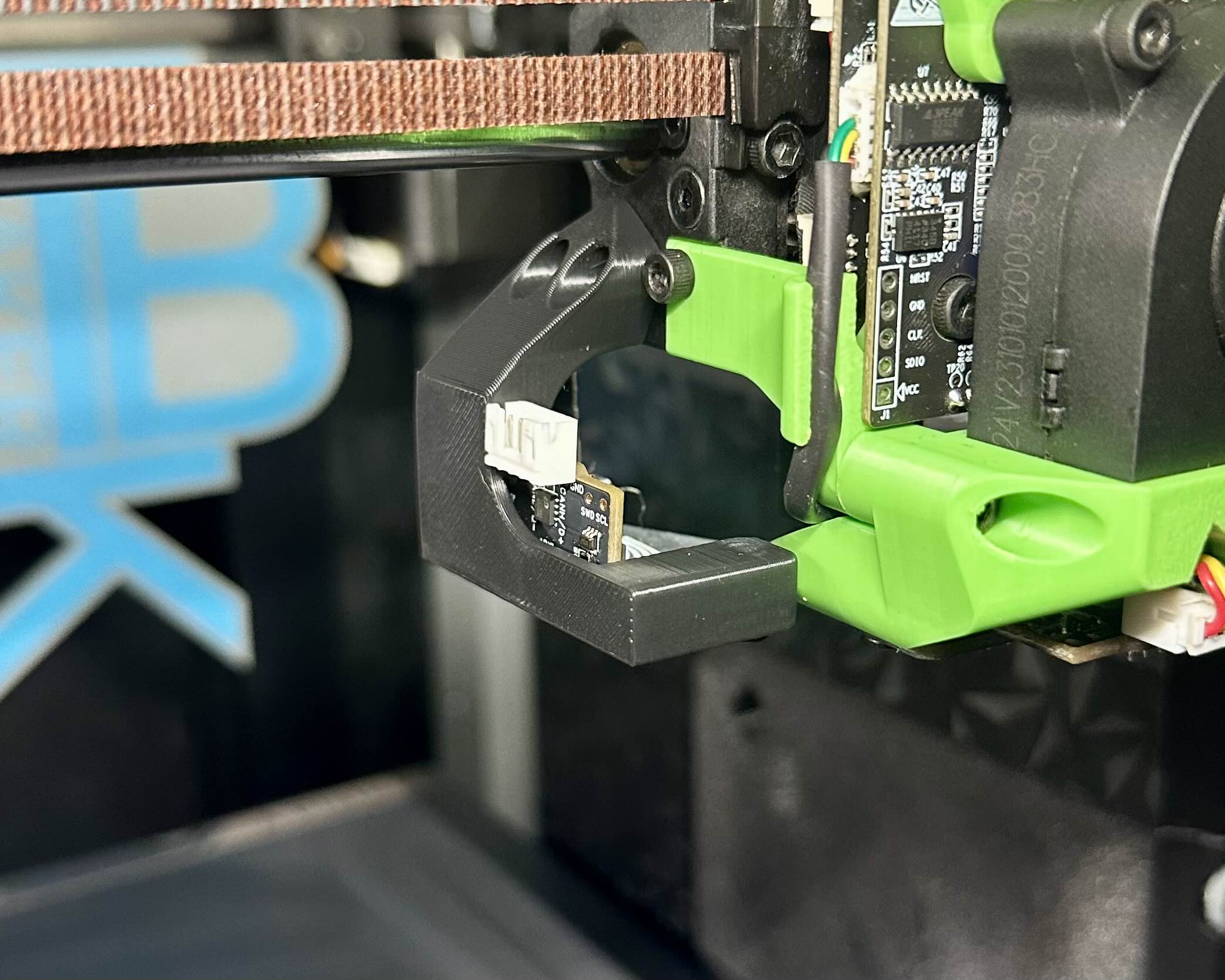

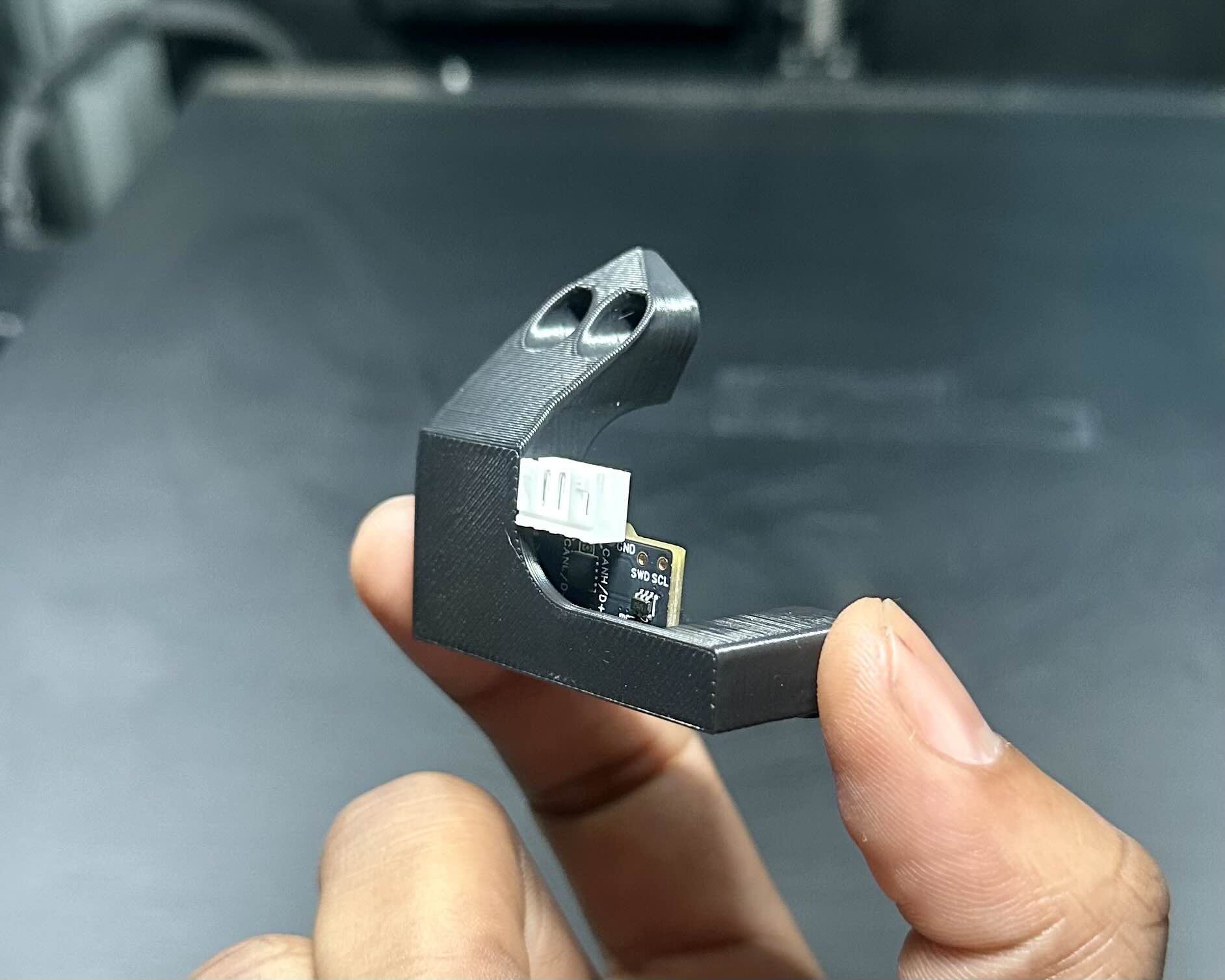

After receiving the Cartographer3D right angle cartographer I have been able to confirm that this model does work and fits their cartographer PERFECTLY. I also have a second option available for those using a Kraken specific cartographer. I have marked this as “Experimental” as I do not own this cartographer and have only been able to confirm it's dimensions from 3rd party testing.

The amazon links provided below are my affiliate links, if you use those links to buy your hardware you will also be directly contributing to me as well. Please consider using those links if you need to buy the hardware.

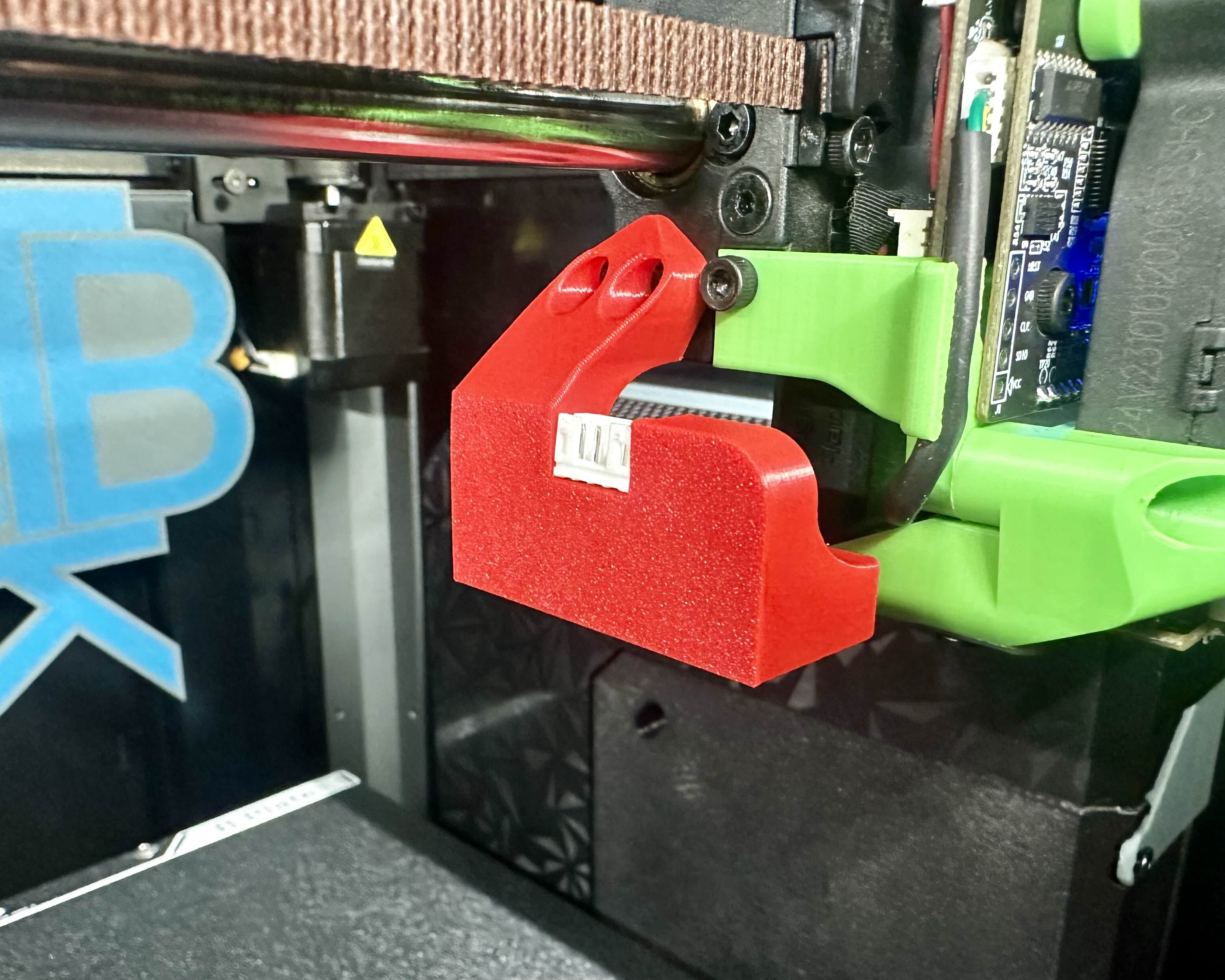

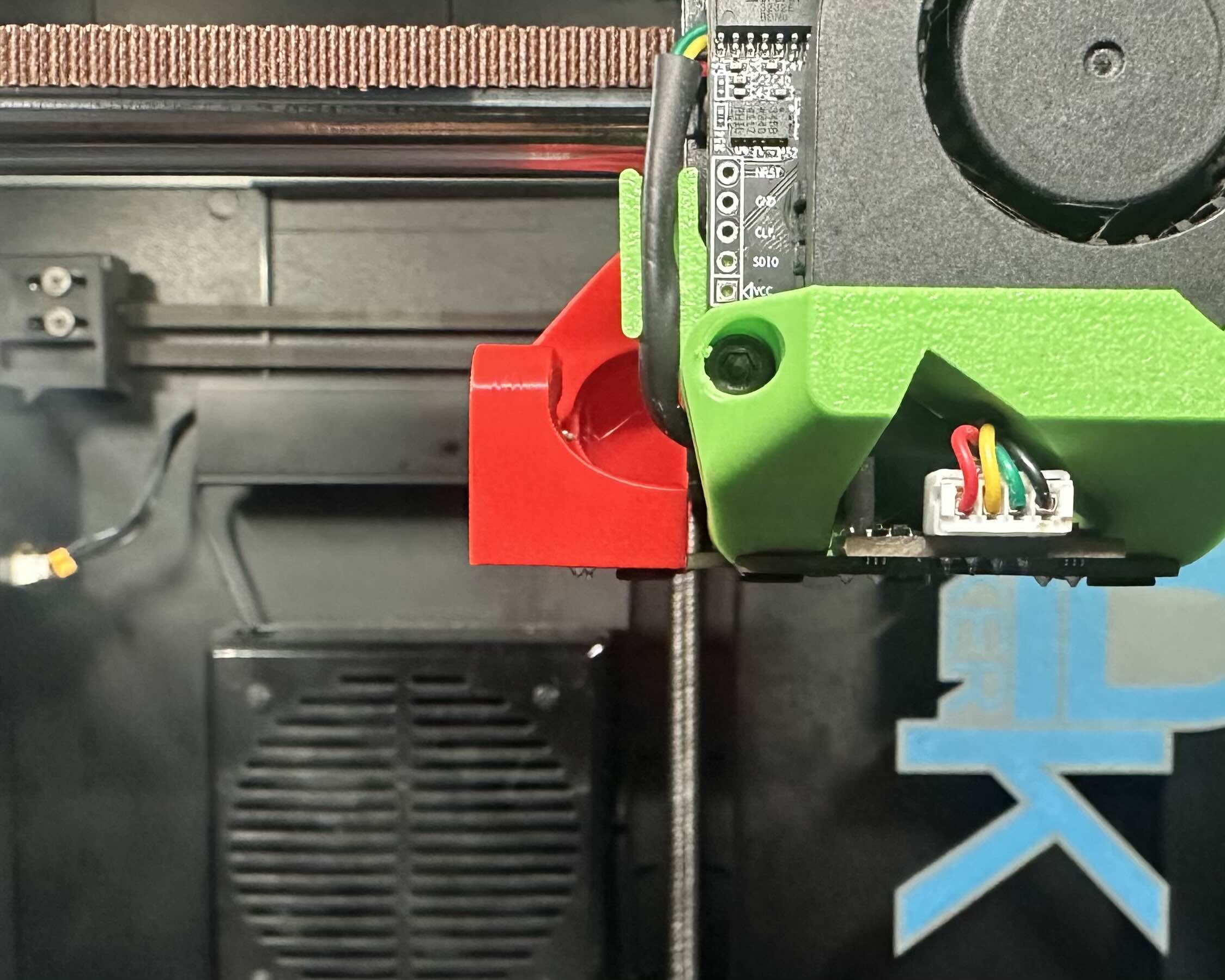

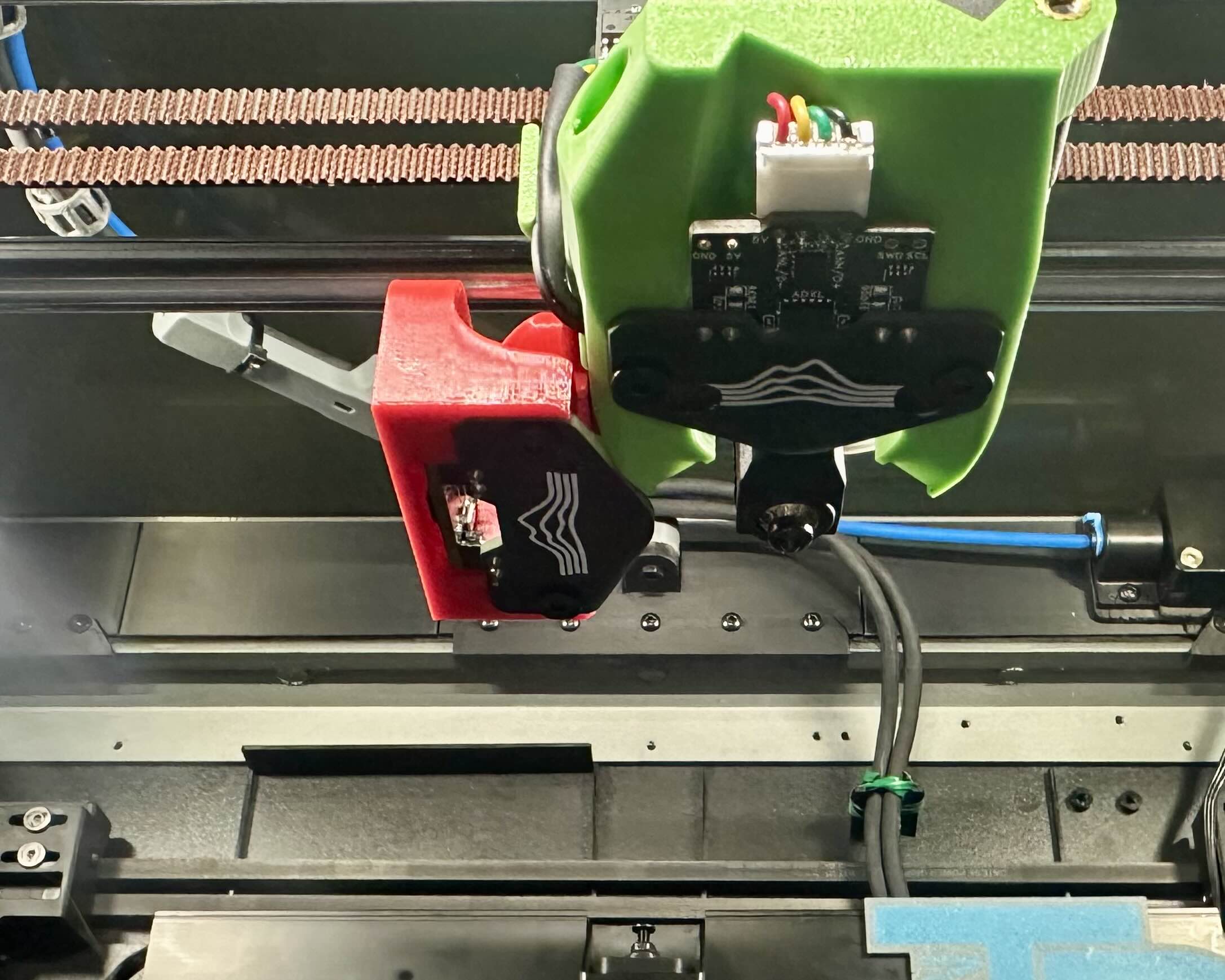

I have confirmed that this mount fits the stock toolhead cover as well as Skeletor MK6 and Skeletor MK7.

Cartographer Offsets

[scanner]

x_offset: -24.664

y_offset: 0

This mount is only for Stock K-Series printers. If you're using BootyCallJones' Rail mod, this will not work.

Required Hardware

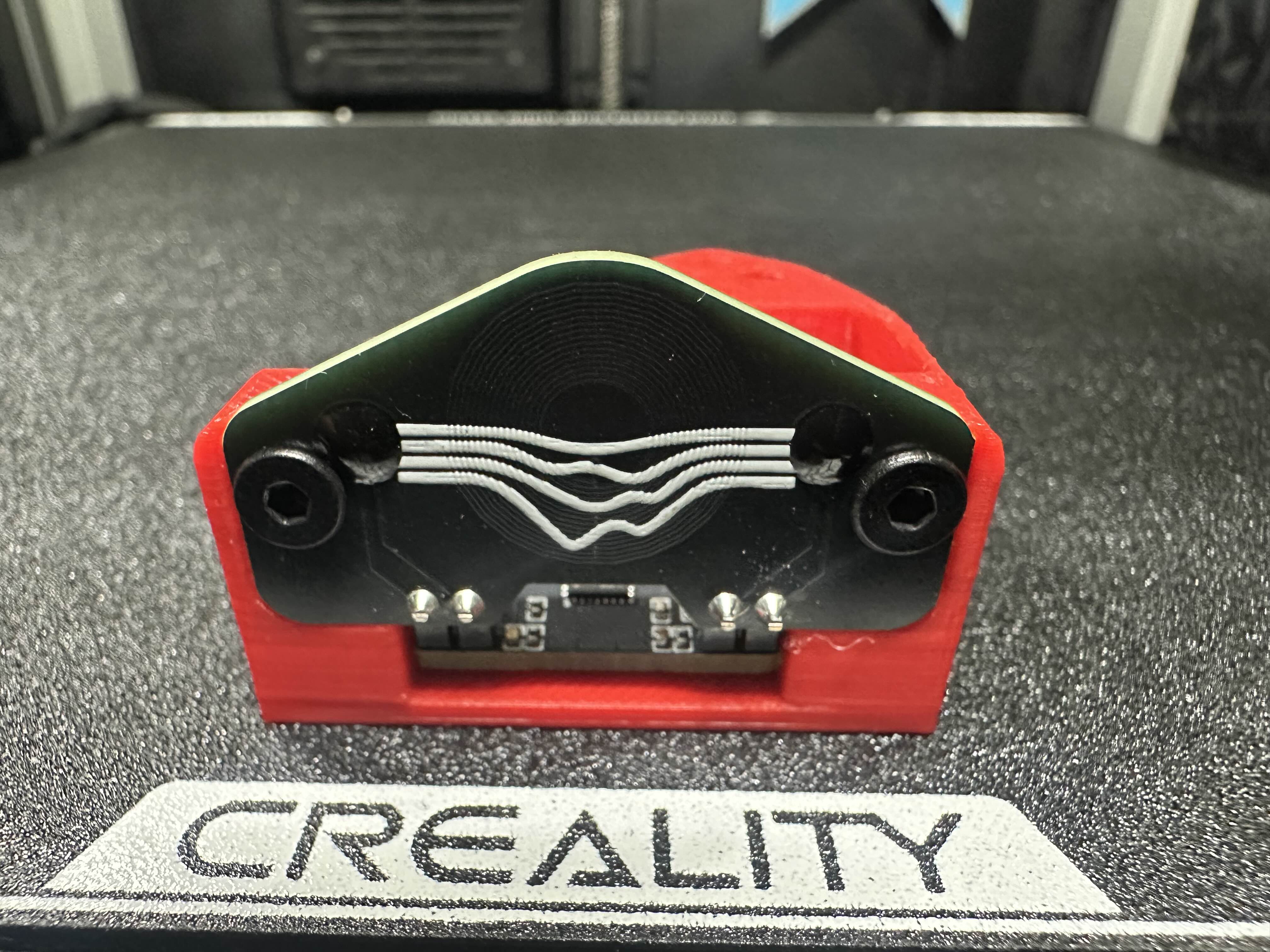

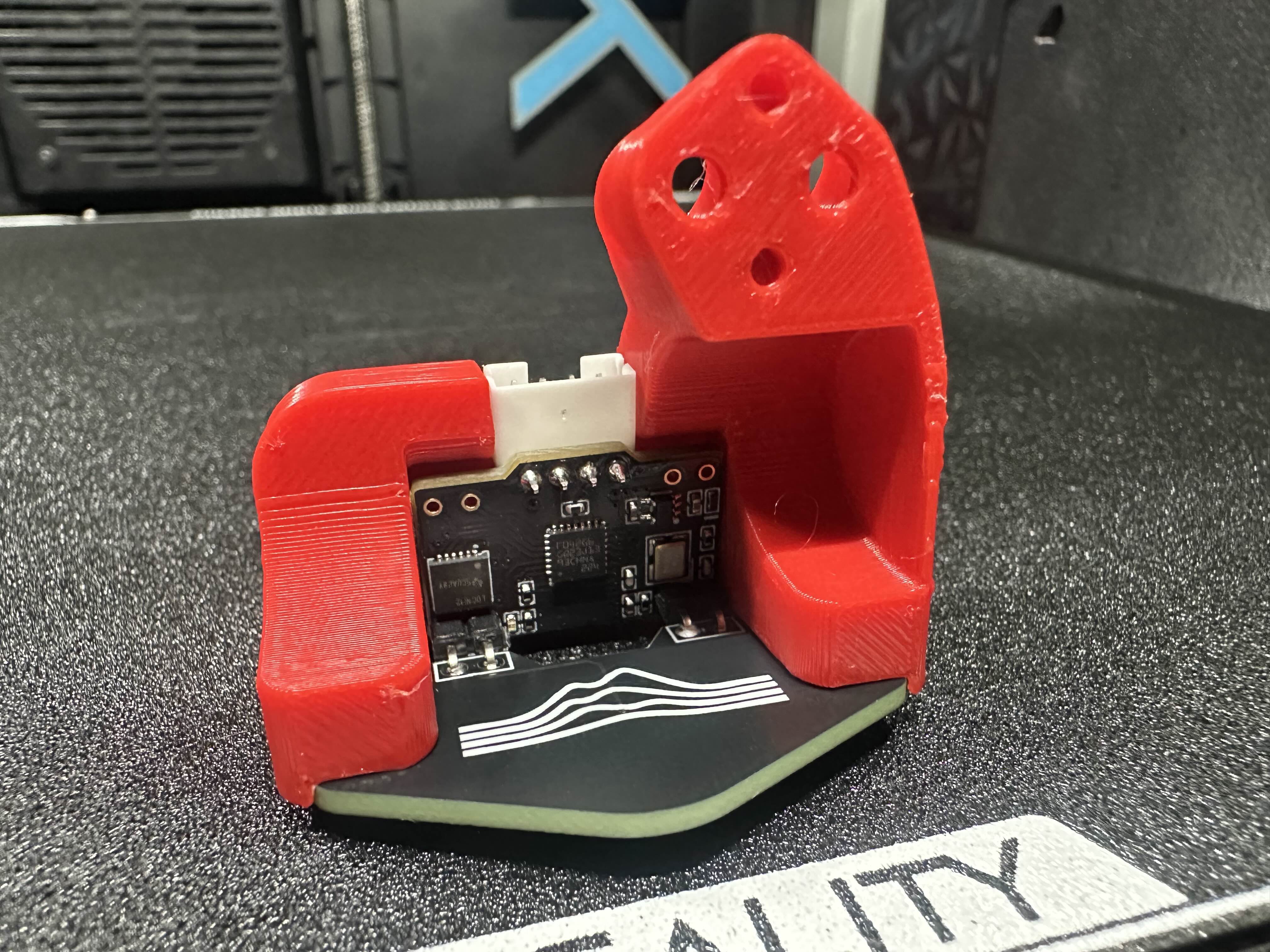

-Right angle cartographer by Cartographer 3D

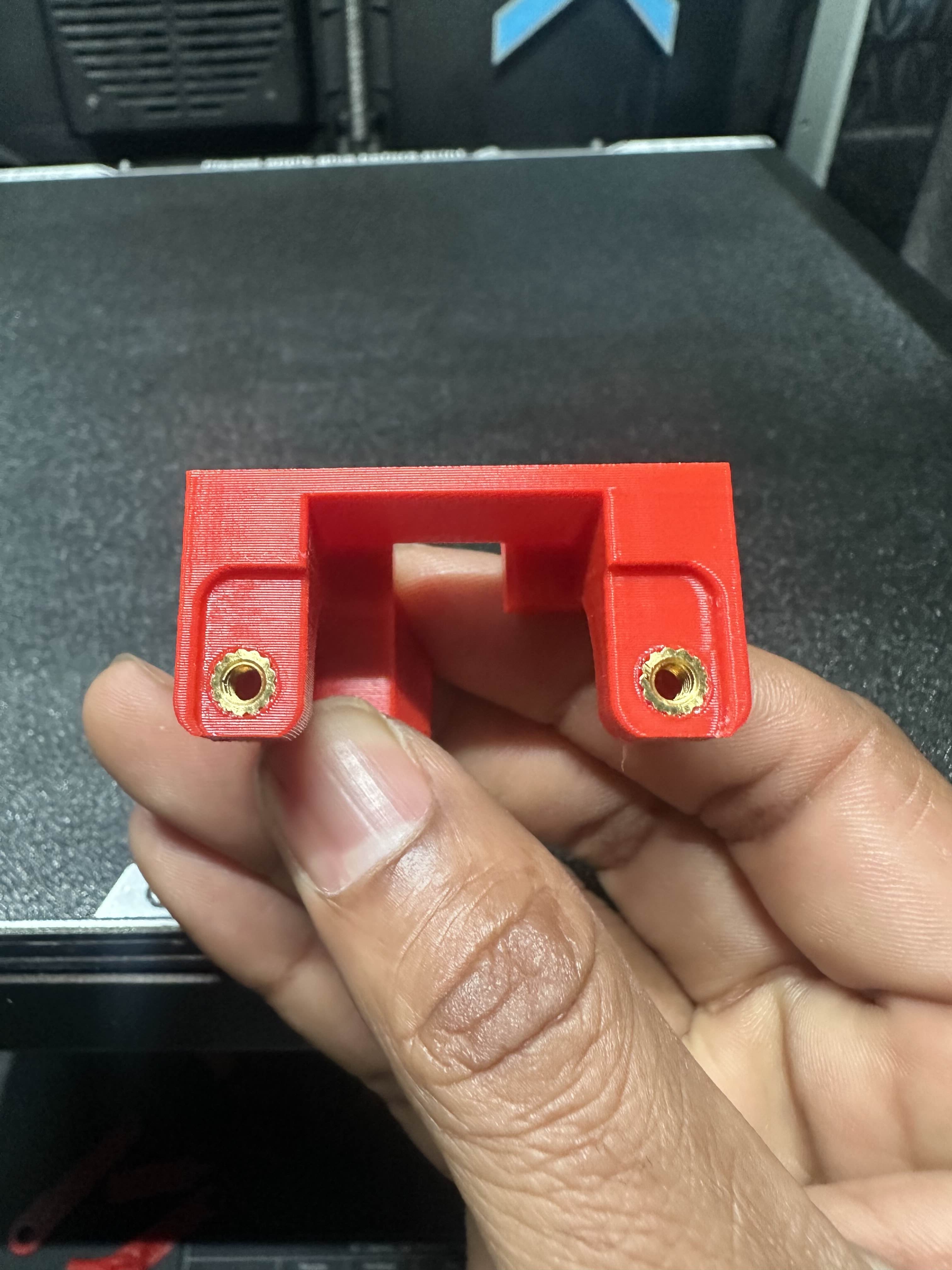

-2 x M3x4x5(Voron) Heat inserts

-2 x M3x6 Ultra Low Flathead Bolts (these come in the box with the cartographer)

-2 x Stock Lidar Bolts (This mount utilizes the K1 Max's lidar mounting points)

For more information on the cartographer setup itself, Please visit the SimpleAF set up guide: https://github.com/pellcorp/creality/wiki/Simple-AF-Cartographer

If you want to try out the latest version of Skeletor, that can be found here ➡ Skeletor MK7

Print Settings

All items are already oriented in their correct printing orientation. NO SUPPORTS REQUIRED!!!

-4 walls minimum

-15% infill minimum

-5 top and 5 bottom minimum.

PLEASE READ THE ATTACHED TEXT DOCUMENT BEFORE INSTALLING THIS MOD ON YOUR PRINTER. I AM NOT RESPONSIBLE FOR ANY DAMAGE THIS MAY CAUSE.

Happy Printing~

*thank you testers for the test fit pictures*
