RAK19003 Meshtastic Enclosure
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.

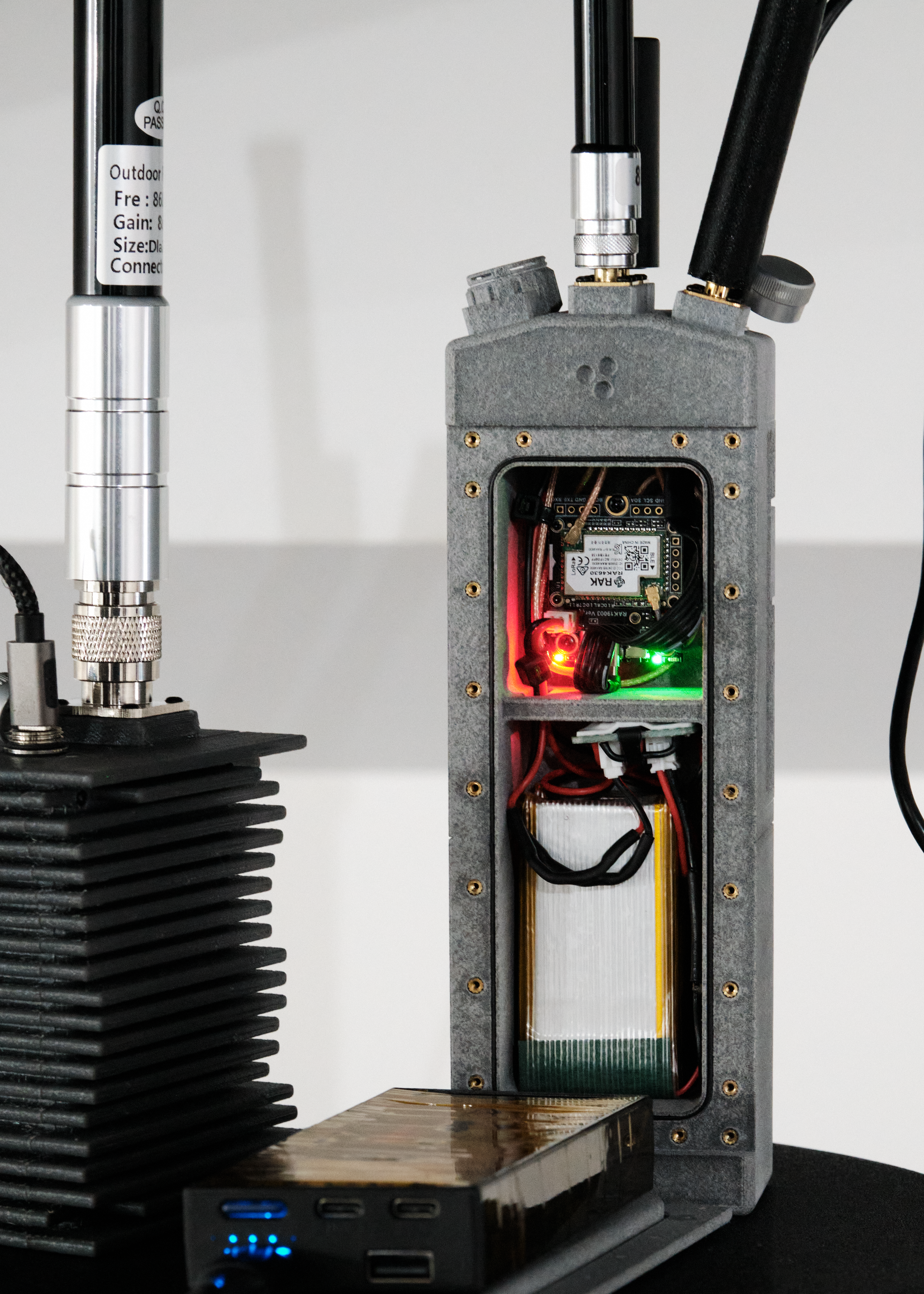

Two part enclosure , loosely modeled after current MANETs.
- Ocena
- 0 / 5
- Polubienia
- 29
- Pobrania
- 151
- Wydruki
- 0
- Wyświetlenia
- 1458
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Portable Devices
- Licencja
- Creative Commons — Attribution — Noncommercial
There are many much cheaper options out there, this fulfills my personal LARP needs.
At it's core, this is basically a greebled rectangle.
Fits in most pouches that can hold a MPU5, Streamcaster, AN/PRC152, etc.
Has survived a couple of hour-long hikes under heavy rain and two complete ~30s involuntary immersions, however I cannot guarantee waterproof/watertight-ness or a specific IP rating.
I recommend MJF/SLS and a Dichtol AM Hydro bath to seal.
Parts needed, excluding RAK 19003/4631:
x4 SMA-U.FL 4-hole panel mounts (x1 GNSS, x1 LoRa, x1 BT, x1 Spare)
x1 USB-C to C cable
x1 APEM AB2M-A2PB
x2 Makerfocus 3000Mah or similarly sized LiPos, will alternatively fit x2 18650/21700
1mm diameter rubber cord, there are two o-rings that need to be made.
