mojo3d k1 series vortex toolhead shroud V1.1

TOOLHEAD SHROUD UPDATE::

After some positive feedback I've altered a few things slightly with a view to more tolerance for everyone.

updates include:

1.top of tool head cover made larger to fit alterations you may have made to cable feed.

2. removed a part from the side so the lidar is a lot easier to connect

3. increase hole sizes slightly for easier fit.

4. took 2 mm of the front so it doesn't hit door at max range.

5.increase wall with on threaded are  and decreased threads for a very easy fit now .

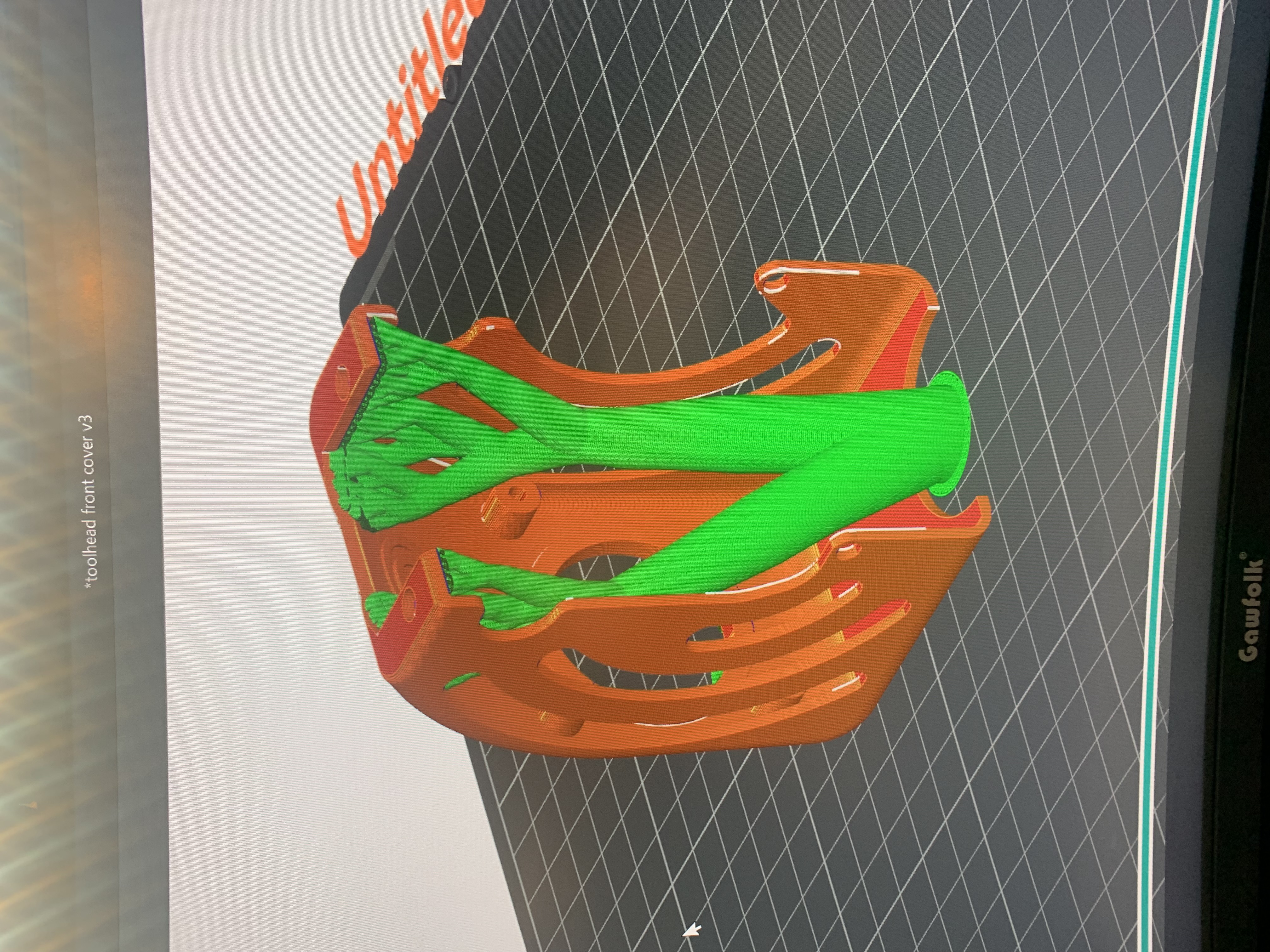

6. added a picture of print orientation and supports which are tree supports manual

anymore feedback would be great as i want this to work brilliant .

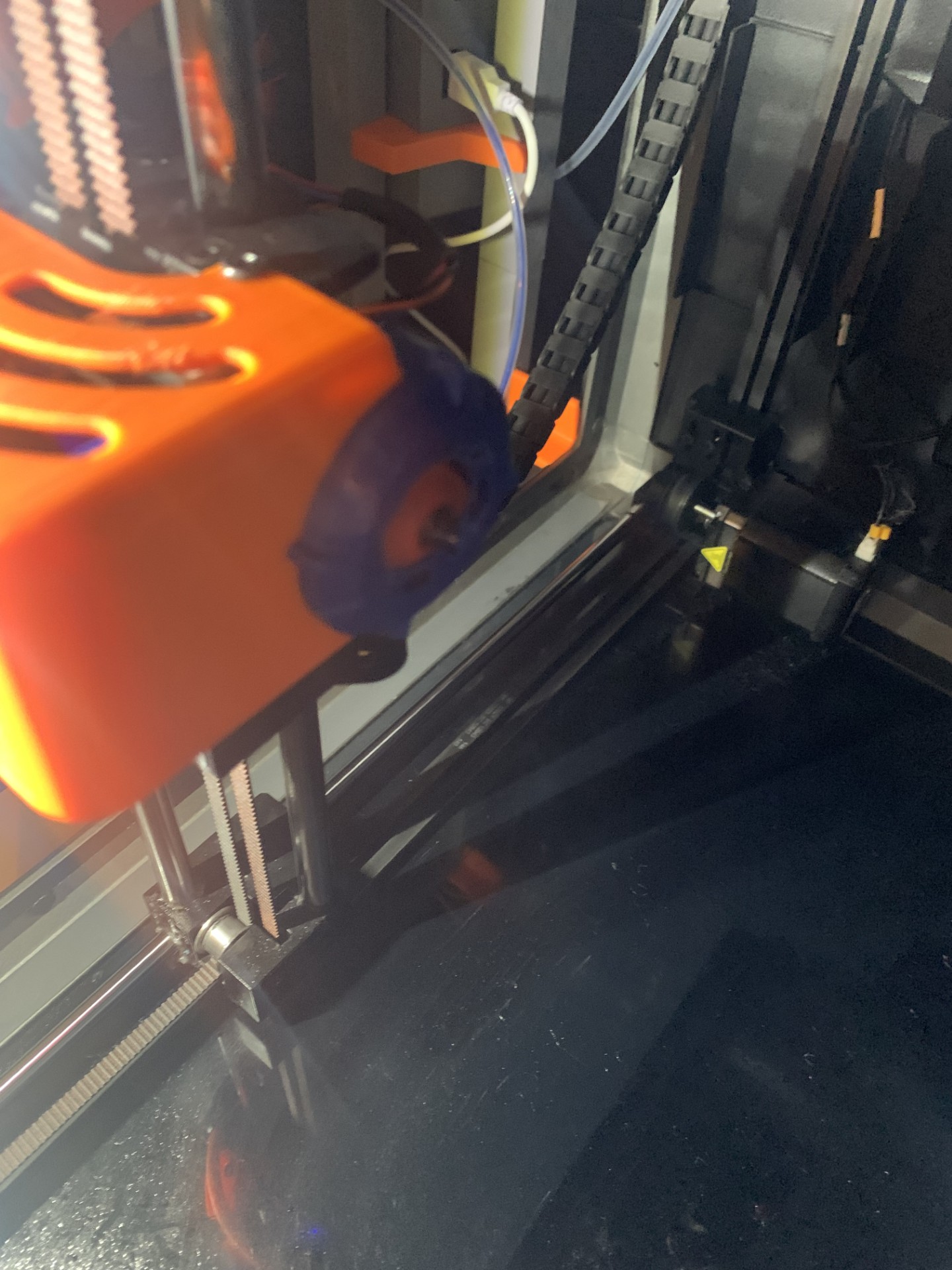

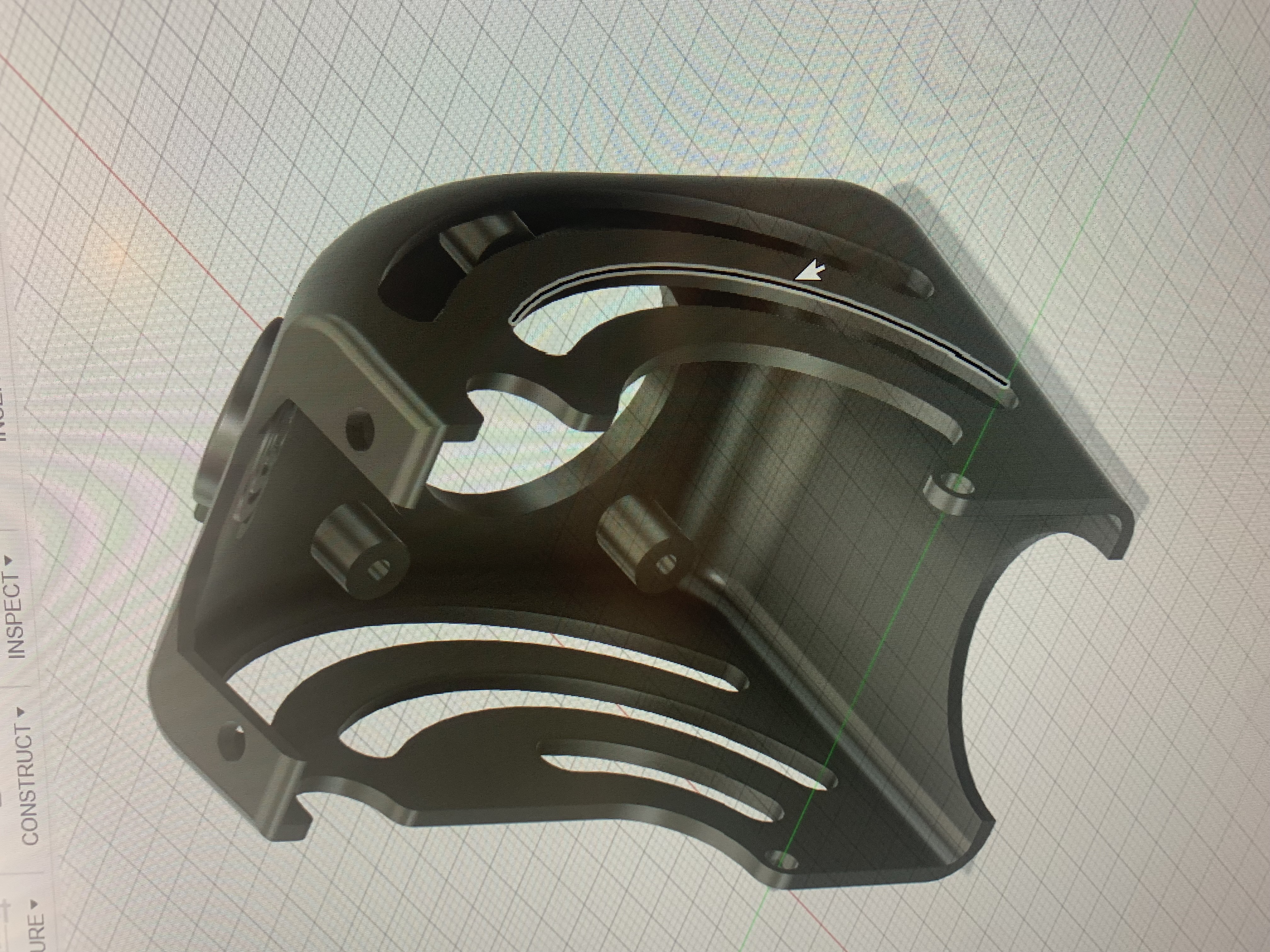

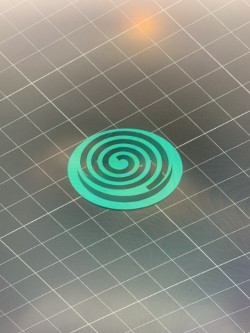

hi you wonderful people here's my new design for the k series creality printers , its the vortex tool head fan duct , it comes in 4 parts the tool head cover you can print in any material you like as it doesn't get hot but please print the rest in ABS,ASA that's my recommendation . what I've done is rework the tool head as it was very noisy and not distributing the airflow correctly but now it is and it works like a vortex as air is sucked in and follows a path i created to it circulates around the whole nozzle. hope you all like and send me your finished parts on here and let me see them .

video assemble video is available here:

post update : im going to add some more instructions here :

1. fan shroud ie largest piece can be printed out of any material.

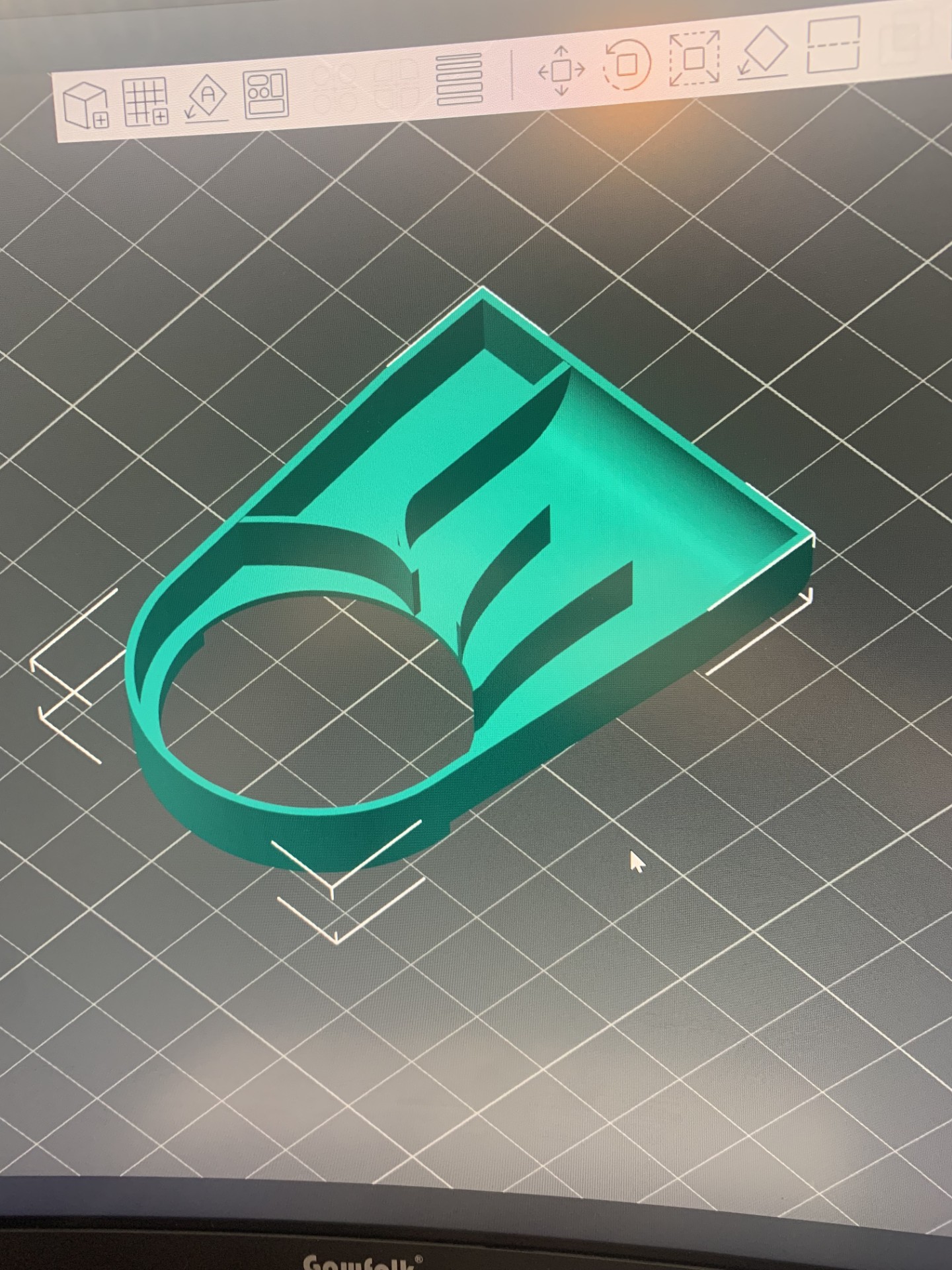

2. the 3 duct parts printed in asa/abs or anything that can hold the heat better .
3. please use a little file to file out holes as ive got feed back that these can be very tight

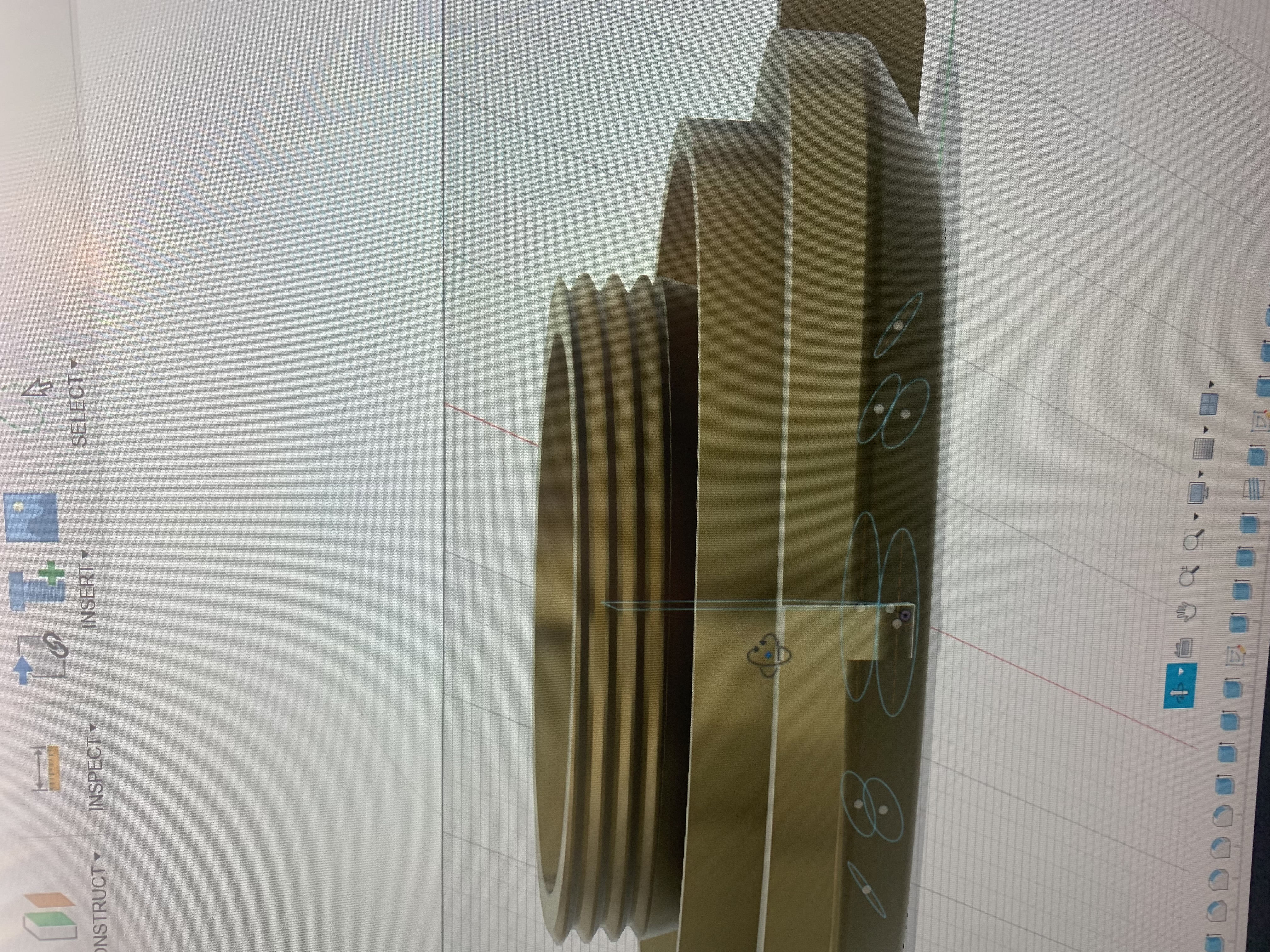

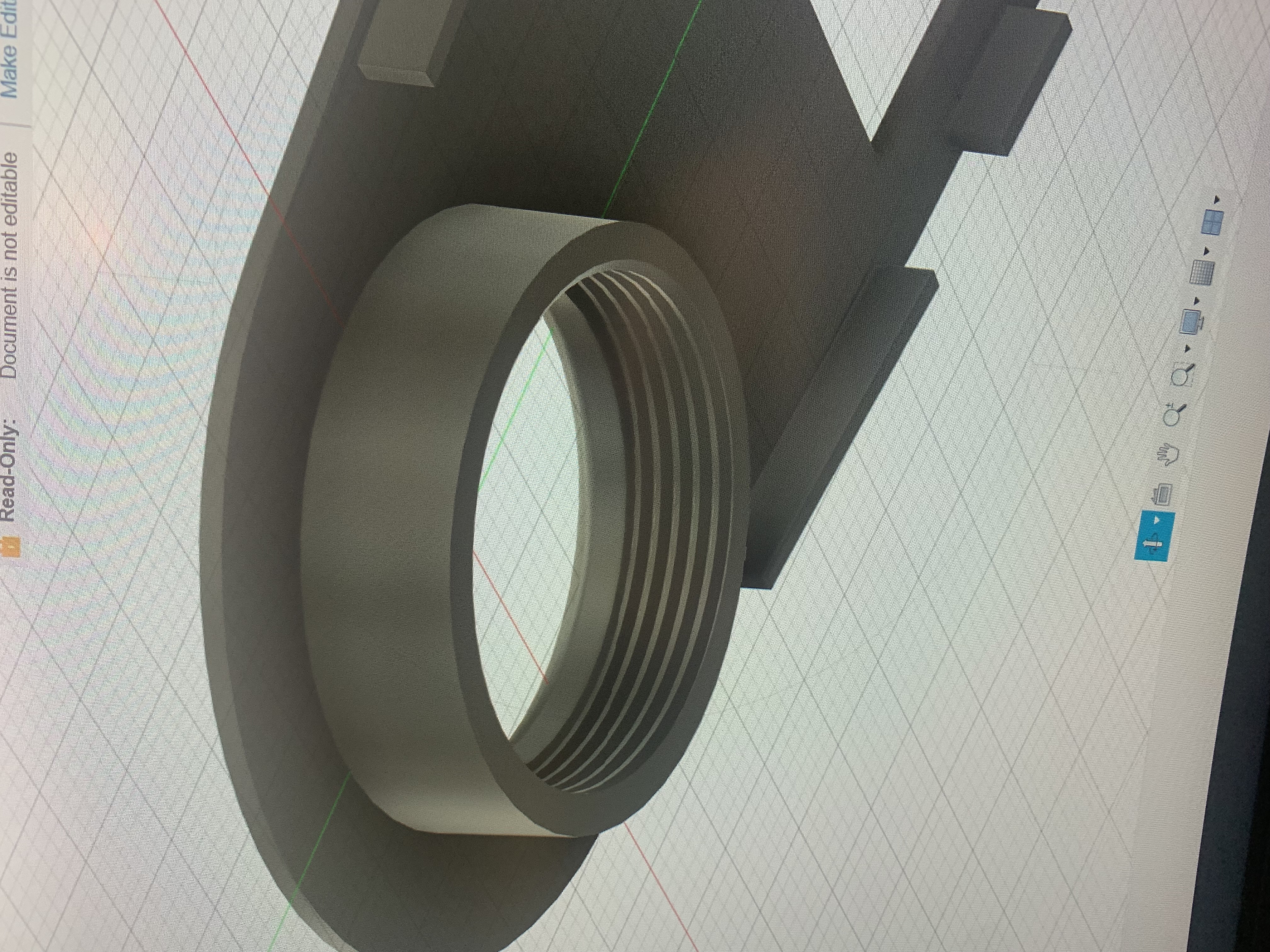

4. to install the shroud assemble  the 3 abs parts together as the lower part screws in to upper part be careful not to damage threads .
5. once these three parts are assembled slide over silcone nozzle boot hold in place then slide shroud part way on this is a wee bit fiddly but the best option for a snug fit
6. onece youve done that carefully move cable chain back a touch and slide shorud onto the top pins whilst holding lower part
7. once this is done tighten lower airflow screw in duct tight onto shroud replace screws and your good to go
