https://github.com/92sho16/RigidCORE

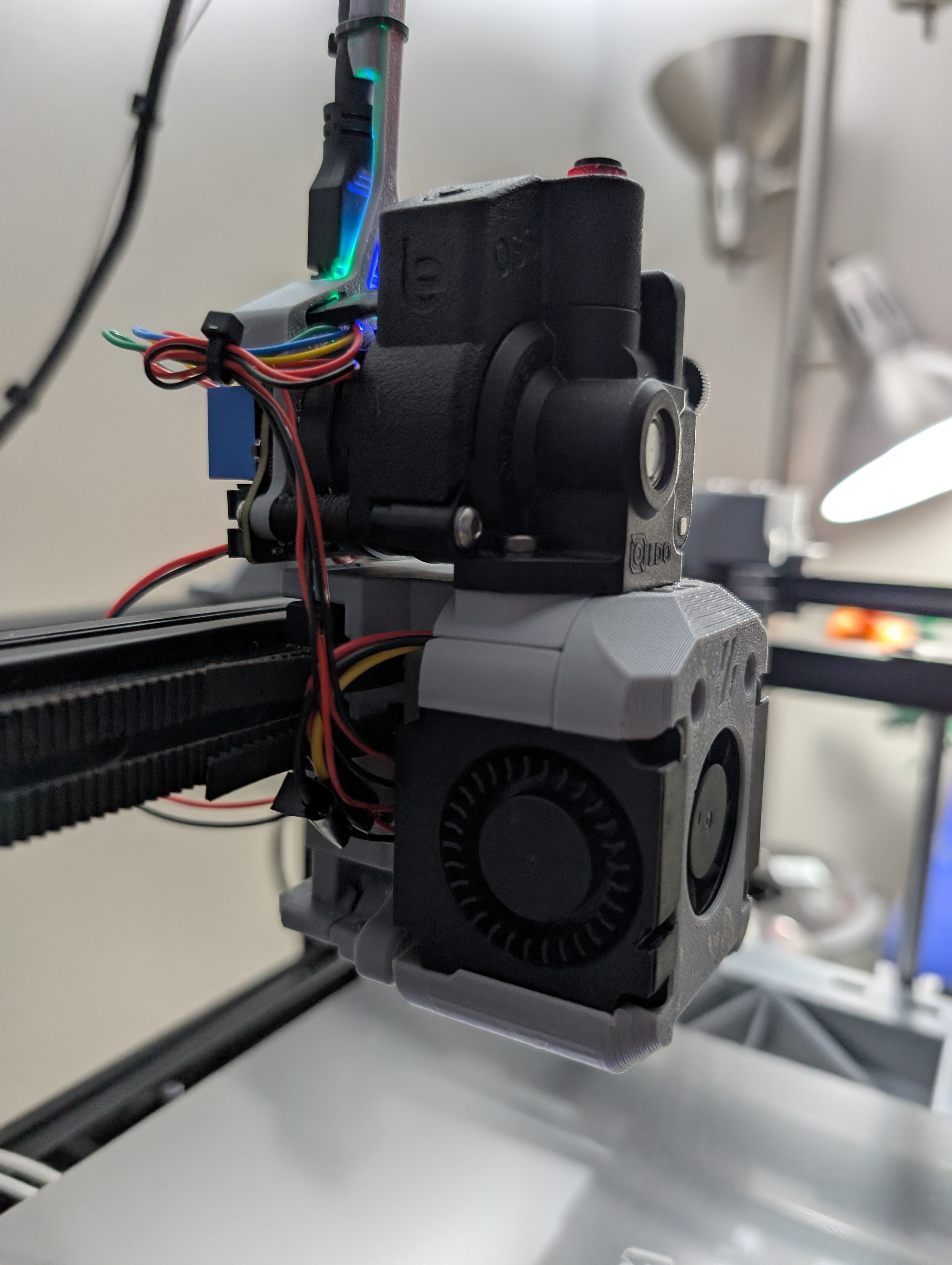

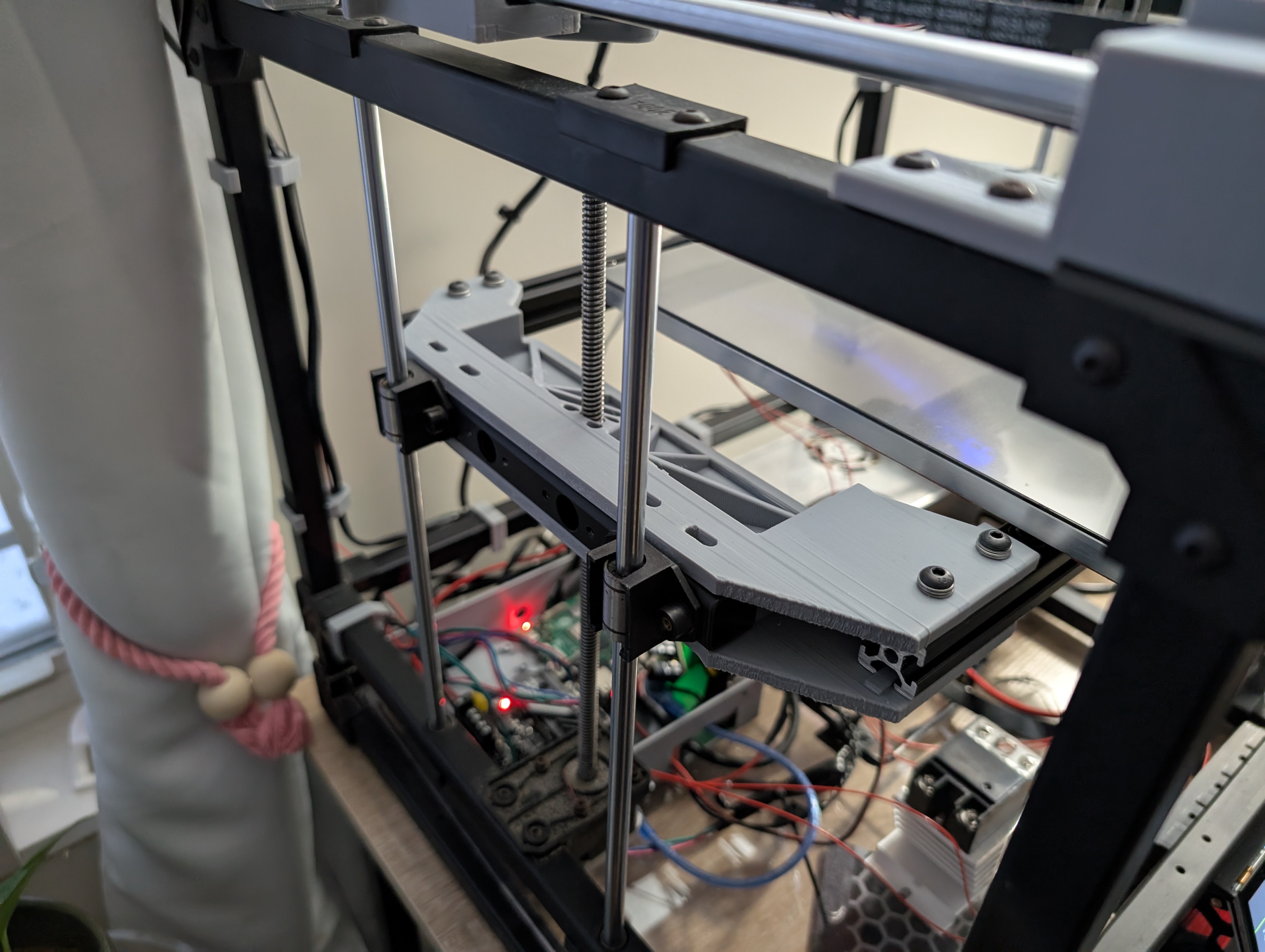

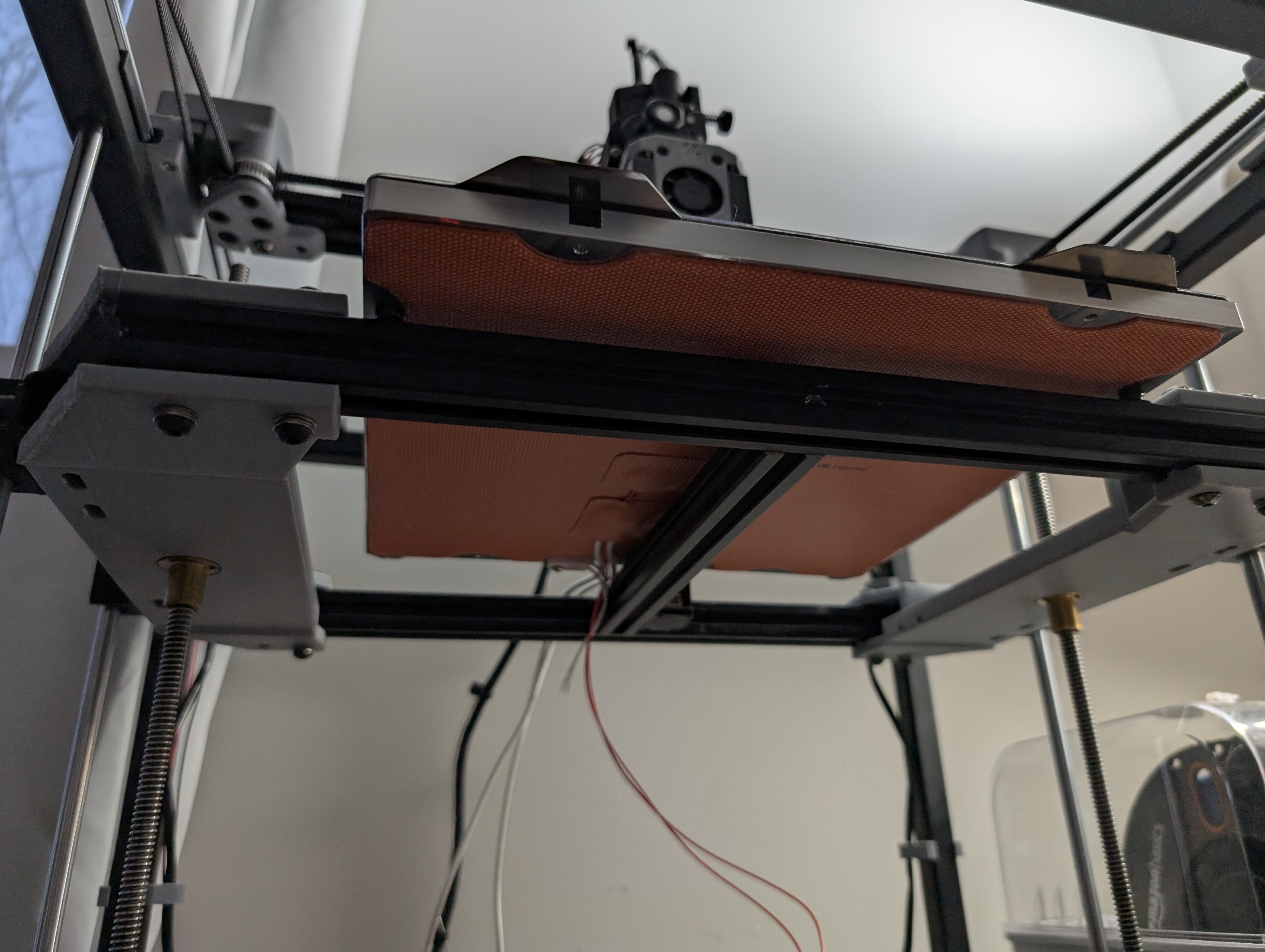

This is a minor remix of Jordan's work (https://www.printables.com/model/983693-corexy-conversion-for-rigidbot-3d-printer-core-xy). I wanted to use a more commonly used x carriage so I remixed the y rail adapters to accept a Voron 2.4 X-Carriage. I did not want to use the stock bed so I also remixed the z-carrier files to mount a Trident Style bed. Lastly the motor mounts and belt idlers I felt were a bit janky looking so I cleaned them up and reinforce them a bit more. The front decorative panels are designed such that they will accept the LDO Voron 2.4 4.3 BTT screen mount.
Update: 2/1/25: Added the belt tensioner that was missing.

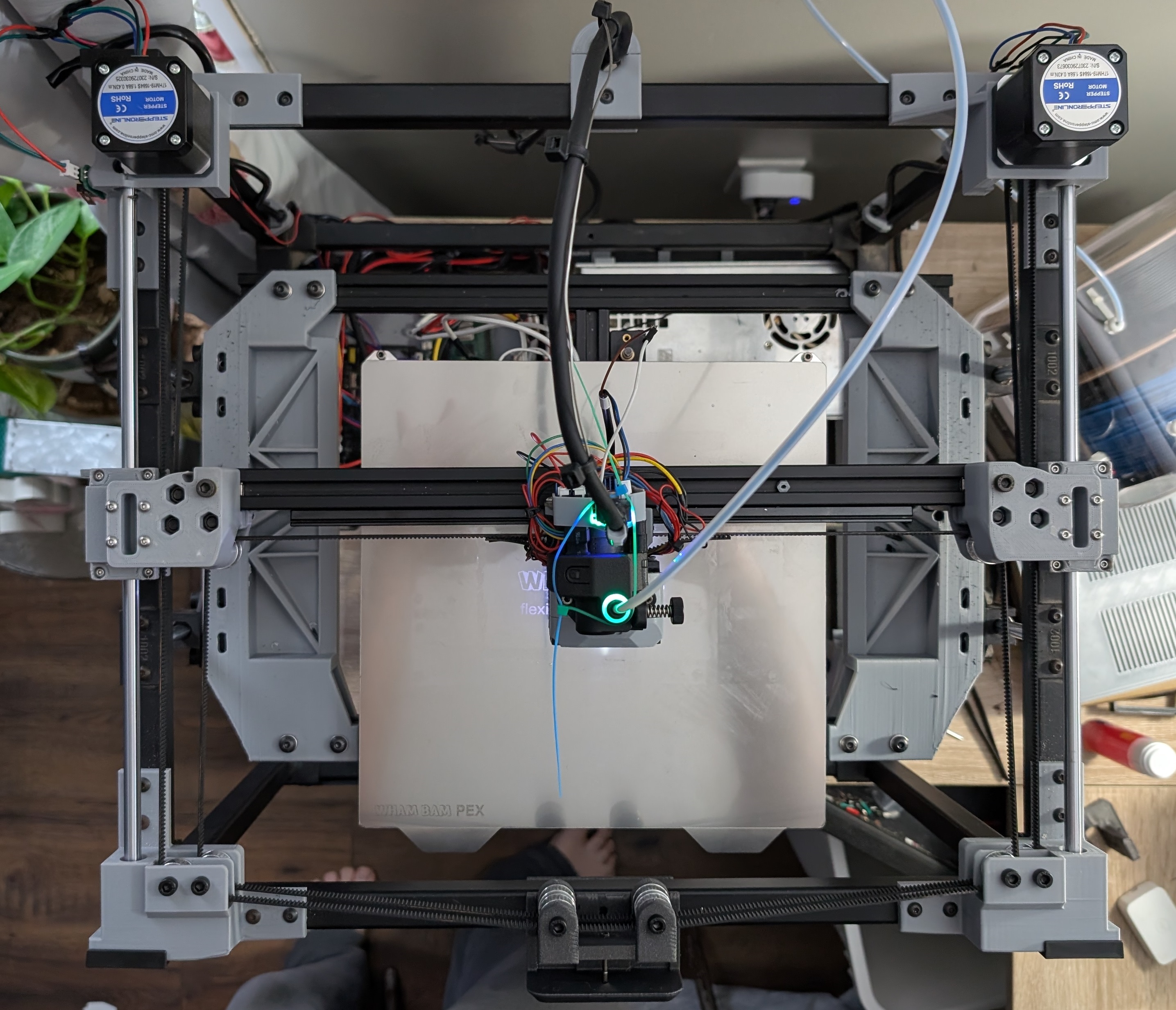

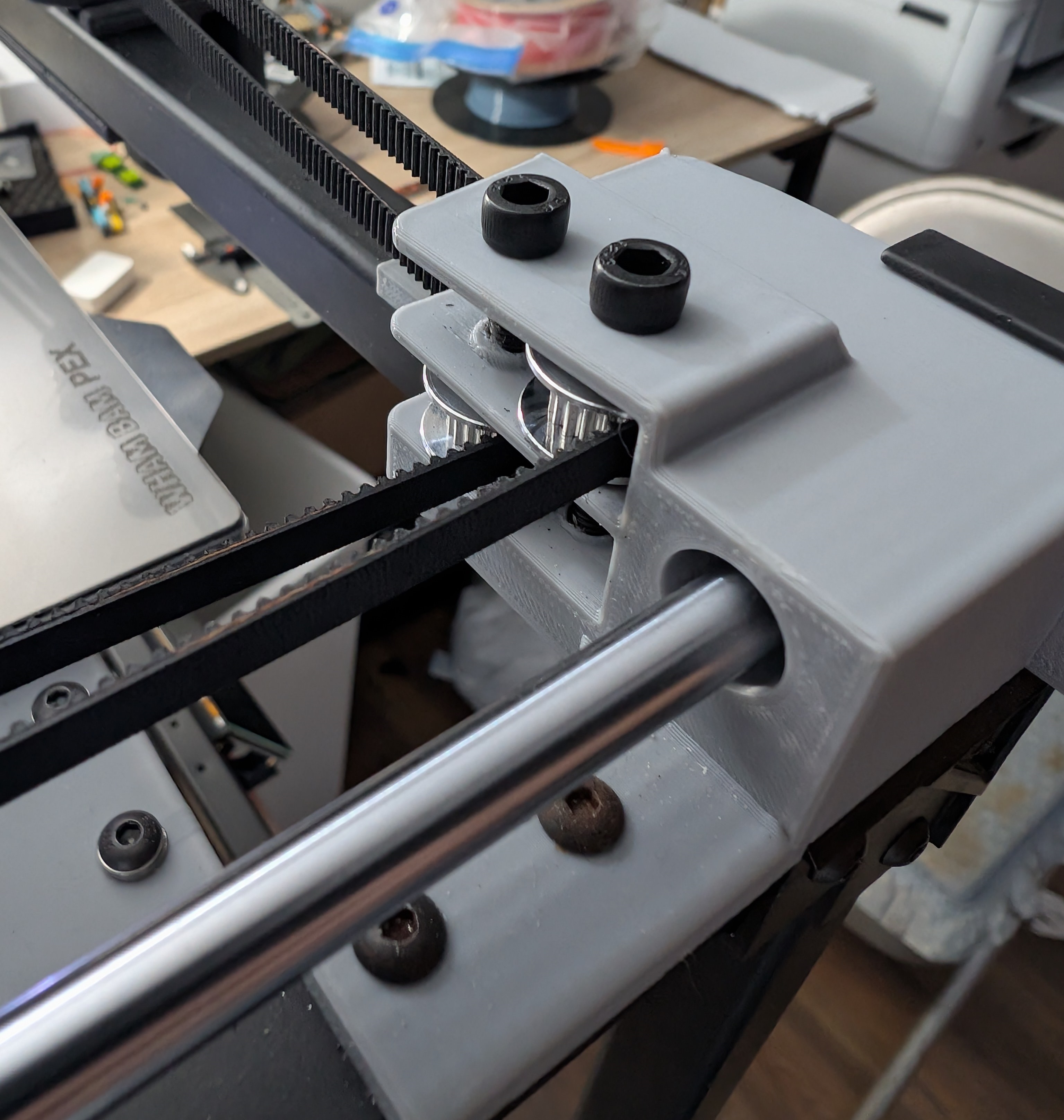

Update 3/29/25: Machine is up and running so I posted my machine config files to git. I updated the belt path to get the belts more straight from the idlers to the x carriage.
Still to do….
Finish Side decorative panels
