FFBeast direct drive encoder mount.
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Mechanical Parts
- Licencja
- Creative Commons — Attribution

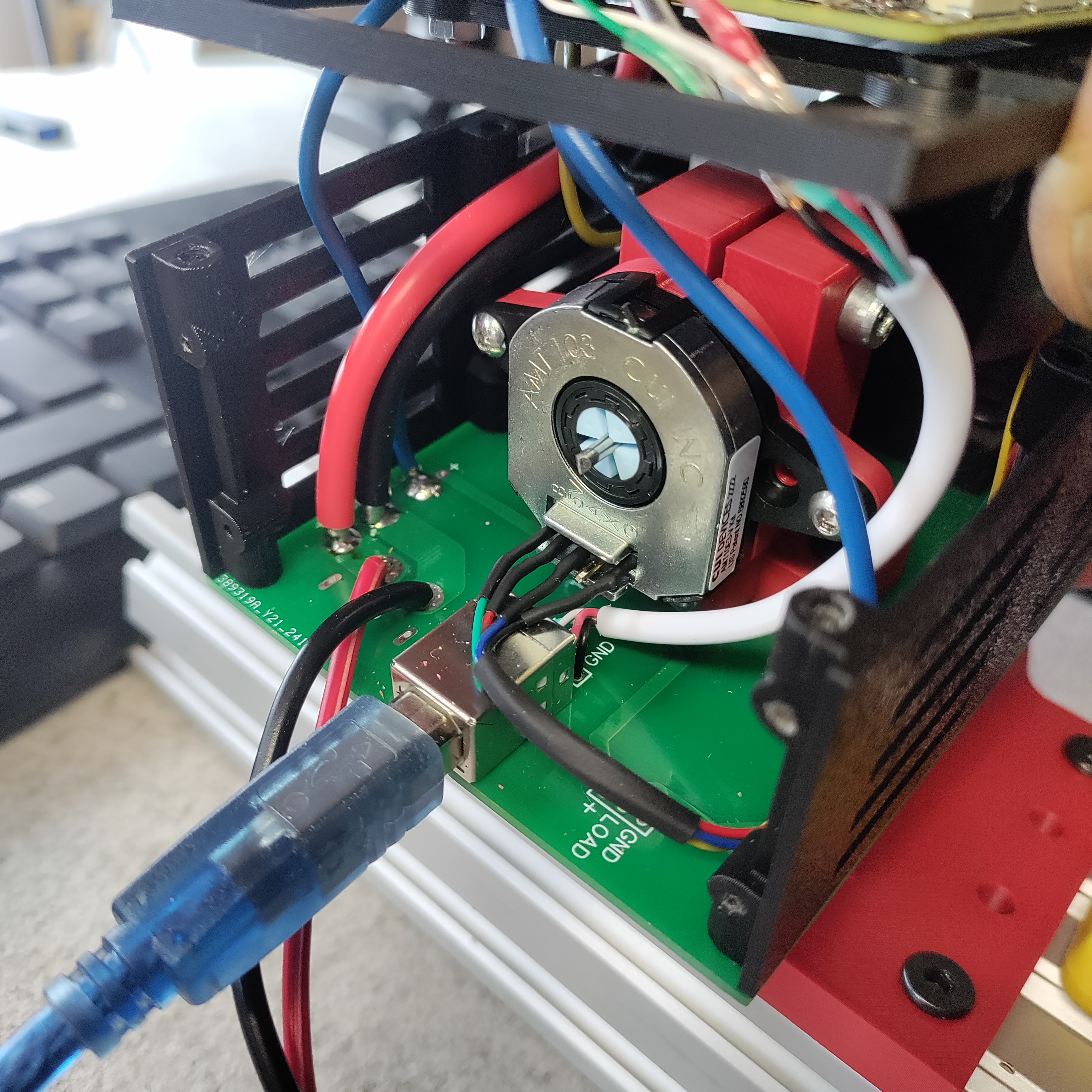

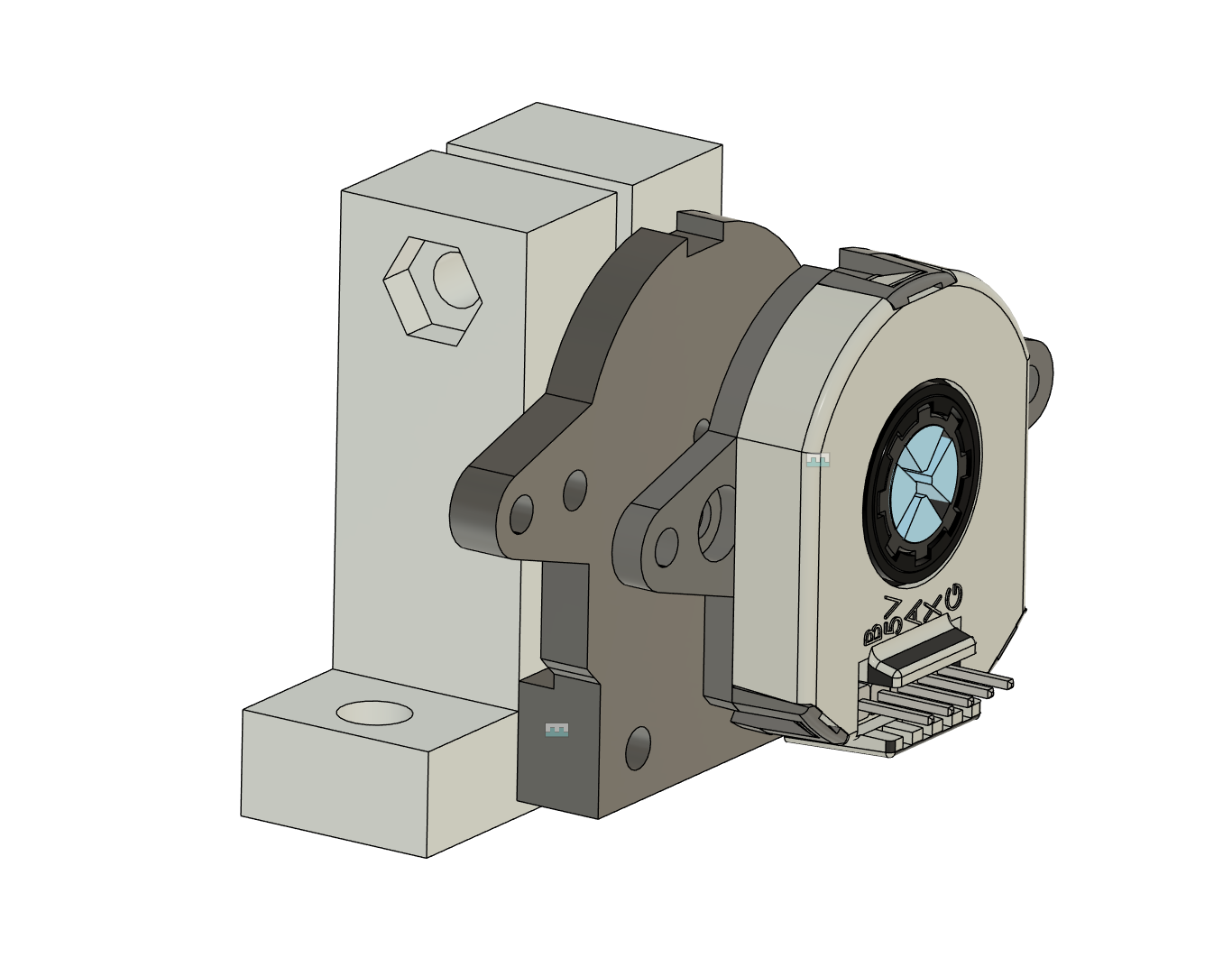

My version for FFBeast direct drive wheel encoder mount. If you are using bike spoke method and AMT10E3 encoder.

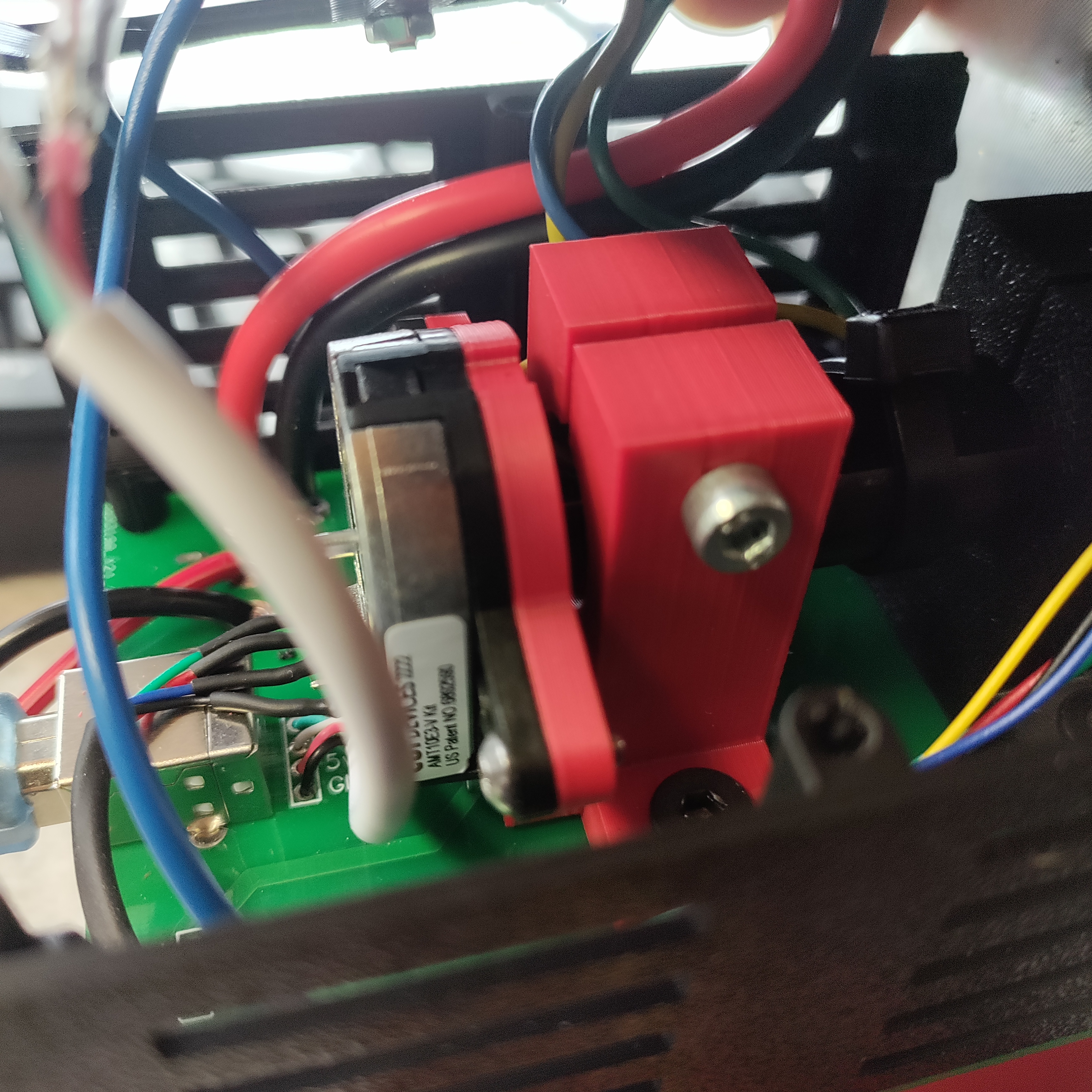

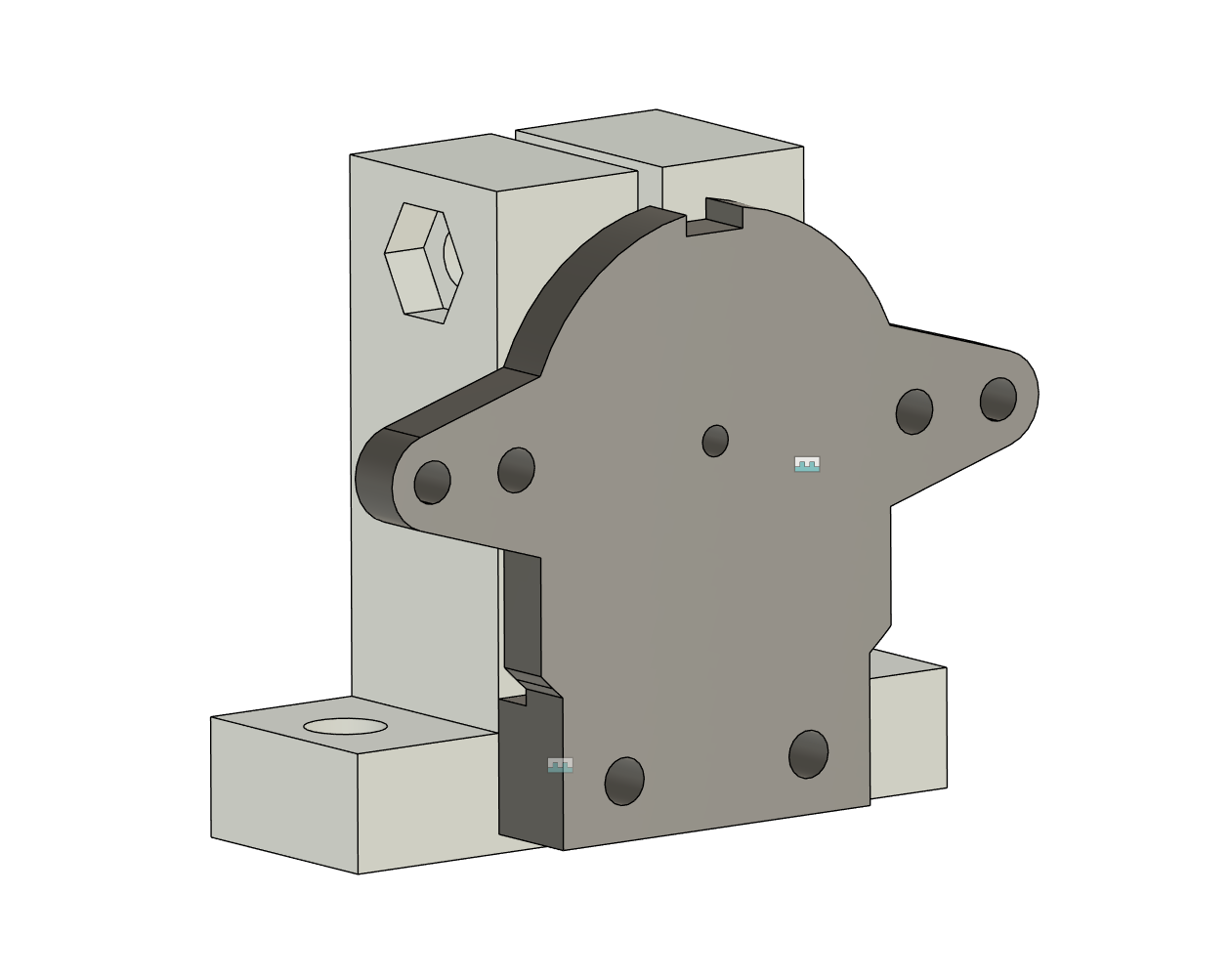

Encoder mount connects to sk16 block leaving 3mm gap for phase wires. Mount has 2mm hole in the middle for centering the spoke. After printing there might be some adjusting needed for that hole. Spoke has to move freely but without slack.
I used M3 bolts and screwed them straight in. Holes will be bit undersize anyway after printing
PLA will be good enough for the purpose. Print flat side down, no supports needed.
