Cable Connector Housing for USB-C Power Delivery Module PDC004-PD

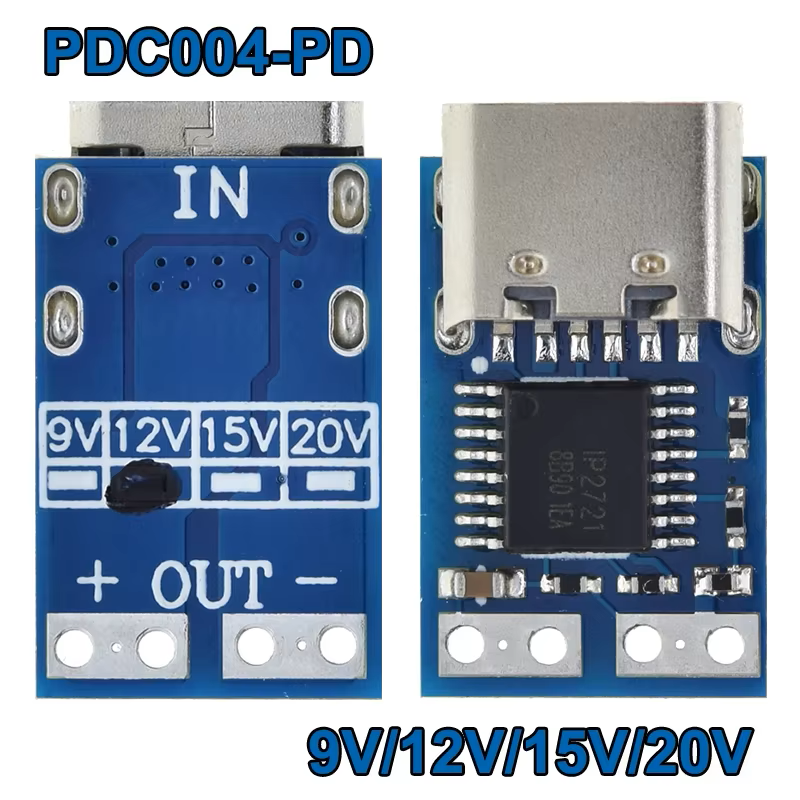

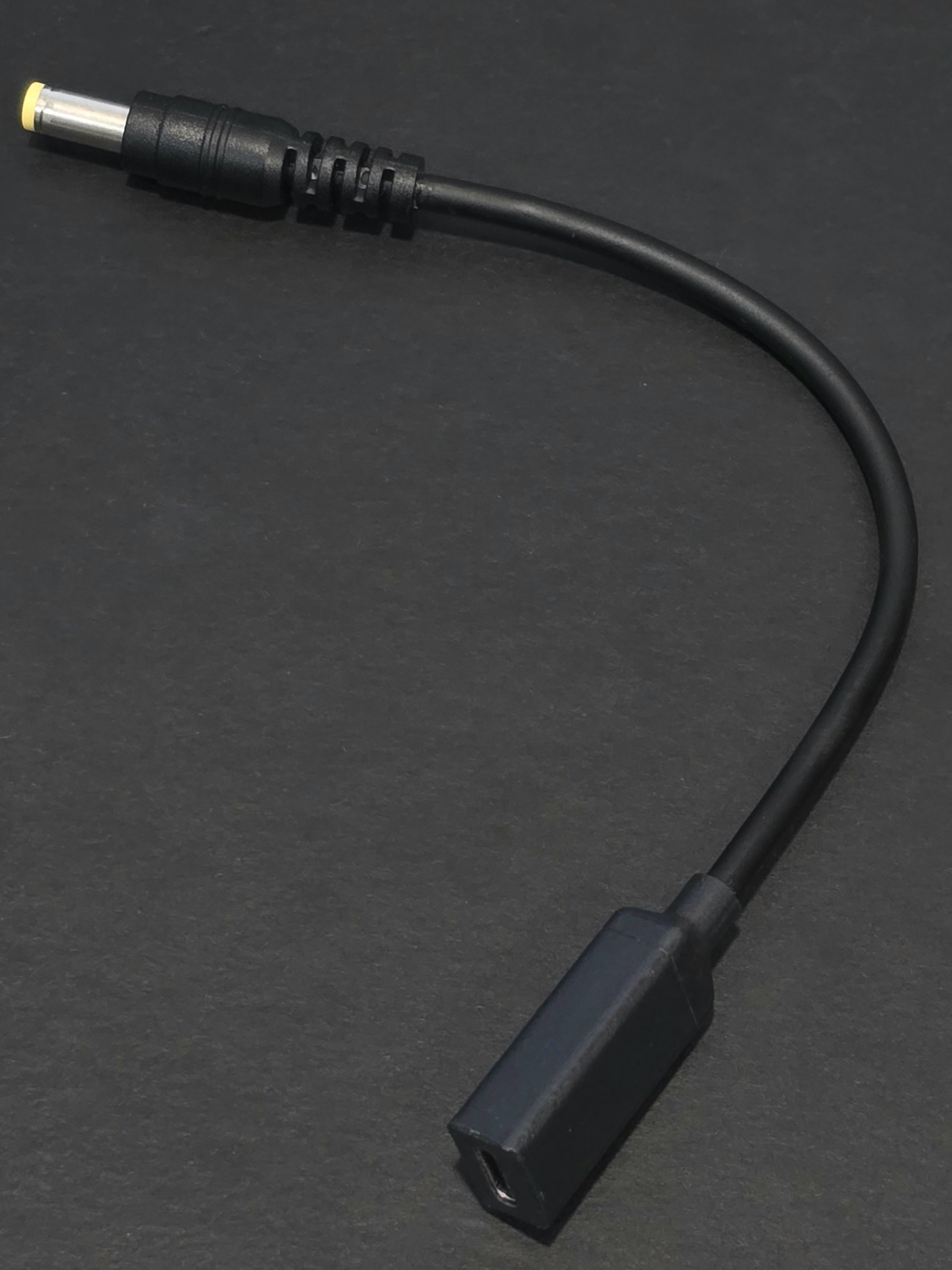

This 3D model is designed for a custom cable connector housing, specifically for the USB-C Power Delivery module PDC004-PD. It is used to create a charger adapter for the Panasonic Toughpad FZ-G1, together with 15 Volts version of the PDC004-PD board.

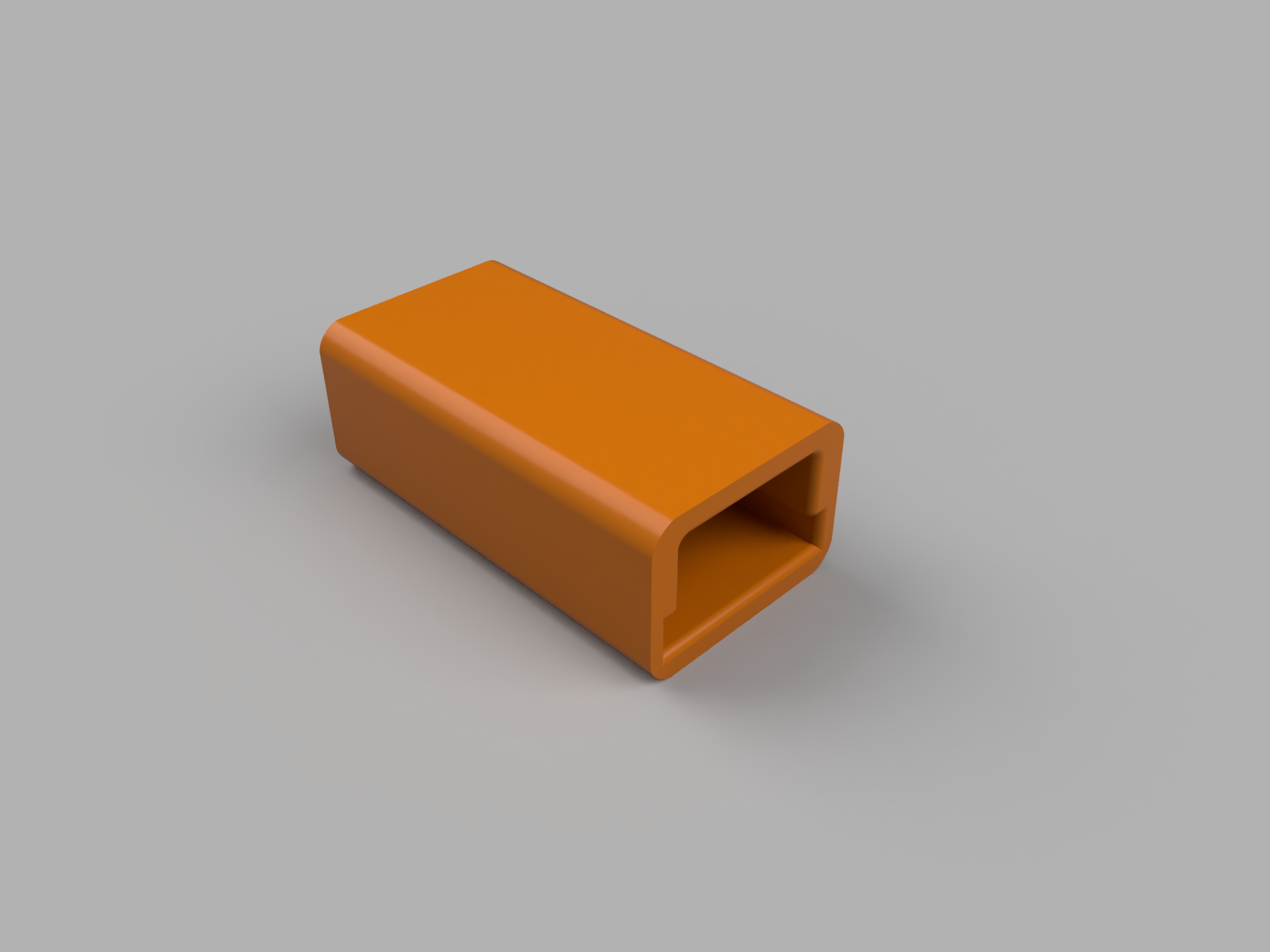

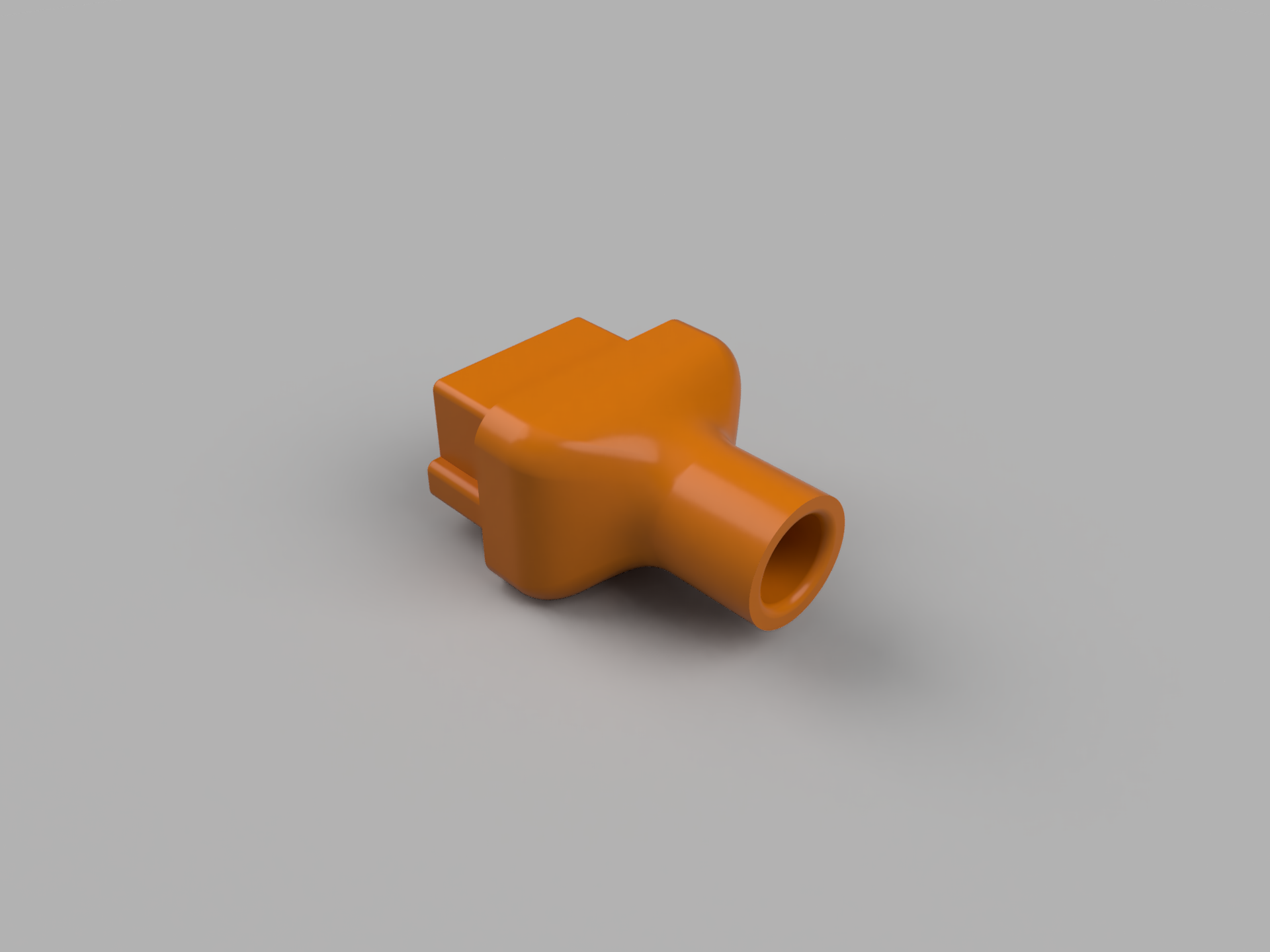

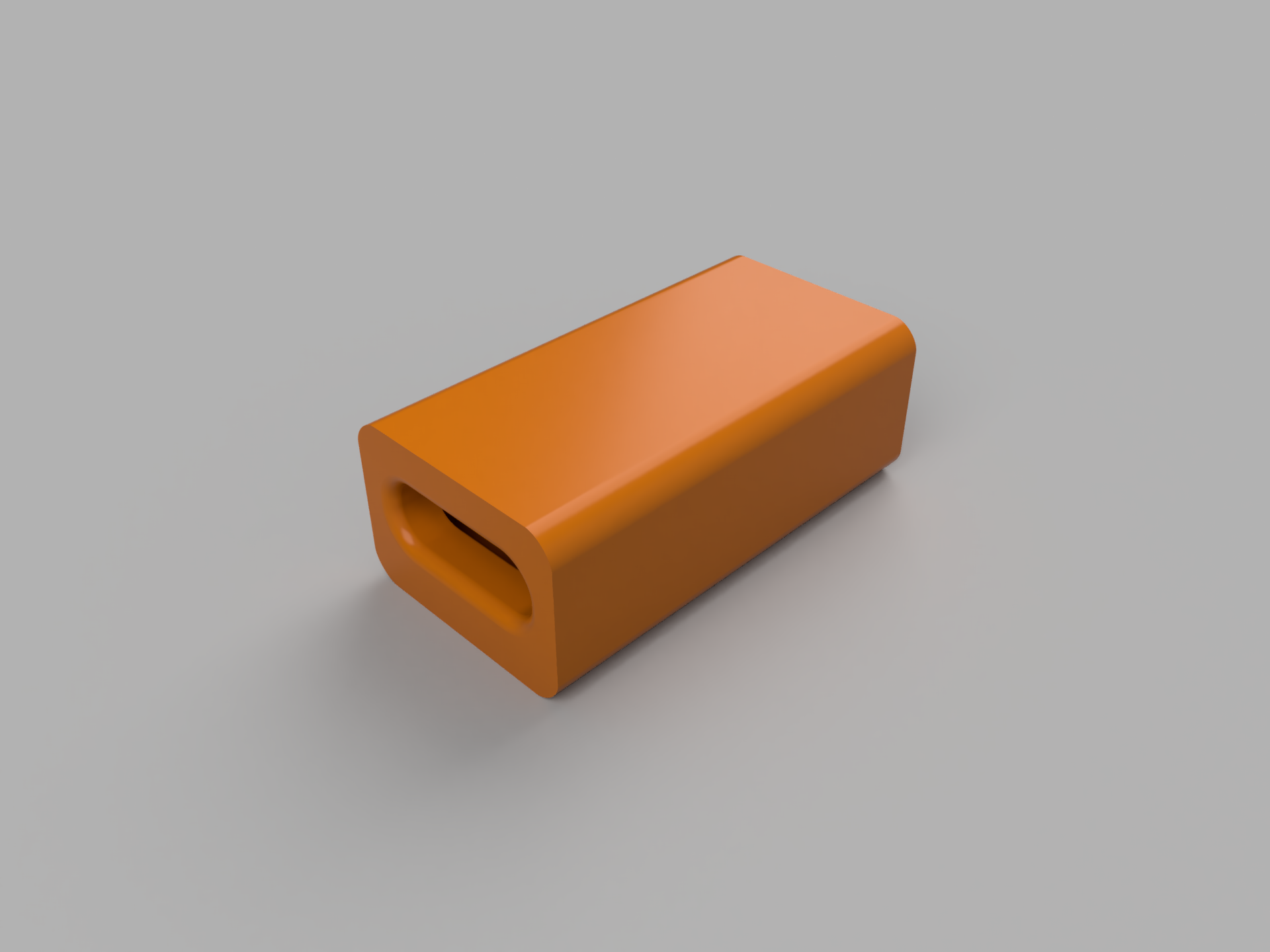

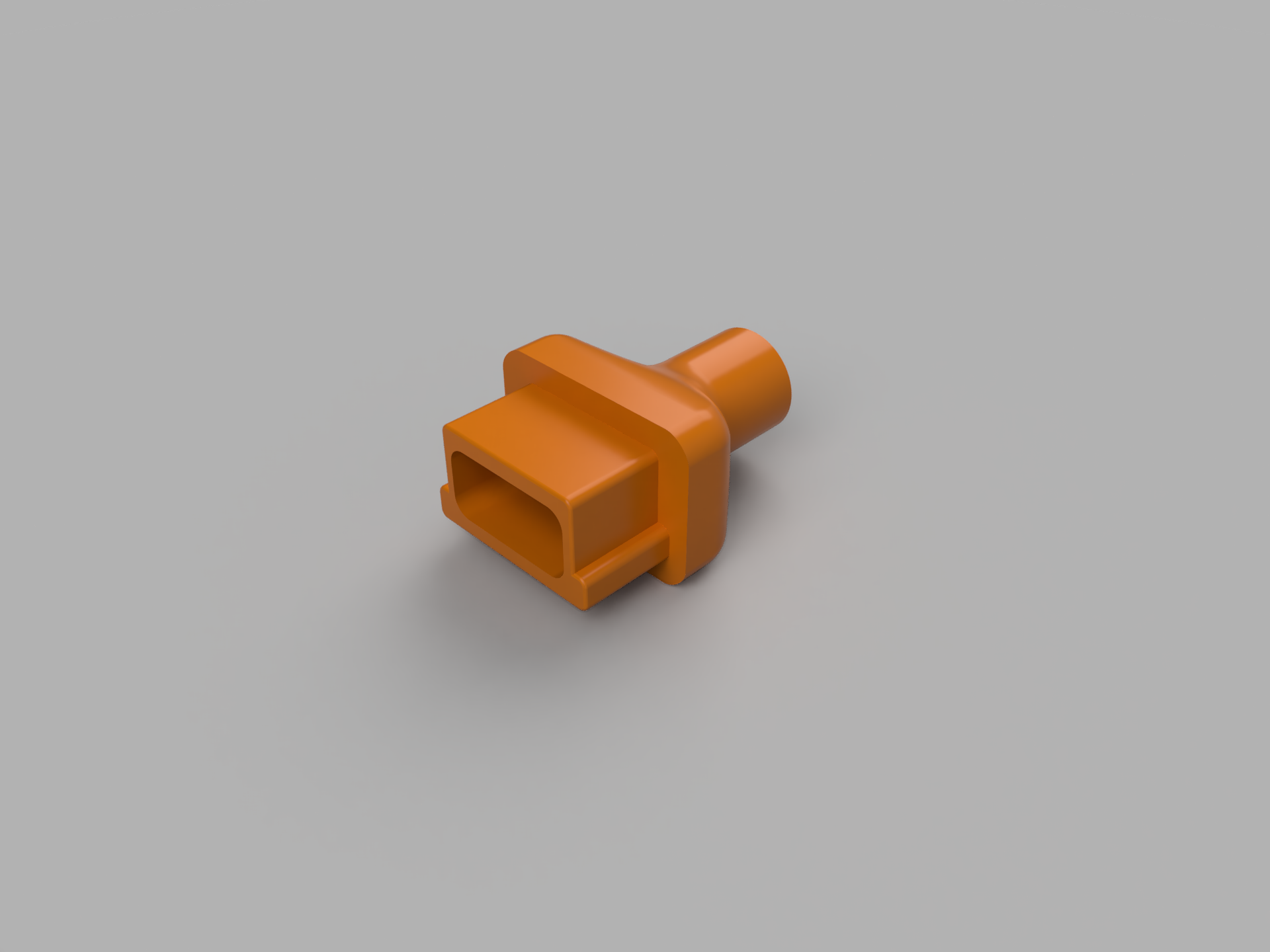

The housing consists of two parts that are friction-fit on both sides for easy and secure assembly. Simply slot the electronic board into place and press the two housing parts together, ensuring a snug fit. The design includes a 3mm hole for the cable.
This model is optimized for 3D printing and provides a secure and functional enclosure for the USB-C Power Delivery module.
