Snapmaker 2.0 Enclosure Filament Holder Adapter

Snapmaker 2.0 Enclosure Filament Holder Adapter

Function:

This adapter relocates the filament spool holder on the Snapmaker 2.0 enclosure from the long side to the narrow rear side, addressing space constraints and accessibility issues. It allows for convenient filament access when the enclosure's long side is positioned against a wall. Note: Since the narrow side does not have a pre-existing hole for the filament, you will need to create one. For example, using my model: https://www.printables.com/model/1194810-3d-printer-enclosure-feedthrough-for-pc4-ptfe-tube

Components:

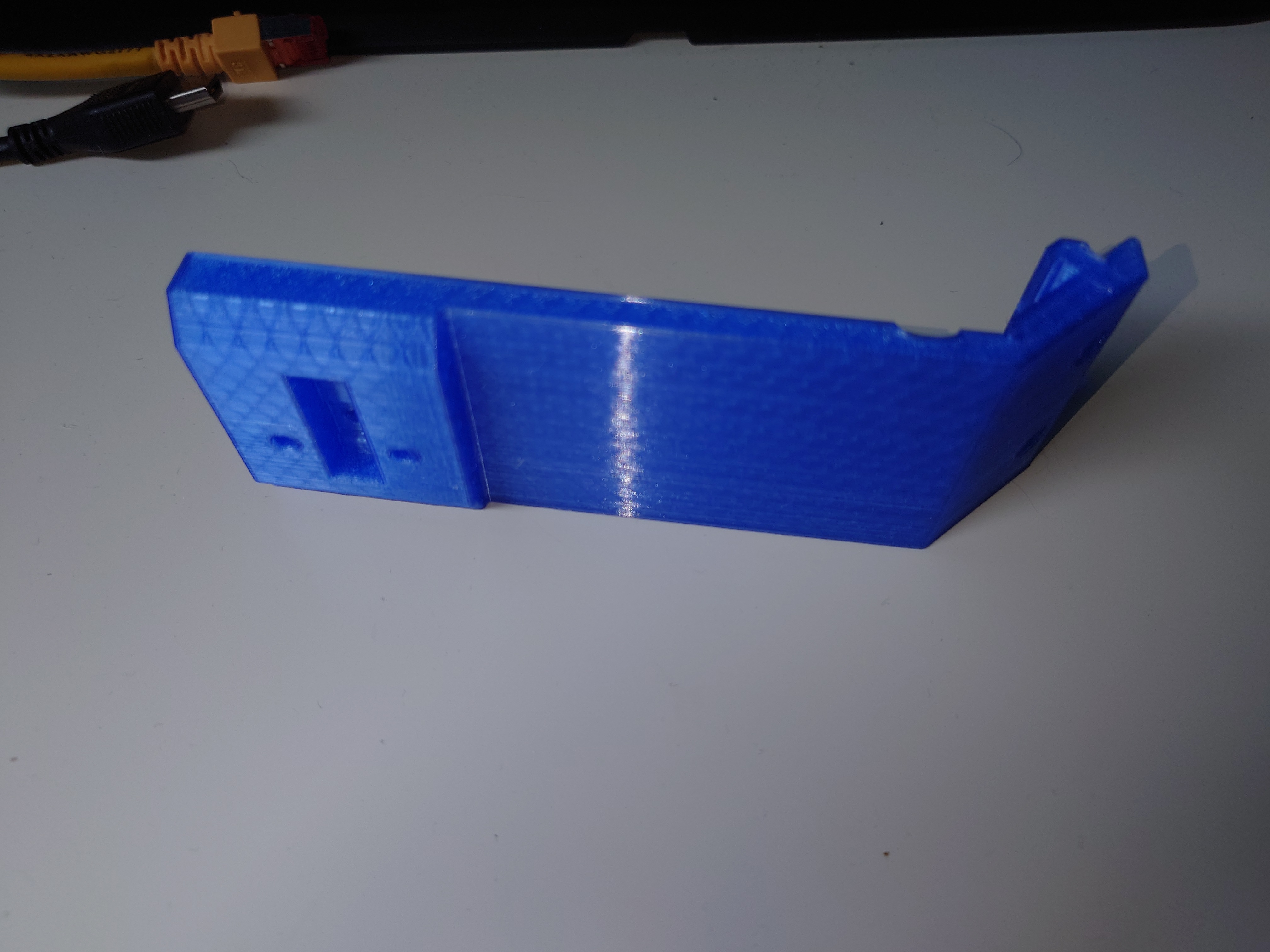

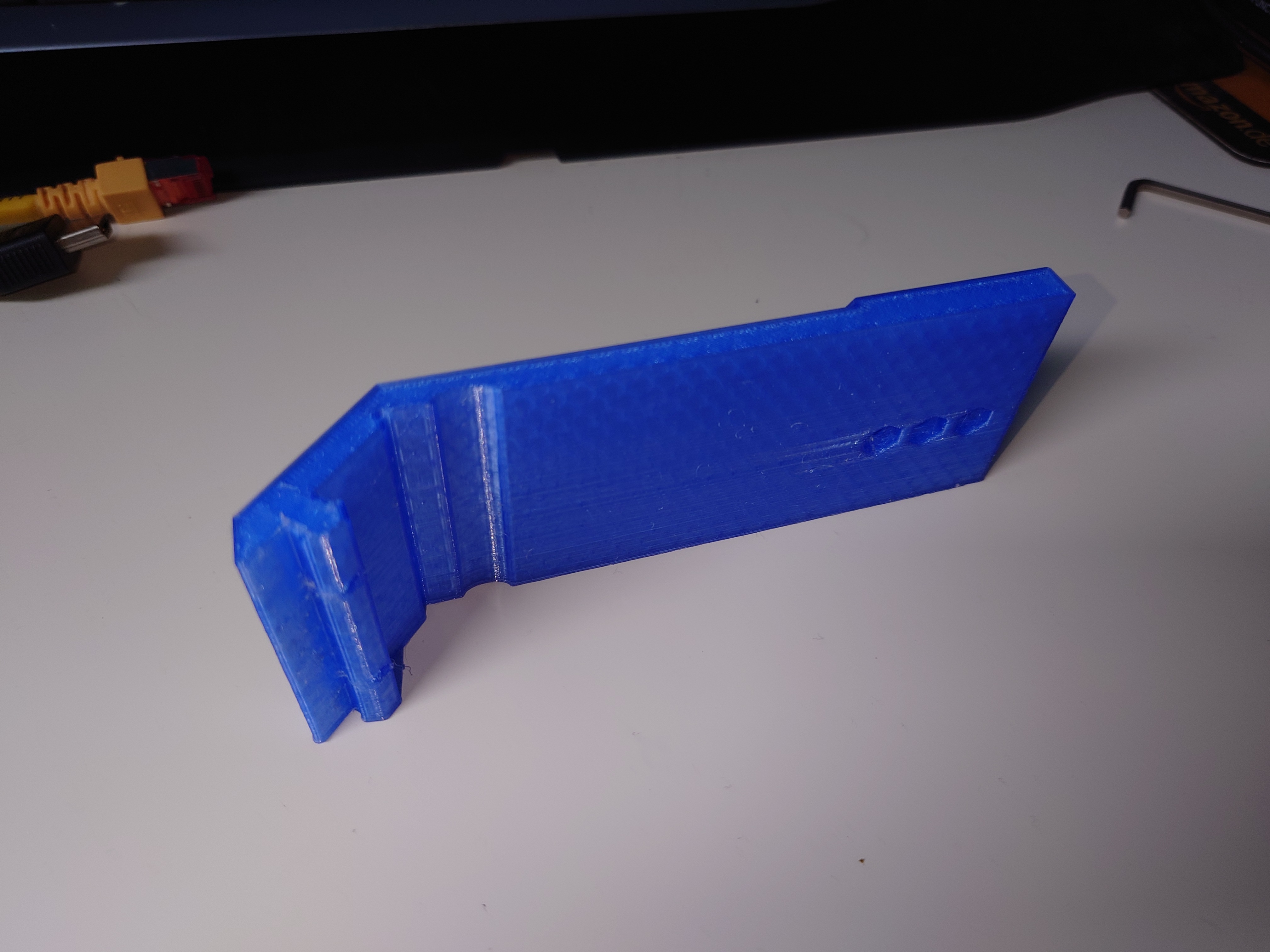

• Filament Holder Adapter

Technical Specifications and Printing Parameters:

• Material: PETG

• Printer: Snapmaker 2.0 A350

• Print Speed: 40 mm/s

• Nozzle Diameter: 0.4 mm

• Layer Height: 0.16 mm

• Infill Density: 40%

• Supports: Recommended for angles greater than 80°; support removal from threaded holes is critical.

Assembly Instructions:

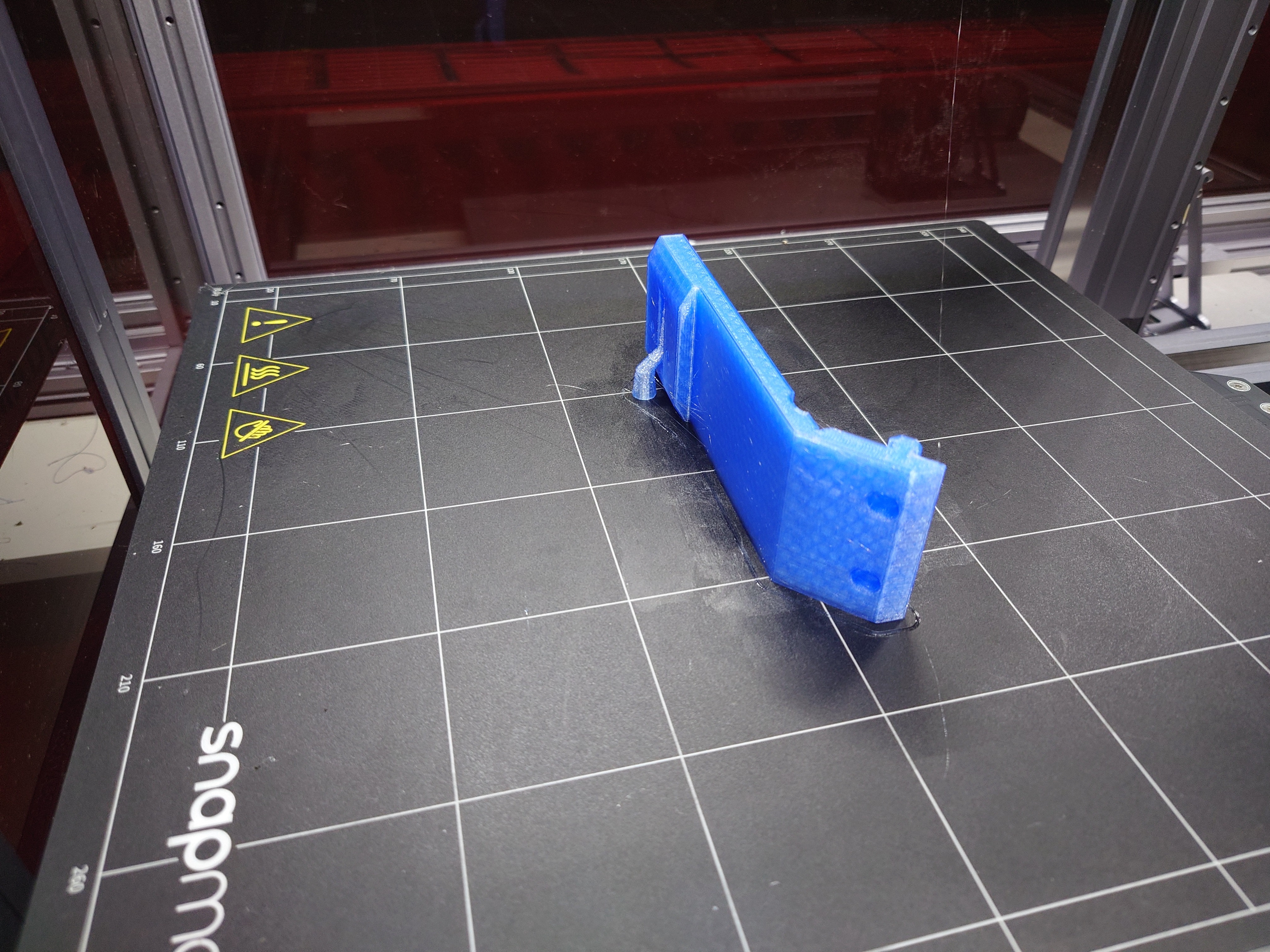

1. Print the adapter with one of its narrow sides down.

2. Insert the original Snapmaker spool holder into the adapter's recess.

3. Secure the holder with an M4x12mm screw and M4 nut.

4. Slide the assembled adapter into the enclosure's profile slot.

5. Position the adapter and secure it with two M4x10mm screws.

6. Use a hex key for screw fastening.

Additional Materials:

• M4x12mm screw

• 2x M4x10mm screws

• M4 nut

• Hex key

• Original Snapmaker filament spool holder included with the "Snapmaker 2.0 Dual Extrusion 3D Printing Module"!

Key Features:

• Relocates filament holder for improved accessibility.

• Compatible with single and dual spool configurations.

• Secure profile slot mounting with integrated threaded holes.

• Optional holes for future expansions.

Applications:

• Optimizing Snapmaker 2.0 enclosure setup in confined spaces.

• Enhancing filament accessibility.

• Customizing enclosure configuration.
