Inspired by this GPU support but the designs are so different I didn't end up calling this a remix.

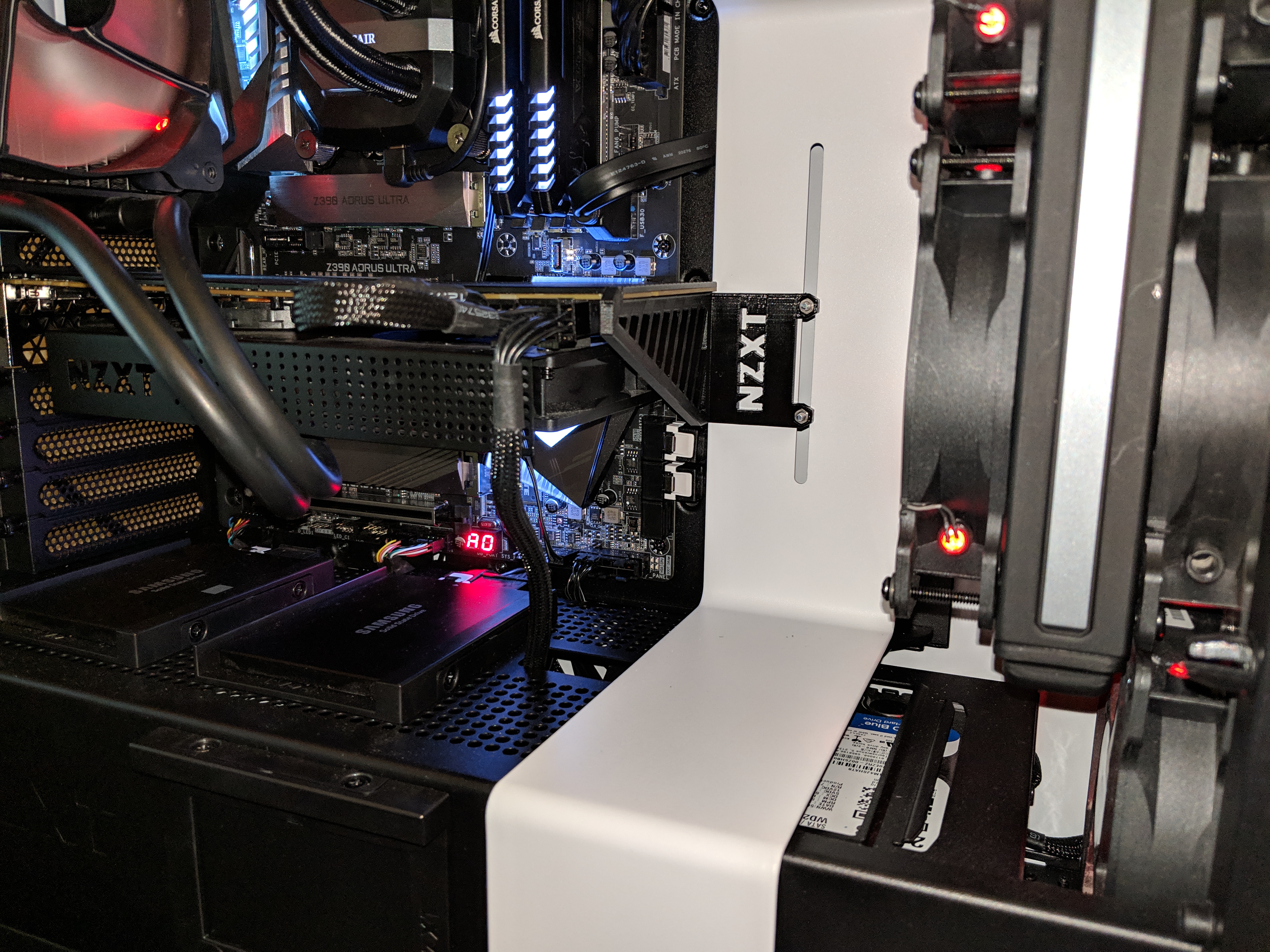

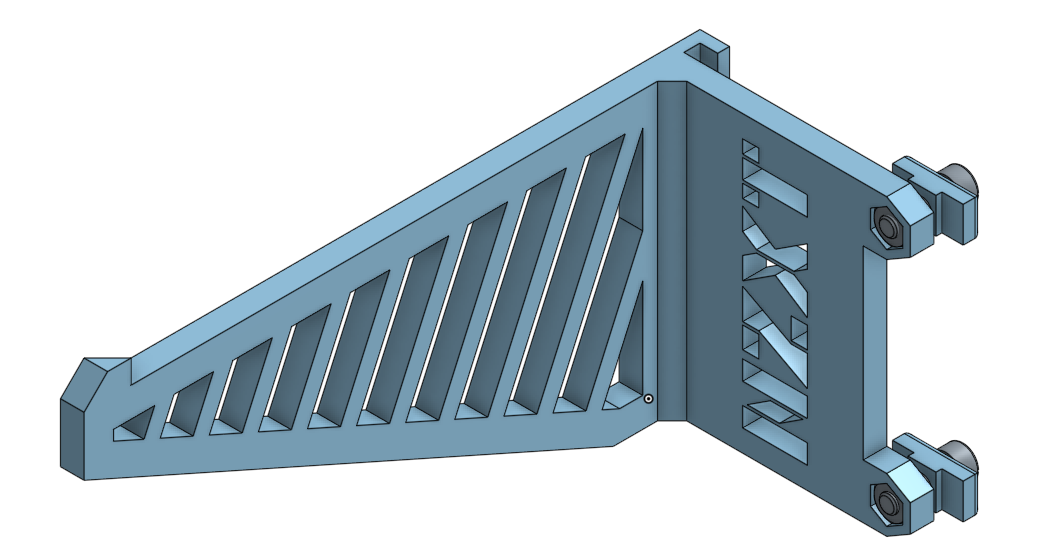

This is a GPU support bracket for an NZXT H700i or NZXT H700 case. It fits my GTX 1080ti Founders Edition, which means it should also fit a GTX 1080 FE. I haven't tested it with any other cards.
I have an NZXT Kraken G12 GPU cooler on my card, so it doesn't have any of the stock cooling underneath the PCB.
The NZXT logo will need a bit of post-printing cleanup since I included a few 0.5mm supports. Just cut them out with a small knife. Print it without any additional supports.
Hardware:
| Item | Quantity |
| M3 x 10mm socket head bolt | 2 |
| M3 nut | 2 |
I would suggest you print this in PETG since the inside of your case may get a little toasty sometimes.
Print instructions
Unassociated tags: GTX 1080, GTX 1080ti, NZXT H700
Category: 3D Printing Print Settings
Printer Brand: Prusa
Printer: i3 MK3
Rafts: Doesn't Matter
Supports: No
Resolution: 0.2mm
Infill: 20
Filament: AmazonBasics PETG PETG Black
