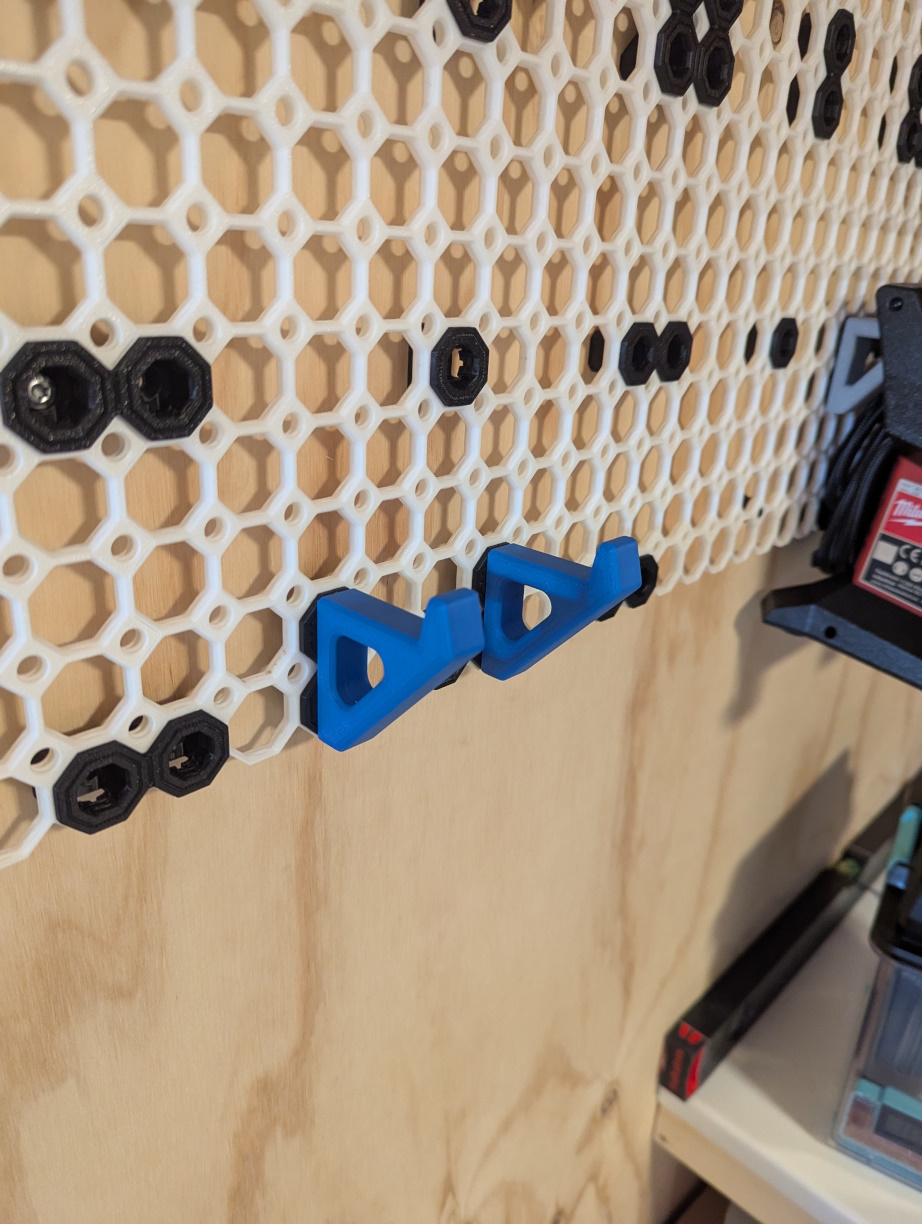

sledgehammer holder for Multiboard

I have updated the design, so the holder is sleeker without cutting down on ability hold heavy hammers.

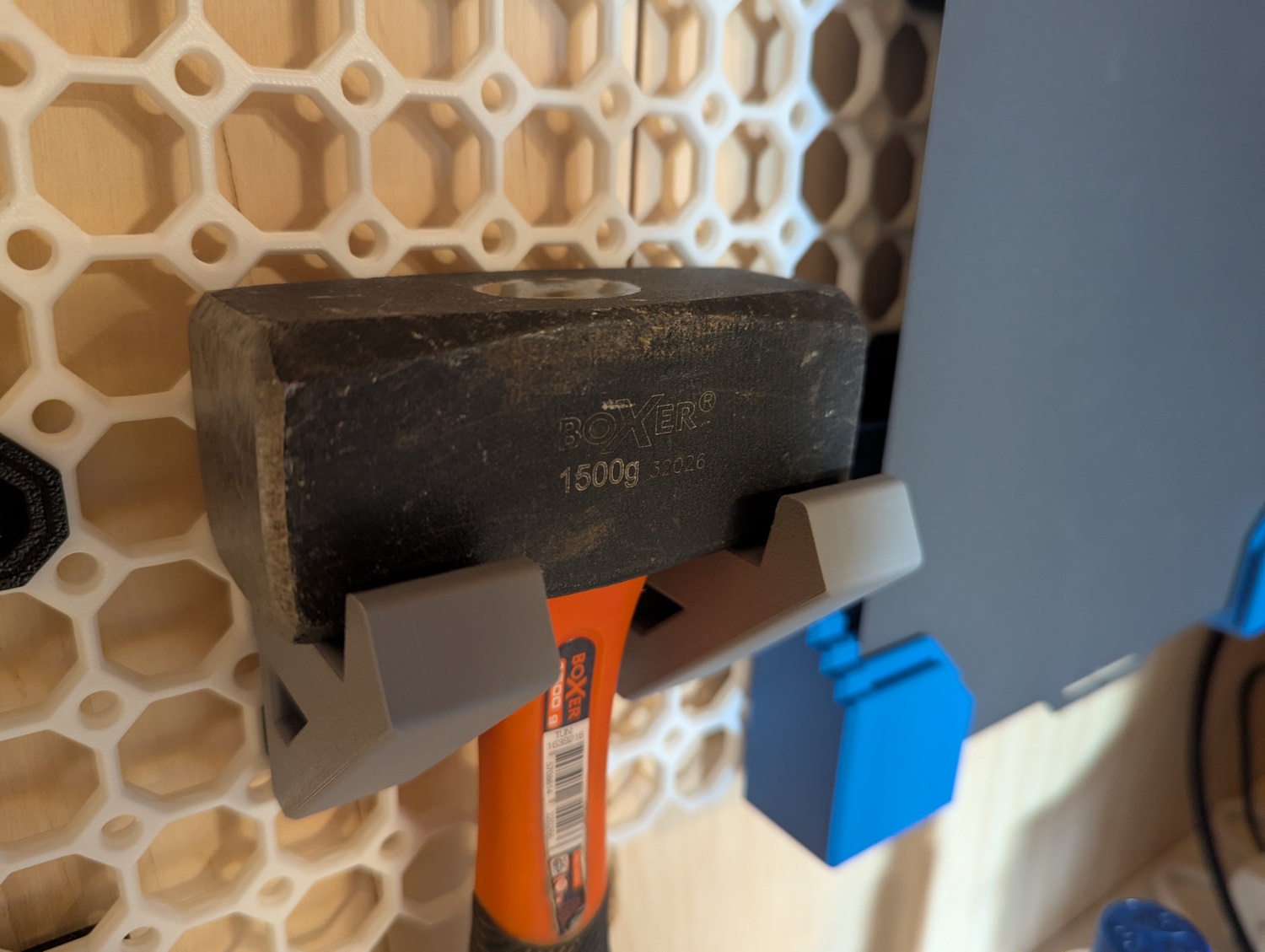

Sturdy hammer/sledgehammer holder for Multiboard is made to hold a 1.5 kg (3.3 pounds) hammer. (it will properly be able to hold a hole lot more than 1.5 kg)

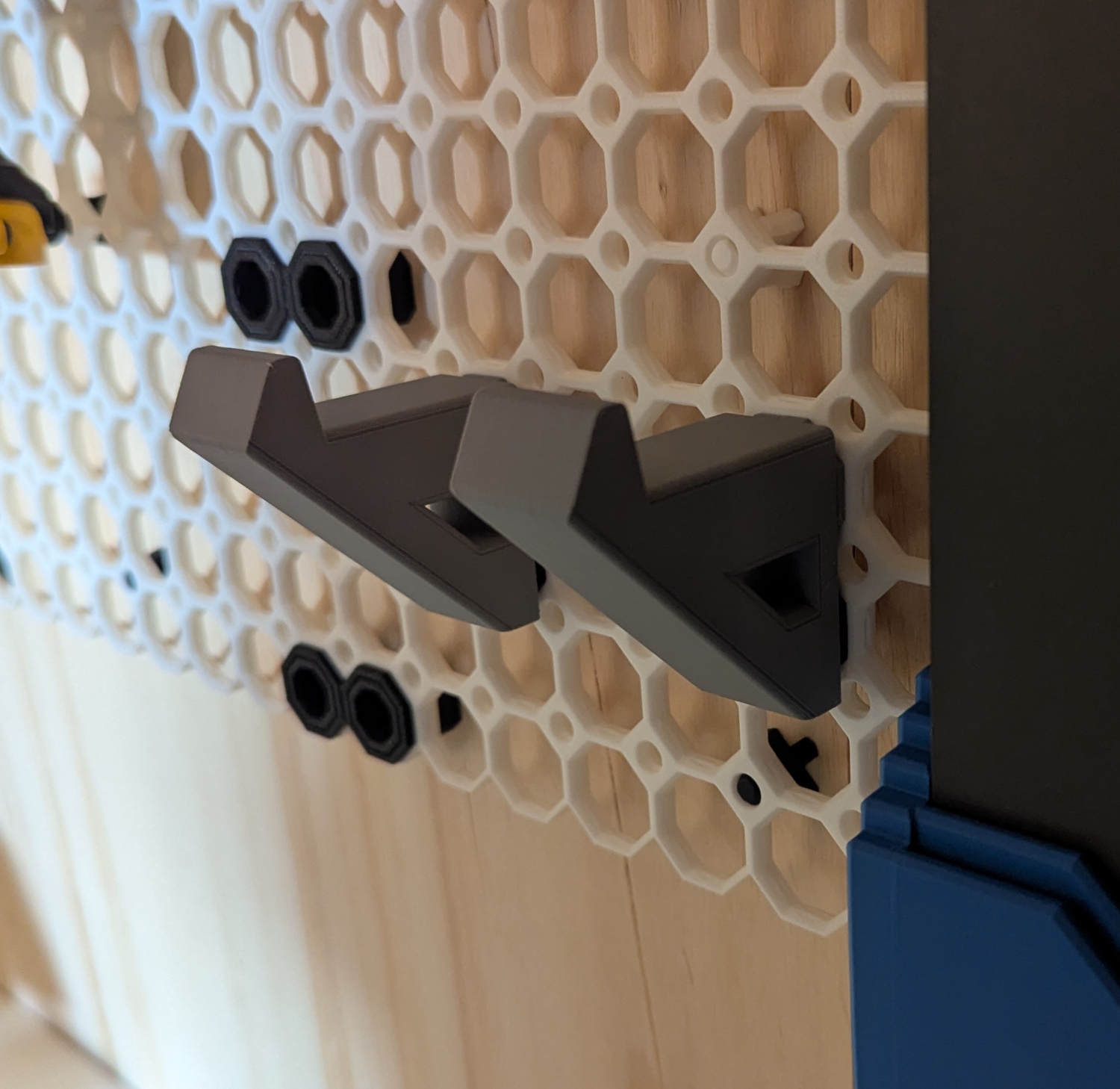

Size from edge to “fingers” aka. where the hammer rests:

• v1 + v2 = 46 mm
• v3 = 42

Mounting

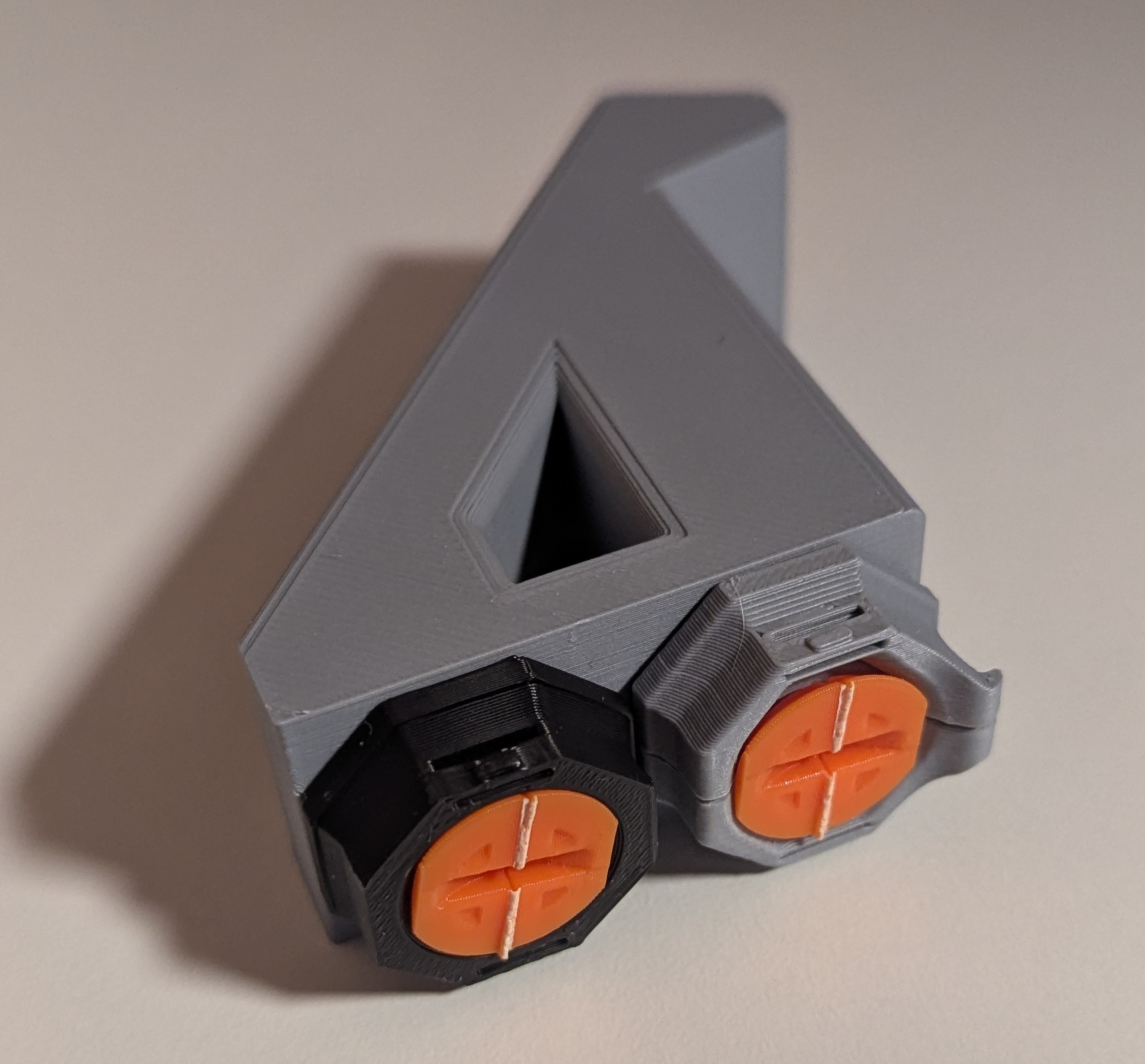

To mount the holder on Multiboard you need the following for mounting

• 2 pcs - Heavy Weight-Bearing Hook Snap (1 for each holder)

• 2 pcs - Moderate Weight-Bearing Snap (1 for each holder)

• 4 pcs - Small Thread - Multipoint (2 for each holder)

I recommend using the following print settings (or use the attached 3mf file):

• walls: 3 loops
• top and buttom shell thickness: 1 mm
• infill: 3d honeycomb, 15%
• support top interface spacing: 0.1 mm

The Multiboard is created by Jonathan from Keep Making - www.multiboard.io
