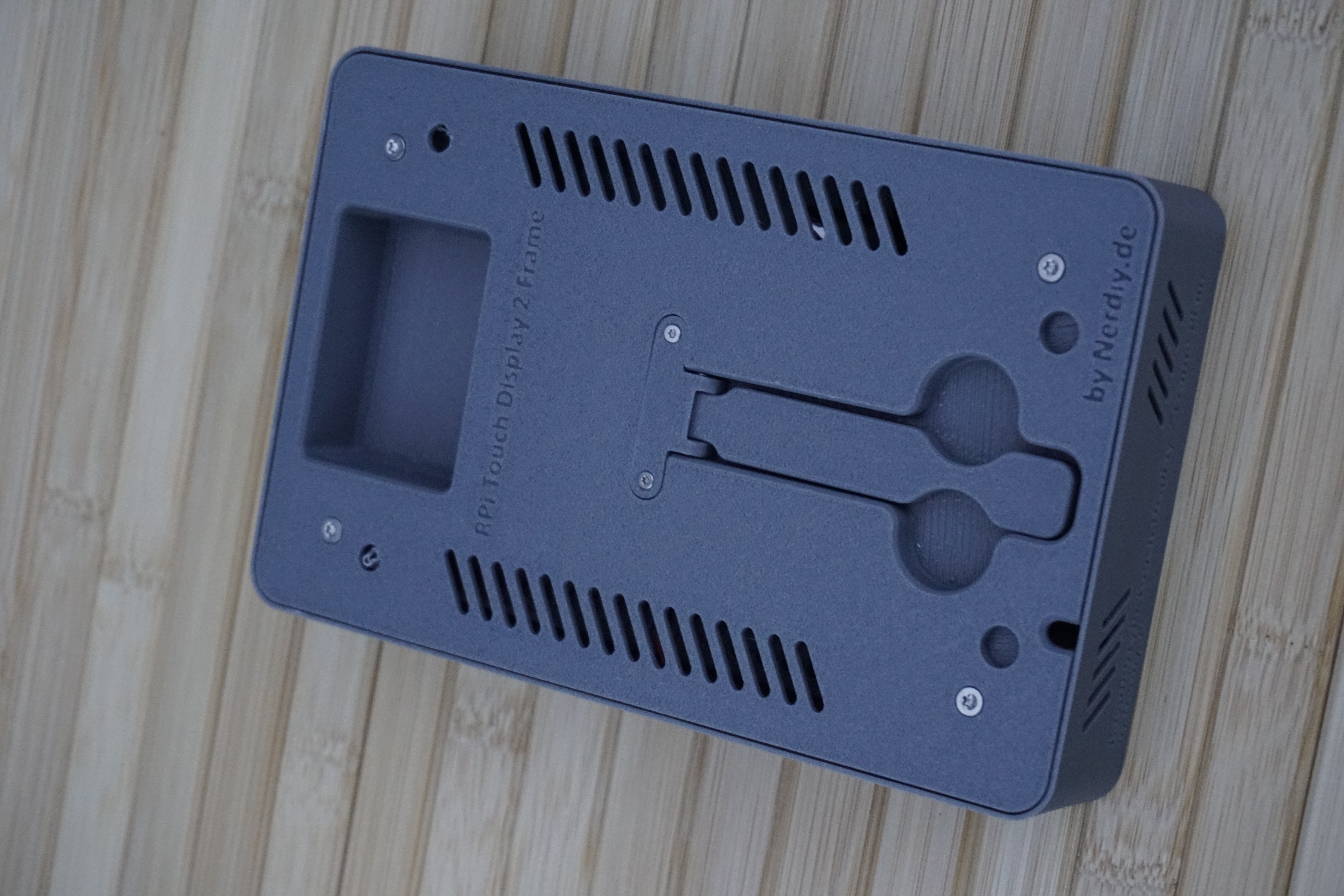

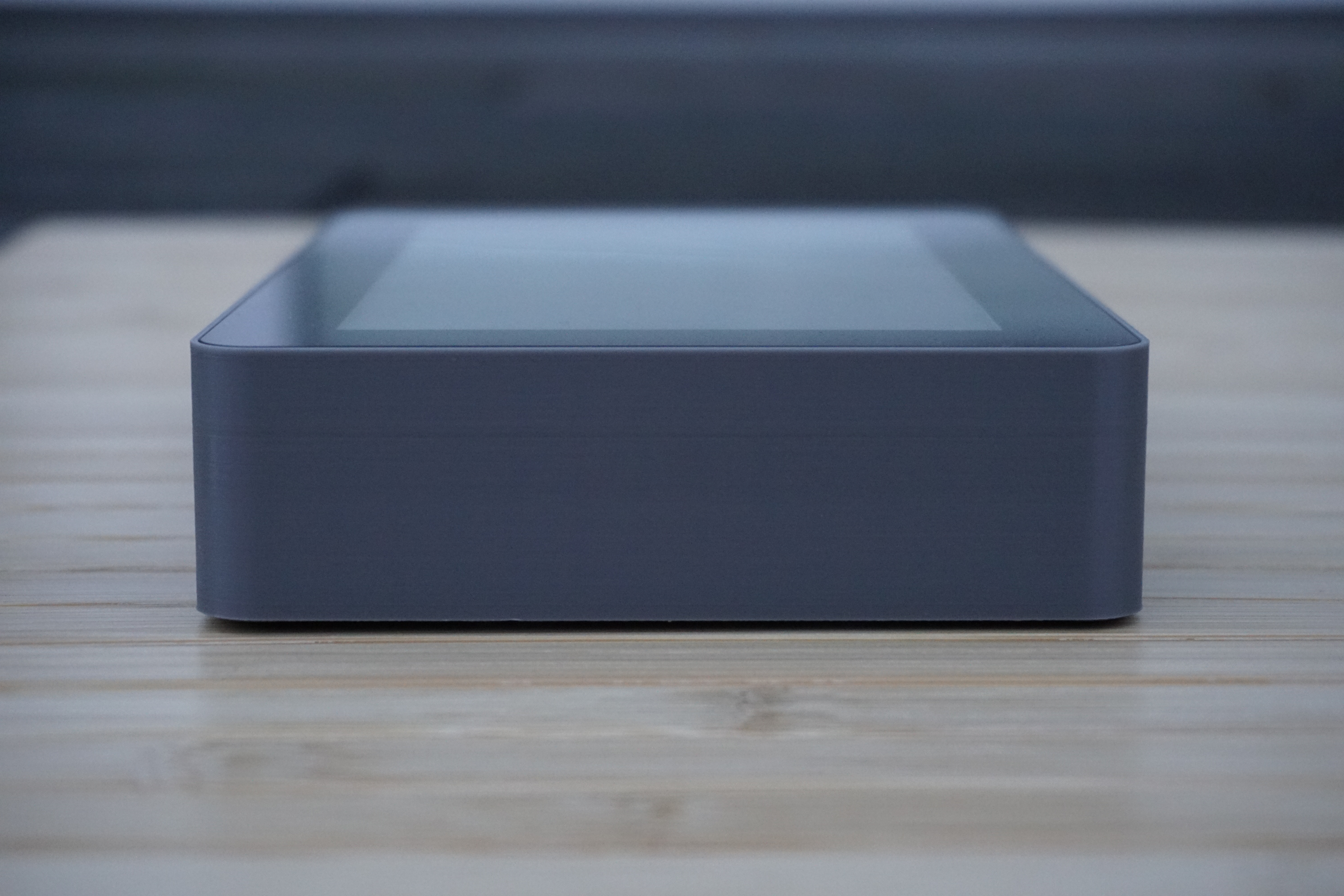

Raspberry Pi 7" Touch Display 2 Frame for RaspberryPi 5 - Vertical by Nerdiy.de

Build a professional protective frame for your Raspberry Pi 5 with integrated 7" Touch Display 2 mounting. This vertical mounting variant without top-side cutout.

Here we offer you the STL files for 3D-printed housing parts, specifically developed to securely hold the Raspberry Pi 5 and 7" Touch Display 2 while protecting the components from dust and physical damage.

Print settings

• Filament type: Weather and UV-resistant, e.g. PETG, ABS, etc.

• Layer thickness: 0.2mm

• Infill: 25%

• Wall lines: 5

• I highly recommend to print the parts in the already defined orientation. The defined orientation is intended to maximize the structural integrity of the part.

Material list, Assembly instructions & more

You can find additional info at the following GitHub repository.

• https://github.com/Nerdiyde/Nerdiy_Products/tree/main/products/raspberry-pi-7-touch-display-2-frame-for-raspberrypi-5-vertical-no-cutout
