Ratrig Vcore4 400 Linkage Hinge

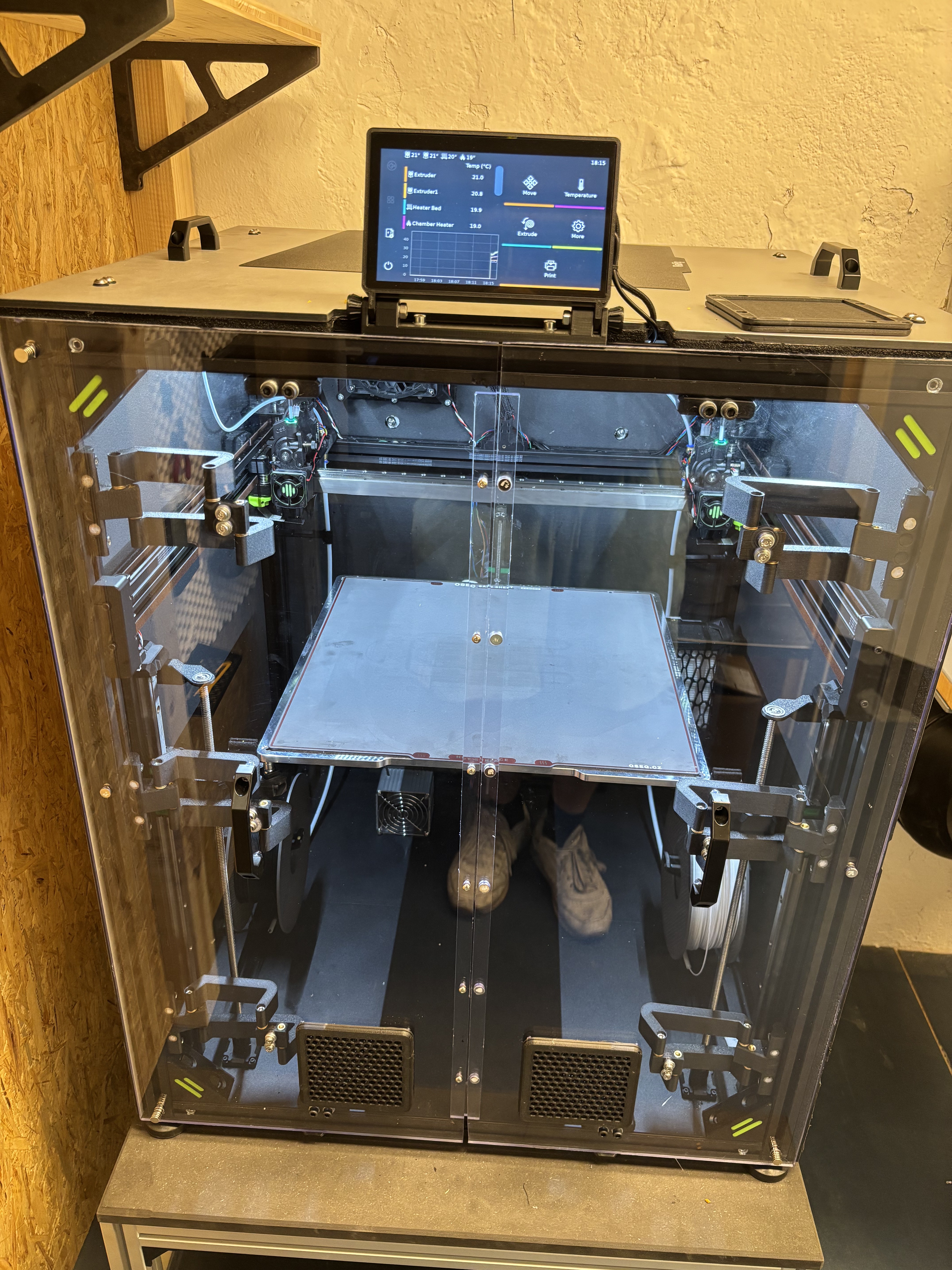

I designed this 4-bar-linkage Hinge, to have the Doors of my Vcore4 400 fold outward to the side of the printer in a controlled way. I’m using 6mm PC Panels for the door, and 6mm ACM + 8mm Insulation for the Sidepanels. I also added a DXF for a Door that should fit with 6mm Sidepanels without Insulation.

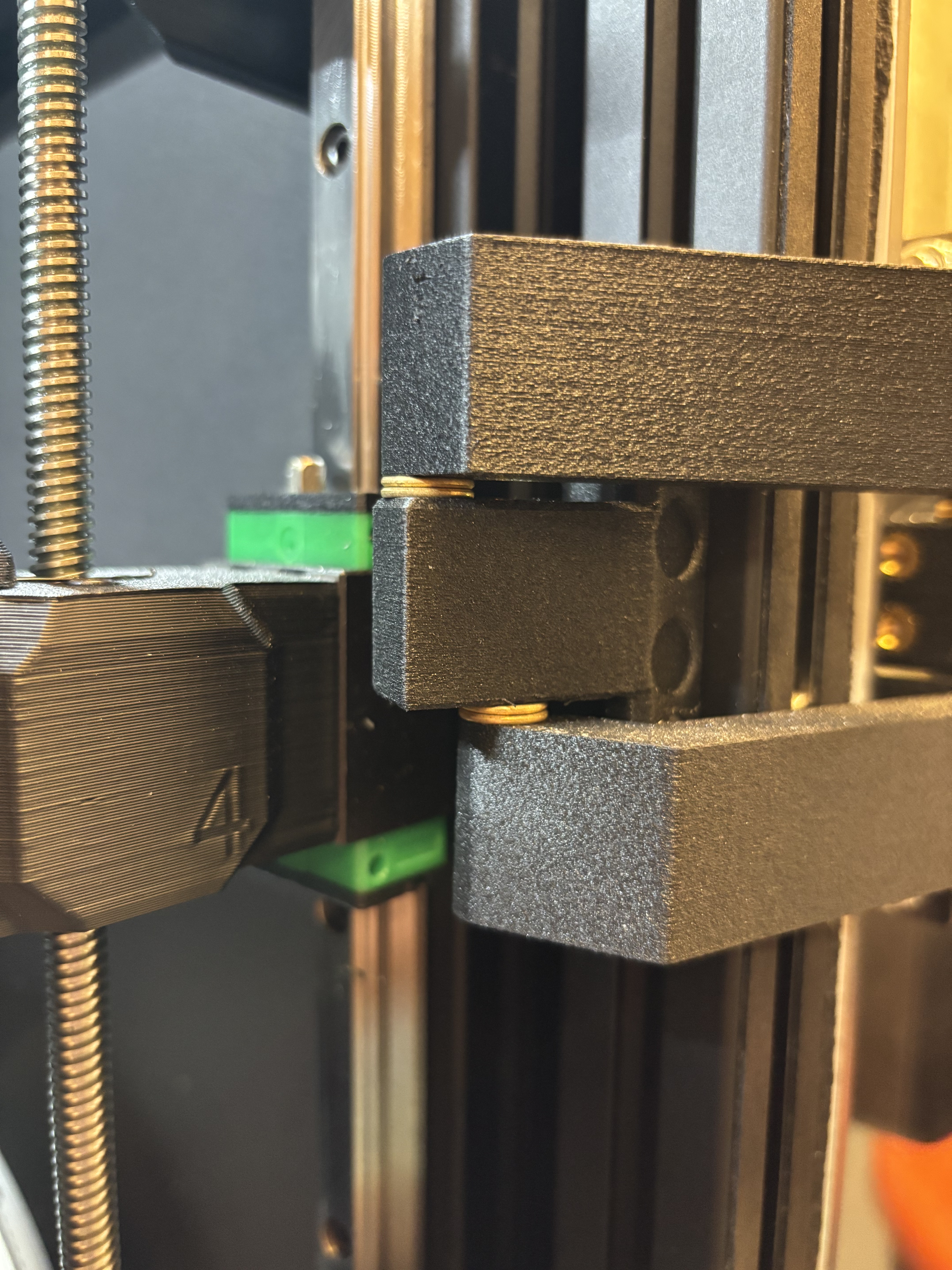

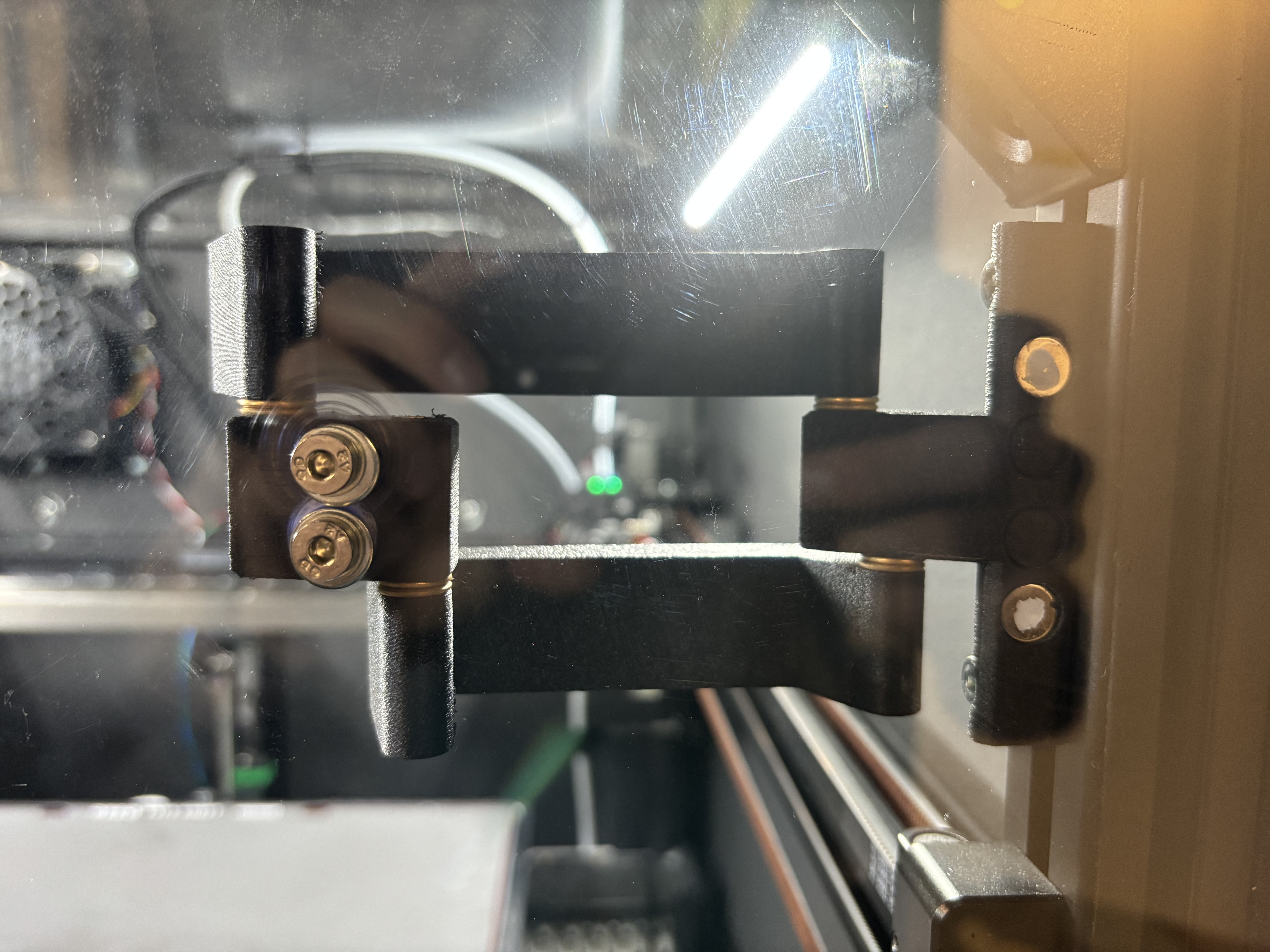

I added Files for Left and Right hinges, and I hope the assembly gets clear from the pictures I have added.

The files need to be printed with a CF-reinforced filament to be stiff enough. I think I used PA-CF.

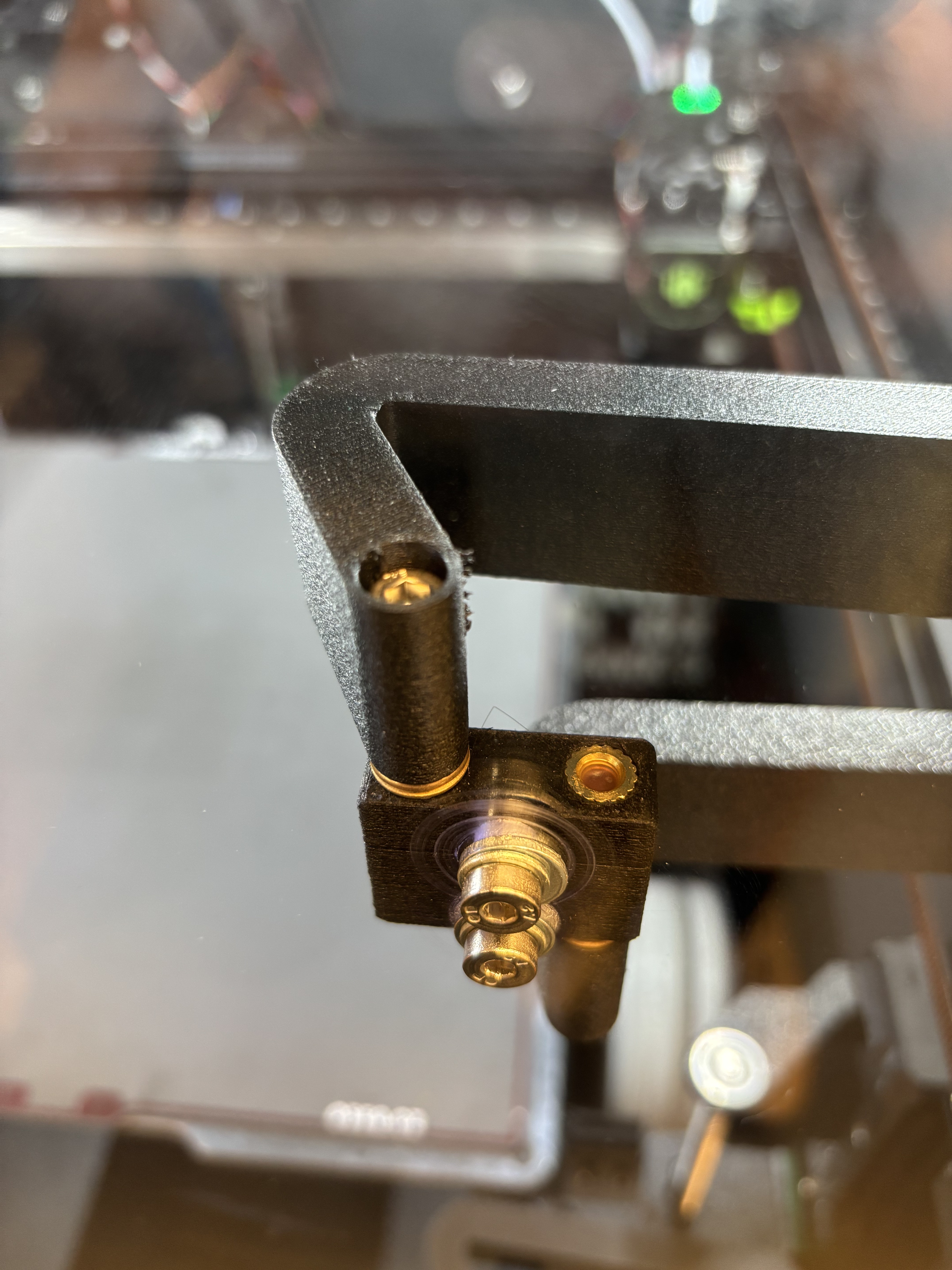

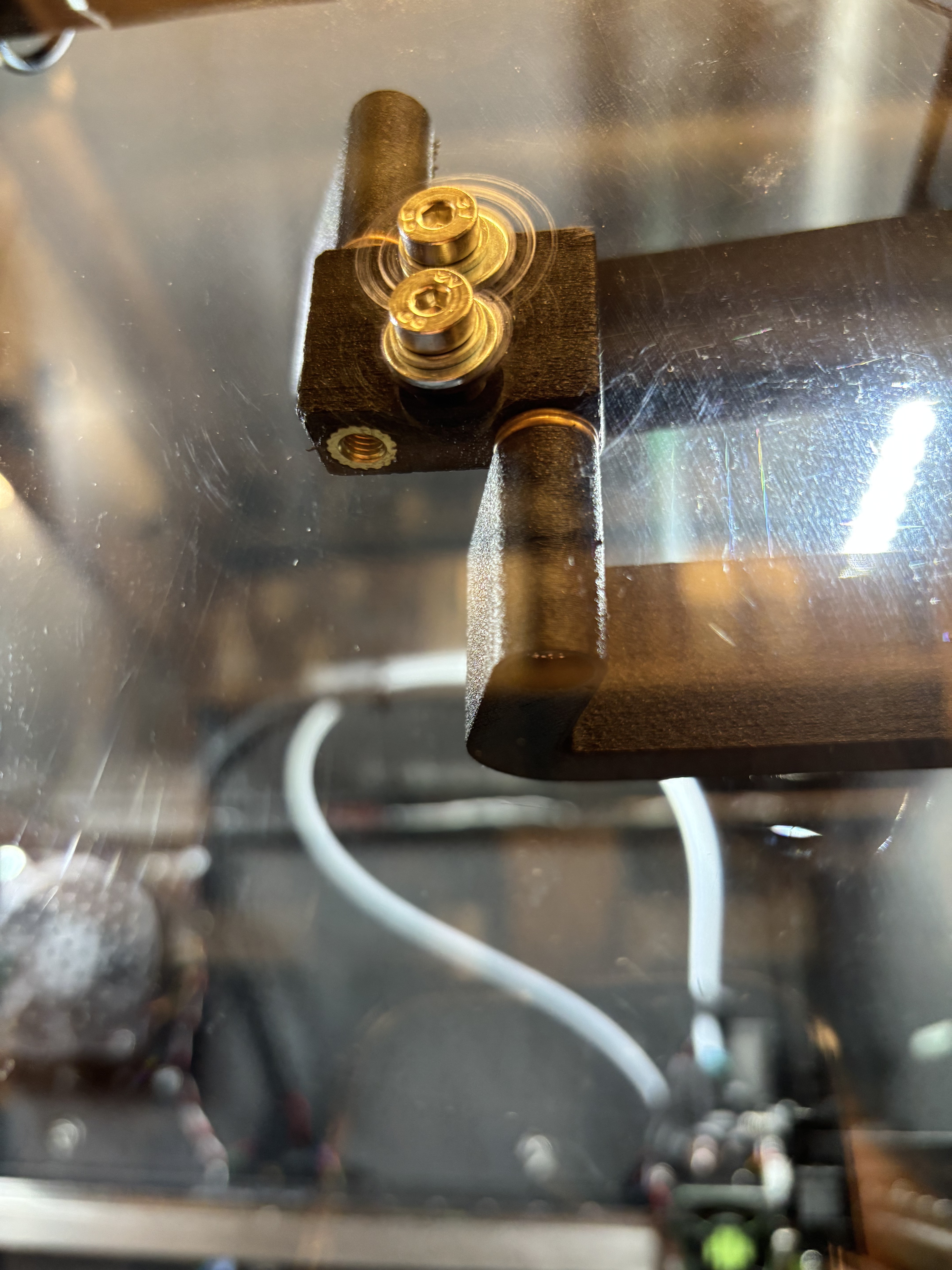

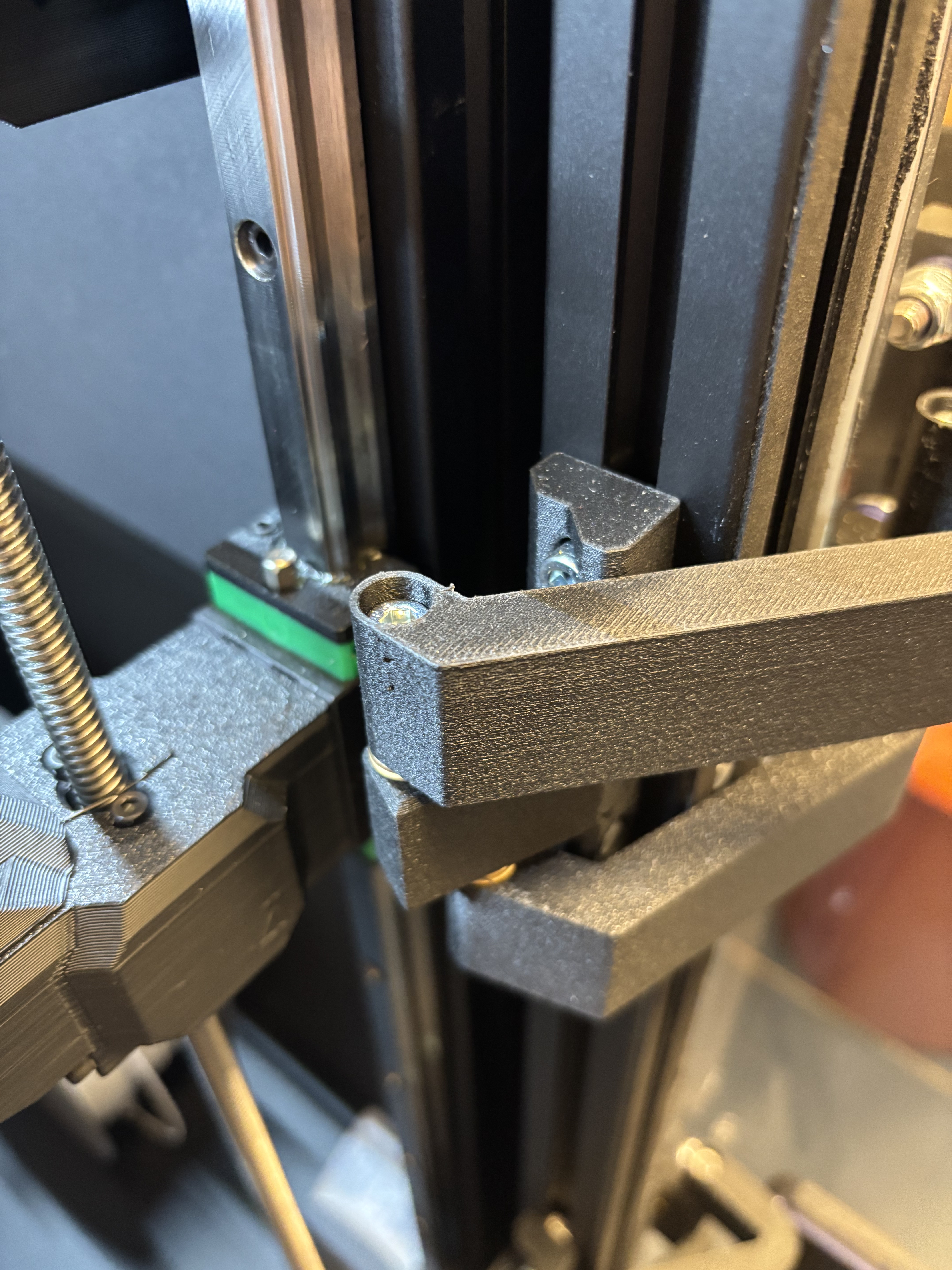

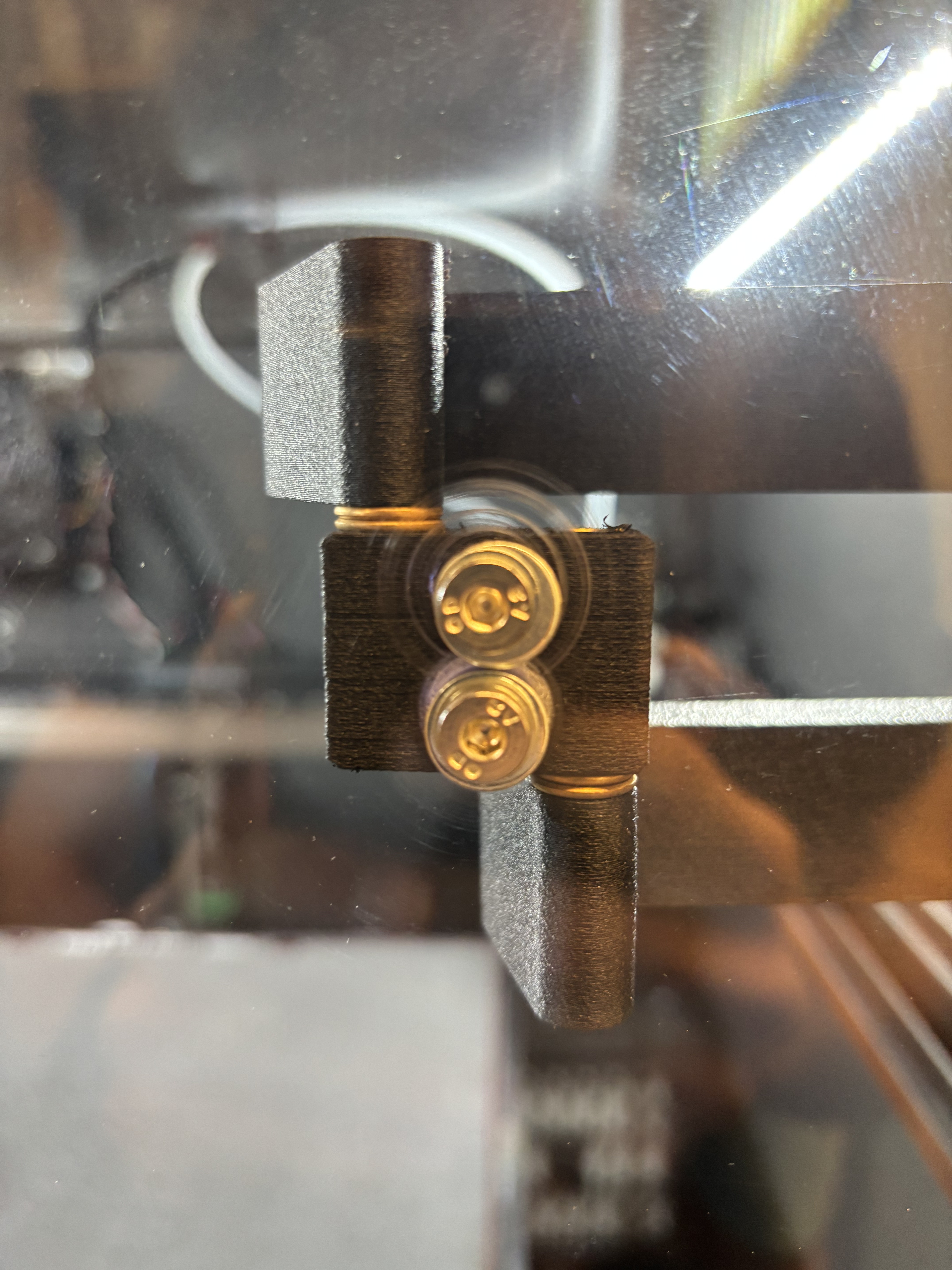

The Heatset-Inserts get added to the Framepart and the door anchor. Check thi pictures for where they need to go. Then i used an m5x40mm and to press-fit bushings on all of the rotational-points for smooth friction. Applying threadlocker to the screws is a must, otherwise they loosen over time. Also the parts settle a bit in the beginning, so you might need to readjust the screws after some time.

I also provided the Step File, but the thing is an extreme mess that I don’t have time to clean up unfortunately…

Hardware needed for the Hinges:

• Screws: 24pcs M5x40 https://de.aliexpress.com/item/1005006808636816.html?spm=a2g0o.order_list.order_list_main.131.6bb25c5fY1cXHk&gatewayAdapt=glo2deu
• Bushings: 5X7X12-11X1.2 48pcs https://de.aliexpress.com/item/1005007192252292.html?spm=a2g0o.order_list.order_list_main.127.6bb25c5fY1cXHk&gatewayAdapt=glo2deu
• HeatsetInserts: 24Pcs M5 (8mm OD) https://de.aliexpress.com/item/1005003582355741.html?spm=a2g0o.order_list.order_list_main.183.6bb25c5fY1cXHk&gatewayAdapt=glo2deu
• Medium-Threadlocker
• Additional Magnets and Magnetholders to pull the door to the frame in the middle.

Additional Hardware to mount the Hinges to the frame, and the door. I can’t excatly remeber what I used there unfortunately. Was a bit mix&match.
