I designed this file to be parametric so you can customize it for your individual home.

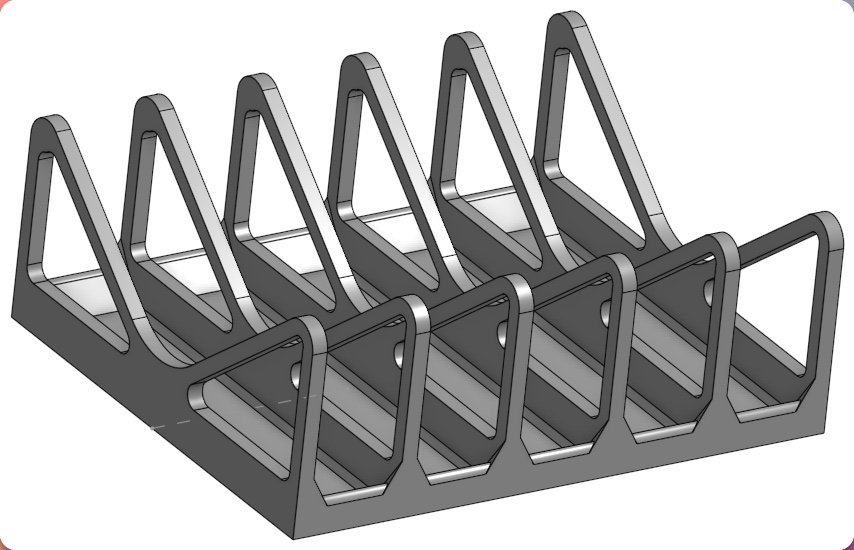

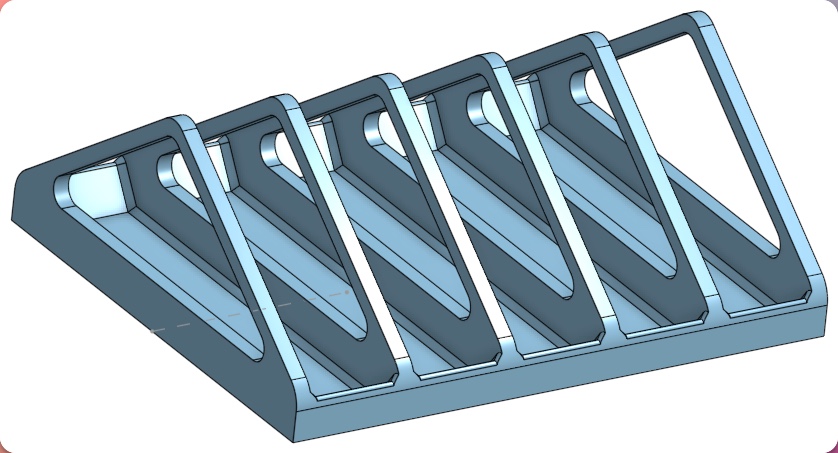

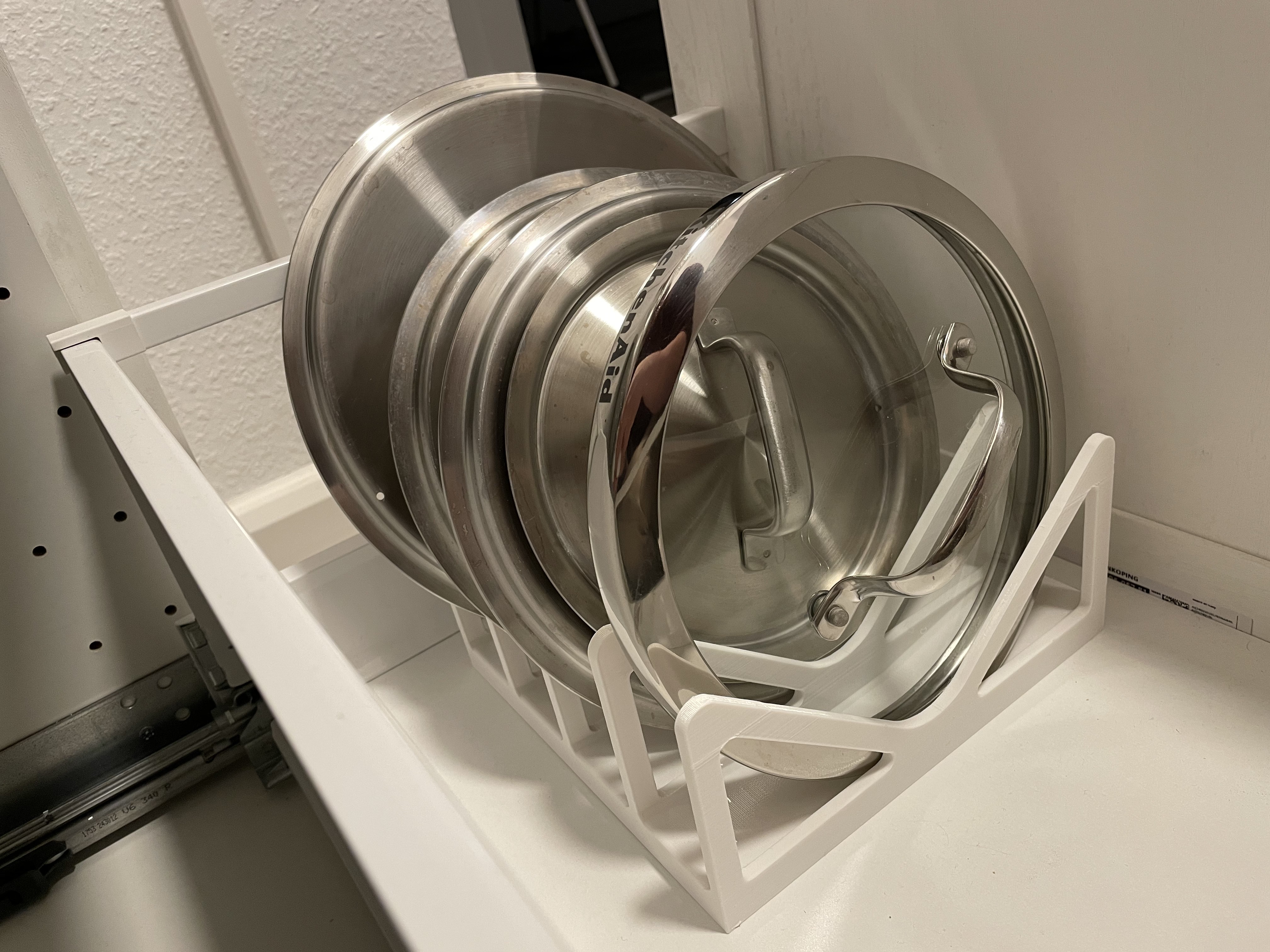

This model has 2 versions. One for casual box-lids and one for pot-lids where the handle is in the middle.
To support and boost the model, please like and download a file from this page :)

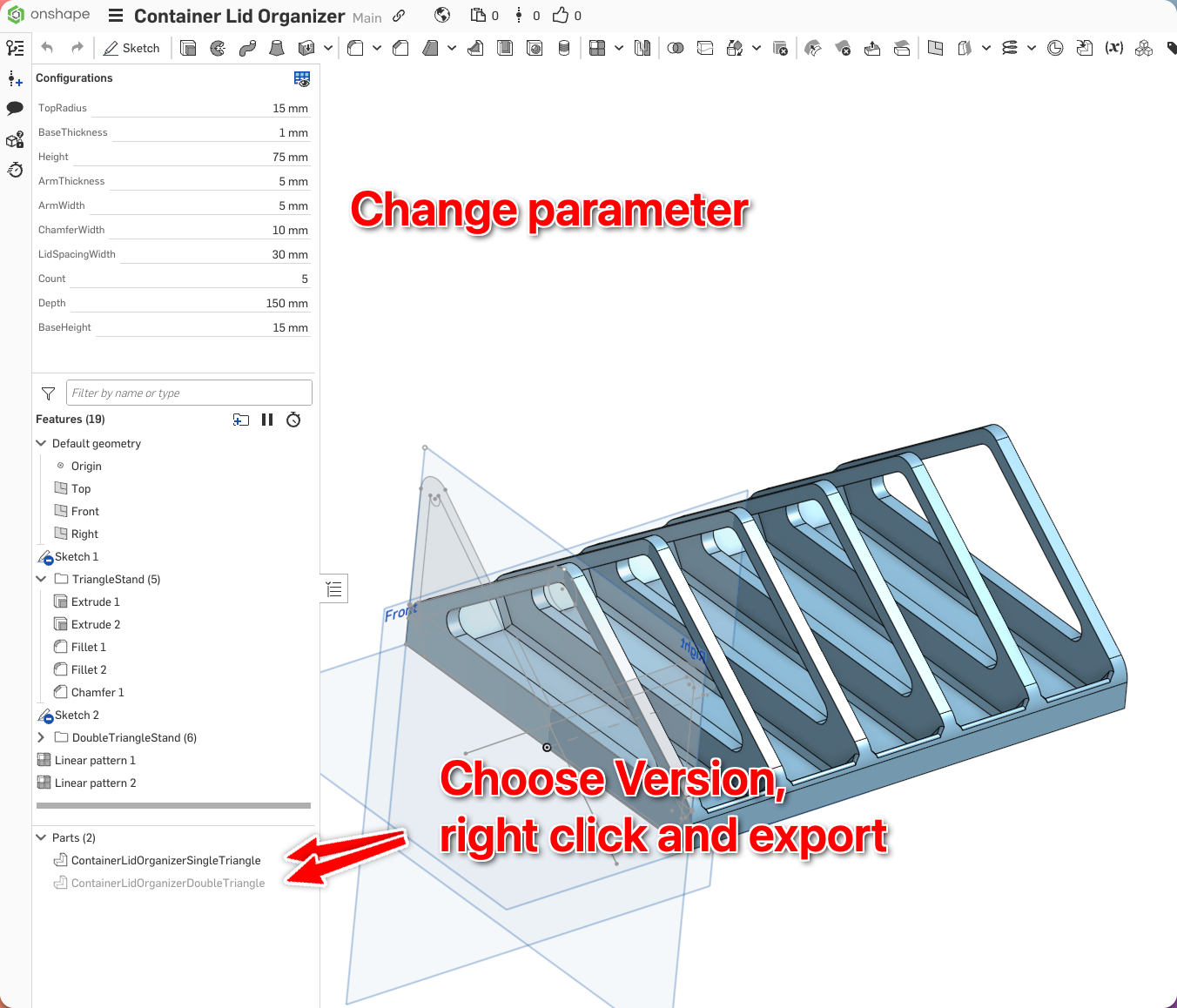

Its difficult to clearly define the parameter names (as you can view the model from different perspectives) just change them and figure out what happens :D
To support me, please also download a model from this page when using the onshape generator :)
Onshape Link
Access and download: https://cad.onshape.com/documents/83613177b4d2302cf713631a/w/e5efb1115463dfd63ca18646/e/b5d5e9147b9f700ff32cfd52?configuration=ArmThickness%3D0.008%2Bmeter%3BArmWidth%3D0.005%2Bmeter%3BBaseHeight%3D0.011%2Bmeter%3BBaseThickness%3D0.0012%2Bmeter%3BChamferWidth%3D0.008%2Bmeter%3BCount%3D7.0%3BDepth%3D0.15%2Bmeter%3BHeight%3D0.1%2Bmeter%3BLidSpacingWidth%3D0.017%2Bmeter%3BTopRadius%3D0.015%2Bmeter&renderMode=0&uiState=6992df4b61b9d11380d5d59f
