Wardrobe shelf support
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Bedroom
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike

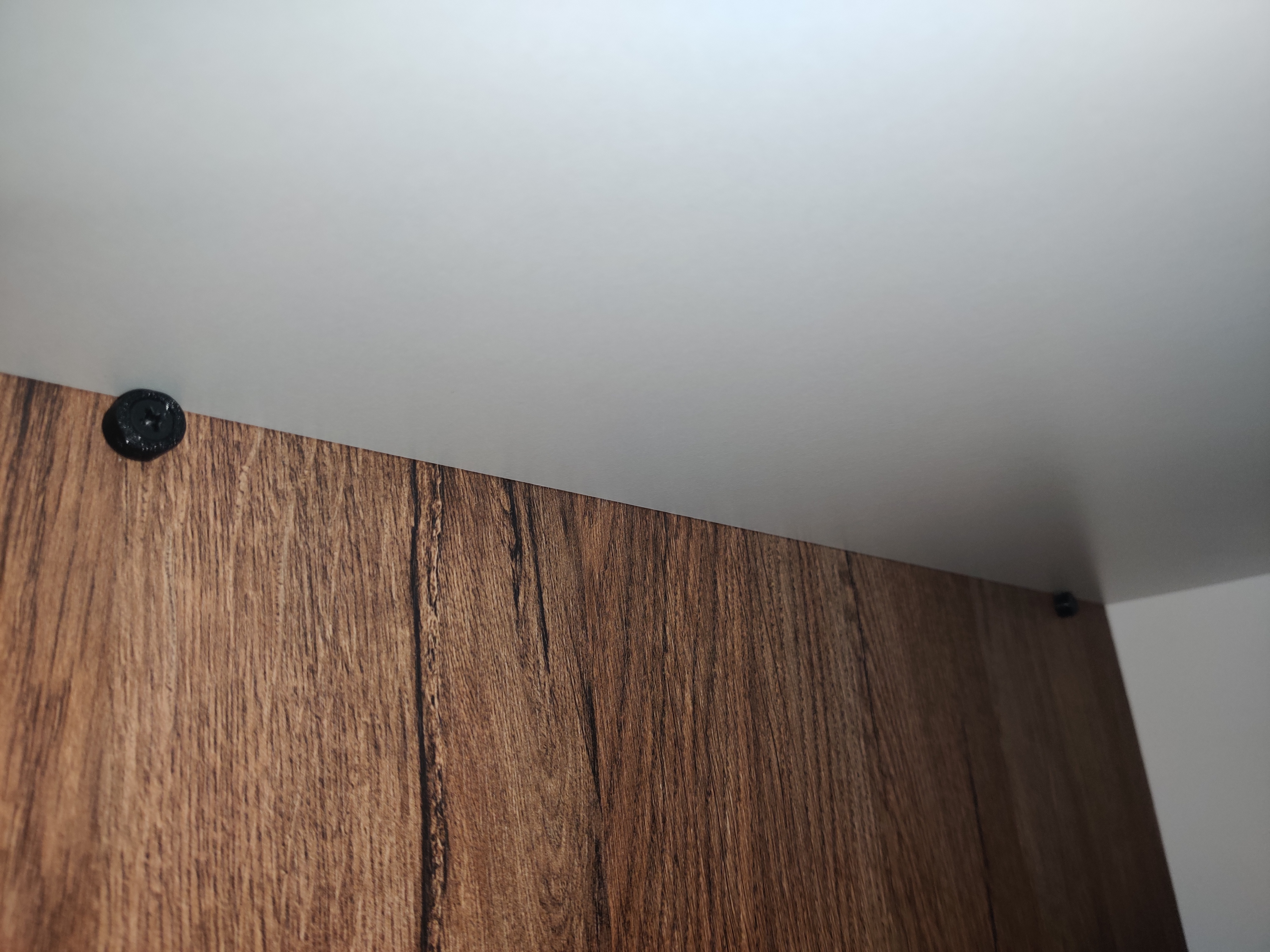

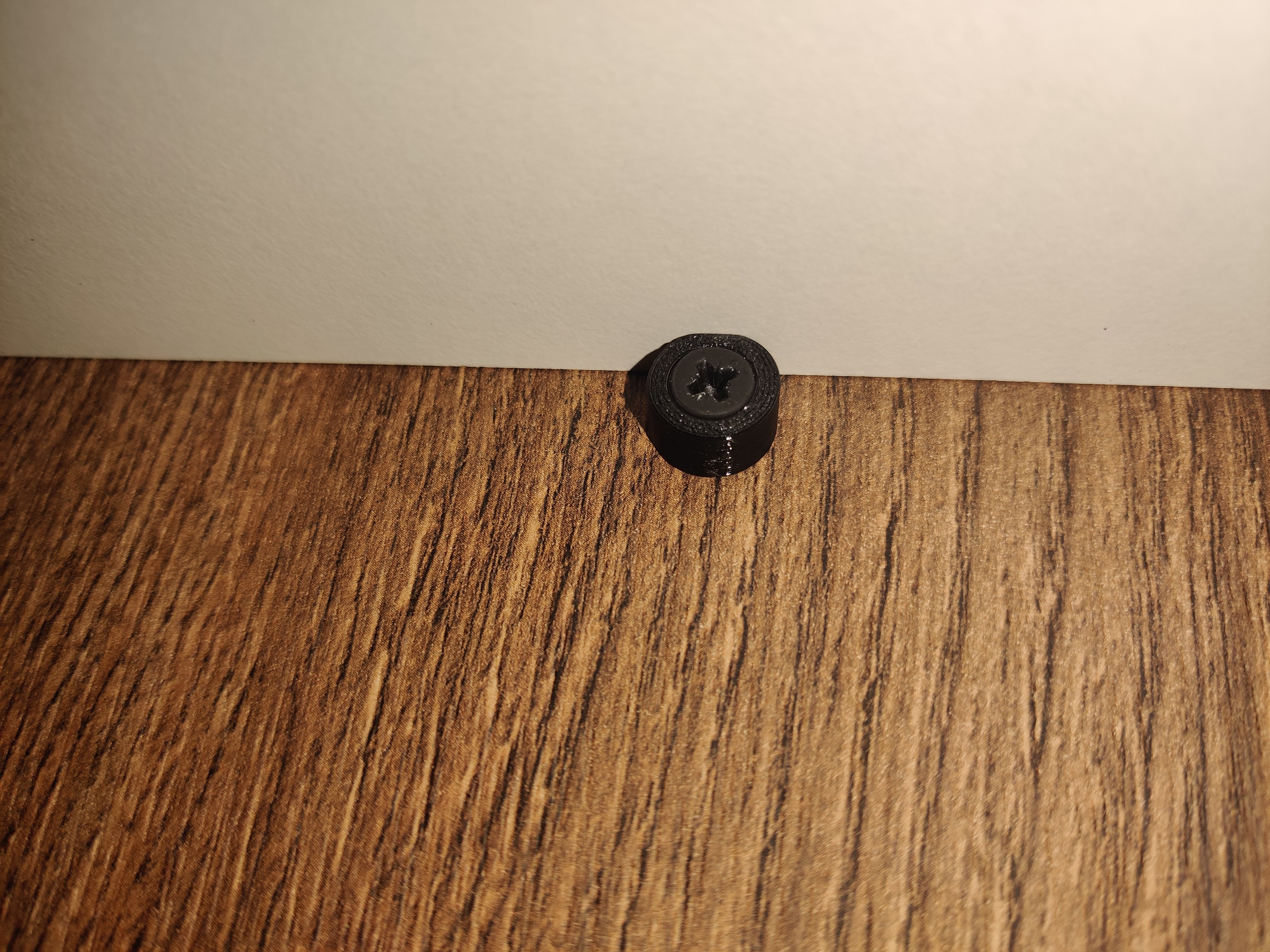

Screw-on model (black)
Dimensions: 12mm diameter, 7mm height
It's designed for 4x20mm screws. I suggest printing it in TPU (with 100% infill or max walls) – this way you can tighten the screw a bit more, which will squish the printed part a bit. That will make it wider than 12mm, lifting the shelf ~1-2mm, and this way you can make very small adjustments so your shelf doesn't wobble. The shelf will settle in a bit anyway because it's TPU, so it really shouldn't wobble if you place it correctly.

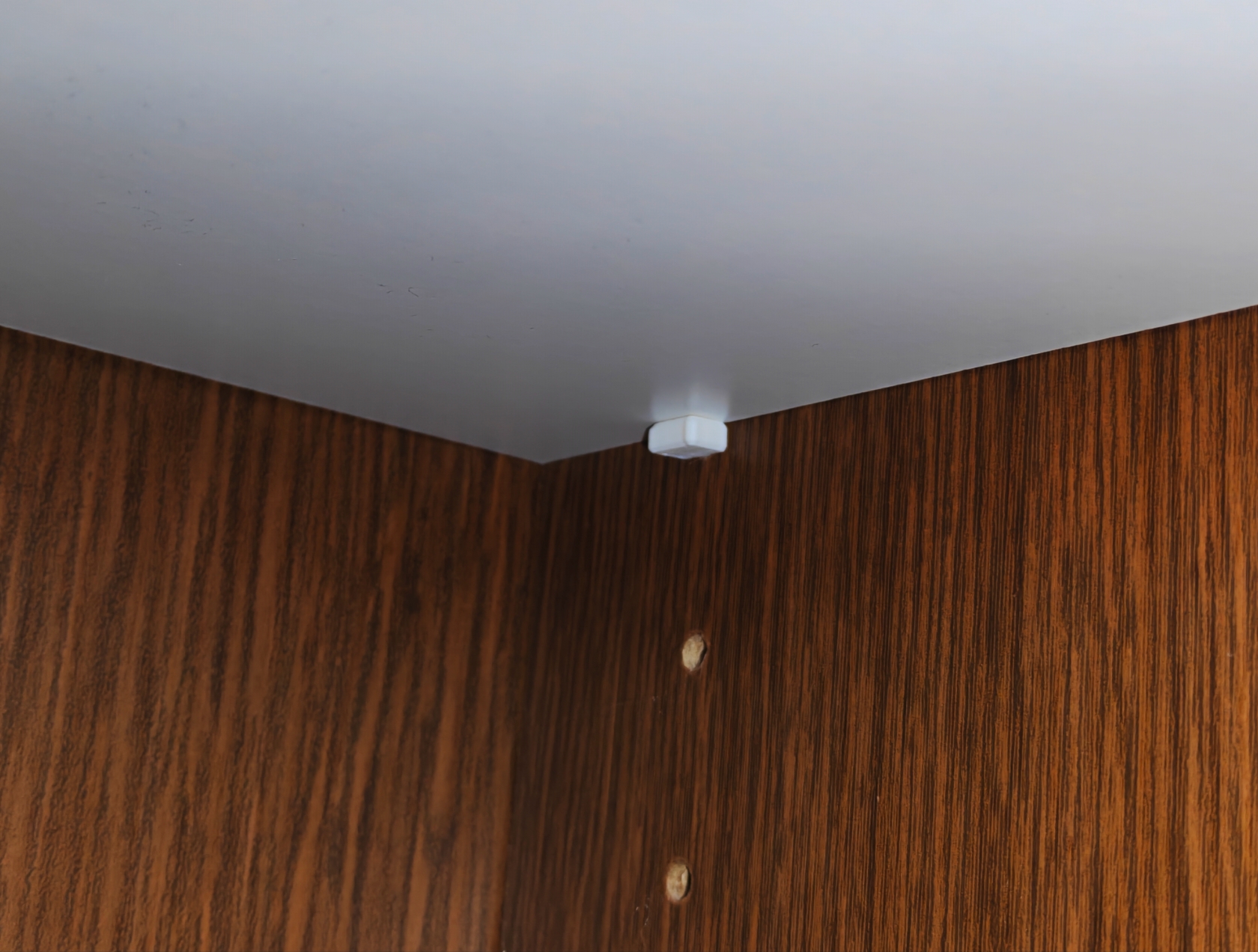

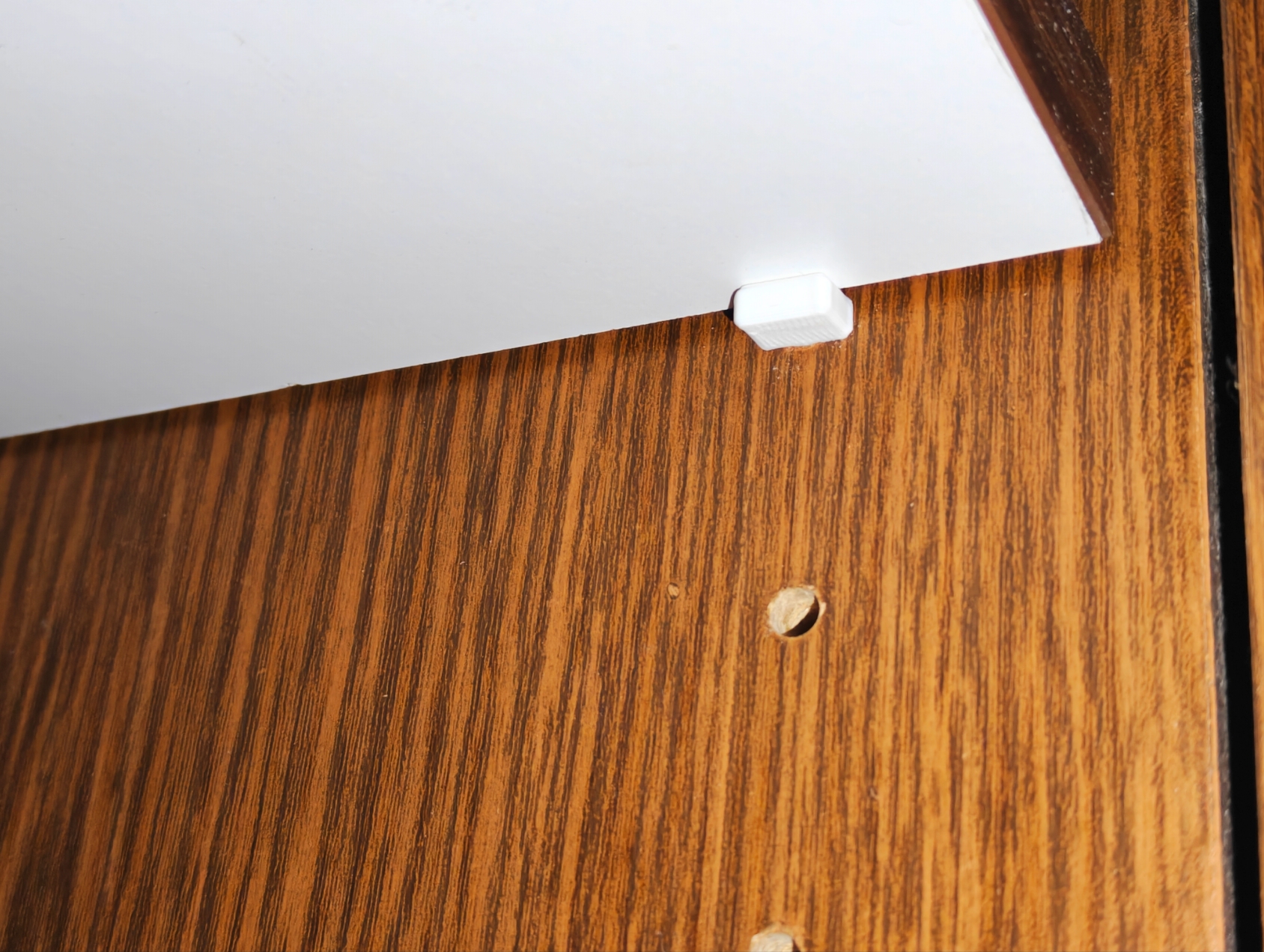

Pre-drilled hole model (white)
It's designed for 5mm holes. Modeled radius is 4.85mm. Depth is 10mm. Make sure you print it laying down for strength.
