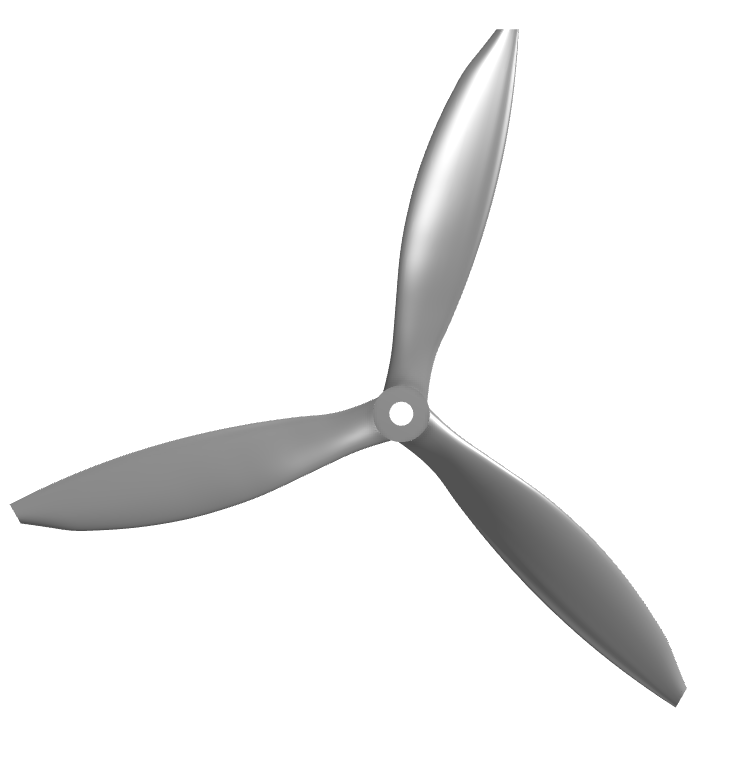

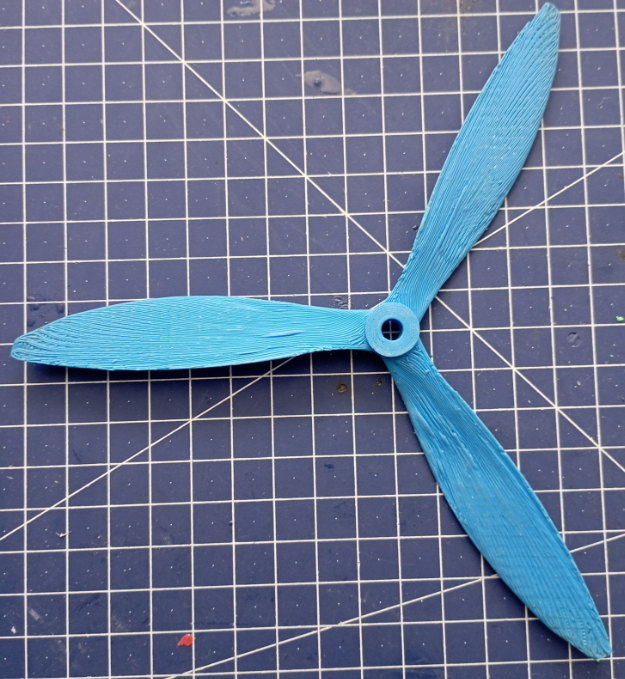

Triple-Blade Propeller – Precision-Tuned Variants
This design is a carefully refined version of the classic 10x5 two-blade propeller, upgraded to a triple-blade configuration for improved thrust balance and smoother operation. The enhanced aerodynamics and optimized angle of attack provide better performance across a range of applications.
Available Variants:
185 mm diameter with +3° angle of attack
185 mm diameter with +2° angle of attack
150 mm diameter with +5° angle of attack
These versions allow you to choose the ideal setup based on your project size and thrust requirements.
Specifications:
Shaft Diameter: 5.5 mm
Propeller Diameters: 185 mm / 150 mm
Blade Count: 3
Print Settings:
-Recommended Infill: 100% for maximum strength
-Use Supports ( i recomend priting it upside down)
-Material Compatibility: Suitable for PLA, PETG, and other common 3D printing filaments
Applications:
RC airplanes
Drones and other propeller-driven projects
Educational, engineering, and hobby applications
Post-Processing Recommendation:
For best results, we recommend sanding the surface of the propeller after printing. A smoother finish reduces drag during rotating, improves balance, and enhances overall efficiency and performance.
