FAAC Gate Magnet Mount
Zamów wydruk tego modelu
Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.
Zapisane na tym urządzeniu.
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Other House Equipment
- Licencja
- Creative Commons — Attribution — Noncommercial
Material & Filament Recommendations
PETG for outdoor durability and slight flexibility
ABS for superior heat and UV resistance
Mid-Print Pauses & Nut Insertion

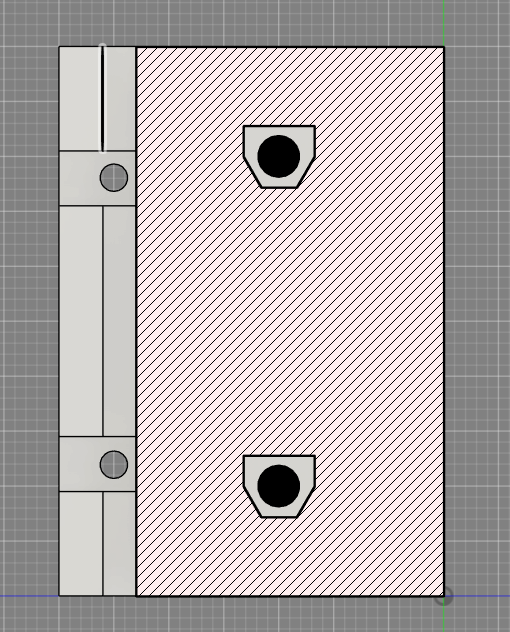

Slice the model with pause commands at the two nut-pocket layers
When the first pause triggers, drop a standard M5 nut into the embedded pocket and resume printing.
Repeat for the second pocket to fully encapsulate both nuts.
Verify nuts are captive and flush before finalizing the print.
Assembly & Installation
Align bracket on the gate’s mounting post at the sensor’s trigger point.
Secure with M5 screws (holes pre-patterned for standard hardware).
Slide the magnet into its slot and cycle the gate to confirm reliable activation.
