Parameteric Door Bezel / fitting (OpenSCAD Model)

Zamów wydruk tego modelu

Obliczymy ostateczną cenę na podstawie wybranego pliku. Sprawdzisz ją i zaakceptujesz przed płatnością.

Zapisane na tym urządzeniu.

Informacje o modelu

Źródło
Printables
Licencja
GNU General Public License v3.0

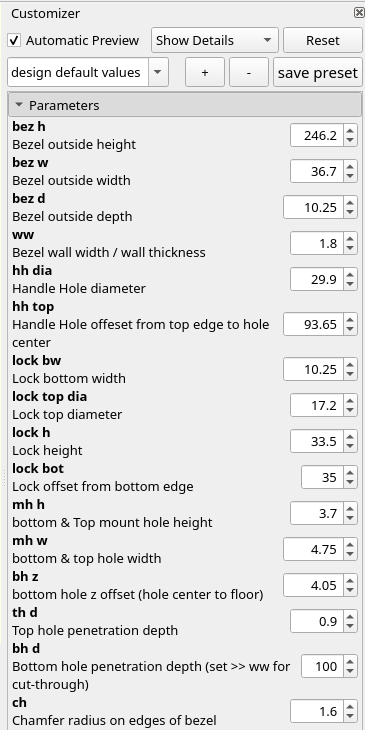

I needed a base to mount my future DIY door lock, so I started with a replacement bezel to not break the original one. Like most of my models, this one's a fully parametric OpenSCAD model. All parameters are described in the OpenSCAD customizer when you load the model:

I've also added an example rendering (STL) so you can preview it here.

Before you print this, I recommend to measure the dimensions in the slicer and take your printer's quirks into account. Mine, for example, will always add 0.1mm to any perimeter, so I've added 0.2mm to the outside dimensions.
