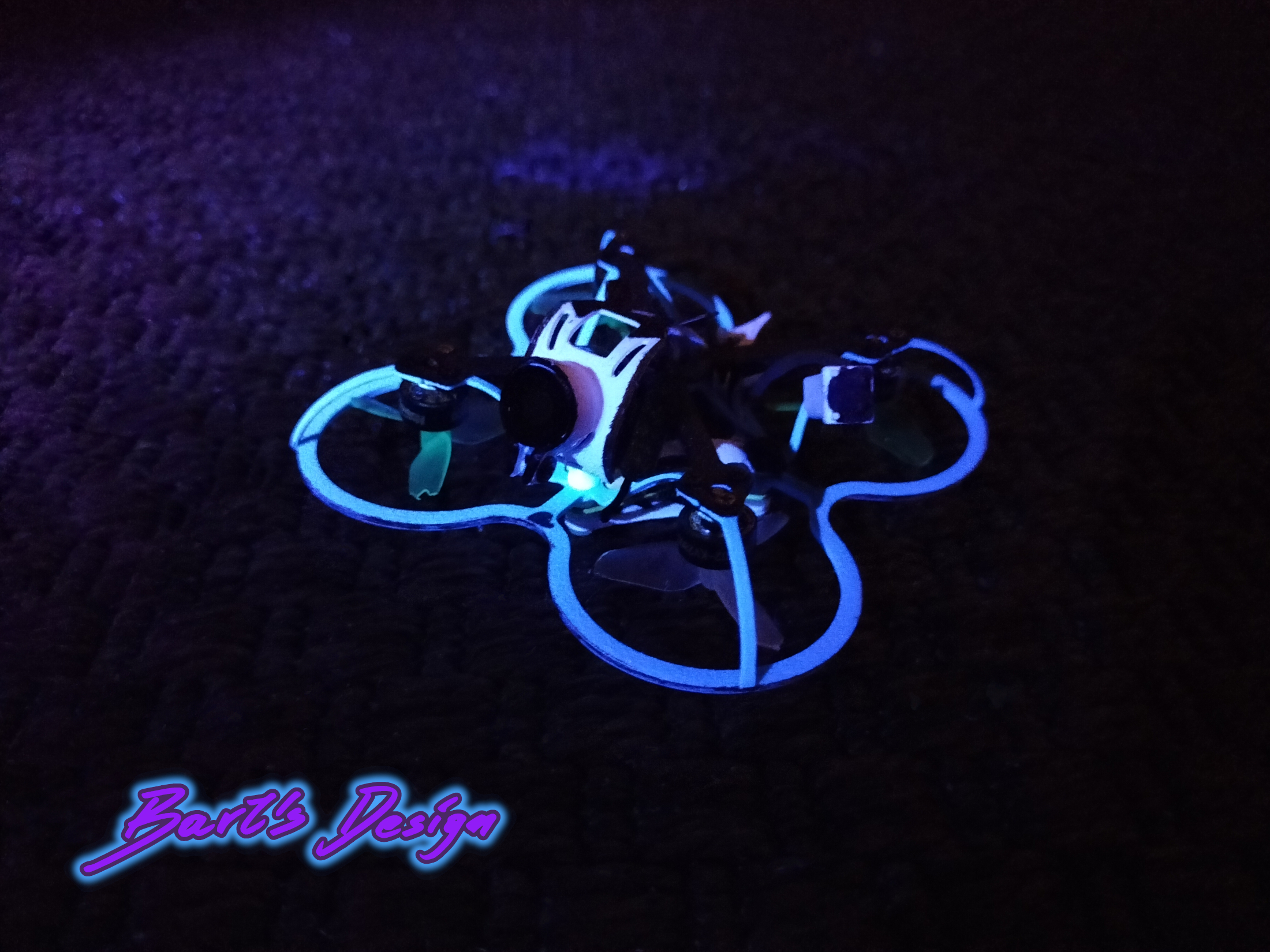

BD2 "Mantis" - Open source FPV tinywhoop drone

Mantis repo

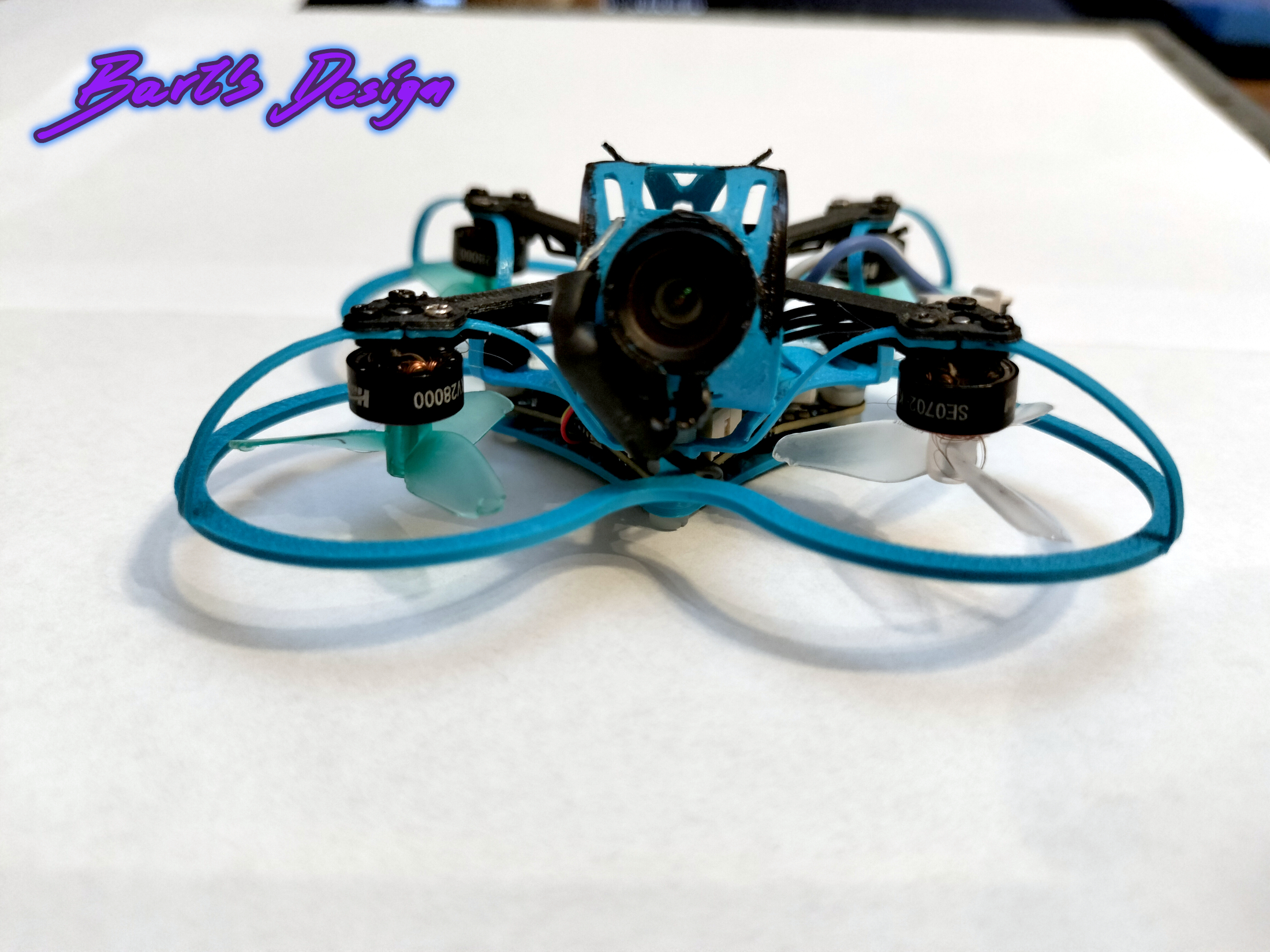

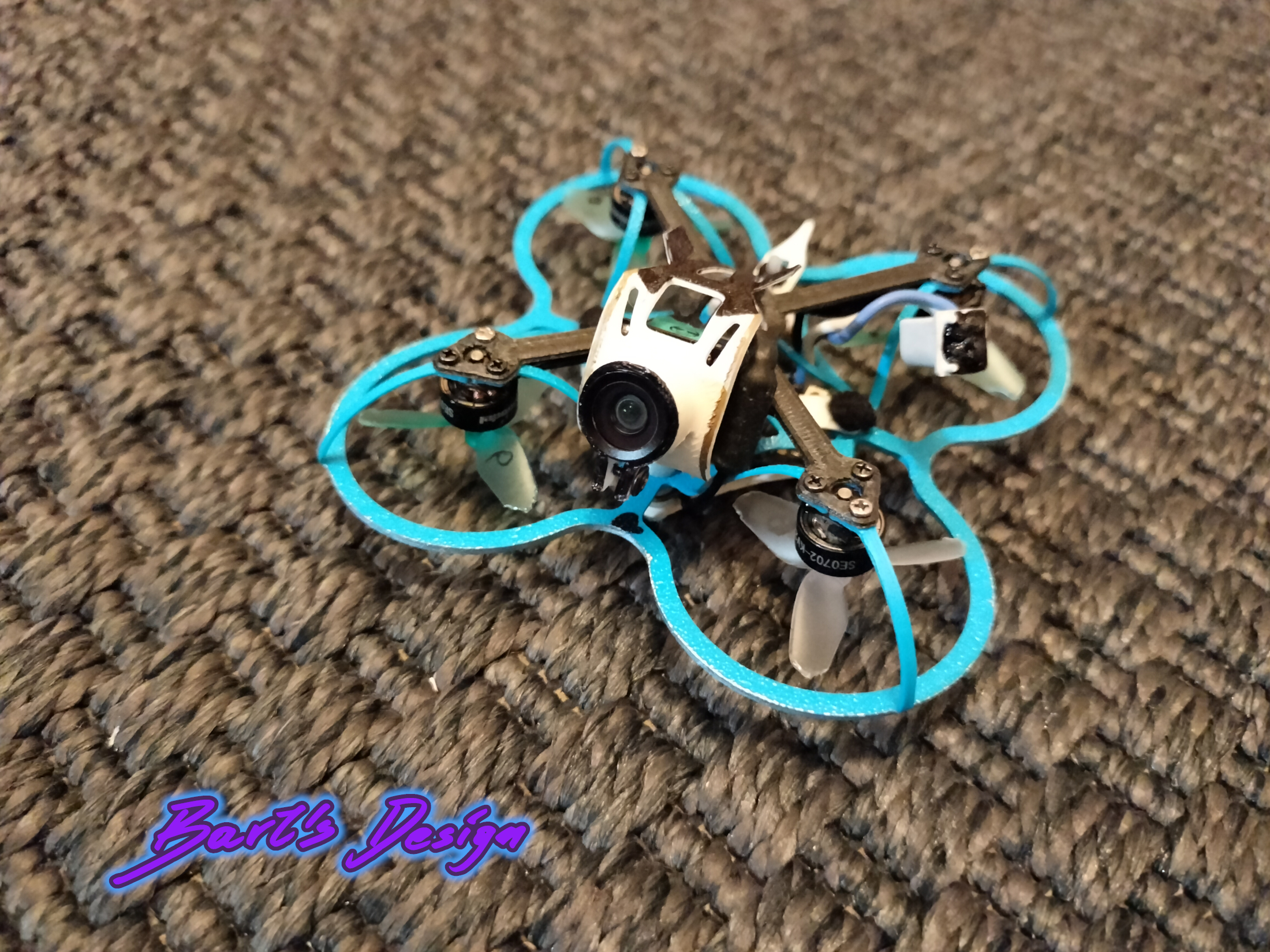

"Mantis" is 1,2" printable freestyle/racing 1S tinywhoop

watch out!

I'm updating this project often here, for best and actual files please visit my repo. There you can find most actual description and files:
https://github.com/bartoszp1992/mantisDrone

3D printing

• frame : PA12

• canopy : PA12

• FC cover : PA12

• motor base : PC-CF / PETG-CF

• tail support : TPU

• sleeve(optional) : any

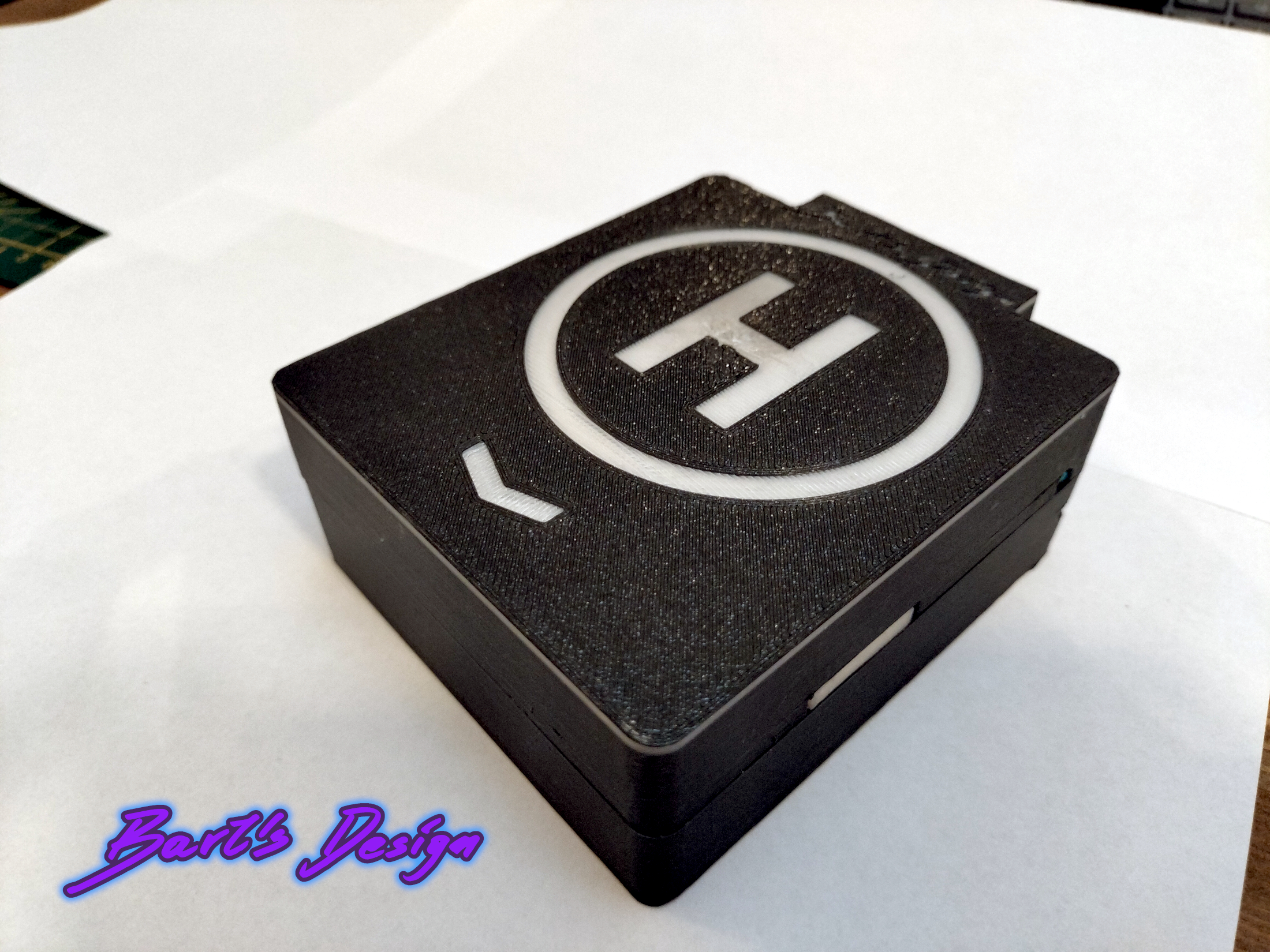

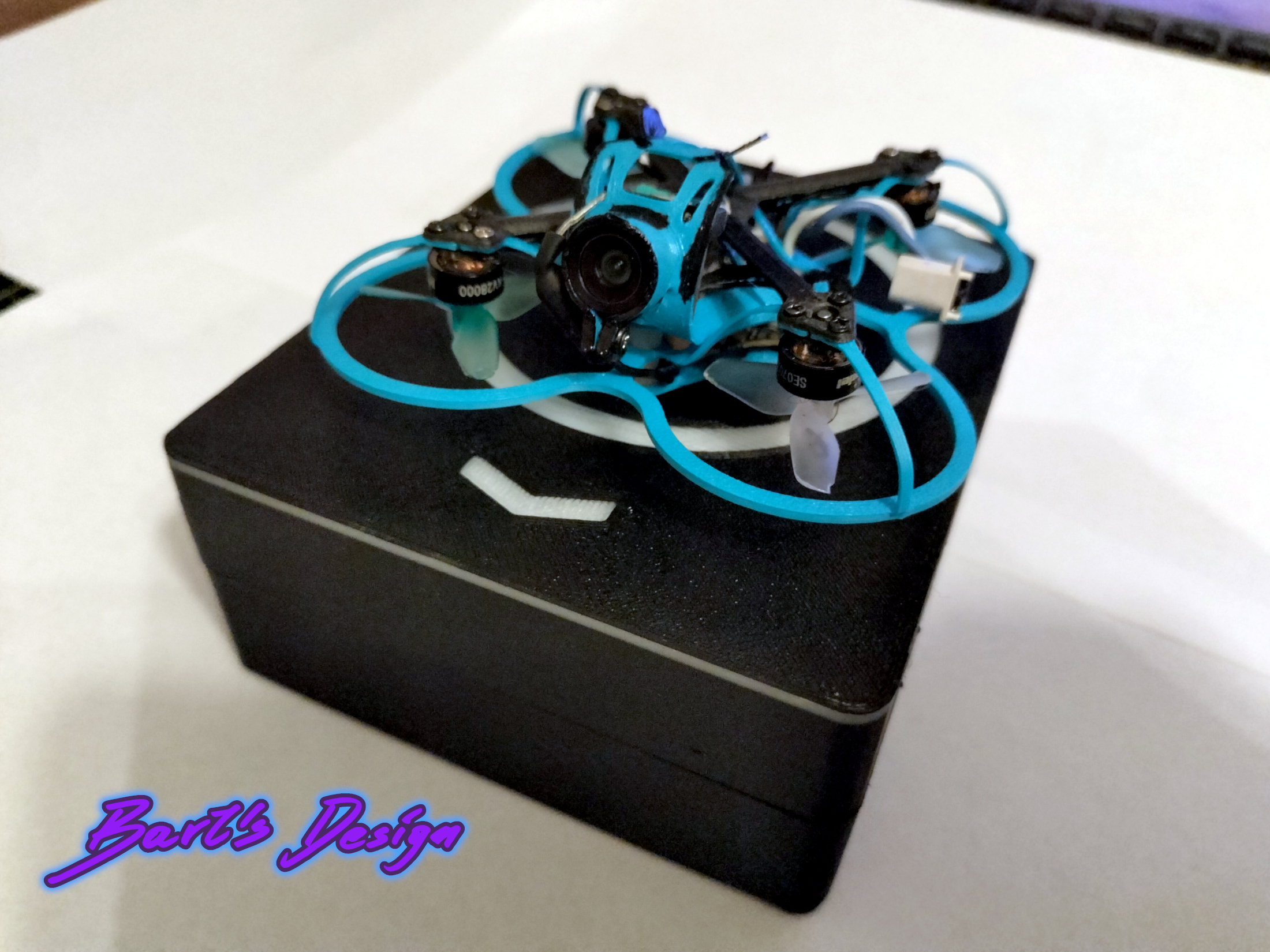

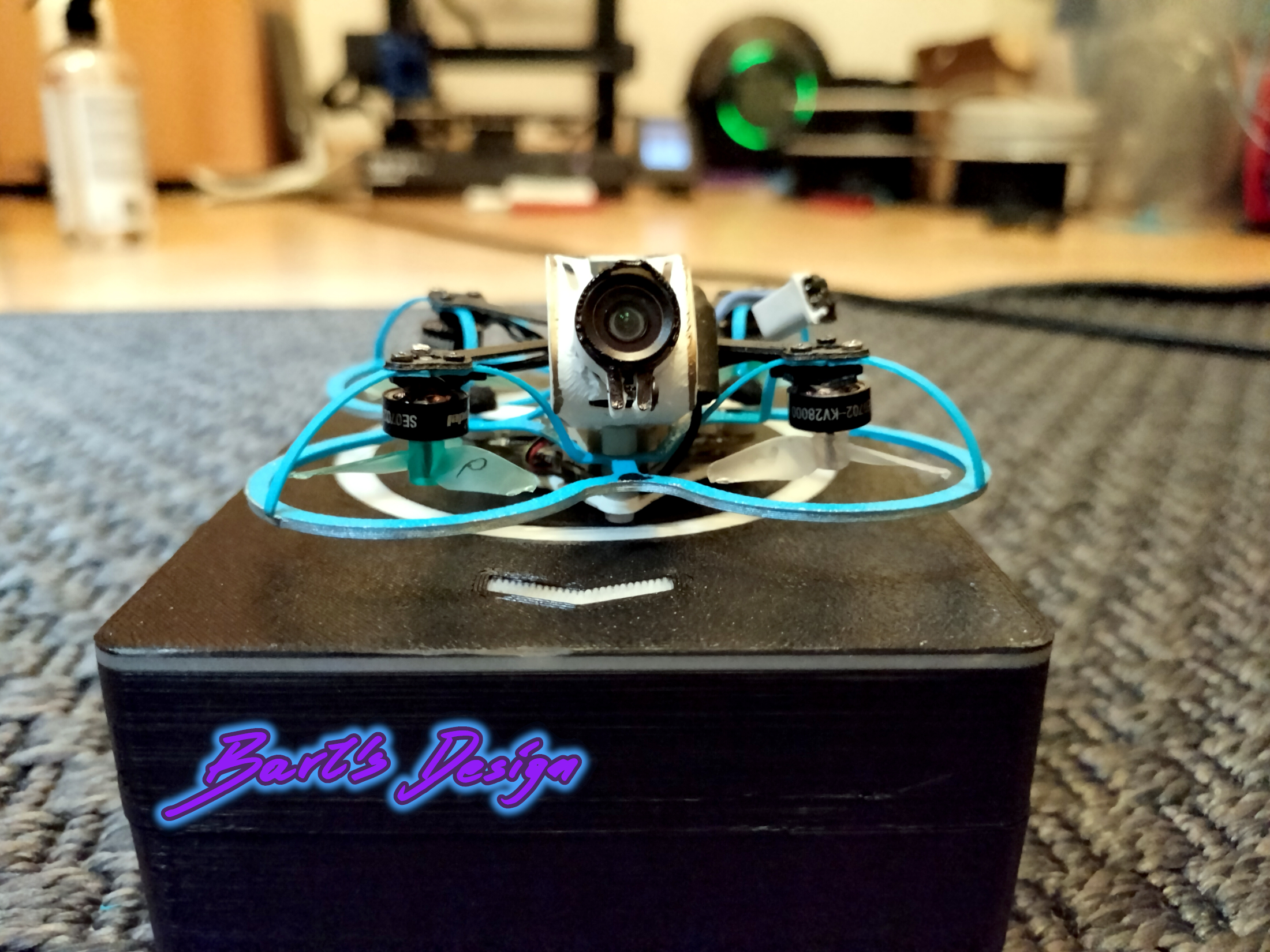

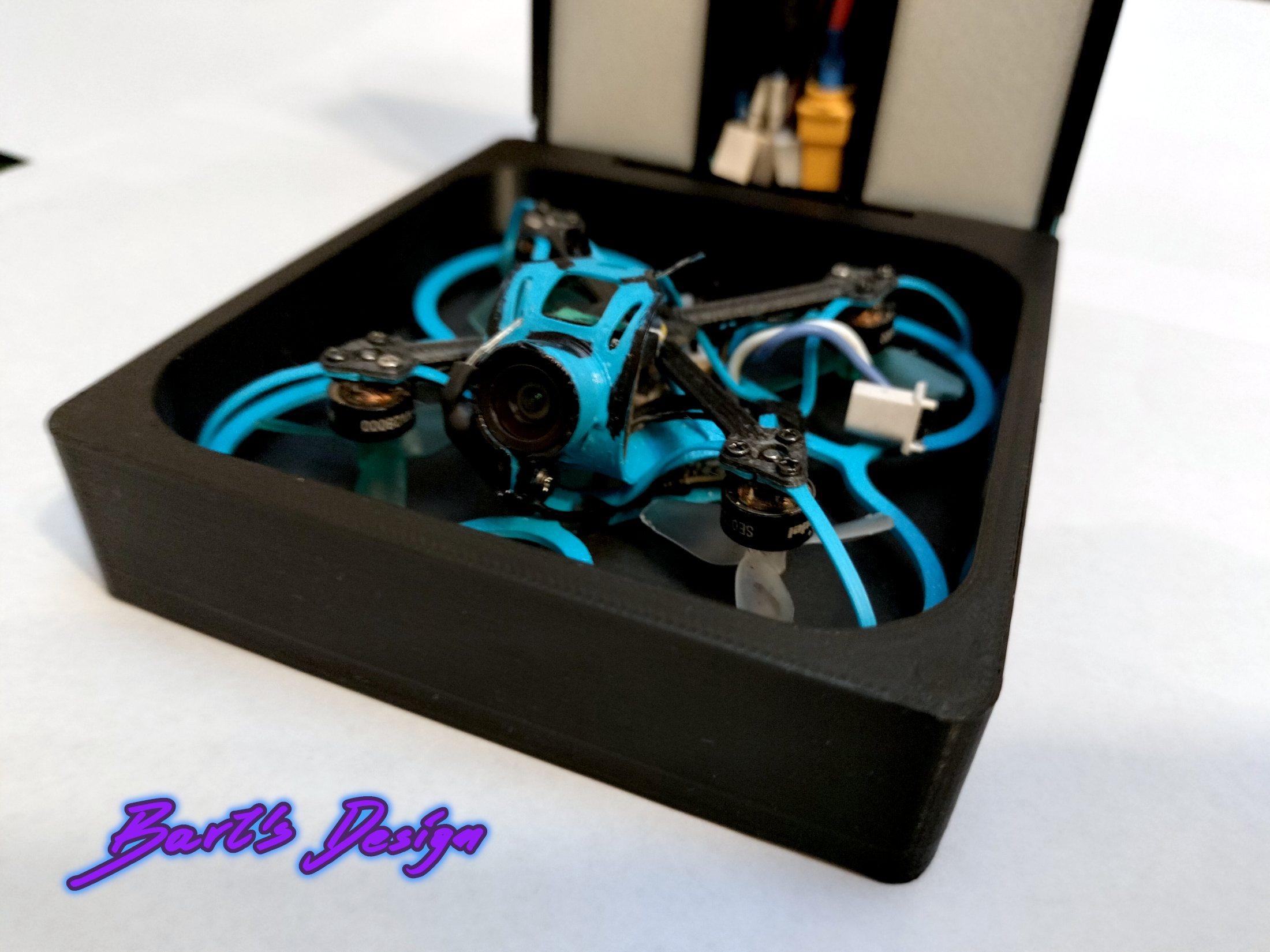

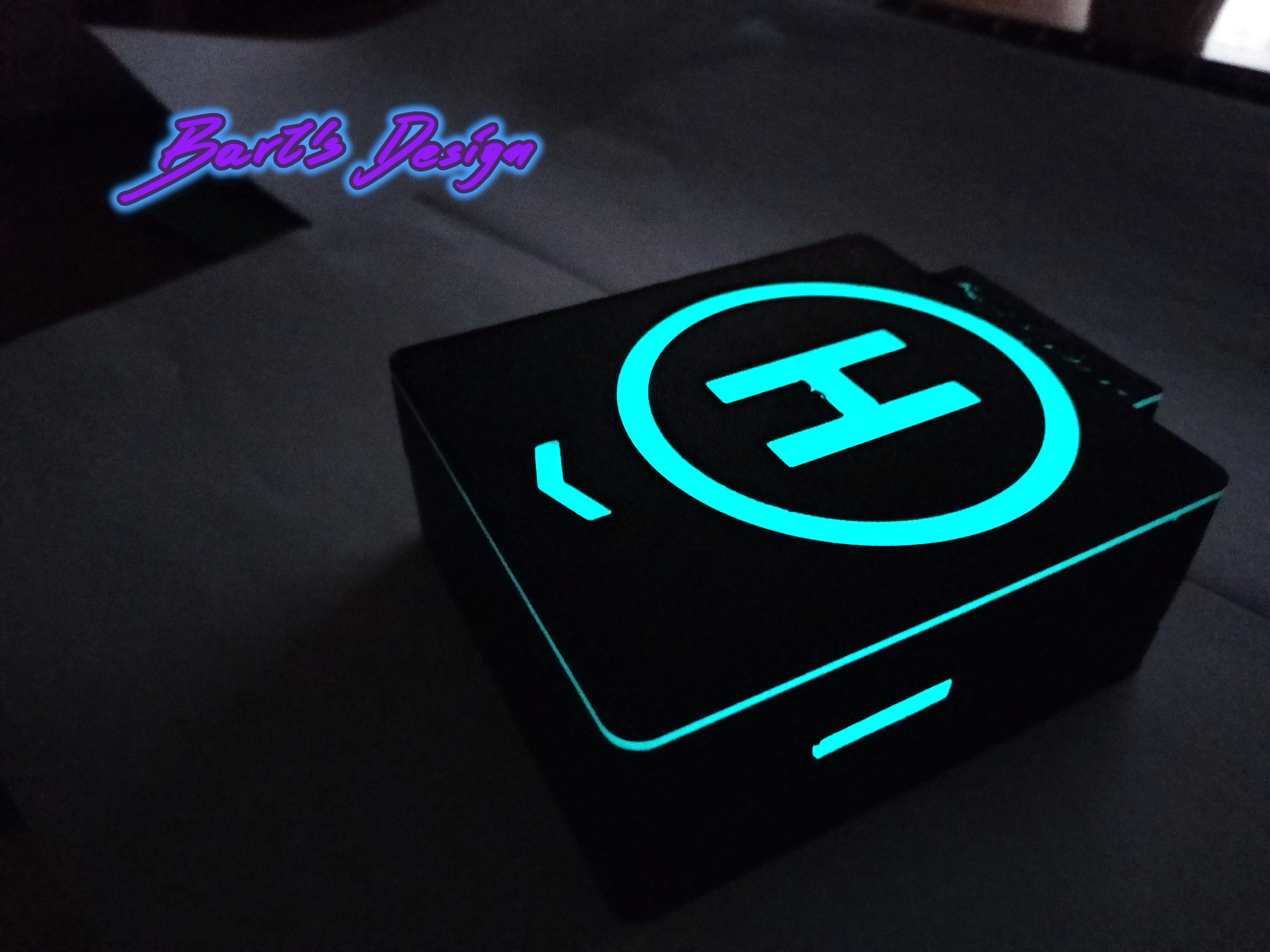

• box elements: any, except ring: TPU

note: you have to pause printing box, for insert 5x2 magnets.

BOM

mechanical

• motor base : printed mantis motor base or NEWBEEDRONE Cockroach V3 Carbon Fiber Motor Base

• frame : printed mantis frame or NEWBEEDRONE Cockroach V3 65mm Ultra Light Frame PC/PP- order at least 1 spare

• propellers : HQ 31mm Ultralight 3-Blade Propellers (1.0mm Shaft)

• PA screws (only for printed frame) : 4x PA M2x15 screws

• PA nuts (only for printed frame) : 4x PA M2 nuts

electronic

• FC : BETAFPV Matrix 1S Brushless Flight Controller (5IN1)

• motors : HAPPYMODEL SE0702 KV28000- make sure to order at least 1 spare

• camera : CADDXFPV ant lite / BETAFPV C03

• batteries : BETAFPV LAVA 1S 260mAh 3.8V HV 80C BT2.0 (x5) - at least one set

• charger : BETAFPV 6 Ports 1S Battery Charger (optionally with adapter)

• cable : USB-C cable for communication

control

• controller : Jumper Bumblebee, or any other with ELRS and edgeTX

• batteries : 2x 18650 any branded Li-Ion cells for controller supply

• goggle : BETAFPV VR03 or any other analog goggles

• memory : 32G SDcard if you want to record your flights

software

• FC config : betaflight configurator

• radio config : ExpressLRS Configurator
