A DIY automotive toe alignment tool. *not a substitute for a proper alignment
- Ocena
- 0 / 5
- Polubienia
- 43
- Pobrania
- 174
- Wydruki
- 0
- Wyświetlenia
- 2076
- Oceny
- 0
Aktualizacja u źródła:
Informacje o modelu
- Źródło
- Printables
- Kategoria
- Automotive
- Licencja
- Creative Commons — Attribution — Noncommercial — Share Alike
I did a full suspension overhaul on my project car and needed to get the alignment somewhat close before driving it to the shop. Off the shelf options for toe angle plates cost upwards of $100, so I sketched up my own.
Fairly large print, but you can split the body and plastic weld together(i cut at 200mm from each side, leaving the longer center)
Requires 2 tape measures to use properly. Bubble level also recommended to ensure wheel angles are measured evenly.

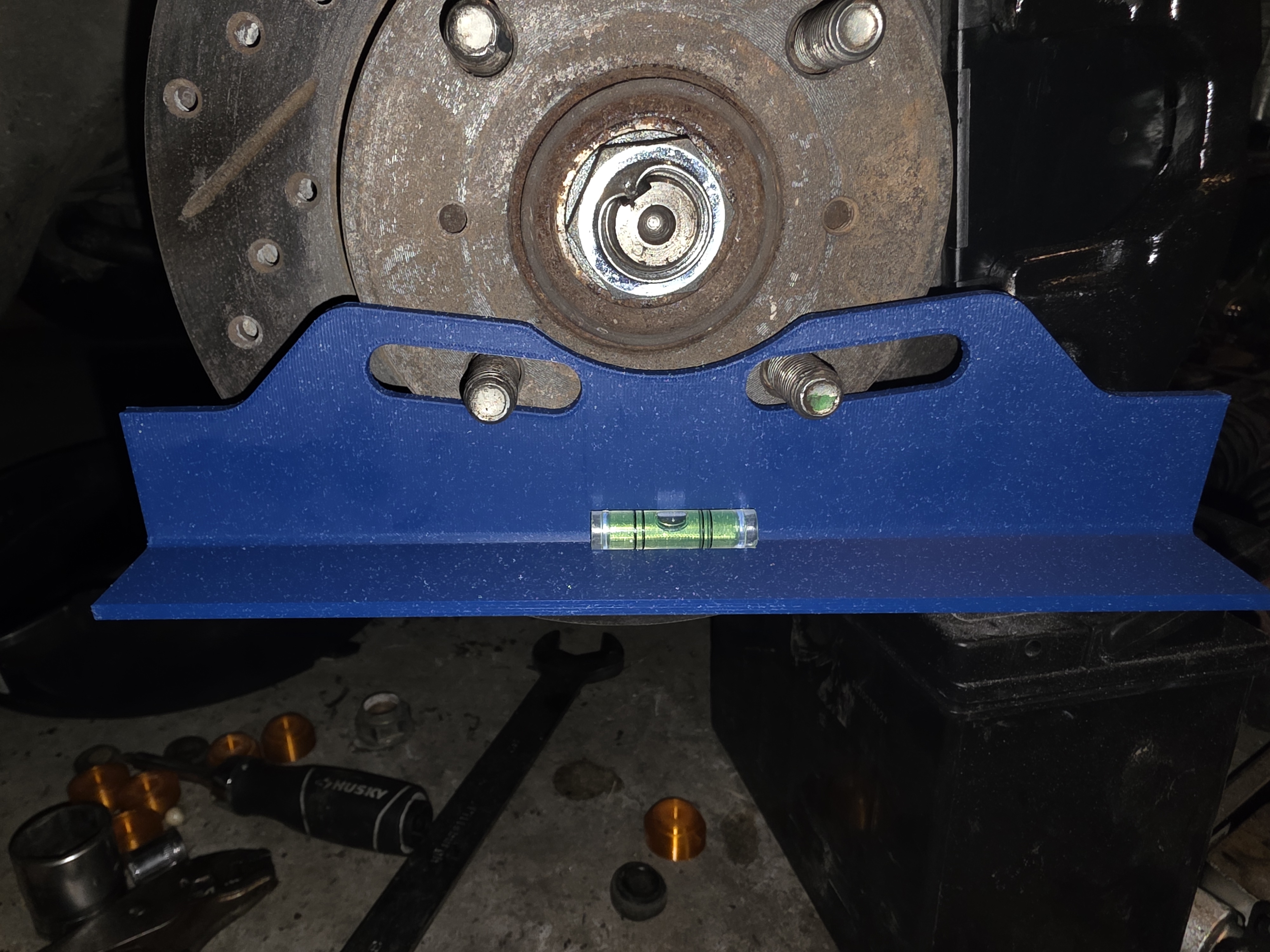

Confirmed fitment on 4x100, but should fit others as well. Can also add spacers fairly easy to drop to clear subframe if needed.
