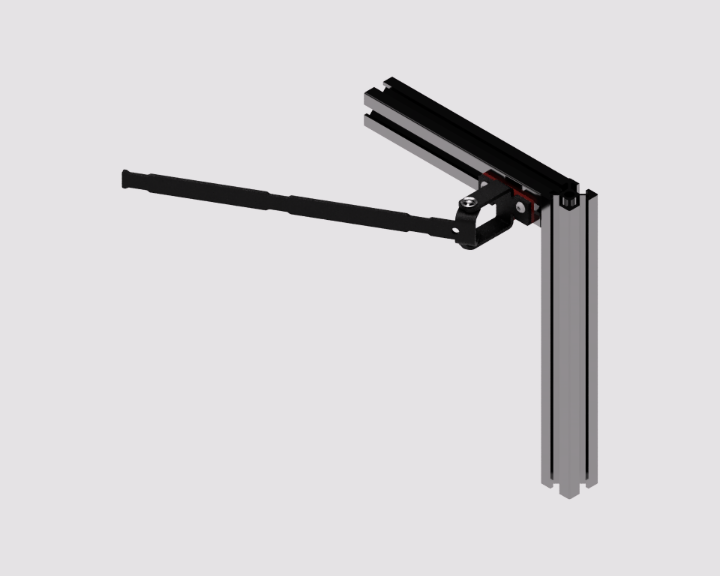

A hinged metal arm for 3D printers, simplifying cable management with durability and easy maintenance in mind.
Based on the open-source PRUSA SwingArm, this short, hinged metal arm guides a sleeved cable bundle (or a USB/CAN cable). The arm’s length and movement are chosen to minimize strain on the cables. Mounting or replacing the cables is a breeze – you simply remove a couple of velcro fasteners or zip ties and that’s it. It’s lightweight, space-efficient, and doesn’t cause any additional resistance.
The changes to the Prusa design are minimal and were done to allow mounting the SwingArm to a 2020 aluminum extrusion and address manufacturing requirements from SendCutSend.
Kit Vendors
Hardware kits for the swingarm are available from the following vendors:
Region | Notes |
|---|---|
US & CA | West3D is offering hardware kits in their shop. |
BOM / Self-Sourcing
SwingArm
Part | Amount | Source |
Sheet Metal Mount | 1 | SendCutSend |
Sheet Metal SwingArm | 1 | SendCutSend |
3x30mm Dowel Pin | 1 | |
M3 Nylon Washer | 2 | |
Starlock Washer | 2 |
SendCutSend Production Settings
Method: Sheet Cutting
Material: 5052 H3 Aluminum, 2mm thickness (0.080")
Services: Bending (2 Bends). Ignore the "Deformed Geometry" warning on the arm.
Finishing: Powder Coating, Matte Black
Mounting Hardware
Part | Amount | Notes |
M3x8mm BHCS | 2 |
|
M3 Roll-In Nut | 2 |
|
Extrusion Protector | 1 | Optional. Print with standard VORON settings |
Assembly

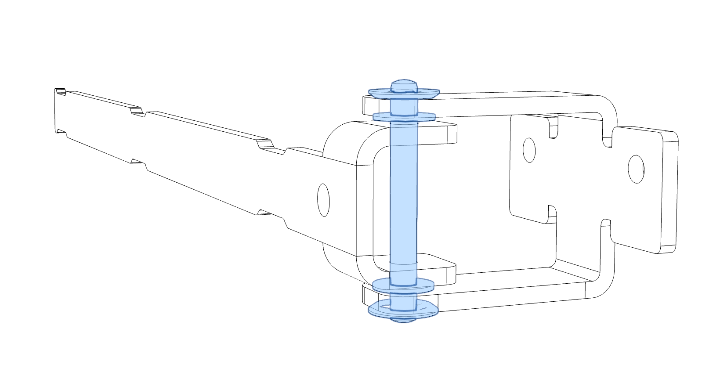

Insert the washer between the metal surfaces of the arm and the mount. Install the dowel pin and lock it in place with the Starlock washers.
Installation
Insert the two roll-in T-Nuts into the top rear horizontal extrusion
Use the M3x8 BHCS screws to attach the SwingArm to the extrusion using the roll-in nuts. The usage of the extrusion protector is optional but recommended.
